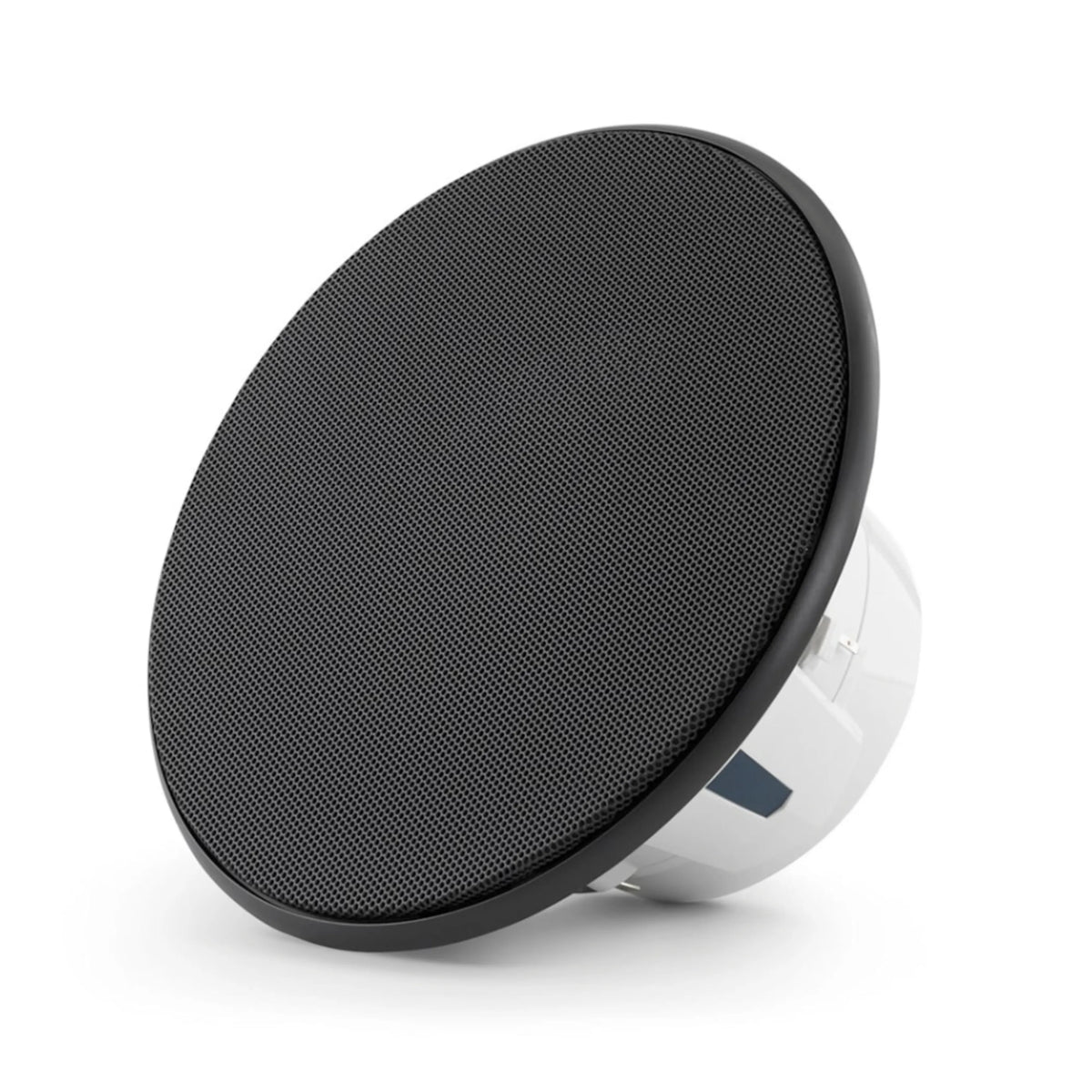

JL Audio JLA-010-03866-00 M6 Marine Speakers - 7.7" with Black Luxe Grille (Single)

JL Audio JLA-010-03866-00 M6 Marine Speakers - 7.7" with Black Luxe Grille (Single)

Premium marine coaxial speaker engineered for exceptional in-boat audio performance, featuring sophisticated black luxe styling with low-profile design and extended bass response.

Product Overview

The JL Audio M6 7.7" Marine Speaker with Black Luxe Grille combines premium marine-grade components with sophisticated aesthetics for superior audio performance on the water. The Luxe series features a satin black grille with ultra-low profile design that provides elegant styling while maintaining robust protection. This coaxial speaker delivers full-range performance with a 25mm silk dome tweeter and mica-filled polypropylene cone, engineered specifically for the demanding marine environment. The larger 7.7" driver provides enhanced bass response and higher output capability compared to 6.5" models, making it ideal for larger cockpit areas and higher volume applications.

Features & Benefits

• Larger 7.7" Driver: Increased cone area delivers deeper bass extension and higher output capabilities compared to 6.5" models
• Luxe Satin Black Grille: Sophisticated low-profile design with premium finish complements modern boat interiors
• Ultra-Low Profile: Only 10mm frontal grille protrusion minimizes visual impact for seamless integration
• Marine-Grade Construction: Sealed components and UV-resistant materials ensure long-term reliability in harsh saltwater environments
• Larger Silk Dome Tweeter: 25mm (1") tweeter delivers smooth high-frequency response with wide dispersion
• Mica-Filled Polypropylene Cone: Injection-molded cone provides excellent stiffness-to-weight ratio for accurate reproduction
• Extended Frequency Response: 45 Hz - 25 kHz range ensures full-spectrum audio with deep bass and extended highs
• High Power Handling: 100W RMS continuous power handling with 200W peak capability
• High Sensitivity: 91 dB efficiency delivers loud output with moderate amplifier power
• Spade Connector Terminals: Professional-grade connections ensure reliable signal transfer
• Sealed Motor Structure: Prevents water intrusion and corrosion in critical voice coil components
• Stainless Steel Mounting Hardware: Marine-grade screws and washers resist corrosion in saltwater environments
• Complete Installation Kit: Includes mounting template, hardware, and grille removal tool for professional installation

Technical Specs

Compatible With / Goes Well With

Essential Amplifiers:

• JL Audio MVi Marine Amplifiers (purpose-built for M6 systems)
• JL Audio MHD Marine Amplifiers (high-output power delivery)
• JL Audio XDM Car and Marine Amplifiers (versatile installation options)

Source Units:

• Fusion Apollo MS-RA800 Marine Stereo (Bluetooth streaming and premium audio control)
• JL Audio MediaMaster marine source units (seamless system integration)

System Building:

• JL Audio M6 Marine Subwoofers (deep bass extension)
• JL Audio M6 Marine Thin-Line Subwoofers (space-saving bass solutions)
• JL Audio M7 Marine Subwoofers (maximum output capability)
• JL Audio M6 Enclosed Tower Speakers (complete marine audio system)

Installation Accessories:

• Marine-grade speaker wire (14AWG or 16AWG recommended)
• Mounting template (included)
• Grille removal tool (included with Luxe models)
• Stainless steel mounting screws and washers (included)

Frequently Asked Questions

Q: What amplifier power is recommended for the M6 7.7" marine speakers?
A: These speakers perform optimally with 40-200 watts RMS per channel. For single speaker installations, 75-100 watts RMS provides excellent performance, while higher power levels deliver maximum output capability for demanding applications.

Q: What's the advantage of the 7.7" size over the 6.5" M6 speakers?
A: The 7.7" model provides deeper bass extension (down to 45 Hz vs 55 Hz), higher power handling (100W vs 75W RMS), increased sensitivity (91 dB vs 89.5 dB), and a larger 1" tweeter for enhanced output. This translates to fuller sound with more impact across larger listening areas.

Q: What's the difference between Luxe grilles and Classic/Sport grilles?
A: Luxe grilles feature an ultra-low 10mm profile with satin finish for sophisticated aesthetics and minimal visual impact. Classic and Sport grilles protrude 26-27mm with more traditional mesh designs. Luxe models include a dedicated grille removal tool for easy servicing.

Q: How much mounting depth do I need behind the panel?
A: The M6 7.7" Luxe requires 108mm (4.26") of clearance behind the mounting surface. Always verify clearance before cutting mounting holes, as obstructions like fuel tanks or structural members may interfere with installation.

Q: Is this speaker sold individually or as a pair?
A: This model (JLA-010-03866-00) is sold as a single speaker. It includes one speaker, one grille, six mounting screws, six washers, grille removal tool, and mounting template. Pair models are available separately with double the contents.
