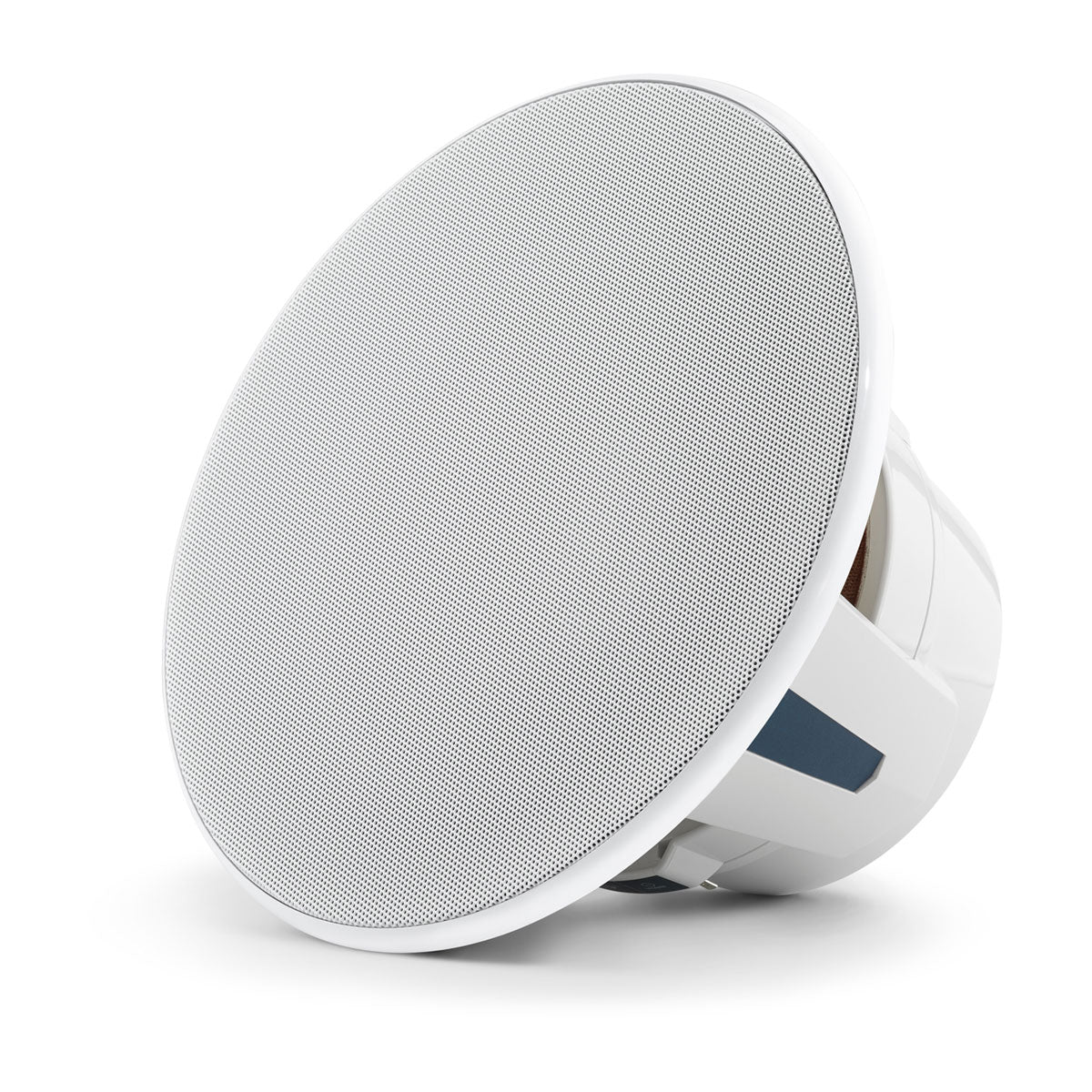

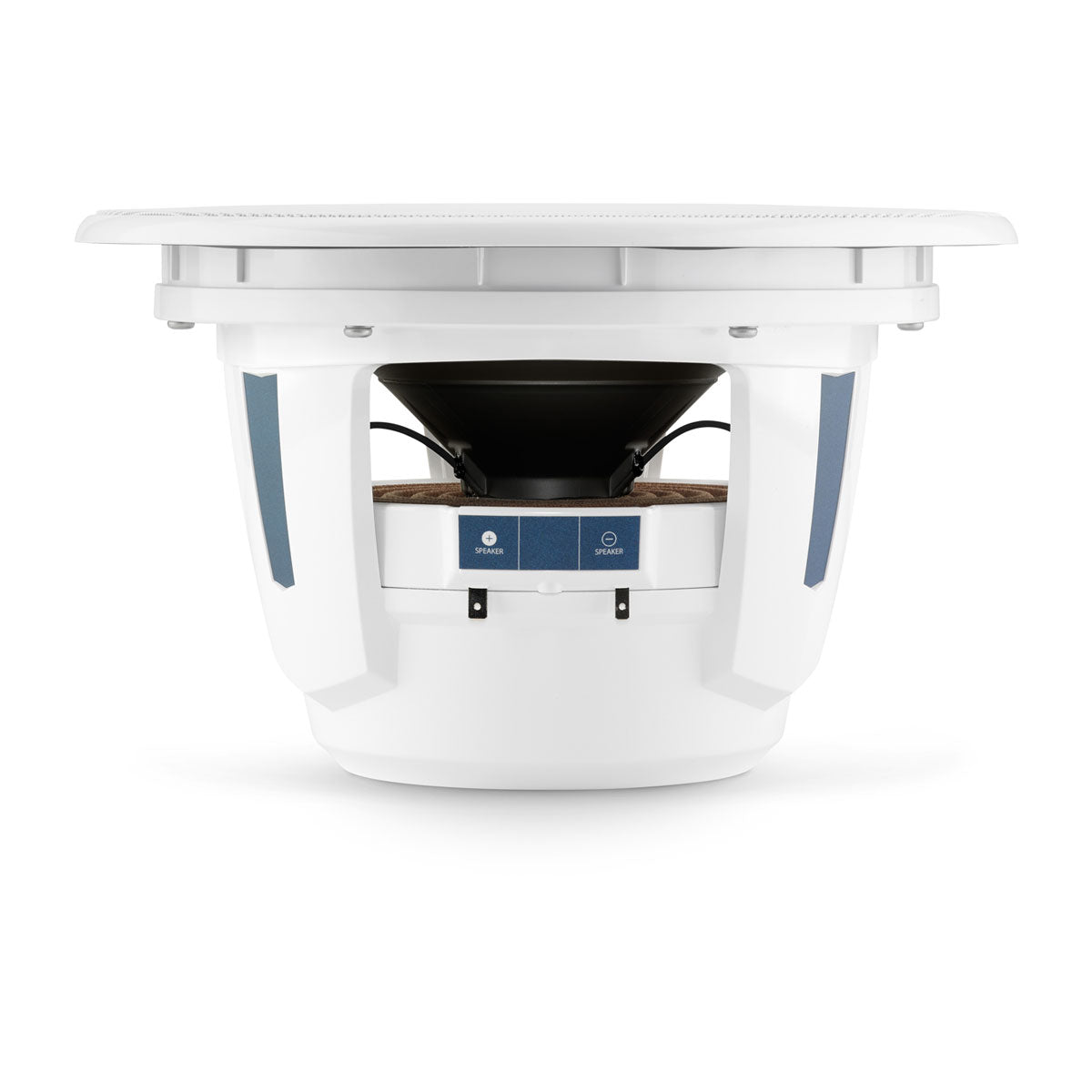

JL Audio JLA-010-03916-00 M6 10" Marine Subwoofer - White Luxe Grille

JL Audio JLA-010-03916-00 M6 10" Marine Subwoofer - White Luxe Grille

Premium marine bass reproduction with ultra-low-profile luxury design — M6 Luxe 10" subwoofer delivers extreme low-frequency output with sophisticated near-flush aesthetics for Australian offshore conditions.

Product Overview

The JL Audio M6 10" marine subwoofer with white luxe grille delivers reference-grade bass reproduction with ultra-low-profile premium design in a corrosion-resistant package for infinite baffle or enclosed installations. Engineered with injection-moulded mica-filled polypropylene cone and 13mm linear excursion capability, this marine subwoofer handles 250W RMS continuous power with dual sensitivity ratings (86.1 dB for infinite baffle, 86.4 dB for enclosed configurations). The white luxe grille with only 14mm frontal protrusion delivers sophisticated near-flush mounting aesthetics ideal for premium yacht interiors and luxury vessel installations where traditional subwoofer profiles compromise design integrity while providing extreme bass extension and high output capability for demanding marine audio systems.

Features & Benefits

Ultra-Low-Profile Luxe Grille Design: Premium white luxe finish with only 14mm frontal protrusion (vs 42mm for Classic/Sport models) provides sophisticated near-flush mounting aesthetics ideal for premium yacht interiors, luxury cruiser installations, and high-end vessel applications where traditional subwoofer profiles compromise design integrity and premium aesthetic requirements.

Dual-Configuration Versatility: Engineered for both infinite baffle (free-air) and enclosed (sealed/ported box) installations with optimized Thiele-Small parameters (IB: Qts 0.840, W: Qts 0.496), enabling flexible mounting options including under-seat locations, bulkhead installations, or custom enclosures matching available space constraints in diverse vessel configurations.

250W RMS Power Handling: Robust thermal management and heavy-duty voice coil construction supports continuous 250W power with recommended amplifier range of 75-250W, enabling extreme bass output levels critical for large vessels, outdoor marine environments, and competition-grade installations requiring chest-thumping low-frequency impact.

13mm Linear Excursion: Generous Xmax specification (13mm one-way) provides exceptional cone travel capability enabling high output levels without distortion, critical for reproducing deep bass frequencies in demanding marine environments where wind, engine noise, and water splash require substantial acoustic output for clarity.

Mica-Filled Polypropylene Cone: Advanced injection-moulded cone material delivers exceptional rigidity, controlled damping characteristics, and superior moisture resistance compared to paper or treated fabric cones, ensuring consistent bass performance in high-humidity marine environments with temperature fluctuations and continuous vibration exposure.

Marine-Grade Corrosion Protection: Fully marinized construction with UV-resistant materials, sealed motor structures, and corrosion-resistant hardware provides reliable long-term performance in harsh saltwater environments including coastal cruising, offshore fishing, and tropical marine conditions with sustained exposure to spray and humidity.

Optimized Enclosure Specifications: Factory-engineered sealed and ported enclosure recommendations eliminate guesswork, with IB sealed configuration (70.8L, F3: 41.54 Hz) for maximum output or W sealed configuration (21.2L, F3: 50.08 Hz) for space-constrained installations, plus ported options achieving F3 down to 25.09 Hz for extreme bass extension.

Low-Frequency Extension: Dual sensitivity ratings (86.1 dB IB, 86.4 dB W) and optimized parameters enable bass reproduction down to 25-31 Hz in ported configurations or 41-50 Hz in sealed enclosures, providing deep sub-bass impact approaching dedicated home theater subwoofer performance in marine environments.

Included Grille Removal Tool: Luxe models include dedicated grille removal tool enabling clean grille extraction for maintenance or aesthetic preference changes without damaging premium finish or mounting surfaces, essential for maintaining luxury appearance standards during service intervals.

4-Ohm Nominal Impedance: Standard impedance rating ensures broad compatibility with marine amplifiers and multi-subwoofer configurations while maintaining stable load characteristics during extended operation in varying temperature conditions and demanding marine environments.

Technical Specs

Compatible With / Goes Well With

• JL Audio M6 marine speakers (6.5", 7.7", 8.8")
• JL Audio M6 enclosed tower speakers
• JL Audio MHD marine amplifiers
• JL Audio MVi marine amplifiers
• JL Audio MX marine and powersports amplifiers
• JL Audio XDM car and marine amplifiers
• JL Audio VeX enclosed systems
• Fusion Apollo MS-RA800 marine stereo
• Premium yachts with 268mm subwoofer cutouts
• Luxury cruiser installations requiring near-flush mounting
• High-end helm station integrations
• Superyacht interior applications
• Custom yacht audio systems with architectural integration
• Luxury vessel refits requiring sophisticated aesthetics

Caution: Verify mounting depth clearance (177mm minimum) and mounting hole diameter (268mm) before installation. Luxe models require SIGNIFICANTLY LARGER cutouts than standard Classic/Sport subwoofers (268mm vs 225mm). Luxe 10" models also require MORE depth clearance (177mm vs 150mm). Subwoofer requires dedicated amplifier power—do NOT connect to head unit speaker outputs. Luxe models do not feature LED lighting. Infinite baffle installations require adequate backside volume. Enclosed installations require properly constructed sealed or ported enclosures matching JL Audio specifications.

Frequently Asked Questions

Does this subwoofer come as a pair or individually?

This is sold as a SINGLE subwoofer for flexible installation configurations. Marine subwoofers are typically sold individually as many installations use one centrally-located unit. Order multiple units for dual-subwoofer configurations in larger vessels or high-output systems.

Will this Luxe subwoofer fit standard 10" marine subwoofer cutouts?

No, Luxe models require 268mm mounting holes compared to 225mm for standard Classic/Sport 10" models. You'll need significantly larger cutouts specifically designed for Luxe series subwoofers. This is the largest cutout requirement in the entire M6 subwoofer line.

What's the advantage of Luxe models over Classic/Sport subwoofers?

Luxe series features ultra-low-profile grille with only 14mm protrusion (vs 42mm for Classic/Sport), providing near-flush mounting appearance ideal for premium yacht interiors and luxury vessel installations requiring sophisticated aesthetic integration. The trade-off is significantly larger cutout requirements and no LED lighting option.

What size enclosure is required for this subwoofer?

For sealed enclosures: IB configuration requires 70.8L net internal volume, W configuration requires 21.2L. For ported enclosures: IB requires 70.8L with 102mm diameter port (305mm length), W requires 56.6L with 76mm port (283mm length). See complete specifications in documentation.

What's the difference between infinite baffle and enclosed configurations?

Infinite baffle (free-air) mounts the subwoofer directly to a bulkhead or panel without an enclosure, requiring adequate backside airspace. Enclosed configurations use sealed or ported boxes with specific internal volumes. IB provides simpler installation, while enclosed offers deeper bass extension and more control over response characteristics.
