JL Audio JLA-010-03856-00 M6 Enclosed Tower Speakers

JL Audio JLA-010-03856-00 M6 Enclosed Tower Speakers - 7.7" Marine Coaxial Speakers with White Classic Grille

Premium 7.7-inch enclosed marine tower speaker system with enhanced 100-watt power handling, 25mm silk dome tweeter, and traditional White Classic grille for ultimate wakeboard tower audio performance.

Product Overview

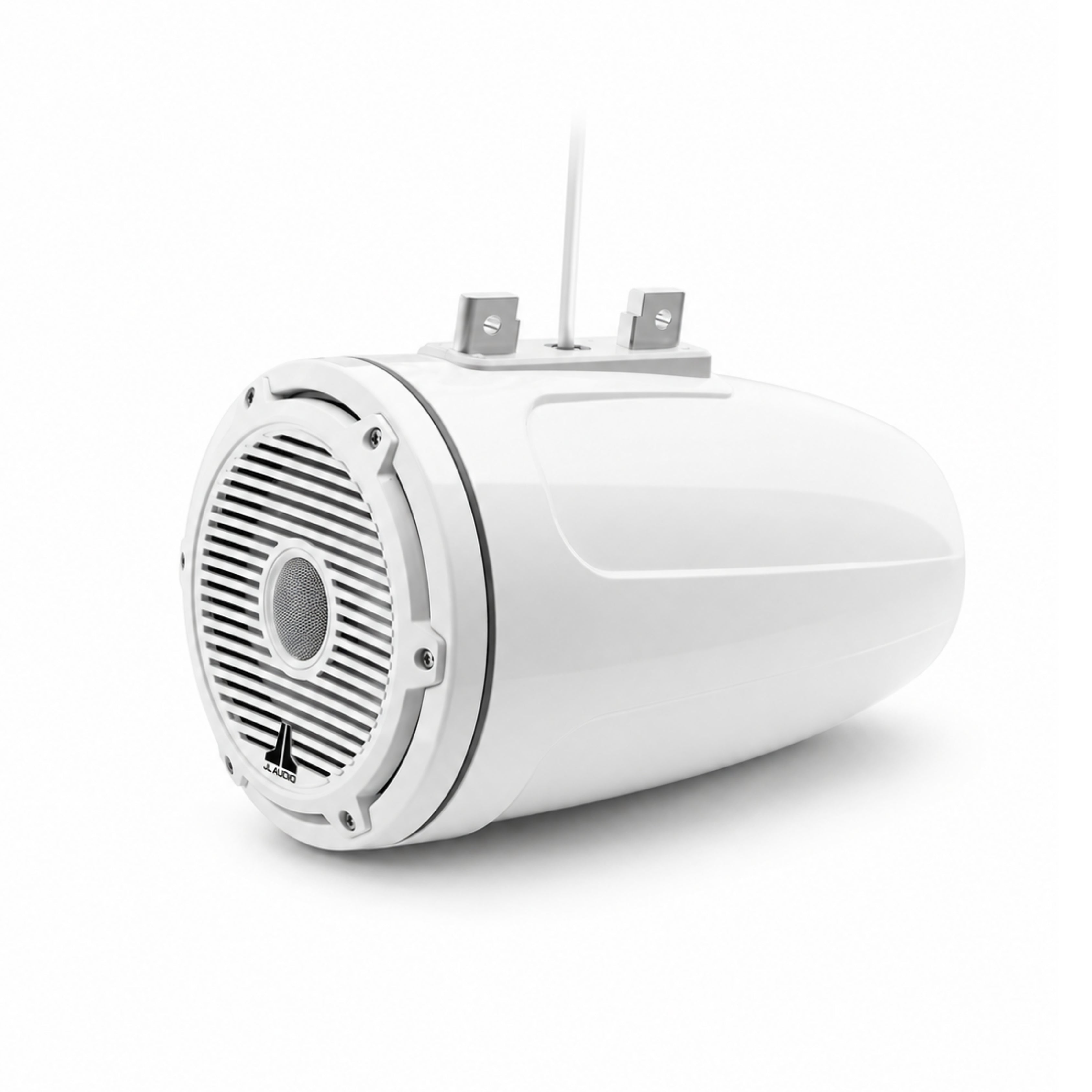

The JL Audio M6 7.7" Enclosed Tower Speakers (JLA-010-03856-00) deliver premium audio performance specifically engineered for demanding wakeboard tower installations on boats. These high-output enclosed coaxial speakers combine exceptional power handling with extended low-frequency response (45 Hz-25 kHz) in acoustically optimized enclosures designed for maximum sound projection across water. The White Classic grille provides timeless traditional marine aesthetics without LED lighting, ideal for installations prioritizing clean appearance or avoiding additional electrical complexity. The sealed enclosure design protects speaker components from water spray, debris, and environmental contamination during aggressive watersports activities. Each system features a mica-filled polypropylene woofer cone that resists UV damage and saltwater corrosion, paired with a premium 1-inch (25mm) silk dome tweeter—significantly larger than the M3's 19mm tweeter—for exceptionally smooth high-frequency reproduction that cuts through wind and water noise with superior clarity. Rated at 100 watts RMS continuous power handling with impressive 91 dB sensitivity, these tower speakers deliver substantial output when powered by 40-200 watts per channel. The complete enclosed design eliminates the need for custom tower speaker fabrication while providing optimal acoustic loading for enhanced bass response compared to free-air tower speakers. Extended 10-foot flying leads with pre-attached speaker wire (16 AWG) simplify installation by providing adequate length for tower-to-amplifier routing. Sold as a pair with aluminum logo caps, silicone adhesive, and butt splice connectors included, these M6 enclosed tower speakers represent the premium tier of JL Audio's tower speaker offerings for boats requiring maximum output, extended bass response, and traditional marine styling without LED complexity.

Features & Benefits

The enclosed design eliminates the need for custom tower speaker pods, mounting brackets, or enclosure fabrication, providing a complete ready-to-install solution that saves installation time and ensures optimal acoustic performance specifically engineered for tower mounting. Acoustically optimized sealed enclosure provides proper rear loading for the 7.7-inch woofer, delivering significantly enhanced bass response (down to 45 Hz) compared to free-air tower speakers where bass output suffers from cancellation, critical for projecting powerful sound across water and wind. Premium 1-inch (25mm) silk dome tweeter—32% larger than M3's 19mm tweeter—delivers exceptionally smooth, detailed high-frequency reproduction with superior dispersion and clarity, maintaining intelligibility even at high volume levels necessary to reach riders behind the boat during watersports. Enhanced 100-watt RMS power handling provides 43% more capacity than M3 models (70W), enabling higher output levels without distortion or thermal compression during demanding playback sessions. Superior 91 dB sensitivity—0.5 dB higher than M3 models—ensures exceptional output efficiency, producing maximum volume levels with less amplifier power, ideal for tower installations where sound must project substantial distances across water. Marine-grade construction features mica-filled polypropylene cone that resists UV degradation from constant tower-mounted sun exposure, saltwater corrosion, and temperature extremes with maximum environmental exposure. Extended frequency response (45 Hz-25 kHz) with deep bass extension matches M3 tower speakers while providing enhanced power handling and tweeter performance for more demanding installations. White Classic grille provides timeless traditional marine aesthetics without LED lighting, ideal for installations prioritizing clean appearance, avoiding additional electrical wiring complexity, matching classic boat styling, or maximizing reliability by eliminating LED electrical systems. Recommended amplifier power range (40-200W RMS) accommodates everything from moderate-power systems to high-output installations for maximum sound projection across water to distant riders. 4-ohm nominal impedance matches standard marine amplifiers for optimal power transfer and compatibility. Extended 10-foot flying leads with pre-attached 16 AWG speaker wire provide adequate length for routing from tower mounting locations down to amplifiers without splicing or extensions, simplifying installation compared to Sport models requiring separate LED wiring. Compact tower mounting profile (7.70" diameter x 12.62" depth) fits most wakeboard tower tube diameters and mounting configurations. Aluminum logo caps add premium metallic branding detail to tower installations. Simplified wiring without LED connections reduces installation complexity and potential failure points in harsh tower-mounted marine environments subject to maximum exposure.

Technical Specifications

Compatible With / Goes Well With

JL Audio Marine Amplifiers: MVi Marine Amplifiers (monoblock and multi-channel models), MHD Marine Amplifiers, XDM Car and Marine Amplifiers for dedicated tower speaker amplification delivering 40-200W per channel

JL Audio Source Units: MediaMaster 55 Stereo (requires external amplification for optimal M6 tower performance), MediaMaster 105 Stereo for multi-zone control with dedicated tower speaker zone

JL Audio Marine Subwoofers: M6 Marine Subwoofer, M6 Marine Thin-Line Subwoofer, M7 Marine Subwoofer models for dedicated bass reproduction complementing M6 tower speaker full-range performance

System Integration: Fusion Apollo MS-RA800 marine stereo for alternative source unit, tower speaker amplifiers for dedicated zone control

Tower Applications: Wakeboard tower mounting on ski boats, wake boats, tournament ski boats, performance boats with towers, pontoon boats with tower structures, any vessel with tower requiring maximum audio projection with traditional marine styling

Installation Requirements: Wakeboard tower with suitable mounting points (typically 2-2.5" diameter tubes), amplification providing 40-200W RMS per channel for optimal performance, tower mounting clamps or brackets (may be required depending on tower configuration), cable routing from tower to amplifier location

Frequently Asked Questions

How does the M6 7.7" compare to the M3 7.7" tower speakers? The M6 offers significant performance advantages: 100W RMS power handling (43% more than M3's 70W), larger 25mm silk dome tweeter (32% larger than M3's 19mm) for superior high-frequency clarity, better 91 dB sensitivity (0.5 dB higher than M3's 90.5 dB), and aluminum logo caps instead of Lexan appliqués. Both offer identical 45 Hz-25 kHz frequency response. The M6 represents the premium tier with enhanced power handling, superior tweeter performance, and higher-end aesthetics. Choose M6 for maximum output capability, best high-frequency reproduction, and premium tower installations. Choose M3 for excellent performance at lower cost when maximum output isn't required.

Why choose the White Classic model without LED lighting? The White Classic model provides several advantages: traditional timeless marine aesthetics matching white gel coat hulls and classic boat styling, simplified installation with only speaker wire connections eliminating LED wiring complexity, improved reliability by removing LED electrical components subject to failure in harsh tower-mounted environments, and avoiding LED controller requirements and associated costs. For installations prioritizing maximum reliability, traditional appearance, or avoiding electrical complexity, the Classic model offers identical audio performance to Sport models with superior simplicity. LED lighting provides visual impact during evening operation but adds complexity and potential failure points.

What amplifier power should I use for maximum tower speaker performance? For maximum performance projecting sound across water to distant riders, use 150-200 watts RMS per channel of clean amplifier power. This fully utilizes the 100W power handling while providing headroom for dynamic peaks. The excellent 91 dB sensitivity means these speakers produce impressive output even with moderate power—75-100 watts per channel delivers very good performance. However, tower applications benefit from higher power for maximum sound projection distances during watersports when riders are positioned far behind the boat. Clean, undistorted power from quality marine amplifiers is more important than maximum wattage ratings.

Can I mount these speakers on towers with smaller tube diameters? The M6 7.7" enclosed speakers mount using universal tower speaker clamps or brackets designed for standard 2-2.5" diameter tower tubes (mounting hardware may be sold separately). The 7.70" diameter enclosure fits most tower configurations. For towers with tube diameters outside this range, verify mounting hardware compatibility before purchase. Custom mounting solutions may be required for non-standard tower configurations. The compact profile accommodates most wakeboard towers, ski towers, and bimini top support structures commonly found on performance boats, ski boats, and wake boats.

How does the M6's 25mm tweeter improve sound compared to smaller tweeters? The larger 25mm (1-inch) silk dome tweeter moves significantly more air than smaller 19mm tweeters, producing higher output levels in the critical high-frequency range where clarity and intelligibility occur. The increased surface area improves dispersion, creating wider sound coverage so riders positioned at various angles from the tower still receive clear audio. The larger tweeter also handles higher power levels without distortion, maintaining clarity even when driving the speakers at maximum output during watersports. This results in noticeably better vocal intelligibility and cymbal detail when projecting sound across water compared to speakers with smaller tweeters.
