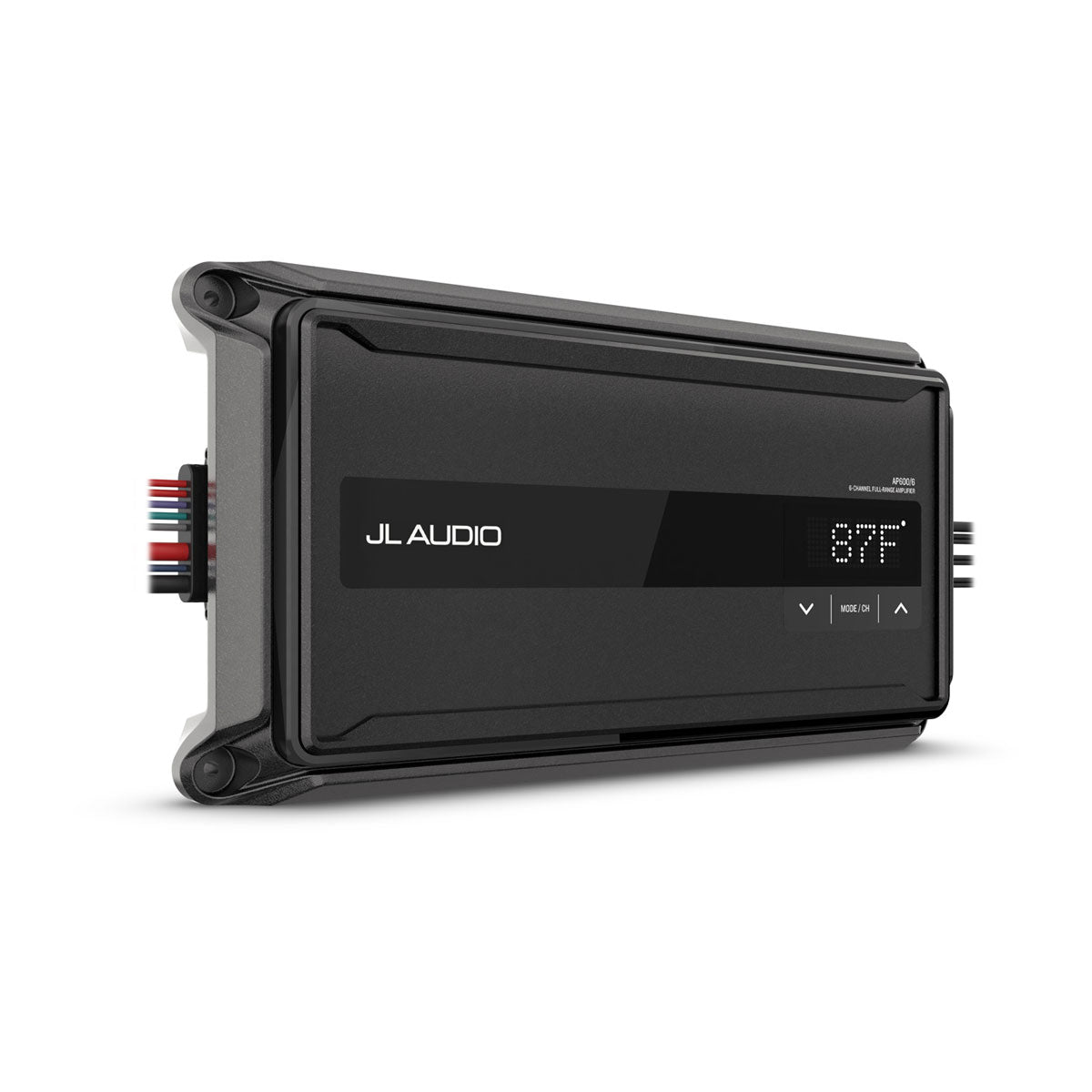

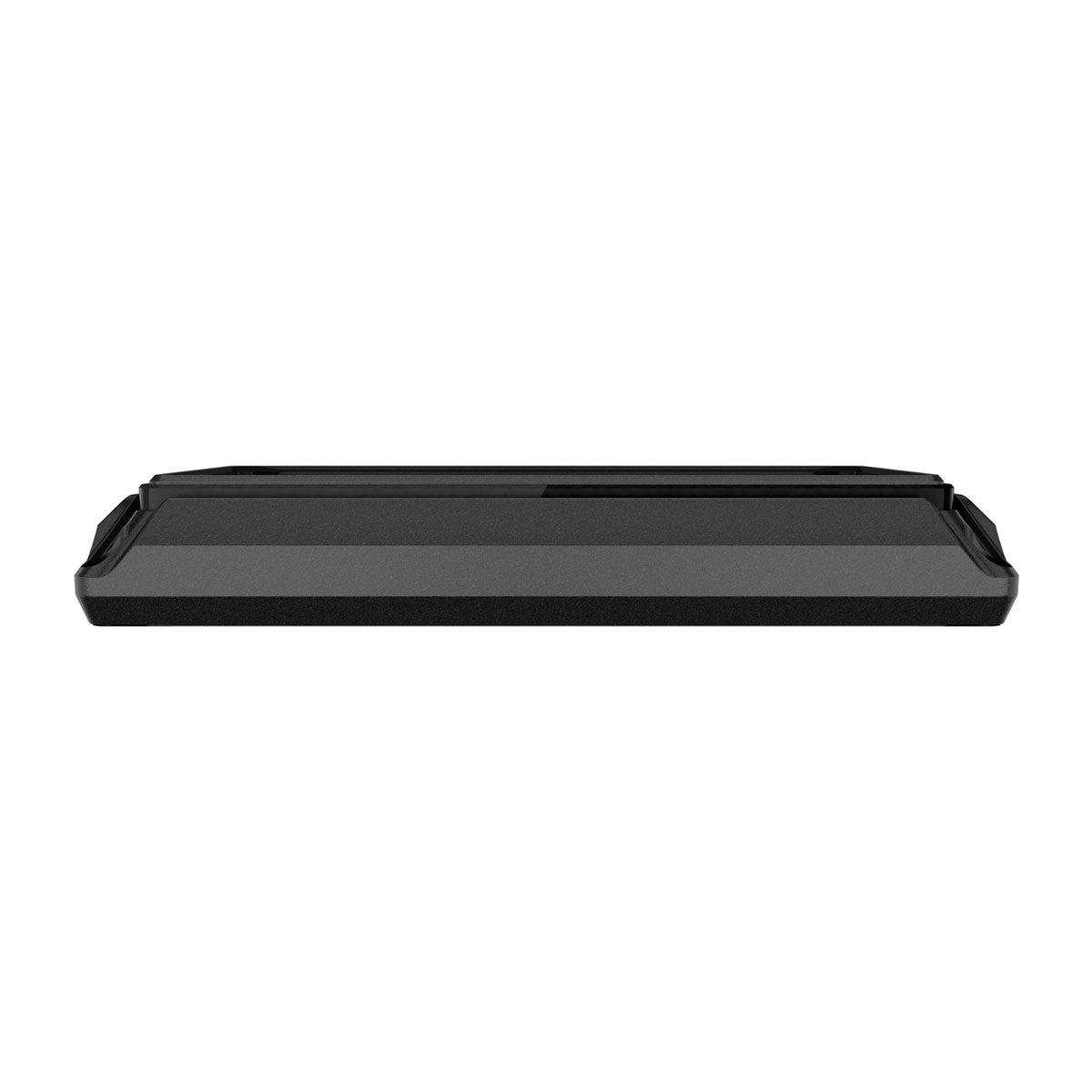

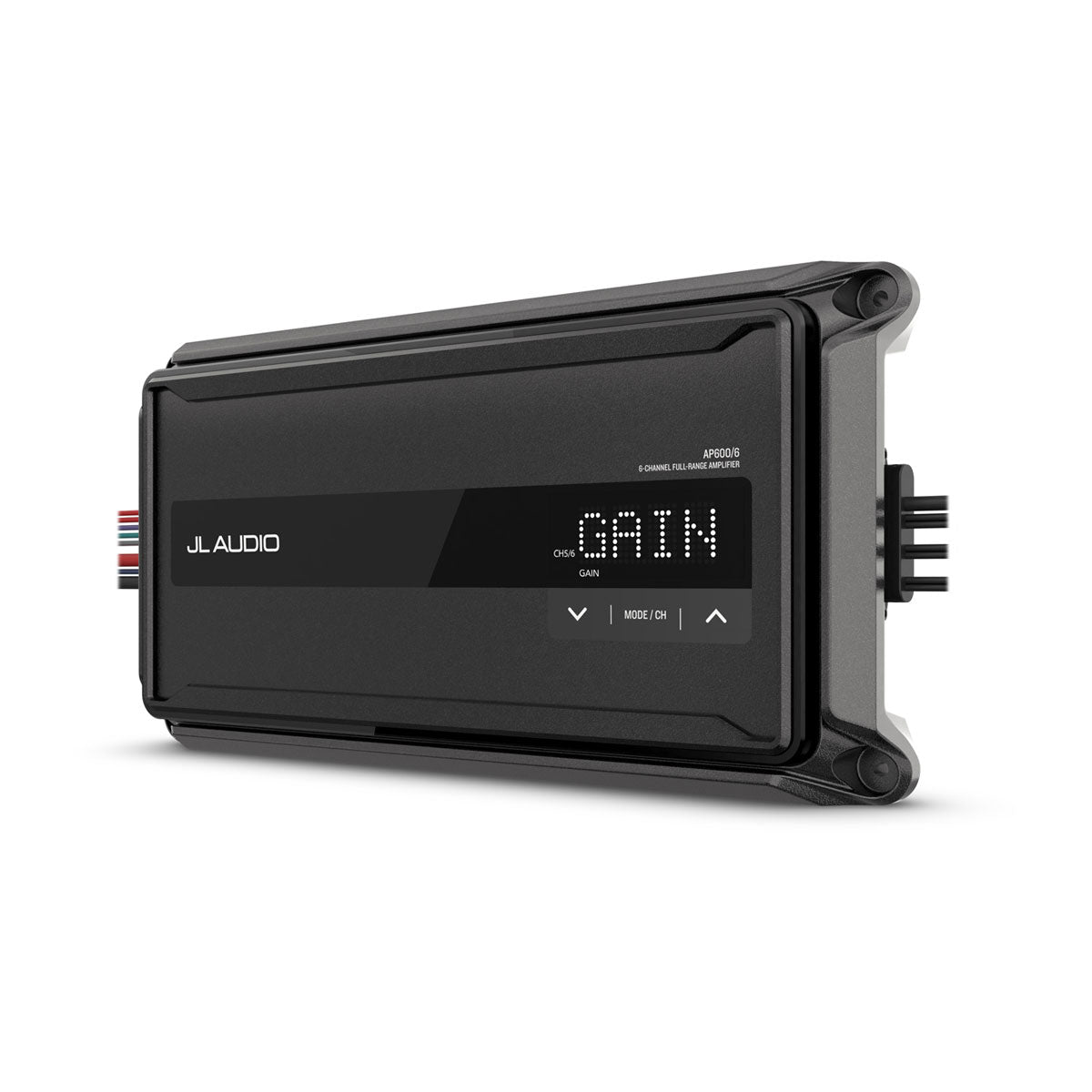

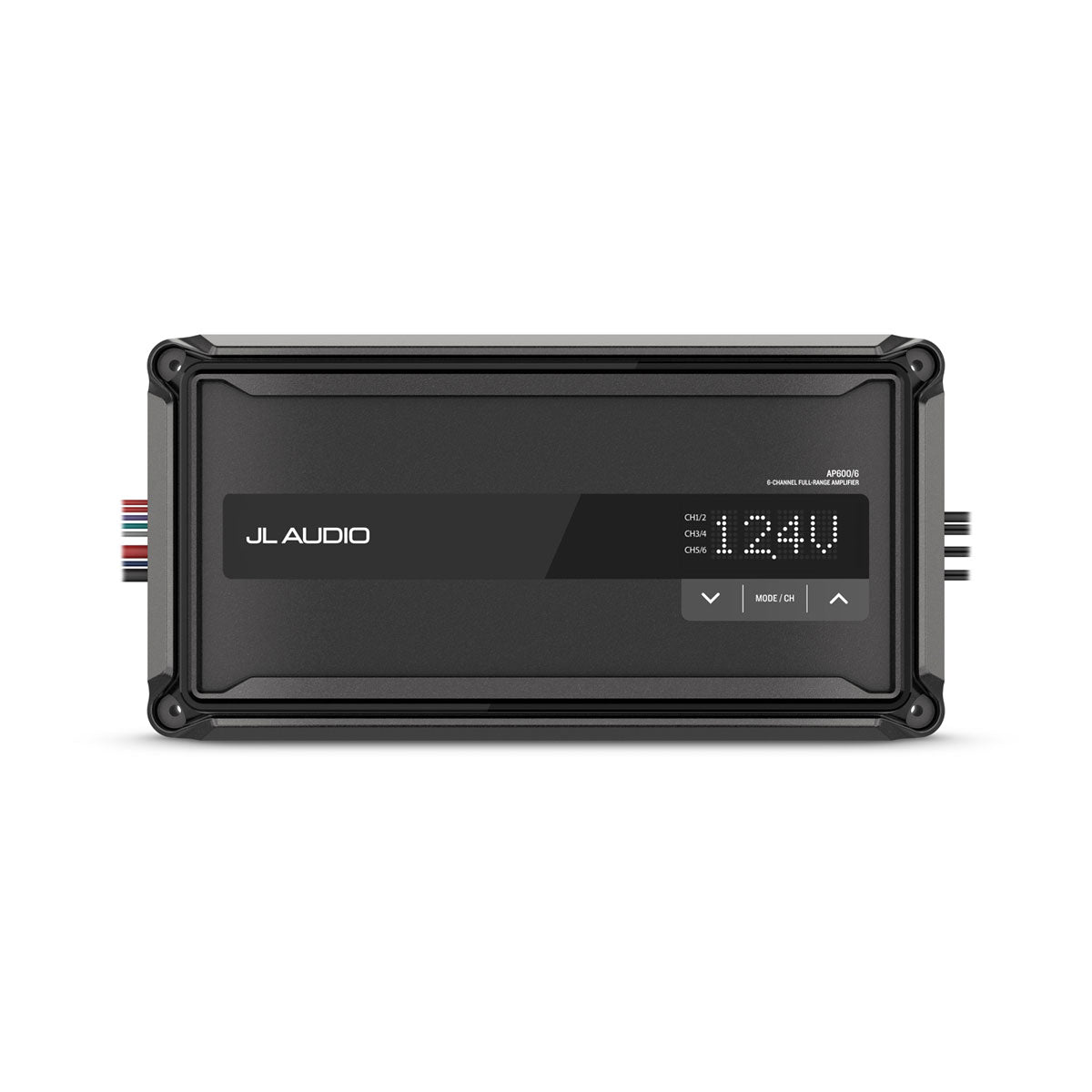

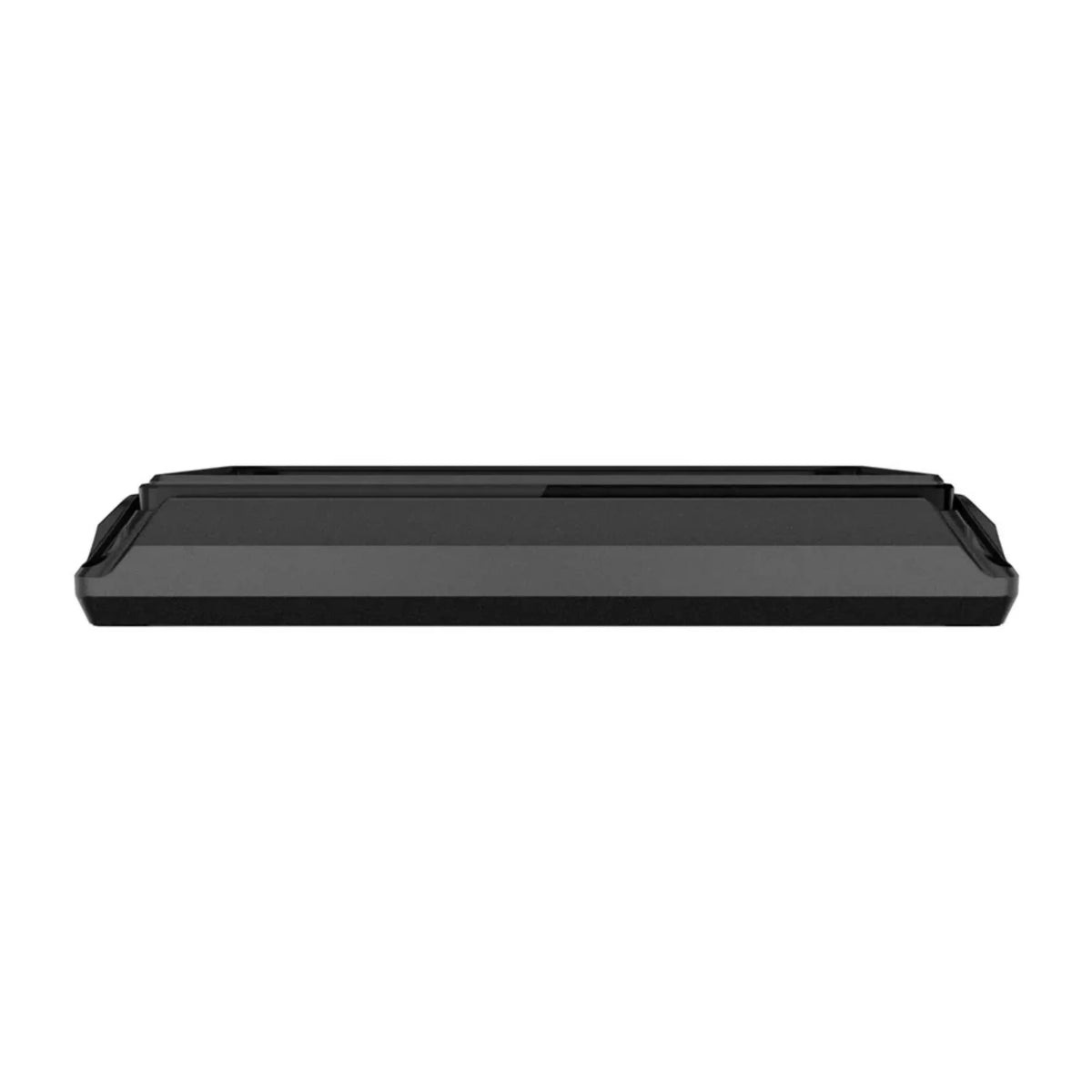

JL Audio JLA-010-03430-00 AP 6-Channel Marine Amplifier

JL Audio JLA-010-03430-00 AP 6-Channel Marine Amplifier - Premium IP67-Rated Compact Complete System Amplifier with Class-D Efficiency, 50W x 4 Plus 100W x 2 Multi-Zone Configuration, 300W x 1 Bridged Subwoofer Capability, Independent Variable Crossover Filters, Adjustable Bass Boost EQ, Defeatable Infrasonic Filter, and Professional Marine Audio Performance for Comprehensive Boat Audio Installations

Achieve complete marine audio system amplification from single compact unit using JL Audio JLA-010-03430-00 AP 6-Channel Marine Amplifier—combining mid-power channels 1-4 delivering 50W x 4 RMS @ 4 ohm (75W x 4 @ 2 ohm, 150W x 2 bridged) with high-power channels 5-6 producing 100W x 2 RMS @ 4 ohm (150W x 2 @ 2 ohm, 300W x 1 bridged) enabling comprehensive system solutions powering cabin speakers, tower speakers, and subwoofers from single amplifier eliminating multiple amplifier installations, robust IP67 water and dust protection rating ensuring complete dust-tight seal and protection against powerful water jets from any direction safeguarding internal electronics from harsh saltwater spray and moisture intrusion, advanced Class-D amplifier topology delivering exceptional power efficiency with reduced heat generation and minimal current draw enabling compact installation in confined marine equipment compartments, compact dimensions measuring 300mm width x 150mm depth x 47mm height (11.81" x 5.9" x 1.85") fitting under helm panels or small equipment compartments despite powerful six-channel capability, sophisticated independent signal processing per channel pair with channels 1-2, 3-4, and 5-6 each featuring user-selectable Off/Low-Pass/High-Pass filtering with 12dB/octave slopes and 20Hz-500Hz frequency range enabling precise multi-zone speaker and subwoofer integration, adjustable bass boost EQ (0 to +18dB @ 37Hz) enhancing low-frequency response, defeatable infrasonic filter (20Hz-50Hz) on channels 5-6 protecting subwoofers from damaging subsonic frequencies when used for subwoofer duty, full-range frequency response (20Hz-20kHz) suitable for complete audio spectrum reproduction, wide input sensitivity range (200mV-8V RMS) with switchable low/high settings accommodating various source units, excellent signal-to-noise ratio (>70dB) ensuring clean amplification, comprehensive protection circuits including under/over voltage, over-temperature, and short circuit protection, extreme operating temperature range (-20°C to 65°C), minimal standby current (<1mA), efficient idle current (1000-1500mA), 70A fuse protection with AFS/AGU/MaxiFuse compatibility, 4 AWG minimum power/ground wire gauge, extensive compatibility with Fusion and JL Audio M3 marine speakers and subwoofers, three-year warranty, and proven JL Audio engineering delivering professional-grade complete system amplification for recreational boats, fishing vessels, center console boats, and marine applications requiring powerful reliable multi-zone amplification with IP67 protection.

Product Overview

JL Audio JLA-010-03430-00 AP 6-channel compact marine amplifier with IP67 water/dust rating delivering complete system amplification. Combines mid-power four-channel section with high-power two-channel section enabling speakers and subwoofers from single compact amplifier.

Comprehensive power configuration: Channels 1-4 deliver 50W x 4 RMS @ 4 ohm (75W x 4 @ 2 ohm) with 150W x 2 bridged capability for cabin speakers or tower speakers. Channels 5-6 deliver 100W x 2 RMS @ 4 ohm (150W x 2 @ 2 ohm) with 300W x 1 bridged capability for high-power tower speakers or dedicated subwoofer applications.

Typical system configurations: channels 1-4 power four cabin speakers while channels 5-6 drive dual tower speakers, channels 1-4 power cabin speakers while channels 5-6 bridged (300W x 1) drive subwoofer, channels 1-2 power helm speakers, channels 3-4 power cockpit speakers, channels 5-6 power tower speakers for complete three-zone system.

Independent signal processing per channel pair enables precise system tuning. Channels 1-2, 3-4, and 5-6 each feature user-selectable filtering: Off (full-range 20Hz-20kHz operation), Low-Pass (passes frequencies below selected point for bass speakers or subwoofers), High-Pass (passes frequencies above selected point protecting speakers from excessive bass). Variable crossover range 20Hz-500Hz with 12dB/octave slopes.

Defeatable infrasonic filter on channels 5-6 protects subwoofers from damaging subsonic frequencies below 20Hz. Adjustable 20Hz-50Hz range prevents cone over-excursion when channels 5-6 used for subwoofer duty. Adjustable bass boost EQ (0 to +18dB @ 37Hz) enhances low-frequency response across entire system.

IP67 water/dust protection provides complete environmental sealing against harsh marine conditions. Advanced Class-D topology delivers exceptional efficiency reducing heat generation. Compact dimensions (300mm x 150mm x 47mm) enable installation in tight spaces despite powerful six-channel capability.

Wide input sensitivity range (200mV-8V RMS) with switchable low (200mV-2V RMS) and high (800mV-8V RMS) settings accommodates various source equipment. Excellent signal-to-noise ratio (>70dB) ensures clean amplification. Full-range frequency response (20Hz-20kHz) covers complete audible spectrum.

Comprehensive protection circuits safeguard amplifier and speakers: input under/over voltage protection, over-temperature protection, output short circuit protection. Extreme operating temperature range (-20°C to 65°C) ensures reliable performance across seasonal variations.

Minimal standby current (<1mA) prevents battery drain. Idle current 1000-1500mA minimizes electrical system impact. 70A fuse protection with AFS/AGU/MaxiFuse compatibility. 4 AWG minimum power/ground wire gauge recommended.

Extensive compatibility with Fusion Apollo, RA Series, EL/FM/SM/XS marine speakers, subwoofers, and tower speakers. JL Audio M3 Marine audio products. Complete installation package includes amplifier, mounting screws, and documentation. Three-year manufacturer warranty.

Eliminates multiple amplifier installations: single 6-channel amplifier replaces separate 4-channel speaker amplifier plus dedicated subwoofer amplifier reducing equipment quantity, wiring complexity, and installation space requirements while providing comprehensive system control from unified platform.

Complete System Amplification - Comprehensive 6-channel configuration combining mid-power channels 1-4 (50W x 4) with high-power channels 5-6 (100W x 2 / 300W x 1 bridged) enabling complete speaker and subwoofer systems from single compact amplifier eliminating multiple amplifier requirements.

IP67 Water and Dust Protection - Robust IP67 environmental protection rating providing complete dust-tight seal and protection against powerful water jets from any direction ensuring reliable operation in harsh saltwater spray, moisture exposure, and demanding marine environments.

300W Bridged Subwoofer Capability - High-power channels 5-6 deliver 300W x 1 RMS when bridged @ 4 ohm providing substantial subwoofer amplification from compact six-channel platform eliminating dedicated subwoofer amplifier requirement for complete system installations.

Independent Channel Pair Filtering - Sophisticated user-selectable filtering per channel pair: channels 1-2, 3-4, and 5-6 each feature Off/Low-Pass/High-Pass modes with 12dB/octave slopes and 20Hz-500Hz range enabling precise multi-zone speaker and subwoofer integration.

Advanced Class-D Efficiency - Class-D amplifier topology delivering exceptional power efficiency, reduced heat generation, minimal current draw, and compact dimensions enabling installation in confined marine spaces while maintaining professional six-channel power output levels.

Compact Space-Efficient Design - Optimized dimensions (300mm x 150mm x 47mm / 11.81" x 5.9" x 1.85") enabling installation under helm panels, behind dash areas, or small equipment compartments despite powerful six-channel capability significantly smaller than traditional marine amplifiers.

Multi-Zone Configuration Flexibility - Versatile channel allocation supporting various configurations: four cabin speakers plus two tower speakers, four cabin speakers plus bridged subwoofer, helm/cockpit/tower three-zone systems, or custom multi-zone layouts matching specific vessel requirements.

Defeatable Infrasonic Filter - Infrasonic filter on channels 5-6 (20Hz-50Hz adjustable, defeatable) protecting subwoofers from damaging subsonic frequencies below audible range preventing cone over-excursion and mechanical damage when channels used for subwoofer duty.

Adjustable Bass Boost EQ - Variable bass boost control providing 0 to +18dB gain at 37Hz enhancing low-frequency response for systems requiring additional bass impact or supplementing existing subwoofer systems with adjustable enhancement across entire system.

Flexible Bridging Capability - Channels 1-4 support 150W x 2 bridged for high-power two-channel applications, channels 5-6 support 300W x 1 bridged for dedicated subwoofer driving providing flexible power configuration options matching diverse system requirements.

Switchable Input Sensitivity - Wide input sensitivity range (200mV-8V RMS) with switchable low (200mV-2V RMS) and high (800mV-8V RMS) settings accommodating aftermarket and OEM source units with various output levels without requiring additional signal adapters.

Excellent Signal-to-Noise Ratio - Superior signal-to-noise ratio (>70dB referred to 1W, A-weighted) ensuring clean amplification with minimal background noise maintaining audio fidelity and professional sound quality throughout six-channel power range.

Full-Range Frequency Response - Complete frequency response coverage (20Hz-20kHz, +0/-1dB) delivering accurate reproduction across entire audible spectrum from deep bass frequencies to high treble ensuring balanced natural sound across all six channels.

Comprehensive Protection Circuits - Multiple protection systems including input under/over voltage protection, over-temperature protection, and output short circuit protection safeguarding amplifier and connected speakers from electrical faults, overheating, and wiring errors.

Extreme Operating Temperature Range - Wide operating temperature range (-20°C to 65°C / -4°F to 149°F) ensuring reliable performance from cold winter storage to hot summer operation in exposed marine installations across all climate conditions.

Premium Marine Audio Compatibility - Extensive compatibility with Fusion Apollo, RA Series, EL/FM/SM/XS marine speakers, subwoofers, and tower speakers plus JL Audio M3 Marine audio products ensuring seamless integration with premium marine speaker systems.

Technical Specifications

Frequently Asked Questions

Q: What are typical system configurations using the 6-channel amplifier?

A: Common configurations include: Four speakers plus subwoofer: Channels 1-4 power cabin speakers with High-Pass filtering (80-120Hz), channels 5-6 bridged (300W x 1) drive subwoofer with Low-Pass filtering (80-100Hz). Four speakers plus tower speakers: Channels 1-4 power cabin speakers, channels 5-6 power tower speakers (100W x 2). Three-zone system: Channels 1-2 helm speakers, channels 3-4 cockpit speakers, channels 5-6 tower speakers or additional zone. Most popular configuration: four cabin speakers plus bridged subwoofer providing complete system from single amplifier.

Q: How does the 6-channel compare to using separate amplifiers?

A: 6-channel advantages: single amplifier versus multiple units reduces equipment quantity, simplified wiring (one power/ground run), reduced installation space, lower total cost, unified control platform. Provides equivalent power to separate 4-channel (50W x 4) plus monoblock (300W x 1) with single 70A fuse and 4 AWG wiring. Disadvantage: separate amplifiers offer specialized optimization per function. For standard four-speaker plus subwoofer systems: 6-channel provides complete amplification with significantly reduced complexity.

Q: Can I use channels 5-6 for tower speakers instead of subwoofer?

A: Yes—channels 5-6 support tower speakers or subwoofers. Tower speaker operation: configure as 100W x 2 RMS @ 4 ohm (150W x 2 @ 2 ohm), set High-Pass filtering (80-150Hz) or full-range, disable infrasonic filter. Ideal for tower speakers requiring high SPL for wakeboarding. Alternatively: bridge channels 5-6 (300W x 1) for subwoofer with Low-Pass filtering and infrasonic filter enabled. Flexibility enables system customization: use channels 5-6 for tower speakers on wakeboard boats or bridge for subwoofer on recreational boats prioritizing bass.

Q: What wire gauge and fusing do I need for 6-channel installation?

A: Required: 4 AWG minimum copper wire (marine-grade tinned) for power and ground, 70A fuse within 18 inches of battery (AFS/AGU/MaxiFuse types), marine-grade fuse holder rated for 70A. Current draw: <1mA standby, 1000-1500mA idle, approaches 70A at maximum output. Verify vessel alternator capacity supports amplifier plus other loads. Ground wire equally important: same 4 AWG gauge, clean metal-to-metal connection to negative bus bar or battery terminal. Professional installation recommended ensuring proper wire sizing and fuse placement meeting marine electrical codes.

Q: How do I set the crossover filters for optimal performance?

A: Common settings for four speakers plus subwoofer: Channels 1-4 (cabin speakers): High-Pass 80-100Hz for 6.5-inch speakers or 100-120Hz for smaller speakers protecting from excessive bass. Channels 5-6 bridged (subwoofer): Low-Pass 80-100Hz for sealed enclosures or 100-120Hz for ported matching cabin speaker crossover for seamless transition. Adjustment: start with recommended points, play bass-heavy music, adjust by ear for smooth transition without gaps or overlap. Use bass boost judiciously (0-6dB) after crossover settings established. Consult speaker specifications for recommended crossover points preventing damage.
