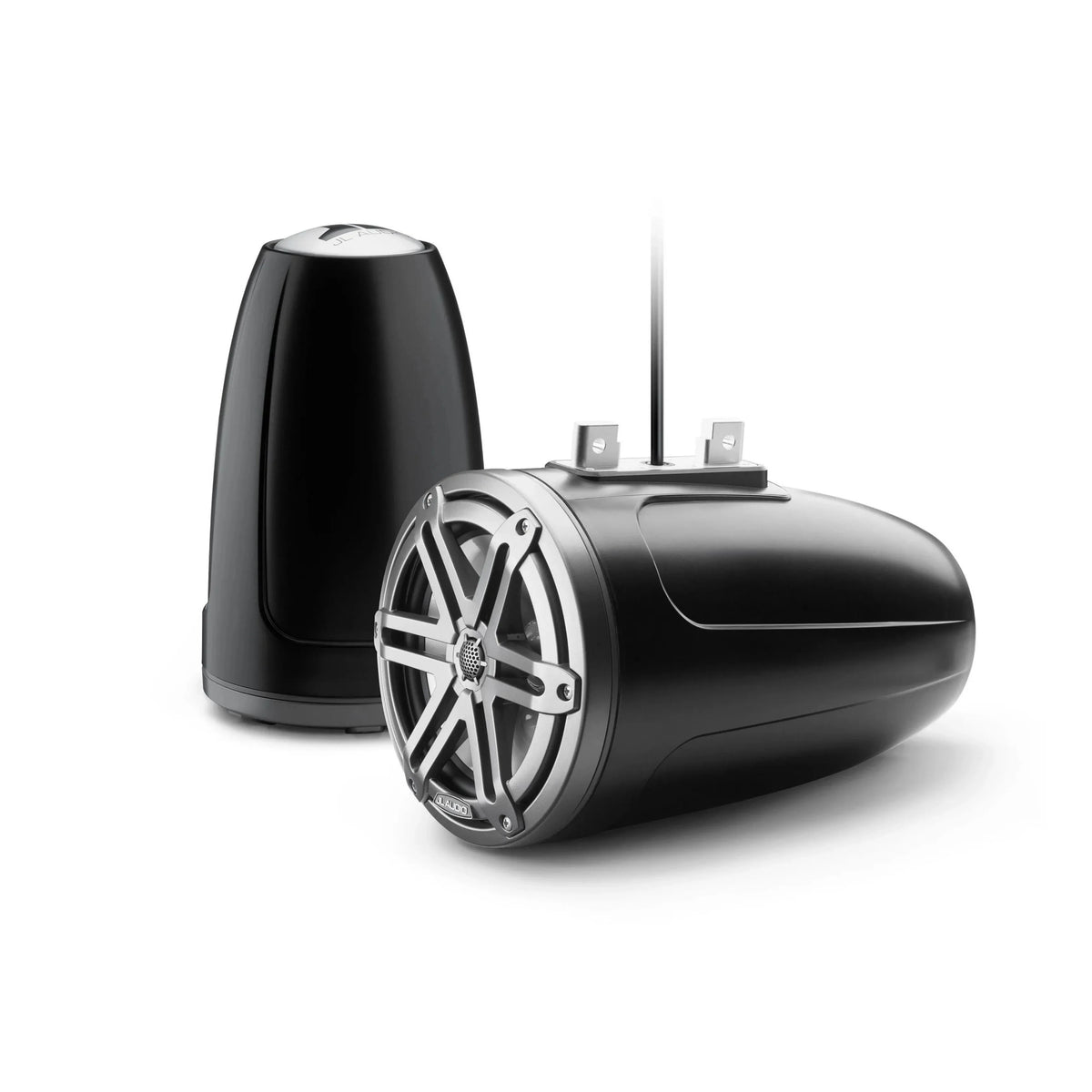

JL Audio JLA-010-03267-00 M3 Enclosed Tower Speaker

JL Audio JLA-010-03267-00 M3 Enclosed Tower Speakers - 7.7" Marine Coaxial Speakers with Gray Sport Grille

Premium 7.7-inch enclosed marine tower speaker system with RGB LED lighting, extended bass response, and complete ready-to-install wakeboard tower solution.

Product Overview

The JL Audio M3 Enclosed Tower Speakers (JLA-010-03267-00) deliver powerful, full-range audio performance specifically engineered for wakeboard tower installations on boats. These 7.7-inch enclosed coaxial speakers combine impressive output capability with extended low-frequency response (55 Hz-25 kHz) in acoustically optimized enclosures designed for demanding marine environments. The Gray Sport grille with integrated RGB LED lighting creates stunning visual effects during evening watersports sessions while the sealed enclosure design protects speaker components from water spray, debris, and environmental contamination. Each system features a mica-filled polypropylene woofer cone that resists UV damage and saltwater corrosion, paired with a 0.75-inch silk dome tweeter for smooth high-frequency reproduction that cuts through wind and water noise. Rated at 70 watts RMS continuous power handling with impressive 90.5 dB sensitivity, these tower speakers deliver substantial output when powered by 20-140 watts per channel. The complete enclosed design eliminates the need for custom tower speaker fabrication while providing optimal acoustic loading for enhanced bass response compared to free-air tower speakers. Extended 10-foot flying leads with pre-attached speaker wire (16 AWG) and separate RGB LED wire (4-conductor 20 AWG) simplify installation by providing adequate length for tower-to-amplifier routing. Sold as a pair with aluminum logo caps, silicone adhesive, and butt splice connectors included, these M3 enclosed tower speakers represent the ultimate ready-to-install wakeboard tower audio solution for boats requiring powerful sound projection across the water.

Features & Benefits

The enclosed design eliminates the need for custom tower speaker pods, mounting brackets, or enclosure fabrication, providing a complete ready-to-install solution that saves installation time and ensures optimal acoustic performance specifically engineered for tower mounting. Acoustically optimized sealed enclosure provides proper rear loading for the 7.7-inch woofer, delivering significantly enhanced bass response (down to 55 Hz) compared to free-air tower speakers where bass output suffers from cancellation, critical for projecting sound across water and wind. Integrated RGB LED lighting illuminates the Gray Sport grille with customizable colors (red, green, blue, and combinations), creating impressive visual effects visible from the water during evening watersports, wakeboarding, and night cruising. Marine-grade construction features mica-filled polypropylene cone that resists UV degradation from constant sun exposure, saltwater corrosion, and temperature extremes common in tower-mounted applications with maximum environmental exposure. The 0.75-inch silk dome tweeter delivers smooth, detailed high-frequency reproduction that maintains clarity and intelligibility even at high volume levels necessary to overcome engine noise, wind, and water sounds. Exceptional 90.5 dB sensitivity ensures efficient output, producing substantial volume levels without requiring excessive amplifier power, ideal for tower installations where maximum projection across water is critical. Extended frequency response (55 Hz-25 kHz) delivers full-range performance with deep bass fundamentals and extended highs, eliminating the need for additional subwoofers in many tower audio applications. 70-watt RMS power handling with 20-140W recommended amplifier range accommodates everything from moderate-power systems to high-output installations for maximum sound projection. 4-ohm nominal impedance matches standard marine amplifiers for optimal power transfer and compatibility. Extended 10-foot flying leads with pre-attached 16 AWG speaker wire and separate 4-conductor RGB LED wire provide adequate length for routing from tower mounting locations down to amplifiers and LED controllers without splicing or extensions. Gray Sport grille provides sophisticated aesthetic that complements modern boat styling while RGB lighting enhances visual appeal. Compact tower mounting profile (7.70" diameter x 12.69" depth) fits most wakeboard tower tube diameters and mounting configurations. Aluminum logo caps add premium branding detail to tower installations.

Technical Specifications

Compatible With / Goes Well With

JL Audio Marine Amplifiers: MX Marine and Powersports Amplifiers (MX280/4, MX600/3), MVi Marine Amplifiers, MHD Marine Amplifiers, XDM Car and Marine Amplifiers, AP Amplifiers, AP Amplifiers with Bluetooth for dedicated tower speaker amplification delivering 20-140W per channel

JL Audio Source Units: MediaMaster 55 Stereo (requires external amplification for optimal M3 tower performance), MediaMaster 105 Stereo for multi-zone control with dedicated tower speaker zone

JL Audio Marine Subwoofers: M3 Marine Subwoofer models for dedicated bass reproduction complementing tower speaker full-range performance, particularly for installations requiring maximum low-end impact beyond tower speaker bass extension

System Integration: Fusion Apollo MS-RA800 marine stereo for alternative source unit, RGB LED controllers for synchronized lighting effects with other boat lighting systems, tower speaker amplifiers for dedicated zone control

Tower Applications: Wakeboard tower mounting on ski boats, wake boats, tournament ski boats, performance boats with towers, pontoon boats with tower structures, any vessel with tower requiring high-output audio projection across water

Installation Requirements: Wakeboard tower with suitable mounting points (typically 2-2.5" diameter tubes), amplification providing 20-140W RMS per channel for optimal performance, RGB LED controller for color selection and lighting effects (sold separately), tower mounting clamps or brackets (may be required depending on tower configuration), cable routing from tower to amplifier and LED controller locations

Frequently Asked Questions

What makes enclosed tower speakers better than free-air tower speakers? Enclosed tower speakers like the M3 provide proper acoustic loading for the woofer, delivering significantly deeper bass response (55 Hz lower limit) compared to free-air designs that suffer from front-to-rear wave cancellation. The sealed enclosure also protects the speaker's rear from water spray during watersports, provides consistent performance regardless of mounting configuration, and eliminates the need for custom enclosure fabrication. Free-air speakers require careful mounting with baffles and often produce weak bass, while enclosed designs deliver full-range performance ready to install.

How powerful an amplifier do I need for these tower speakers? The M3 tower speakers handle 70 watts RMS with recommended amplifier power of 20-140W per channel. For moderate volume levels during casual cruising, 40-70 watts per channel provides good output. For maximum performance during watersports where speakers must project sound across water, wind, and engine noise to riders behind the boat, use 100-140 watts per channel. The high 90.5 dB sensitivity means these speakers produce impressive output even with moderate power, but tower applications benefit from higher power for maximum sound projection distances.

How do I mount these speakers on my wakeboard tower? The M3 enclosed tower speakers typically mount using universal tower speaker clamps or brackets designed for 2-2.5" diameter tower tubes (mounting hardware may be sold separately depending on your specific tower configuration). The 7.70" diameter and 12.69" depth dimensions fit most tower mounting scenarios. Use the included silicone adhesive to create water-resistant seals between mounting hardware and speaker enclosures. Angle speakers toward the cockpit/swim platform for optimal sound coverage. The 10-foot flying leads provide adequate length for routing down the tower tubes to amplifiers and LED controllers mounted in the boat.

Can I control the RGB LED lighting colors? The RGB LEDs connect to your boat's 12V DC electrical system (10-14.4V) via the included 4-conductor 20 AWG flying lead and require an RGB LED controller (sold separately) to change colors and create lighting effects. Without a controller, LEDs illuminate in a default color. Marine-specific RGB controllers offer wireless control via smartphone apps, enabling color selection, brightness adjustment, and synchronized effects with other boat lighting. The 108mA current draw per speaker means a pair draws 216mA total, adding minimal electrical load to your system.

How does the M3 7.7" compare to smaller 6.5" VeX or M6 tower speakers? The M3 7.7" tower speakers offer larger woofer size for enhanced bass extension (55 Hz vs 100 Hz on 6.5" models), higher sensitivity (90.5 dB vs 89.5 dB) for greater output efficiency, and extended depth (12.69" vs 6.16") to accommodate the larger driver and optimized acoustic volume. The 7.7" models are purpose-built for tower mounting where maximum sound projection and bass response are critical, while 6.5" VeX models work for universal mounting including tower applications but with less bass extension. Choose 7.7" M3 for dedicated tower installations prioritizing maximum performance; choose 6.5" models for universal applications or tighter space constraints.
