JL Audio JLA-010-03263-00 VeX Enclosed System - M6 6.5″ with Titanium Sport Grille (M6-650VEX-Mb-S-GmTi)

JL Audio JLA-010-03263-00 VeX Enclosed System - M6 6.5″ with Titanium Sport Grille (M6-650VEX-Mb-S-GmTi)

Experience premium marine audio with the JL Audio M6 VeX Enclosed System, featuring high-performance 6.5" marine coaxial speakers with advanced Transflective™ LED lighting and sleek Titanium Sport grilles for exceptional sound quality and sophisticated styling.

Product Overview

The JL Audio M6 VeX Enclosed System represents the pinnacle of marine audio innovation, combining high-performance M6 marine coaxial speakers with purpose-built enclosures that deliver plug-and-play installation and audiophile-grade sound quality. This premium system includes two 6.5" enclosed marine coaxials featuring injection-molded, mica-filled polypropylene cones and 20mm silk dome tweeters that produce accurate, full-range sound from 100 Hz to 25 kHz. The integrated Transflective™ LED lighting system creates stunning visual effects with superior brightness and coverage compared to standard RGB systems, operating on 10-14.4 VDC with 324mA maximum current draw for brilliant illumination. Each VeX enclosure measures just 179mm diameter by 156mm depth, making them ideal for gunwale mounting, console installations, or tower applications where space is limited. The Titanium Sport grilles provide a sophisticated, high-tech aesthetic that complements performance-oriented vessels while offering protection from the elements. With 75 watts RMS continuous power handling and recommended amplifier power of 25-150 watts per channel, these speakers deliver impressive output with 89.5 dB sensitivity for efficient performance. The 4-ohm nominal impedance ensures compatibility with a wide range of marine amplifiers and head units. Marine-grade construction throughout ensures reliable performance in harsh saltwater environments, while the included aluminum logo caps and silicone adhesive provide premium finishing touches and secure weatherproof mounting.

Features & Benefits

Complete Plug-and-Play System: Pre-assembled enclosed speakers eliminate the need for custom fabrication or separate mounting pods. Simply connect speaker wires and LED power, mount the enclosures, and enjoy premium marine audio with integrated lighting immediately.

Transflective™ LED Technology: Advanced Transflective™ LED system delivers superior brightness and coverage compared to standard RGB lighting. Operating on 10-14.4 VDC with 324mA maximum current draw, it creates stunning visual effects that enhance your vessel's ambiance day or night.

High-Performance M6 Coaxial Design: Injection-molded, mica-filled polypropylene woofer cone and 20mm silk dome tweeter deliver accurate full-range sound with 100 Hz-25 kHz frequency response and 89.5 dB sensitivity for impressive output efficiency and clarity.

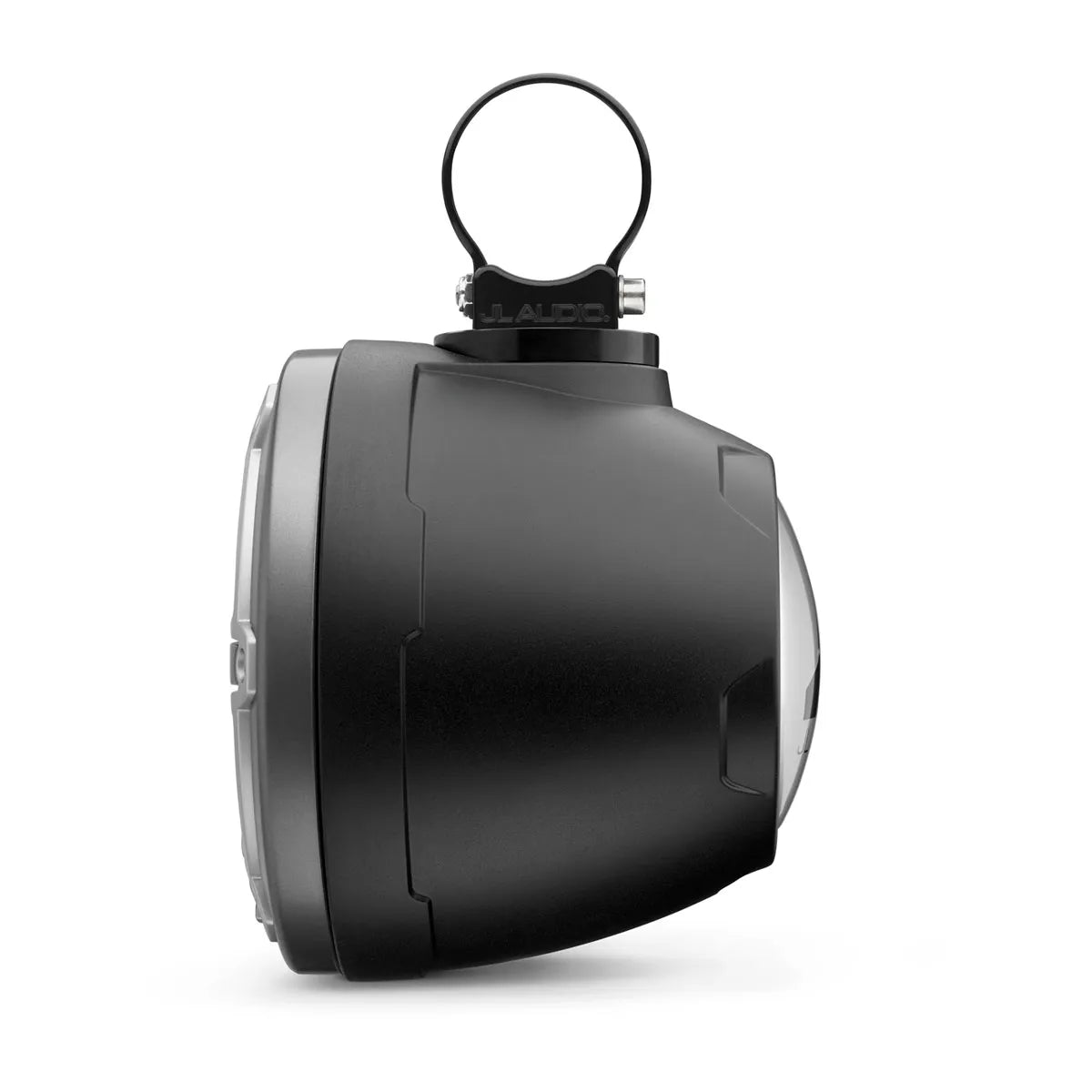

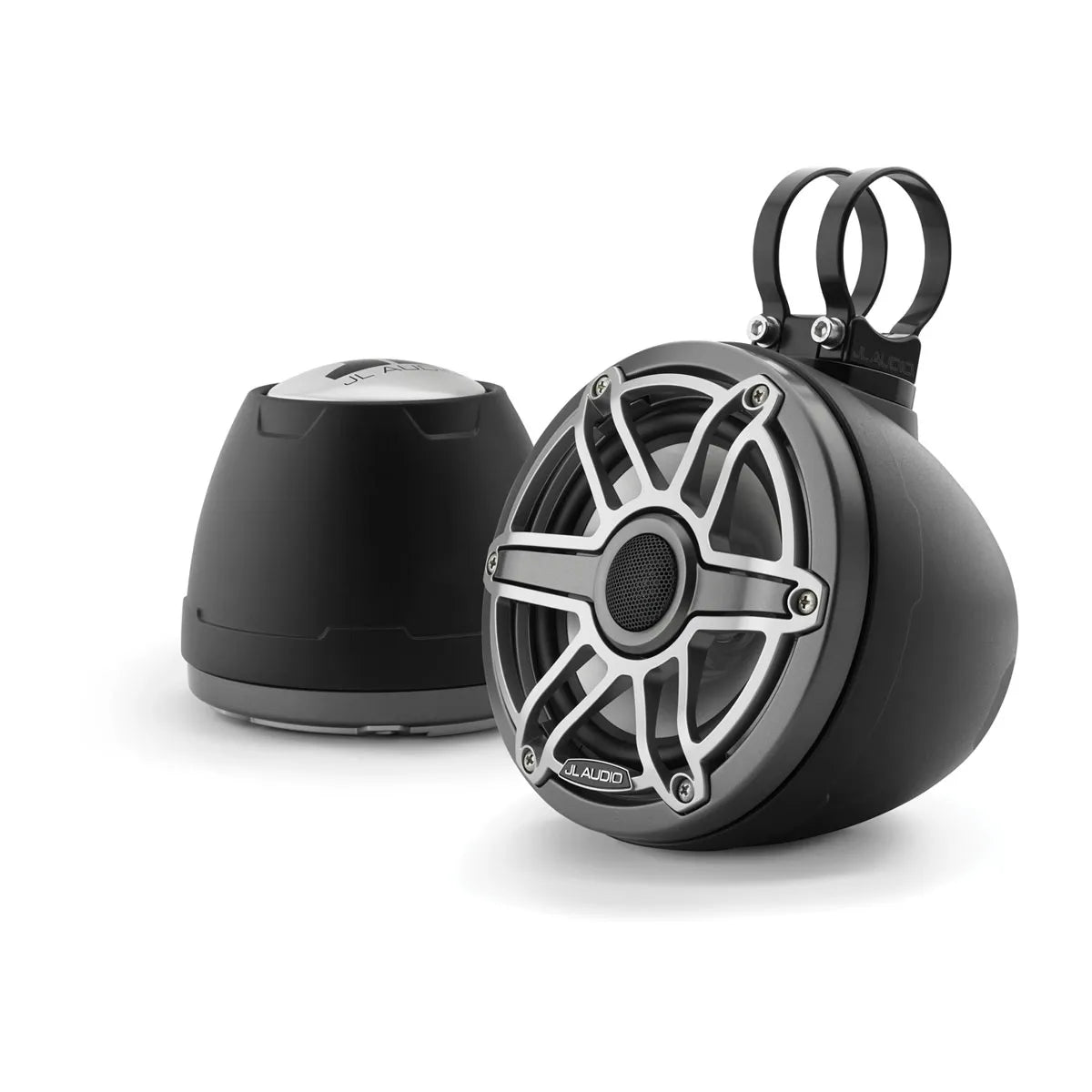

Compact Enclosed Design: Purpose-built enclosures measuring 179mm diameter × 156mm depth provide optimized acoustic performance in a compact footprint perfect for gunwale mounting, tower installations, or console applications where space is premium.

Marine-Grade Construction: Built specifically for harsh marine environments with corrosion-resistant materials, sealed components, and weather-resistant connections. Titanium Sport grilles and aluminum logo caps offer protection while maintaining premium, performance-oriented aesthetics.

Enhanced Power Handling: 75 watts RMS continuous power handling with recommended amplifier range of 25-150 watts per channel allows pairing with various marine amplifiers from modest head unit power to dedicated high-performance external amplification.

Professional Installation Package: Includes two complete VeX enclosures with M6 speakers and grilles pre-installed, two aluminum logo caps for premium finishing, and silicone adhesive for secure weatherproof mounting.

Technical Specifications

Compatible With

The JL Audio M6 VeX Enclosed System pairs perfectly with JL Audio MediaMaster® 55 stereos, MHD Marine Amplifiers, MVi Marine Amplifiers, MX Marine and Powersports Amplifiers, and XDM Car and Marine Amplifiers. Also compatible with Fusion Apollo™ MS-RA800 marine stereos and complements JL Audio M3 Marine Subwoofers for complete full-range marine audio systems. Ideal for gunwale mounting, tower applications, or console installations on boats, pontoons, and personal watercraft requiring premium sound with integrated lighting.

Frequently Asked Questions

What is the difference between M6 and M3 VeX models? M6 VeX models feature Transflective™ LED lighting with 324mA current draw for superior brightness, 20mm silk dome tweeters, and 75W RMS power handling with 25-150W recommended amplifier power. M3 VeX models use RGB LED lighting with 108mA current draw, 19mm tweeters, and 60W RMS power handling with 20-120W recommended amplifier power.

Do I need a separate amplifier for the M6 VeX Enclosed System? While the M6 VeX system can be powered directly from compatible marine head units, JL Audio recommends 25-150 watts per channel RMS from a quality marine amplifier for optimal performance. Recommended amplifiers include JL Audio MHD, MVi, MX, or XDM series marine amplifiers.

How do I control the Transflective™ LED lighting? The Transflective™ LED lighting requires a 10-14.4 VDC power supply and is typically controlled through compatible marine head units with LED output control or standalone lighting controllers. The system draws 324mA maximum current at 14.4V, providing brilliant illumination for extended use.

What mounting applications are these M6 VeX enclosures suitable for? The M6 VeX Enclosed System's compact 179mm diameter × 156mm depth dimensions make them ideal for gunwale mounting, wake tower installations, console mounting, or any location requiring enclosed marine speakers with minimal space requirements and plug-and-play installation with integrated lighting.

Are these speakers waterproof and suitable for saltwater environments? Yes, the M6 VeX Enclosed System features marine-grade construction with corrosion-resistant materials, sealed components, and weather-resistant connections designed specifically for harsh saltwater environments. The included silicone adhesive and aluminum logo caps ensure weatherproof mounting and premium finishing when properly installed.
