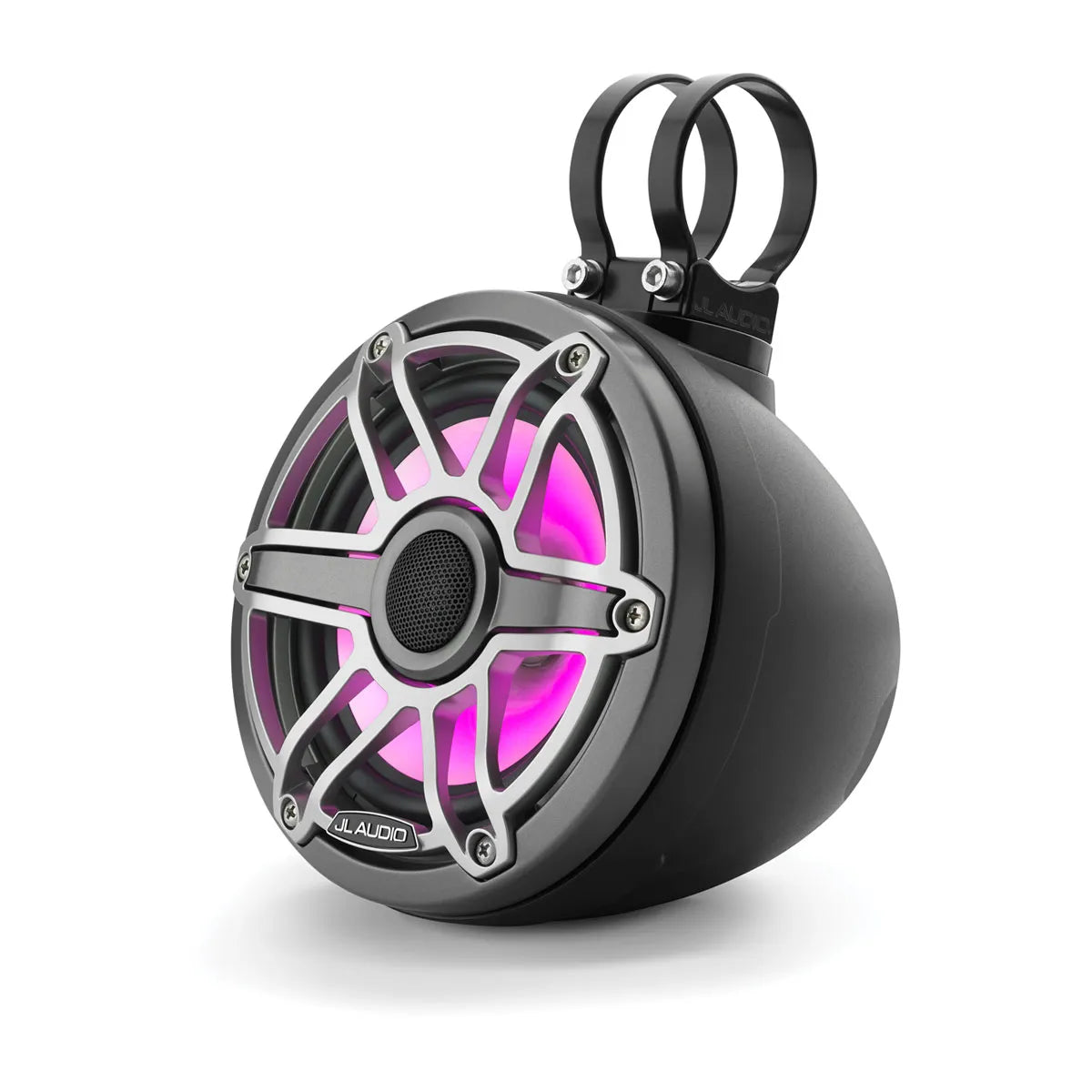

JL Audio JLA-010-03261-00 M6-650VEX-Mb-S-GmTi-i VeX Enclosed System

JL Audio JLA-010-03261-00 M6-650VEX-Mb-S-GmTi-i VeX Enclosed System - M6 6.5" Marine Coaxial Speakers with LED and Titanium Sport Grille

Premium enclosed marine coaxial speaker system with Transflective LED lighting, mica-filled polypropylene cone, and 20mm silk dome tweeter in acoustically optimized enclosure.

Product Overview

The JL Audio VeX M6-650VEX-Mb-S-GmTi-i Enclosed System (JLA-010-03261-00) delivers exceptional marine audio performance with premium M6-series components in a complete, ready-to-install package that eliminates traditional speaker mounting challenges. This innovative enclosed speaker system features 6.5-inch M6 marine coaxial speakers pre-installed in acoustically optimized enclosures with Titanium Sport grilles and integrated Transflective LED lighting for sophisticated visual impact. The sealed enclosure design protects the speaker's rear from moisture, debris, and environmental contamination while providing optimal acoustic loading for enhanced bass response compared to free-air installations. Each system includes a mica-filled polypropylene woofer cone that resists UV damage and saltwater corrosion, paired with a premium 0.8-inch silk dome tweeter for exceptionally smooth high-frequency reproduction. The exclusive Transflective LED lighting technology illuminates the Titanium Sport grille with sophisticated single-color lighting that reflects through the specially designed grille pattern, creating stunning visual effects during evening operation. Rated at 75 watts RMS continuous power handling with 89.5 dB sensitivity, these speakers deliver impressive output when powered by 25-150 watts per channel. The compact enclosure dimensions (7.03" diameter x 6.16" depth) enable installation in locations where traditional speakers require custom fabrication, including tower mounting, dash pods, roll bar applications, and universal mounting solutions. Sold as a pair with aluminum logo caps and silicone adhesive included, the VeX M6 system represents the premium tier of JL Audio's enclosed speaker offerings, delivering professional-grade sound quality, enhanced power handling, and sophisticated aesthetics for discerning marine and powersports enthusiasts.

Features & Benefits

The enclosed design eliminates the need for custom speaker baffles, mounting rings, or enclosure fabrication, providing a complete ready-to-install solution that saves installation time and ensures optimal acoustic performance. Acoustically optimized sealed enclosure provides proper rear loading for the 6.5-inch woofer, delivering enhanced bass response and improved overall sound quality compared to free-air installations where bass output suffers from cancellation. Exclusive Transflective LED lighting technology creates sophisticated illumination effects by projecting light through the specially designed Titanium Sport grille pattern, producing elegant visual aesthetics superior to standard LED rings while maintaining professional appearance during daytime operation. Marine-grade construction features mica-filled polypropylene cone that resists UV degradation, saltwater corrosion, and temperature extremes, ensuring long-term performance in harsh marine environments. The premium 0.8-inch (20mm) silk dome tweeter—larger than the M3's 19mm tweeter—delivers exceptionally smooth, detailed high-frequency reproduction without harshness, maintaining clarity even at higher volume levels in outdoor environments. Enhanced 75-watt RMS power handling provides 25% more capacity than M3 models, enabling higher output levels without distortion or thermal compression during demanding playback. Impressive 89.5 dB sensitivity ensures excellent output efficiency, producing substantial volume levels without requiring excessive amplifier power. Wide frequency response (100 Hz-25 kHz) covers the full audible spectrum with proper amplifier and system integration, eliminating weak spots in musical reproduction. 4-ohm nominal impedance matches standard marine amplifiers for optimal power transfer and compatibility. Compact 7.03-inch diameter footprint fits locations where larger speakers won't mount, while 6.16-inch depth accommodates installations with limited rear clearance. The Titanium Sport grille provides premium aesthetic that complements high-end boat interiors and powersports vehicles. Aluminum logo caps add premium metallic branding detail, elevating appearance beyond standard Lexan appliqués. Recommended amplifier power range (25-150W RMS) accommodates dedicated marine amplification for maximum performance potential.

Technical Specifications

Compatible With / Goes Well With

JL Audio Marine Amplifiers: MX Marine and Powersports Amplifiers (MX280/4, MX600/3), MVi Marine Amplifiers, MHD Marine Amplifiers, XDM Car and Marine Amplifiers for dedicated amplification delivering 25-150W per channel

JL Audio Source Units: MediaMaster 55 Stereo (requires external amplification for optimal M6 performance), MediaMaster 105 Stereo (requires external amplification)

JL Audio Marine Subwoofers: M3 Marine Subwoofer, M6 Marine Subwoofer models for dedicated bass reproduction complementing VeX M6 full-range performance

Powersports Applications: Polaris RZR Stealthbox systems (SB-POL-RZG3/10TW3), compatible with premium UTV, ATV, and side-by-side installations requiring enclosed speaker solutions with enhanced power handling

System Integration: Fusion Apollo MS-RA800 marine stereo for alternative source unit, LED controllers compatible with Transflective technology for lighting effects synchronized with other boat systems

Installation Requirements: Mounting location with 7.03" diameter clearance and 6.16" depth clearance, 12V DC power supply for LED operation, amplification providing 25-150W RMS per channel for optimal performance, silicone adhesive for water-resistant mounting seal

Frequently Asked Questions

What makes Transflective LED lighting different from standard RGB LEDs? Transflective lighting uses single-color LEDs that project light through the specially designed Titanium Sport grille pattern, creating sophisticated reflection and illumination effects that appear integrated into the grille itself. This produces an elegant, premium appearance compared to standard LED rings that can look aftermarket. During daytime, the Transflective design maintains professional aesthetics without visible LED components, while at night it creates impressive lighting effects. RGB LEDs offer color-changing capability, while Transflective provides single-color sophistication with higher-end visual appearance.

How does the M6 VeX compare to the M3 VeX for performance and features? The M6 VeX offers 75W RMS power handling (25% more than M3's 60W), a larger 20mm silk dome tweeter (vs M3's 19mm) for enhanced high-frequency detail, Transflective LED lighting instead of RGB, aluminum logo caps instead of Lexan appliqués, and higher recommended amplifier power range (25-150W vs 20-120W). The M6 represents the premium tier with superior power handling, refined aesthetics, and sophisticated lighting technology. Choose M6 for maximum performance, higher power installations, and premium visual presentation. Choose M3 for RGB color-changing capability and more budget-friendly pricing while maintaining excellent marine audio performance.

Can I use the MediaMaster 55's built-in amplification with these speakers? While possible, the MM55's built-in 25W x 4 amplification provides only the minimum recommended power for M6 speakers. For optimal performance that justifies the M6's enhanced capabilities, use dedicated marine amplification delivering 75-150 watts per channel. The M6's 75W power handling and larger tweeter are designed to excel with higher power levels—using minimal amplification underutilizes the speaker's potential. If using head unit power is necessary, consider M3 VeX speakers (60W handling, 20-120W recommended) which better match lower-power applications.

Where should I mount VeX enclosed speakers for best performance? VeX enclosed speakers perform exceptionally on wakeboard towers, T-tops, dash pods, roll bar mounts, or any location requiring self-contained speaker solutions. The sealed enclosure provides consistent acoustic performance regardless of mounting location, eliminating concerns about rear wave cancellation that plague free-air speakers. For tower installations, angle speakers toward the cockpit/swim platform for optimal sound coverage. For helm mounting, position at ear level when seated. The compact dimensions fit most universal mounting locations, and the included silicone adhesive creates water-resistant seals. The Transflective lighting on M6 models provides impressive visual impact on tower installations visible from the water during evening operation.

What electrical considerations should I account for with Transflective LED lighting? The M6 VeX LED system draws 324mA maximum current at 14.4VDC per speaker (648mA total for a pair), significantly more than M3's 108mA due to the Transflective technology's illumination requirements. While still modest compared to amplifier power draw, ensure your 12V electrical system can accommodate this load, particularly in multi-speaker systems with multiple VeX pairs. The LEDs require 10-14.4V DC supply and typically benefit from dedicated LED controllers for dimming and effects. Calculate total LED current when designing electrical systems—four VeX M6 pairs would draw approximately 2.6 amps for LED operation alone.
