JL Audio JLA-010-03135-00 MFD Data Interface for MediaMaster Source Unit

JL Audio JLA-010-03135-00 MFD Data Interface for MediaMaster Source Unit - NMEA 2000 Display Integration

Integrated helm display control for marine audio — MFD data interface delivers seamless MediaMaster source unit operation through vessel multi-function displays via NMEA 2000 network integration for Australian offshore installations requiring unified helm control systems.

Product Overview

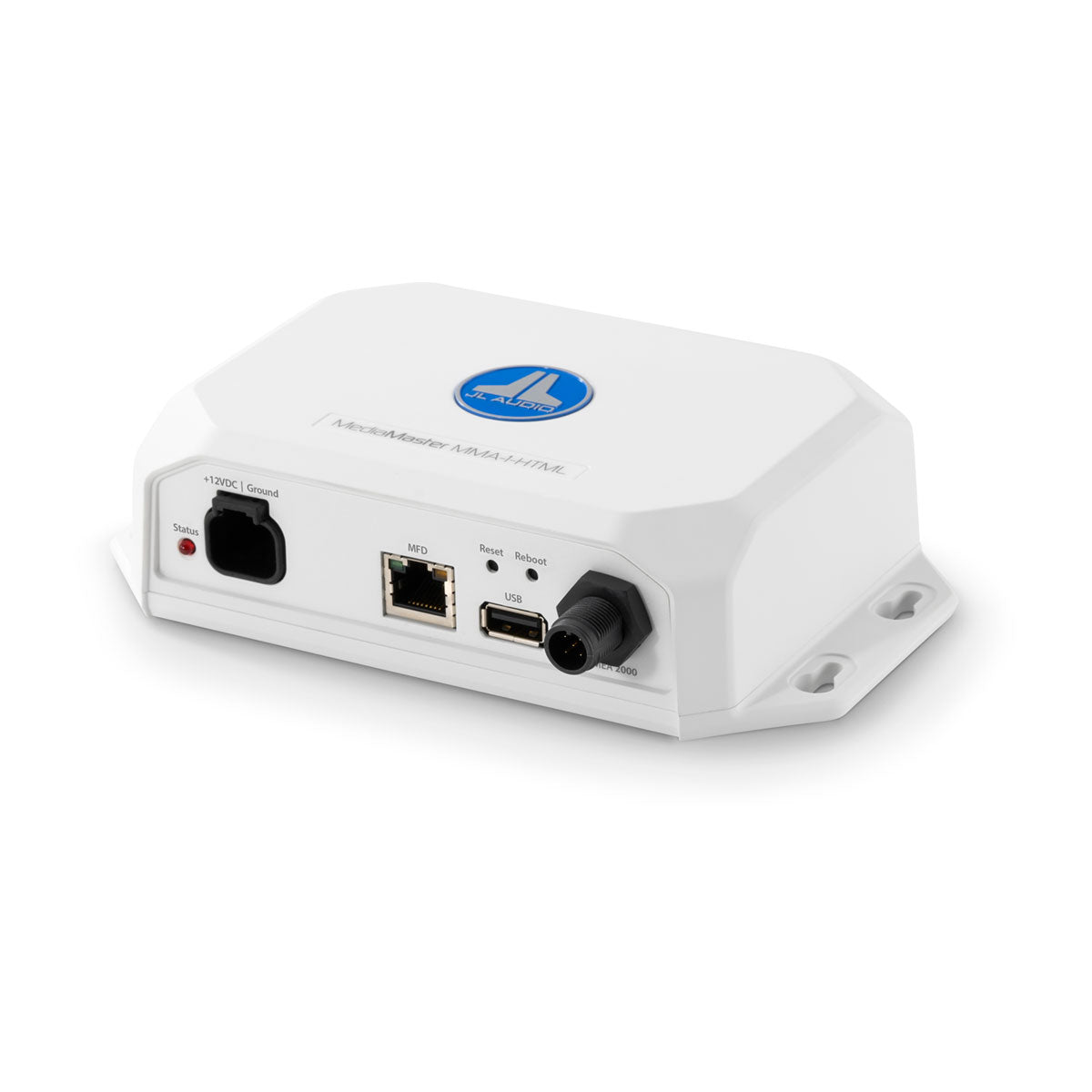

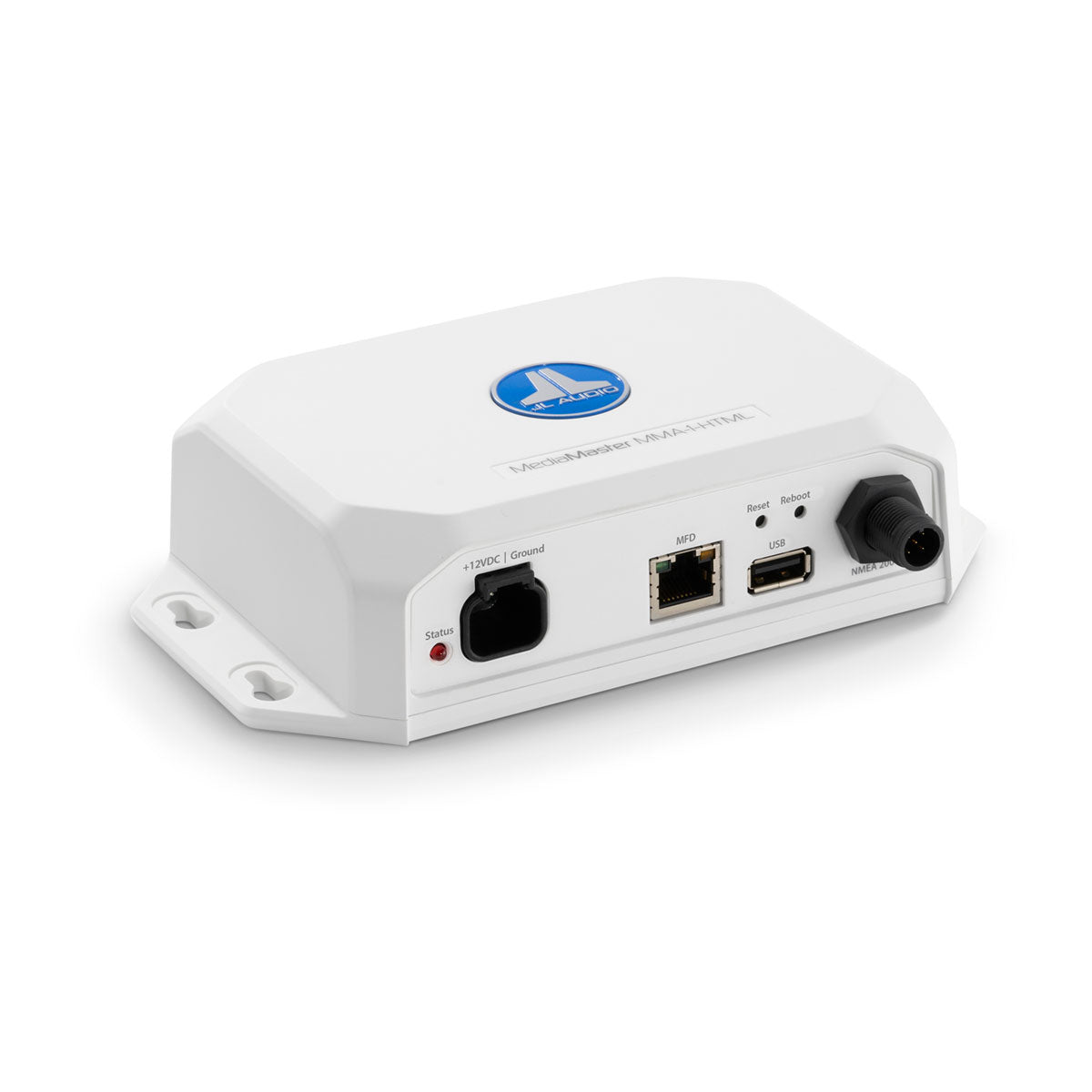

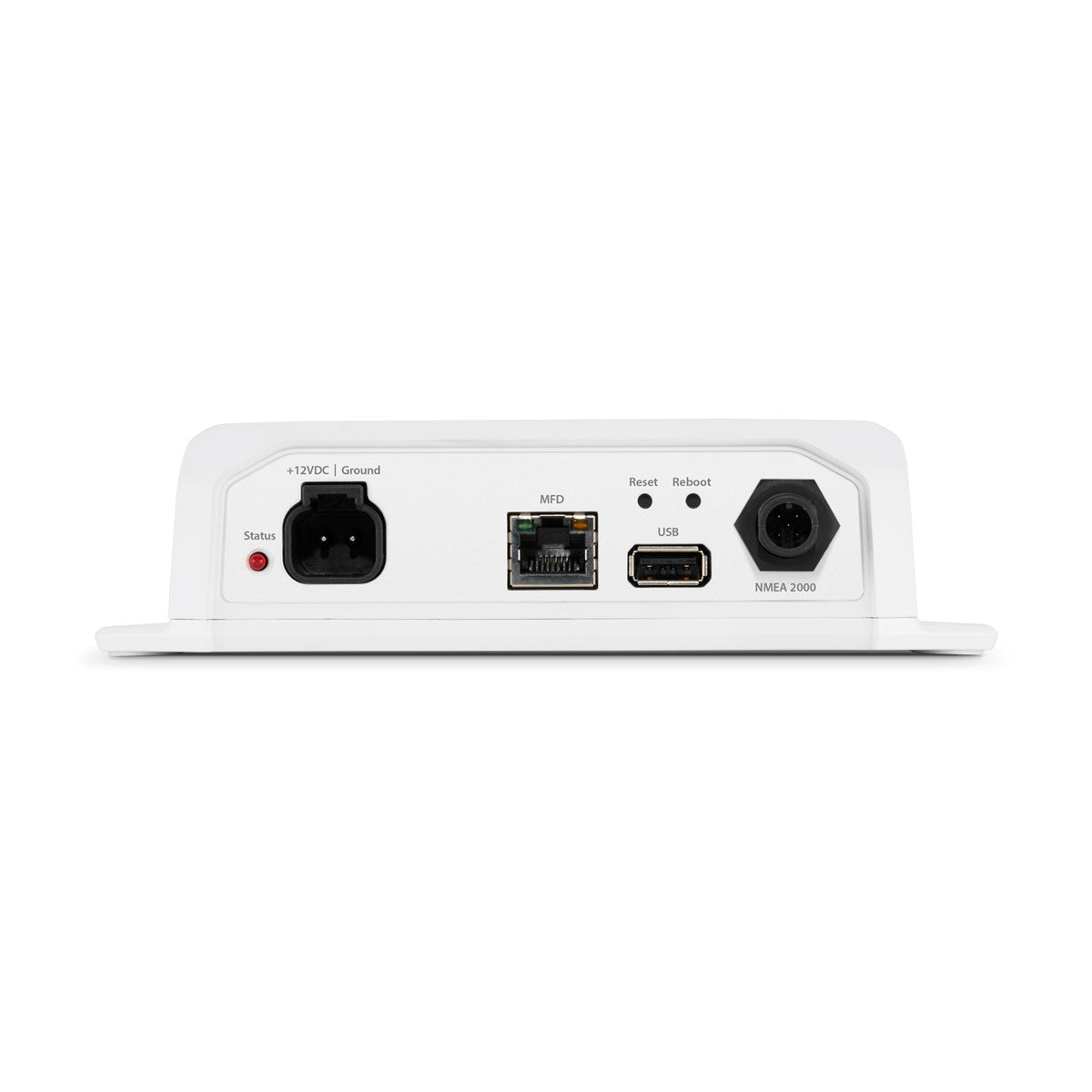

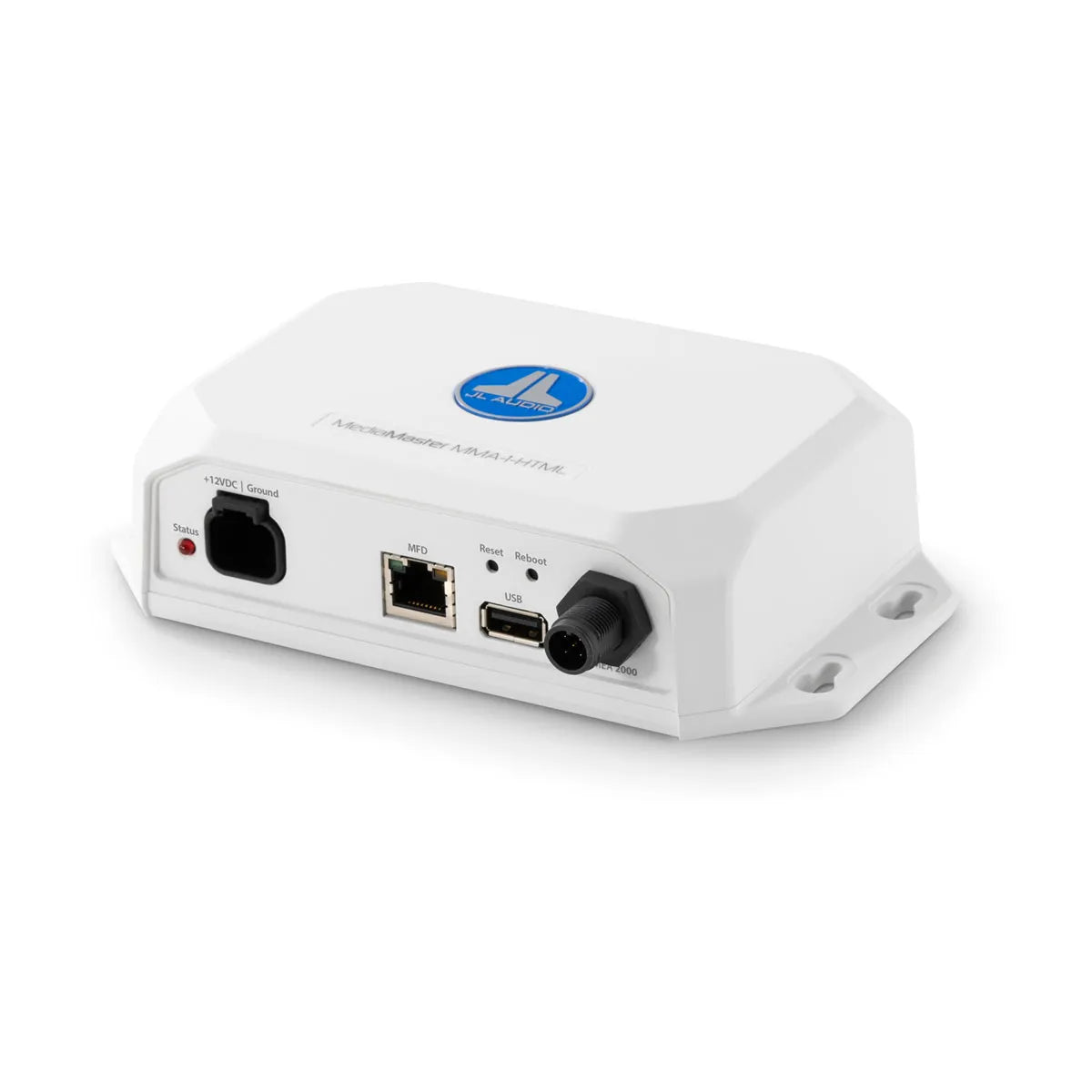

The JL Audio MFD data interface enables comprehensive MediaMaster source unit control directly through vessel-compatible multi-function displays (MFD) via NMEA 2000 marine network integration. Engineered to generate MediaMaster-themed user interface navigation and controls on helm-mounted MFD screens, this interface module automatically recognizes host MediaMaster source units and projects familiar screen information and navigation controls onto MFD displays. Connected via NMEA 2000 Micro-C connector (LEN 1) with Ethernet port for MFD communication, the interface enables unified helm operation where chartplotters, radar displays, and audio controls are accessed through single multi-function display. Supporting multi-language interfaces (English/French/German/Italian/Spanish) with software updates via USB, this professional integration module operates across -20°C to +65°C temperature range with 150mA maximum current draw, backed by comprehensive three-year warranty for recreational boats, fishing vessels, and yacht installations requiring sophisticated helm electronics integration.

Features & Benefits

Unified Helm Display Integration: Projects complete MediaMaster source unit interface directly onto vessel multi-function displays eliminating need for separate audio control screens, enabling unified helm operation where navigation, radar, sonar, and audio controls are accessed through single MFD touchscreen interface reducing helm clutter and improving operational efficiency.

Automatic Source Unit Recognition: Intelligent interface automatically detects host MediaMaster source unit configuration and generates appropriate themed UI navigation matching MediaMaster 55, MediaMaster 105, or connected source unit model, ensuring consistent user experience with familiar controls and screen layouts projected onto MFD displays.

NMEA 2000 Network Architecture: Micro-C NMEA 2000 connector (LEN 1, 50mA draw) integrates seamlessly with vessel marine electronics networks sharing bandwidth with chartplotters, autopilots, engine monitors, and navigation systems, enabling sophisticated multi-device communication and coordinated control interfaces across modern boat electronics.

True MediaMaster User Experience: Replicates complete MediaMaster source unit screen information, menu structures, navigation controls, and audio settings on MFD displays maintaining authentic operating experience without compromising functionality, ensuring operators familiar with MediaMaster interfaces transition seamlessly to MFD-based control.

Multi-Language Support: Five-language interface (English/French/German/Italian/Spanish) accommodates international vessels and diverse operator preferences with selectable language settings synchronized across MediaMaster source unit and MFD display, simplifying operation for multinational crews and charter applications.

Professional Marine Construction: Compact module (172mm W x 101mm D x 44mm H) with extreme temperature capability (-20°C to +65°C) withstands harsh marine environments in equipment compartments, helm consoles, or below-deck installations with three-year warranty coverage ensuring long-term reliability in Australian coastal conditions.

Technical Specs

Compatible With / Goes Well With

JL Audio MediaMaster Source Units: MediaMaster 55 marine stereo (MM55 and MM55-HR models), MediaMaster 105 marine stereo providing host source unit functionality with automatic interface recognition and themed UI generation on MFD displays.

Compatible Multi-Function Displays: Vessel MFD systems supporting NMEA 2000 data display including major marine electronics brands with touchscreen interfaces and network integration capability for audio control display (verify MFD compatibility with JL Audio before installation).

NMEA 2000 Network Components: NMEA 2000 backbone cables, Micro-C terminators, Micro-C T-connectors, NMEA 2000 power cables, drop cables enabling proper network topology and device integration across vessel marine electronics systems.

JL Audio Marine Audio Systems: Complete marine audio installations combining MediaMaster source units, JL Audio M3/M6 marine speakers, MHD/MVi marine amplifiers, marine subwoofers requiring integrated helm control through existing MFD displays.

Installation Accessories: Marine-grade mounting brackets, waterproof wire connectors, heat shrink tubing, cable management solutions, NMEA 2000 network diagnostic tools for professional interface installation and network integration.

Frequently Asked Questions

Which multi-function displays are compatible with this MFD data interface? Compatibility depends on MFD manufacturer support for JL Audio MediaMaster integration via NMEA 2000. Contact JL Audio or your MFD manufacturer to verify specific model compatibility before purchasing. Major marine electronics brands with NMEA 2000 audio device support are typically compatible, but verification is essential.

Can I control all MediaMaster source unit functions through the MFD display? Yes, the interface projects complete MediaMaster UI including source selection (AM/FM/Bluetooth/USB/AUX), volume control, multi-zone management, track navigation, radio tuning, and settings adjustments. All functions accessible on MediaMaster source unit are available through MFD display interface.

Does this eliminate the need for the MediaMaster source unit's physical display? No, the MFD interface supplements MediaMaster control but doesn't replace the source unit. MediaMaster 55 and 105 models continue operating with their displays/controls. The MM55-HR hideaway receiver (no physical display) benefits most from MFD integration providing primary visual interface.

How difficult is installation and NMEA 2000 network integration? Professional installation is recommended requiring NMEA 2000 network knowledge, proper backbone integration, power connection (10-15.9V DC with 1A fuse), Ethernet connection to MFD, and network configuration. Improper network topology or insufficient power budget can cause communication failures across entire vessel electronics network.

Can multiple MFD displays show MediaMaster control simultaneously? This depends on your vessel's NMEA 2000 network architecture and MFD configuration. Single MFD data interface broadcasts to network, but simultaneous display on multiple MFDs requires network capability and MFD manufacturer support for shared NMEA 2000 audio device displays.
