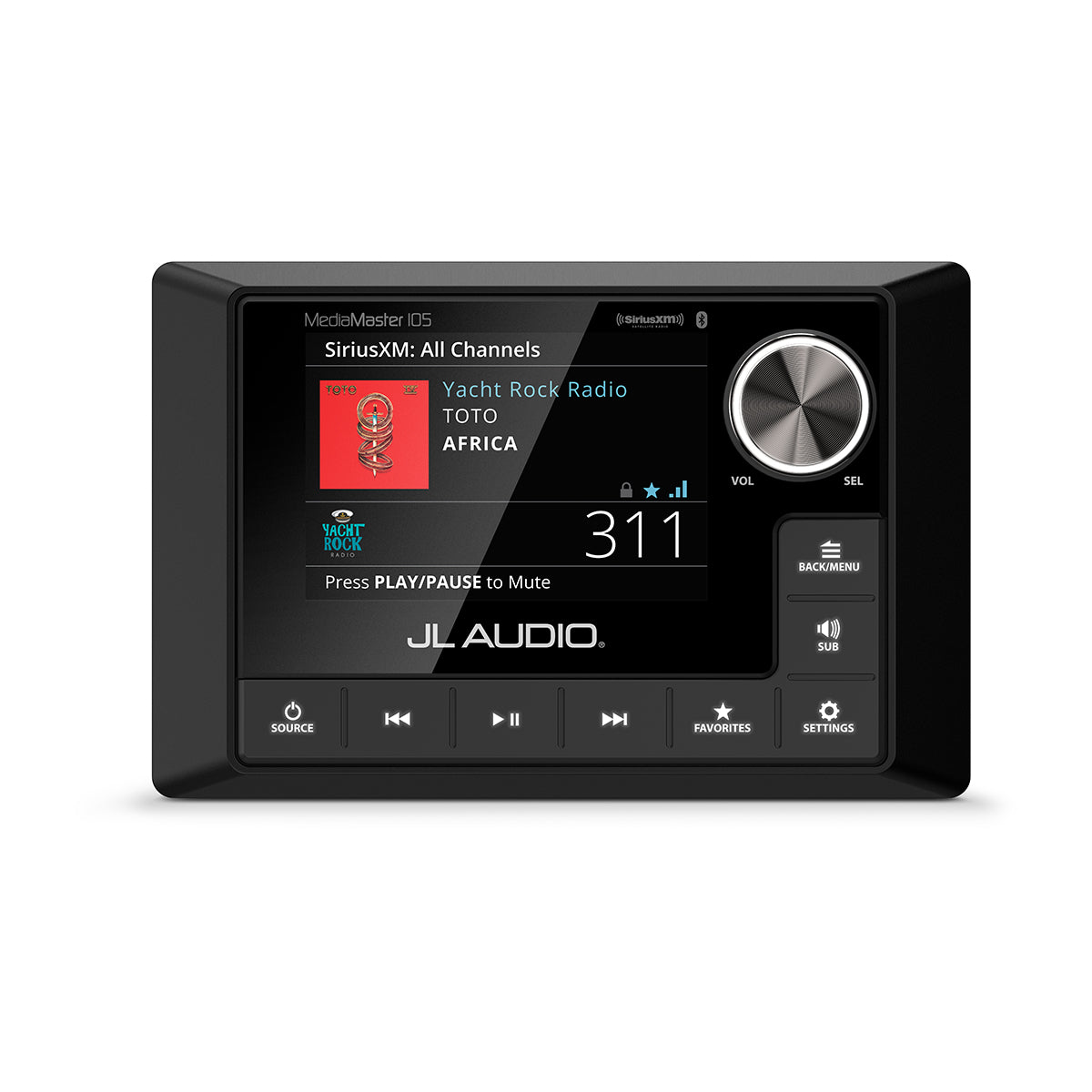

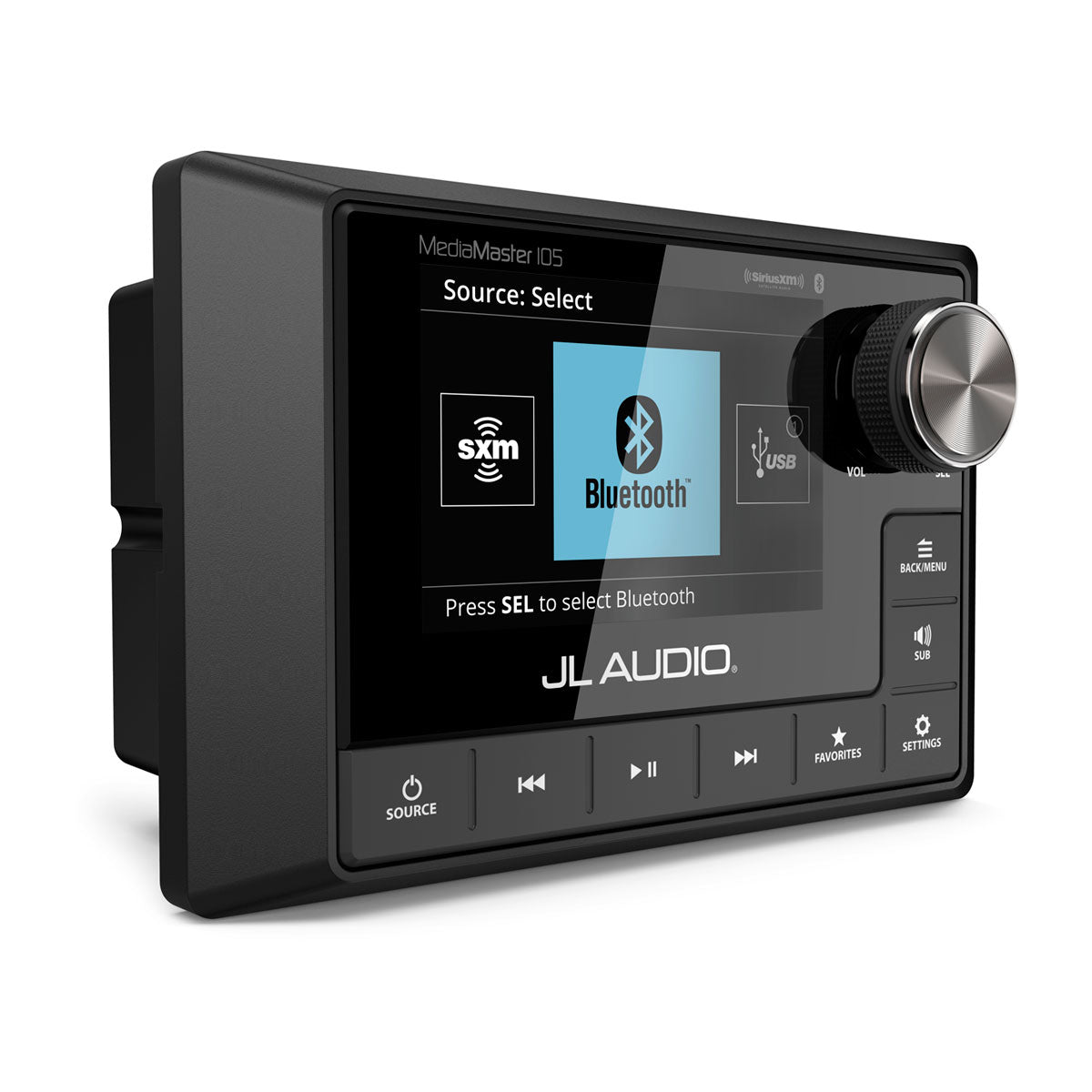

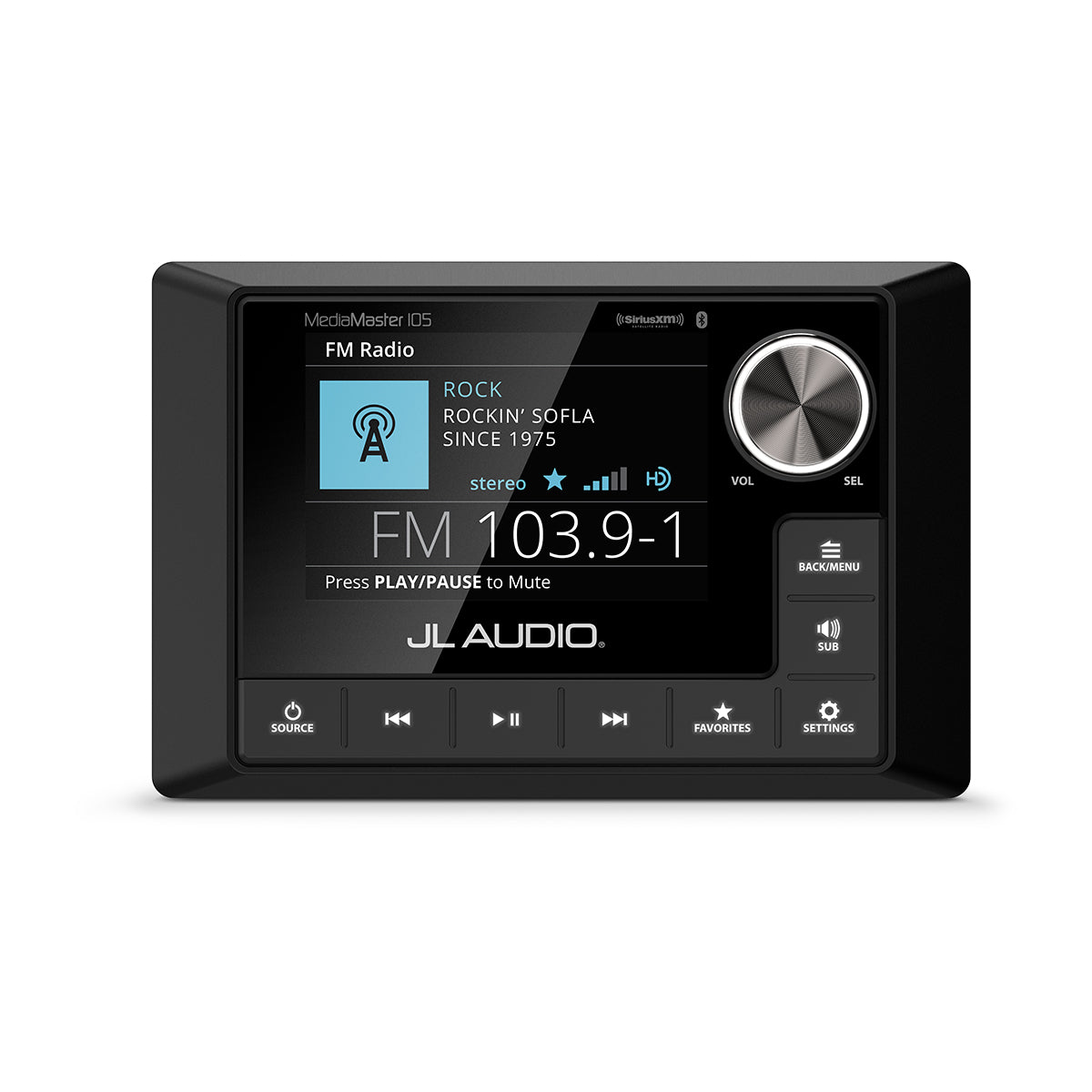

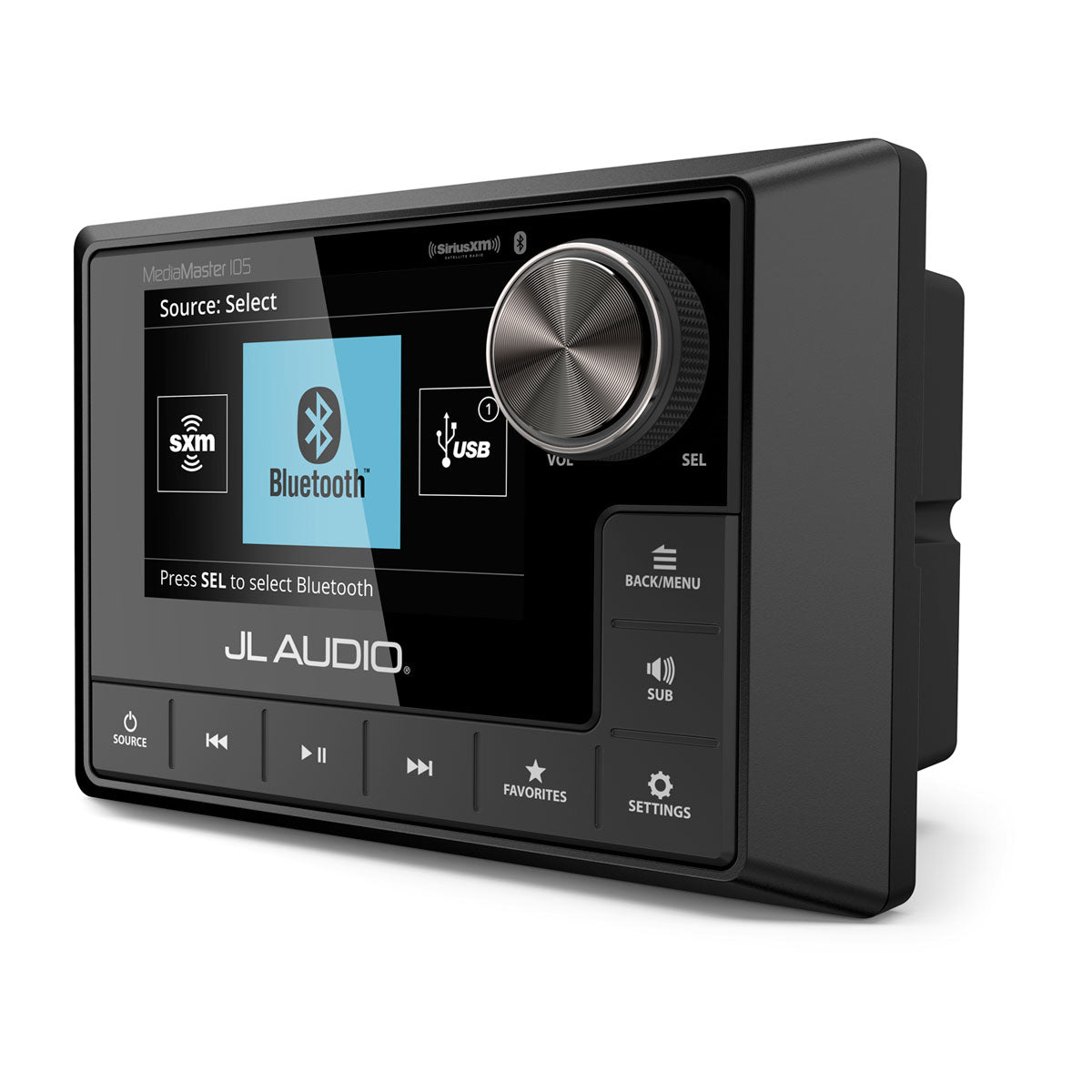

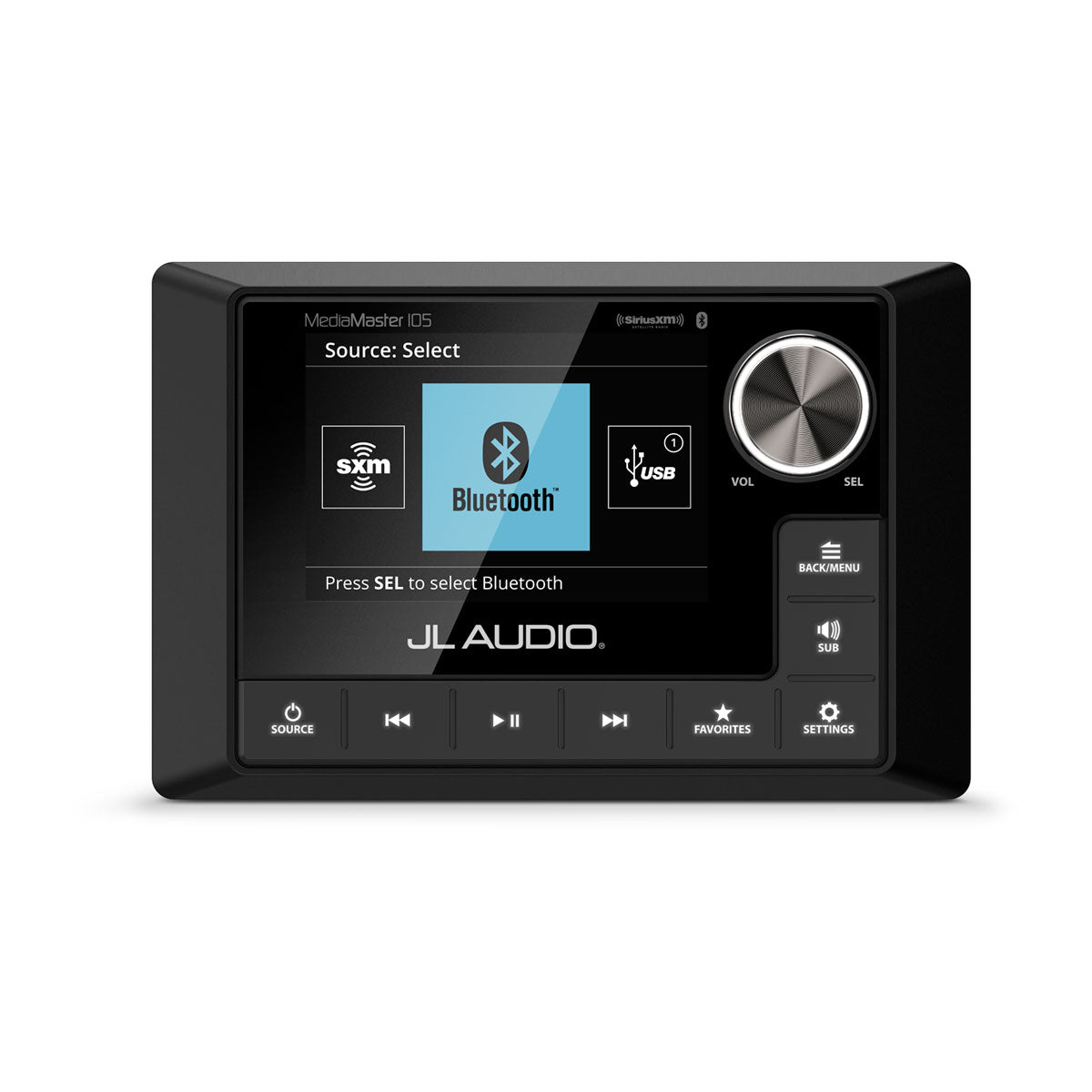

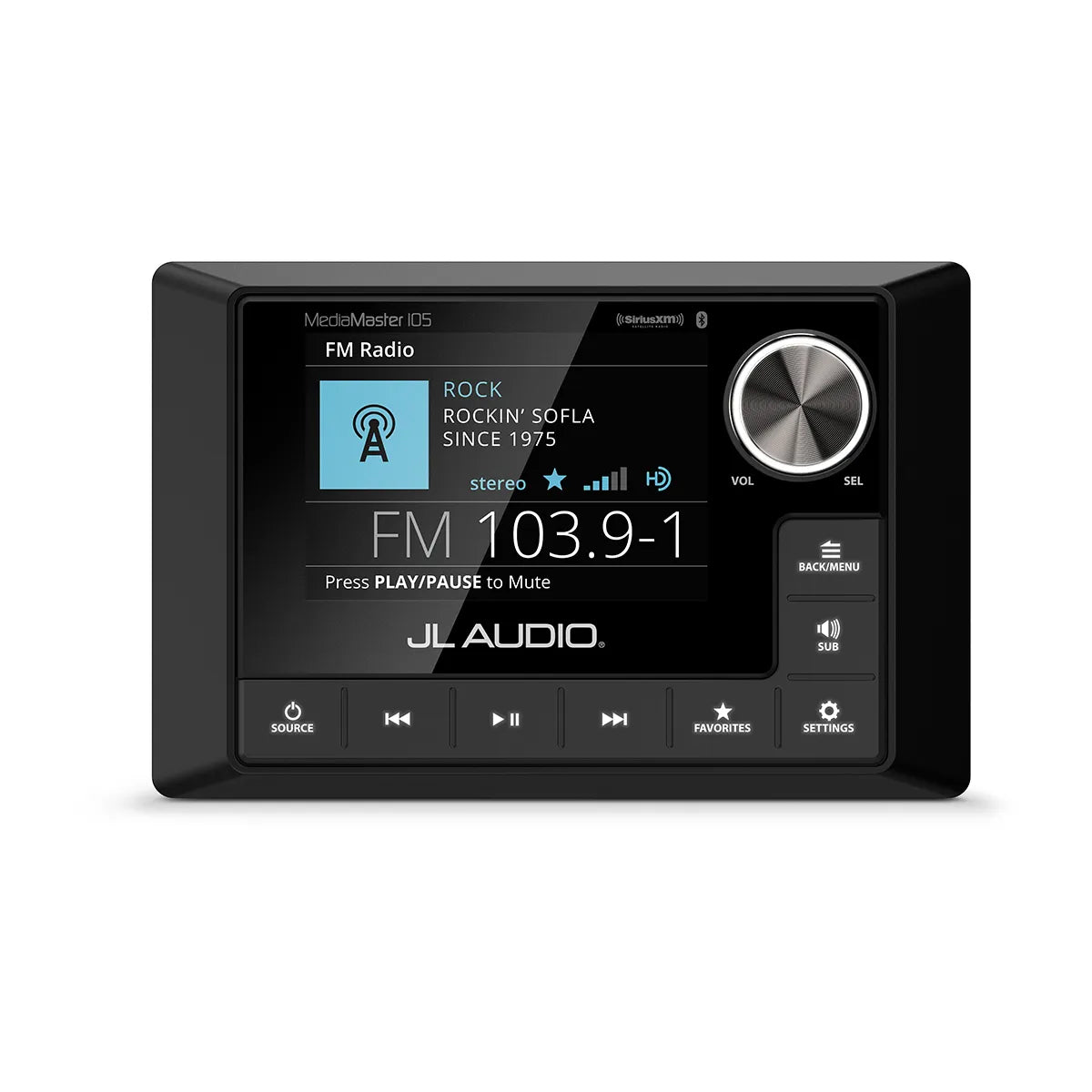

JL Audio JLA-010-03132-00 MM105 MediaMaster 105 Stereo

JL Audio JLA-010-03132-00 MM105 MediaMaster 105 Stereo - Weatherproof Marine Source Unit with Full-Colour LCD Display

Premium IP67 weatherproof marine source unit with full-color display, multi-zone technology, and comprehensive connectivity for professional boat audio systems.

Product Overview

The JL Audio MediaMaster 105 (MM105) marine stereo (JLA-010-03132-00) represents the pinnacle of marine audio source units, combining professional-grade features with IP67 weatherproof protection and intuitive operation. This premium marine head unit features a vibrant 3.5-inch full-color TFT LCD display with 320 x 480 resolution, delivering clear visibility even in bright sunlight conditions. The groundbreaking Multi-Zone technology controls up to four independent audio zones throughout your vessel, each with dedicated left/right outputs plus subwoofer output, enabling simultaneous playback of different sources in helm, cockpit, cabin, and tower areas. Comprehensive source options include AM/FM radio with RDS (plus HD Radio for North America or DAB+ for Europe), Bluetooth wireless streaming, dual USB ports supporting iPhone/iPod and USB storage devices, dual auxiliary inputs, and SiriusXM-ready capability. The IP67 control surface rating ensures complete protection against water immersion and dust intrusion when properly installed, while NMEA 2000 networking integration enables control and data sharing with compatible marine electronics. Operating across extreme temperature ranges (-20°C to +70°C), the MM105 thrives in harsh marine environments from arctic to tropical conditions.

Features & Benefits

The 3.5-inch full-color TFT LCD display with 320 x 480 resolution provides exceptional readability in direct sunlight, delivering crisp text, vibrant album art, and intuitive menu navigation that remains visible regardless of lighting conditions. IP67 weatherproof rating on the control surface protects against complete water immersion up to 1 meter depth, dust intrusion, and saltwater spray, ensuring reliable operation in the harshest marine environments. Multi-Zone technology enables independent control of four separate audio zones throughout the vessel, allowing helm area to play AM/FM radio while cockpit streams Bluetooth, cabin plays USB music, and tower area receives auxiliary input—all simultaneously with individual volume control per zone. Comprehensive source integration includes AM/FM with RDS data display, digital HD Radio reception in North America or DAB+ in Europe for superior digital broadcast quality, Bluetooth wireless streaming from smartphones and tablets with up to 35-foot range, dual USB ports supporting MFi-certified iPhone/iPod connection plus USB storage devices, dual auxiliary inputs for additional sources, and SiriusXM-ready capability with subscription and tuner. Four-zone RCA pre-out configuration provides dedicated left/right outputs plus mono subwoofer output for each of four zones, enabling sophisticated multi-amplifier systems with zone-specific bass management. NMEA 2000 networking allows integration with compatible marine electronics for unified system control, data sharing, and display of marine information. Multi-language interface supports English, French, German, Italian, and Spanish for international vessel operations. Extreme temperature operating range (-20°C to +70°C) ensures reliable performance in arctic cold to desert heat conditions. USB software updates enable firmware improvements and feature additions without replacement.

Technical Specifications

Compatible With / Goes Well With

JL Audio Marine Amplifiers: MVi Marine Amplifiers (all models), MX Marine and Powersports Amplifiers (MX280/4, MX300/1, MX500/1, MX600/3), MHD Marine Amplifiers, XDM Car and Marine Amplifiers for multi-zone amplification with dedicated zone control

JL Audio Marine Speakers: M3 Marine Speakers, M6 Marine Speakers, M3/M6 Enclosed Tower Speakers for zone-specific installations throughout vessel

JL Audio Marine Subwoofers: M3 Marine Subwoofer, M6 Marine Subwoofer, M7 Marine Subwoofer for zone-specific bass reproduction with dedicated subwoofer outputs

System Components: JL Audio XMD-WHTAIC2/4 series RCA interconnects for zone-to-amplifier connections, SiriusXM Connect Vehicle Tuner for satellite radio (subscription required), compatible NMEA 2000 marine electronics for integrated networking

Installation Requirements: 12V DC marine electrical system, dash mounting location (5.95" W x 3.91" H cutout), antenna for AM/FM/HD/DAB reception, proper gasket installation for IP67 rating, external amplification required for all audio outputs

Frequently Asked Questions

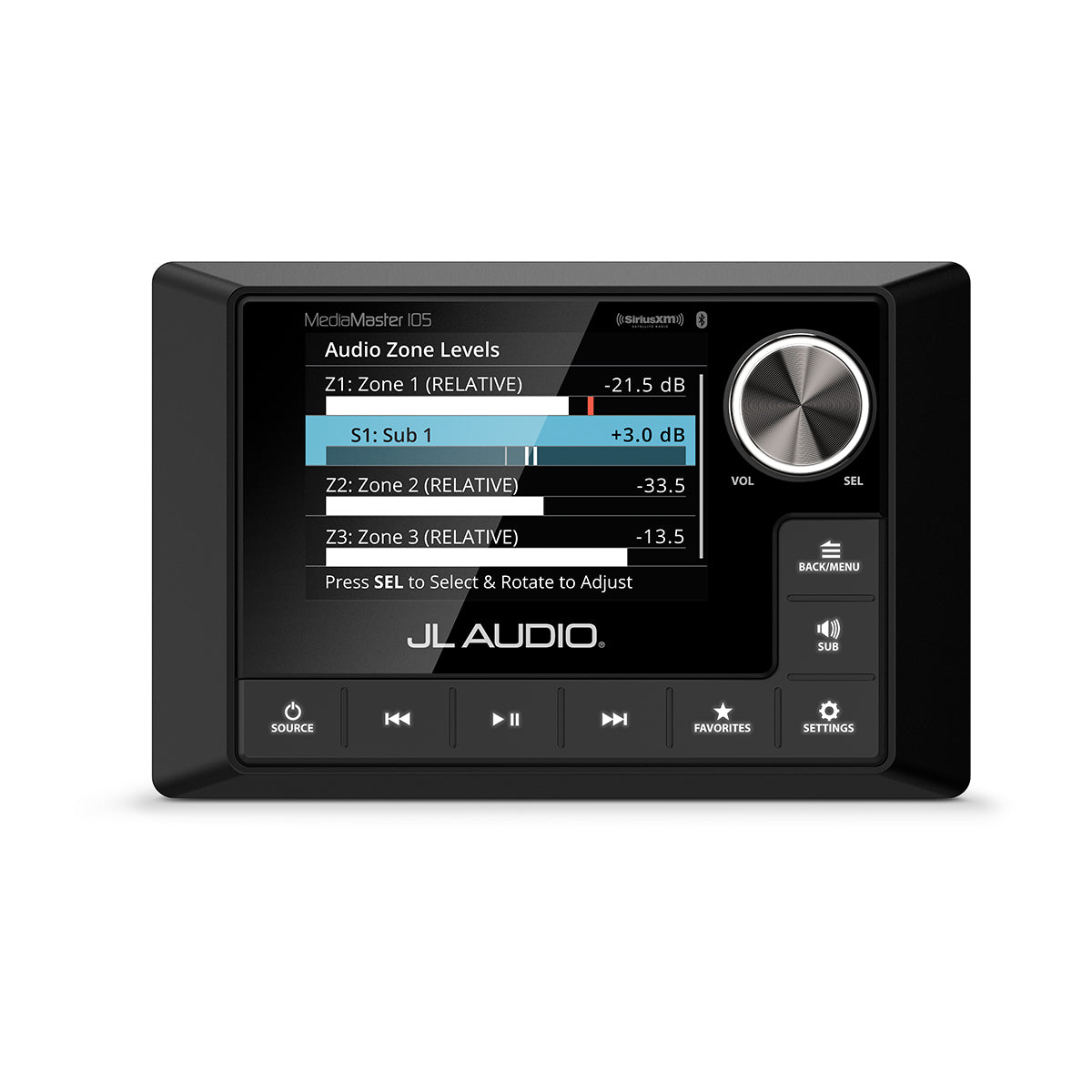

How does the Multi-Zone technology work and what can I do with four zones? Multi-Zone technology allows you to create four completely independent audio zones throughout your vessel, each capable of playing different sources simultaneously. For example, Zone 1 (helm) plays AM/FM radio, Zone 2 (cockpit) streams Bluetooth from a phone, Zone 3 (cabin) plays USB music, and Zone 4 (tower speakers) receives auxiliary input—all at the same time with independent volume control per zone. Each zone has dedicated left/right outputs plus a subwoofer output, enabling sophisticated multi-amplifier systems where every zone can have its own amplifier and speakers, including zone-specific bass management.

What's required to achieve IP67 waterproof protection? The MM105 control surface achieves IP67 rating when properly installed using the included mounting gasket and following installation instructions. The gasket creates a watertight seal between the unit and mounting surface. All connections must be made correctly with proper wire routing to prevent water intrusion through the rear of the unit. The IP67 rating means the control surface can withstand complete immersion in up to 1 meter of water for 30 minutes, plus total dust intrusion protection. Proper installation is critical—improper gasket sealing or poor cable routing compromises waterproof protection.

Can I use SiriusXM satellite radio with this unit? Yes, the MM105 is SiriusXM-ready, meaning it has a dedicated SiriusXM port and can control SiriusXM satellite radio playback. However, you need three additional items: (1) SiriusXM Connect Vehicle Tuner (sold separately), (2) SiriusXM satellite antenna (sold separately), and (3) active SiriusXM subscription. Once installed and subscribed, you can access all SiriusXM channels with full metadata display and channel control directly from the MM105 interface. SiriusXM is available in the US and Canada only.

Do I need external amplifiers or does the MM105 have built-in amplification? The MM105 requires external amplification for all audio outputs. It provides pre-amplifier level RCA outputs (line level) for each zone, not speaker-level outputs. This design is intentional for marine applications where external amplifiers provide superior power, flexibility, and performance. Each zone has left/right RCA outputs plus subwoofer output, connecting to external amplifiers which then drive the speakers. This approach enables proper impedance matching, flexible power distribution, and professional-grade audio quality that built-in amplification cannot match in marine environments.

Can I control the MM105 from multiple locations on my boat? The MM105 itself is a single control surface installed in one location (typically the helm). However, when integrated with NMEA 2000 networking, compatible marine displays and multifunction displays (MFDs) throughout the vessel can control the MM105, view playback information, and adjust settings. Additionally, Bluetooth connection allows smartphones to control playback of Bluetooth-streamed content. For vessels requiring multiple physical control locations, consider the MM105-HR (Hideaway Receiver) variant which separates the display from the main unit, enabling custom control panel installations or integration with helm electronics.
