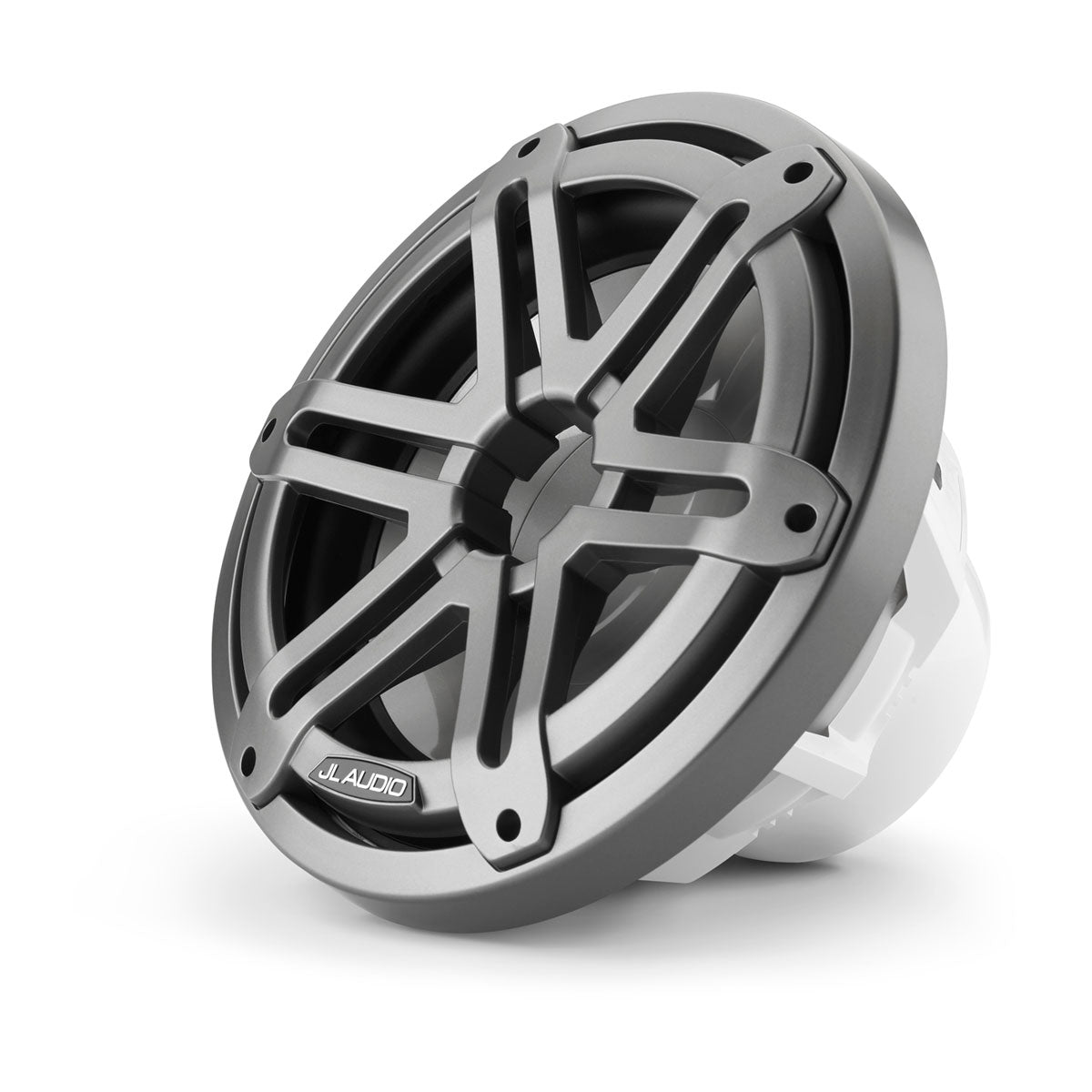

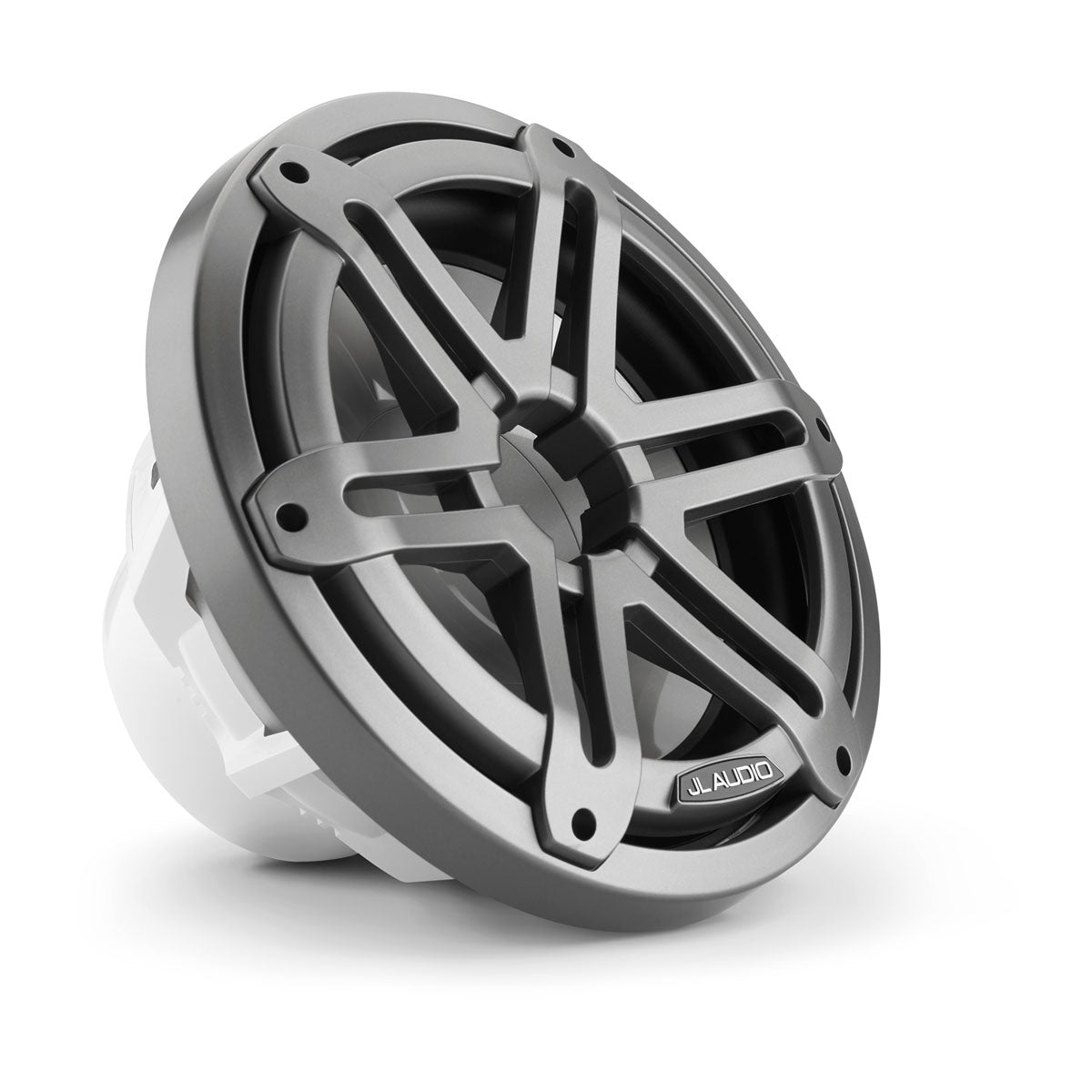

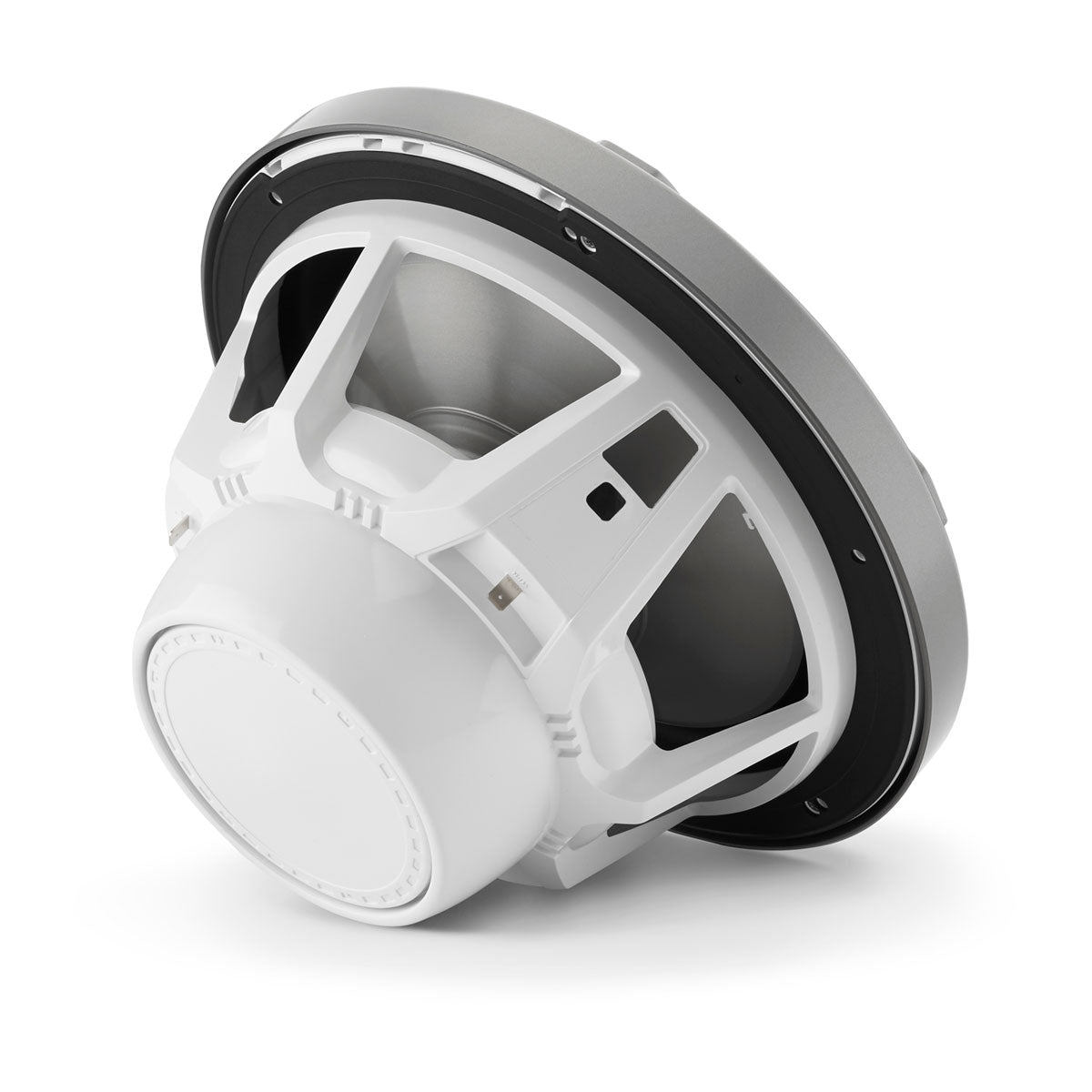

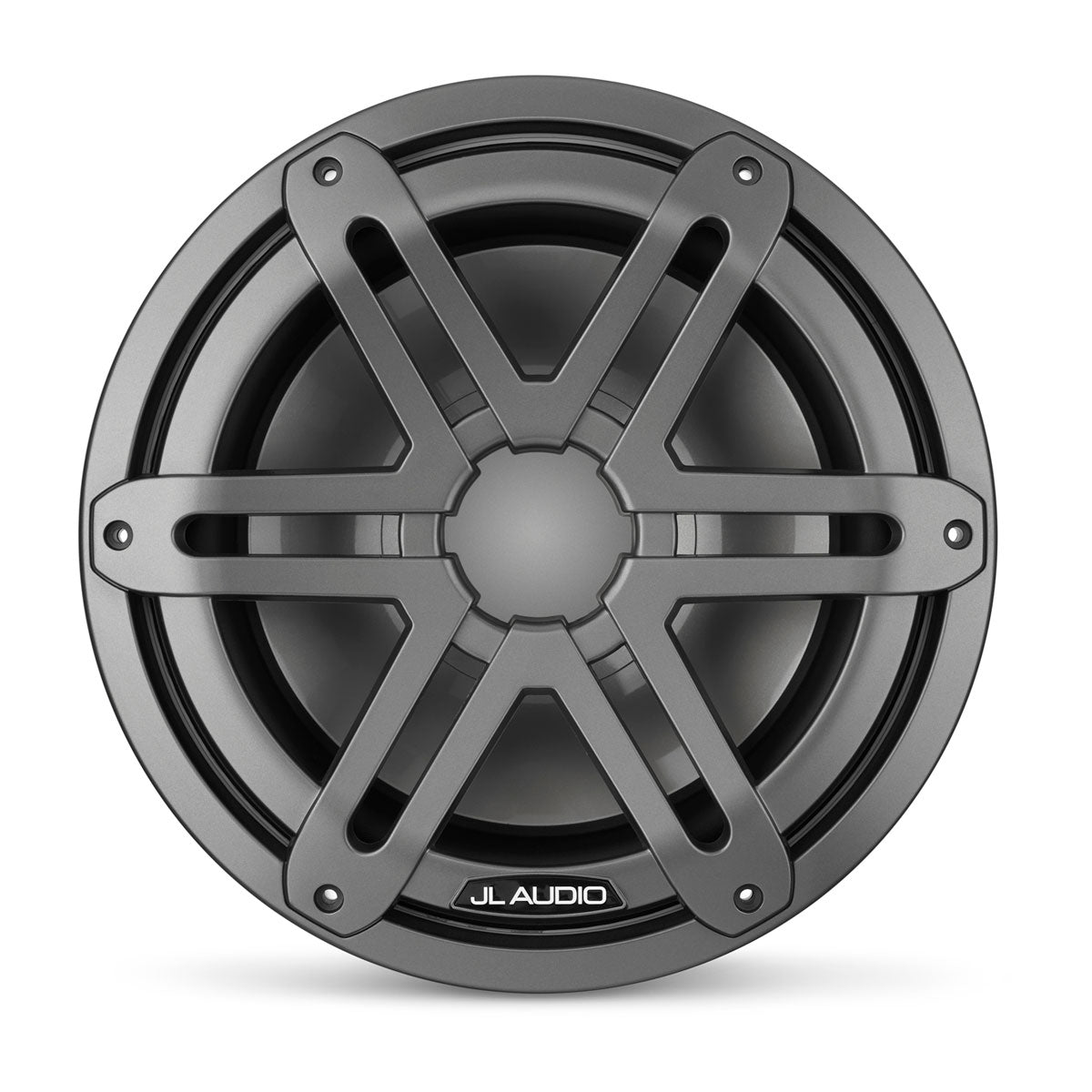

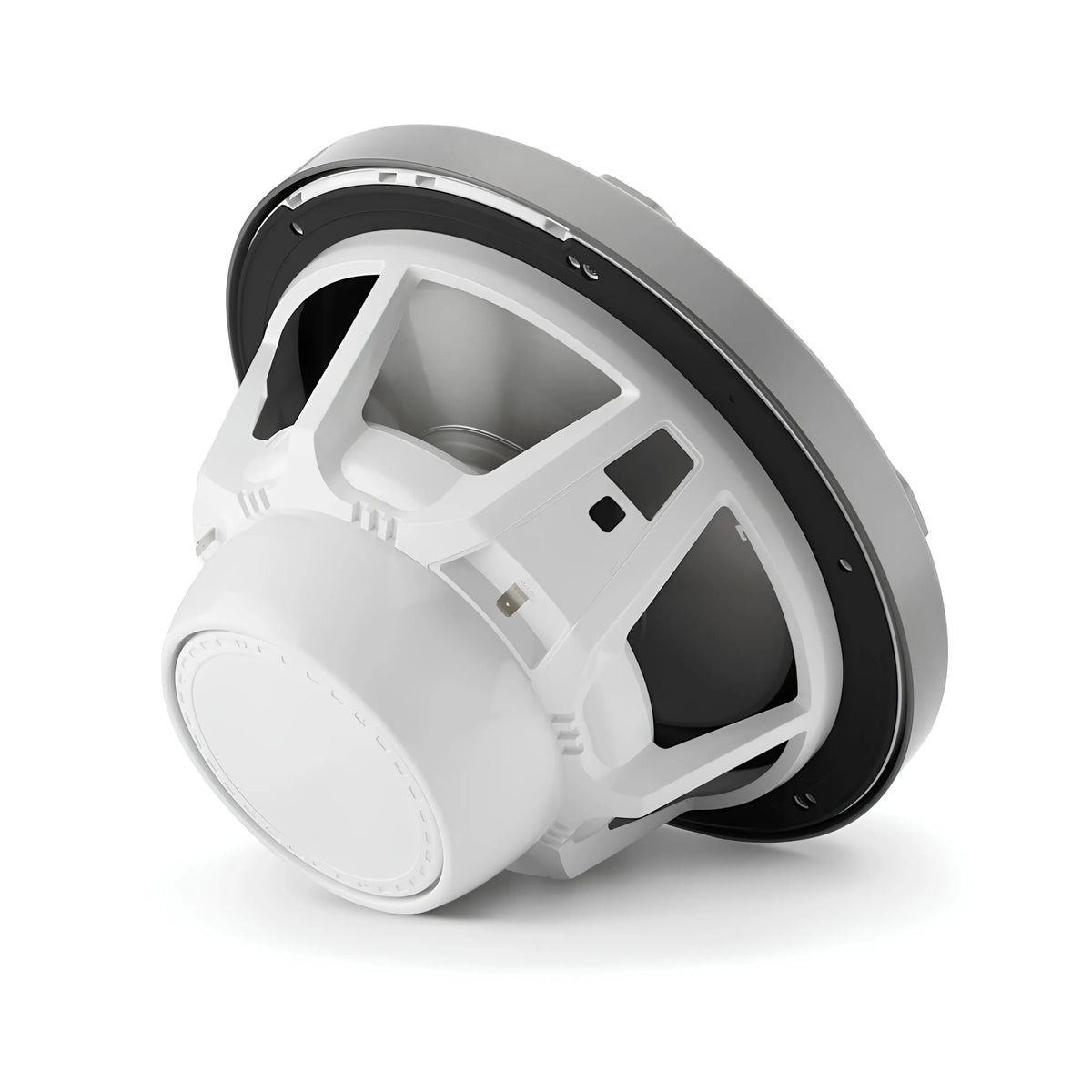

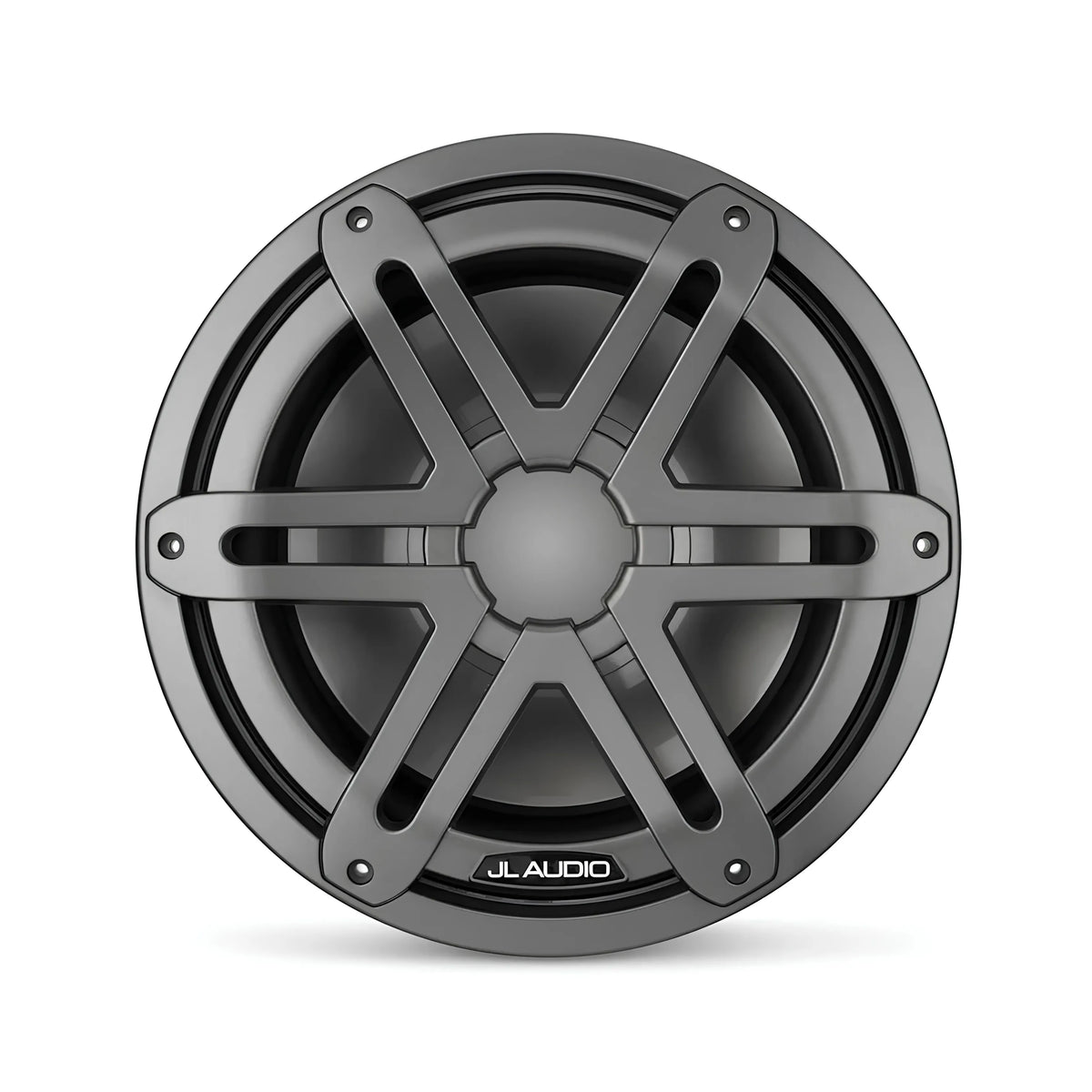

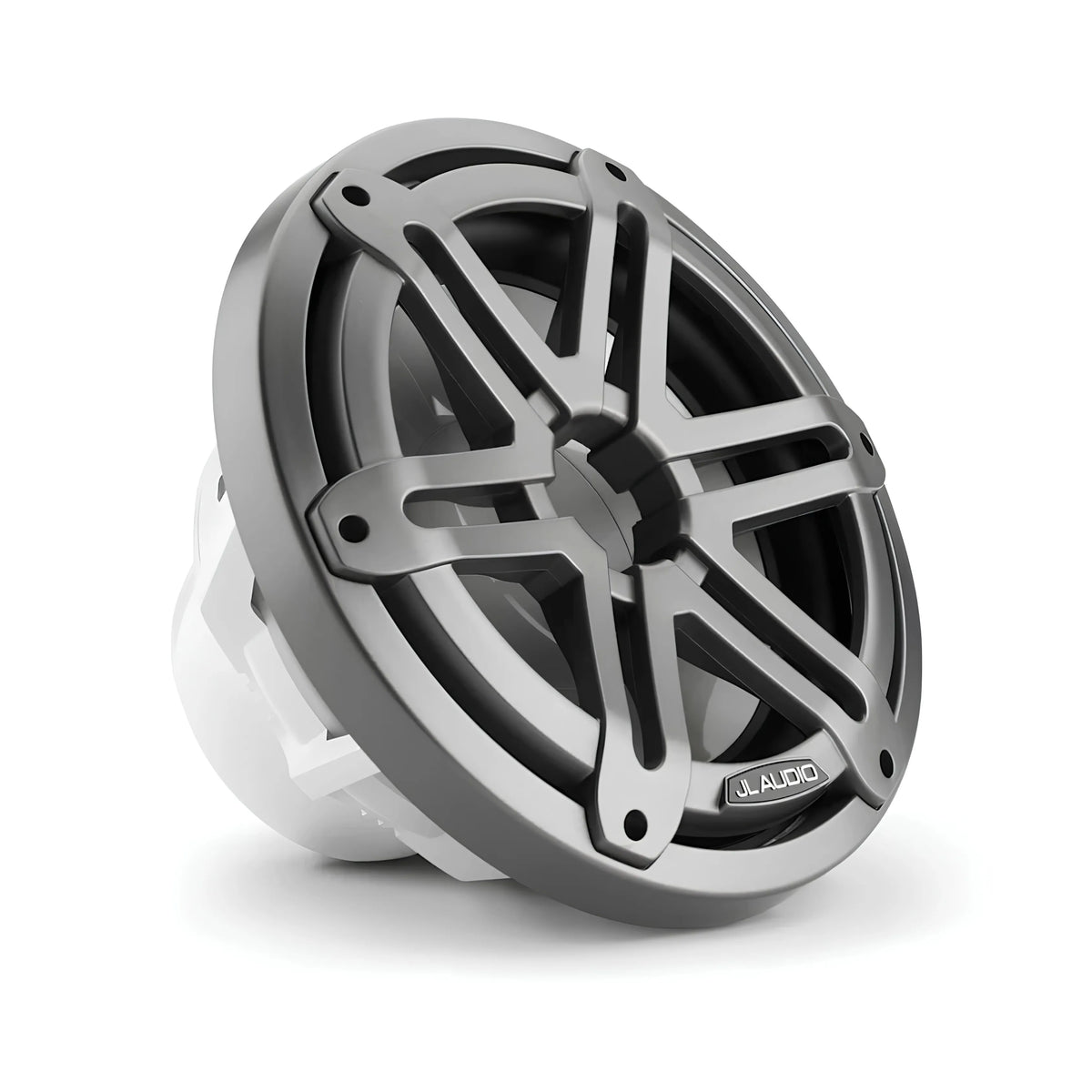

JL Audio JLA-010-03071-00 M3 10" Marine Subwoofer - Grey Sport Grille with LED

JL Audio JLA-010-03071-00 M3 10" Marine Subwoofer - Grey Sport Grille with LED

Premium marine bass reproduction with RGB illumination — infinite baffle design delivers deep, powerful low-frequency extension for Australian offshore conditions.

Product Overview

The JL Audio M3 10" marine subwoofer with grey sport grille and RGB LED lighting delivers professional-grade bass performance in a versatile infinite baffle design built for harsh saltwater environments. Engineered with injection-moulded mica-filled polypropylene cone and 10.7mm linear excursion capability, this subwoofer handles 175W RMS continuous power with 87.23 dB sensitivity and 41.84 Hz free-air resonance. The infinite baffle configuration allows flexible mounting in sealed enclosures, under-deck installations, or custom fibreglass applications without requiring ported box construction. The grey sport grille provides UV-resistant protection with tactical aesthetics and includes JL Audio logo badges, while the RGB LED system offers colour-matched cockpit lighting. Stainless steel mounting hardware ensures long-term reliability in Australian coastal conditions. Ideal for centre consoles, bowriders, and performance vessels requiring powerful bass extension without dedicated subwoofer box space.

Features & Benefits

Infinite Baffle Design: Versatile mounting configuration allows installation in sealed enclosures, under-deck cavities, or custom fibreglass applications without requiring ported enclosure construction, maximizing installation flexibility in space-constrained marine environments.

High Power Handling: 175W RMS continuous rating with 50-175W recommended amplifier power delivers substantial bass output capable of overcoming engine noise, wind, and water splash in open-cockpit offshore applications.

Extended Linear Excursion: 10.7mm one-way linear excursion (Xmax) enables deep bass reproduction without distortion, maintaining clean output during high-volume operation or demanding musical passages with extended low-frequency content.

Corrosion-Resistant Marine Construction: Mica-filled polypropylene cone with sealed motor assembly and stainless steel mounting hardware withstands constant saltwater exposure, UV radiation, and temperature extremes common in Australian coastal waters and offshore environments.

RGB LED Illumination System: Customisable lighting operates on 10-14.4 VDC with 108mA draw, allowing colour-matched cockpit aesthetics for night fishing, wakeboarding sessions, or entertaining at anchor without draining house batteries.

Grey Sport Grille Design: Modern grey sport grille with 40mm protrusion provides UV-resistant protection while maintaining tactical, contemporary aesthetic perfect for performance vessels, centre consoles, or modern boat styling. Includes JL Audio logo badges for branded appearance.

Technical Specs

Compatible With / Goes Well With

• Fusion Apollo MS-RA800 marine stereo
• JL Audio AP amplifiers with Bluetooth technology
• JL Audio MHD marine amplifiers (monoblock recommended)
• JL Audio MVi marine amplifiers
• JL Audio MX marine and powersports amplifiers
• JL Audio XDM car and marine amplifiers
• JL Audio M3 marine speakers (6.5" and 7.7" models)
• JL Audio M3 enclosed tower speakers
• JL Audio VeX enclosed systems
• RGB LED controllers (12V DC compatible)
• Boats with 225mm (8.875") subwoofer cutouts
• Under-deck mounting locations with 127mm clearance
• Sealed enclosure applications (56.6L recommended)
• Custom fibreglass subwoofer installations
• Centre console fishing boats
• Bowriders and performance vessels
• Wakeboard towers with bass output requirements

Caution: Verify mounting depth clearance (127mm minimum) and mounting hole diameter (225mm) before installation. Infinite baffle design requires adequate rear-wave isolation or sealed enclosure construction. LED functionality requires separate wiring to 12V DC power source and optional RGB controller for colour customisation. Sold individually (not as pair).

Frequently Asked Questions

Can this subwoofer be mounted without an enclosure?

Yes, this infinite baffle design allows free-air mounting in sealed under-deck cavities or fibreglass enclosures, though JL Audio recommends 56.6L sealed enclosure for optimal performance with 42.9 Hz F3 response.

How much amplifier power do I need for this subwoofer?

JL Audio recommends 50-175W RMS with the 175W continuous rating providing optimal performance around 100-150W from a quality marine monoblock amplifier.

Will one 10" subwoofer provide adequate bass for my boat?

For vessels up to 7.5m, one 10" M3 subwoofer typically provides sufficient bass extension. Larger vessels (8m+) or extreme SPL applications may benefit from dual subwoofer installations.

What mounting depth clearance is required behind the subwoofer?

You'll need 127mm clearance behind the mounting surface, with the subwoofer requiring 168mm total depth including the 40mm frontal grille protrusion for sport models.

Are the LED lights controllable separately from the audio?

The RGB LED system operates independently via flying lead connection, allowing integration with vessel lighting controllers or standalone RGB control modules for full colour customisation.
