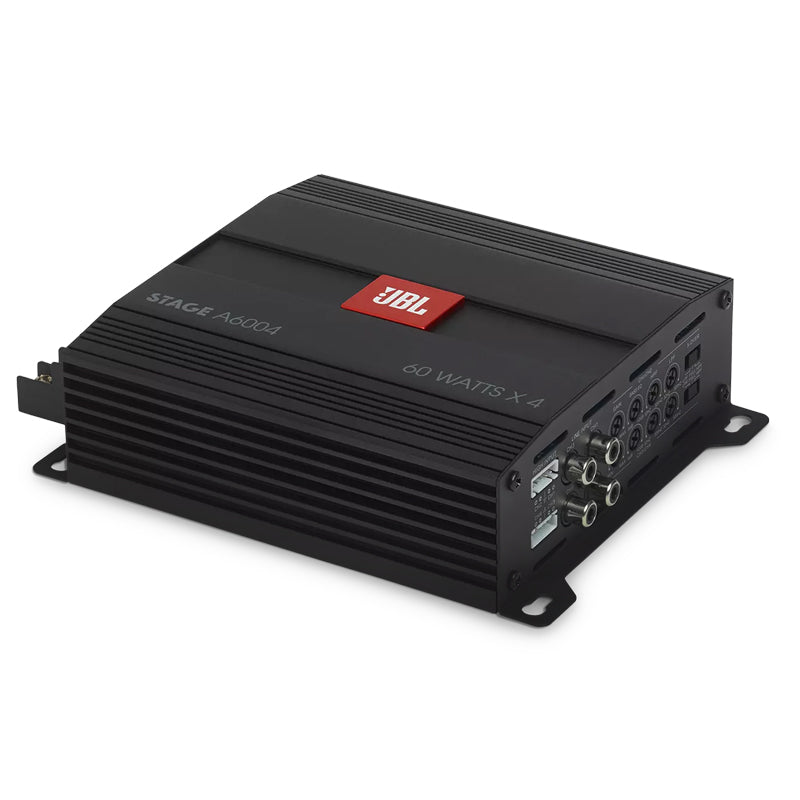

JBL Stage A6004 60 Watts RMS X 4 @ 4 Ohms - High Level Input 4-Channel Car Amplifier

Creates a Full-On Sound That Draws People In!

The power you will feel at your core
JBL Stage Amps are available in a variety of configurations, delivering the right power and number of channels for full-range and subwoofer applications. For more than four decades, JBL has made the audio experience a lot more satisfying for the car audio enthusiast. With a broad array of loudspeakers, amplifiers, and subwoofers available, you can drive with ease and exhilaration. These compact amps are equipped with all the important inputs and user controls including a bass EQ as well as LPF and HPF crossover controls for tailoring the sound to suit the characteristics of different vehicles. The Stage Amps are easily installed and amazingly reliable ? and once they turn on, they?ll make a transducer sit up and sing.

Value Engineered
Stage amplifier provides true JBL performance at an affordable price while now lacking the features needed to properly tune and optimize performance.

Compact footprint
With it becoming more and more difficult to find spacious locations for amplifier mounting, Stage has been developed in a small compact form factor to allow more location versatility.

Full On-Board Protection
Stage amplifier has on-board circuitry to protect them from shorts, temperature, overvoltage, and under-voltage. An LED indicator is included in all four models to let you know when one of these conditions exists.

Reliability
JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world-class experience that lasts and lasts.

Switchable bass EQ
This provides an available bass boost at 45Hz of 6dB or 12dB, serving as a great tool to optimize subwoofer and loudspeaker performance based on location and enclosure type.

Crossover mode switch
LPF crossover controls are switchable between 0dB to 12dB at 45Hz giving users the ability to adjust the sound to the environment and/or application. Adjusts the crossover turnover frequency between 32Hz and 320Hz. (One knob for each stereo pair.)

Features:

• 4-channel car amplifier
• 60W x 4 RMS Output - 4Ω
• 70W x 4 RMS Output - 2Ω
• Bridged 140W x 2 RMS - 4Ω
• Variable high and low-pass filters
• Variable bass boost

Specifications:

• Power Output 60Wx4@4ohms
• Frequency Response 20-20kHz±1dB
• THD@ROP 1%
• Input Sensitivity 0.2V-5V
• High Pass Filter, Variable 32 -320Hz
• Low Pass Filter, Variable 32 -320Hz
• Bass EQ@45Hz 0-12dB
• Protection DC, OVP, UVP, OCP, OTP

What's in the box:

• 1 x Amplifier
• 1 x Spare fuse (x2 for 1-channel and 4-channel model)
• 1 x High-level input cable (x2 for 4-channel model).
• 2 x Two-color JBL brand stickers
• 1 x Quick start guide
