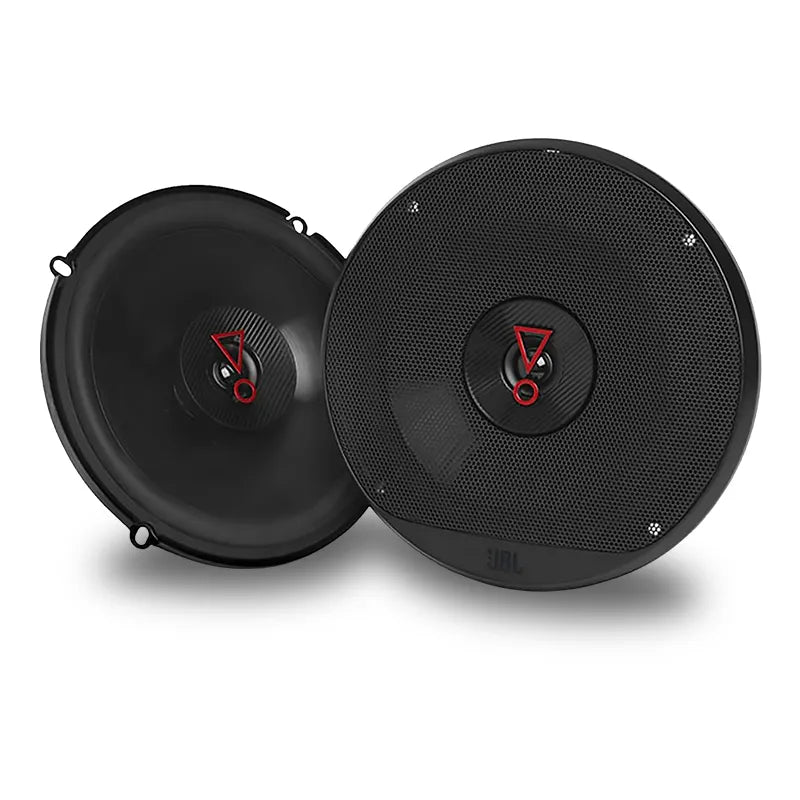

JBL Stage3 627 6.5 Inch 2 Way Coaxial Speakers 45W RMS 3 Ohm

Factory radios have little power to spare, so efficiency matters. The JBL Stage3 627 is a 6.5 inch 2 Way coaxial with 92dB sensitivity and a 3 ohm load that pulls more from the head unit.

JBL Plus One woofer cones add cone area for more bass than a standard 6.5 inch.

Problems it solves

• Weak bass from a stock head unit. A low impedance design and Plus One cones make more output from the same power.
• Fitting speakers that strip their screws. Eight screws and speed clips come with them.
• Speakers failing when driven hard. JBL puts them through OEM level reliability testing.

Stage3 627 specifications

• Size: 6.5 inch (160mm)
• Type: 2 Way coaxial
• Power: 45W RMS, 225W peak
• Sensitivity: 92dB (2.83V/1m)
• Frequency response: 55Hz to 20kHz
• Impedance: 3 ohm

Fitment and compatibility

Cars with 6.5 inch openings and room for a coaxial basket.

What is in the box

• 2 x Stage3 627 coaxial speakers
• 2 x grilles
• 8 x mounting screws
• 8 x speed clips

Install notes

JBL designed the low impedance load to draw more power from a head unit or amplifier; check an amplifier is stable at 3 ohms before you connect it.

Use the speed clips on panels with plain holes.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Stage3 627 FAQs

What does the 3 ohm load on the JBL 627 do for me?

It draws extra power out of a head unit, so the speaker plays louder.

Do the JBL coaxials need an amp?

No, 92dB sensitivity suits factory power.

What fixings come with the Stage3 627?

Eight screws and eight speed clips for the pair.
