JBL Legend 9" Double DIN Head Unit Wired CarPlay Android Auto

SKU: JBLLEGEND
Regular price
$699.95
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

JBL Legend 9" Double DIN Multimedia Head Unit with Wired Apple CarPlay and Android Auto

A double DIN multimedia head unit from JBL, the JBL Legend features a 9" capacitive touchscreen with wired Apple CarPlay and Android Auto, Bluetooth 5.0 with hands-free calling and audio streaming, AM/FM with RDS and 30 presets, 4 x 50W maximum output, 4V 6-channel RCA preouts, 16-band EQ, subwoofer controls, reverse camera input, built-in Wi-Fi and GPS, ISO wiring harness included, and a slim floating-style body design for installation in modern dashboards.

Product Overview

The JBL Legend is a double DIN multimedia head unit designed for vehicles that can accommodate a large floating-style 9" display. The capacitive touchscreen provides a clear and responsive interface for daily driving, and the slim body design assists with installation in modern dashboards where depth behind the screen may be limited.

Wired Apple CarPlay and Android Auto are the core smartphone integration features of the JBL Legend, enabling navigation, music, calls, and messaging to be accessed through the touchscreen via a USB cable connection. Wired connection maintains stable performance and consistent phone charging during use. Bluetooth 5.0 provides hands-free calling and wireless audio streaming for use when CarPlay or Android Auto is not required, supporting standard Bluetooth profiles for calling, audio playback, and phonebook access. AM and FM radio with RDS is included with 18 FM and 12 AM preset stations.

Audio output is rated at 4 x 50W maximum power. Six-channel 4V RCA preouts (front, rear, and subwoofer) enable connection of external amplifiers. A 16-band graphic EQ and subwoofer controls provide onboard audio tuning. A reverse camera input allows connection of a compatible aftermarket or factory reverse camera. Built-in Wi-Fi and GPS are included for navigation and system feature support. An ISO wiring harness is included for simplified installation. No optical disc drive.

Features & Benefits

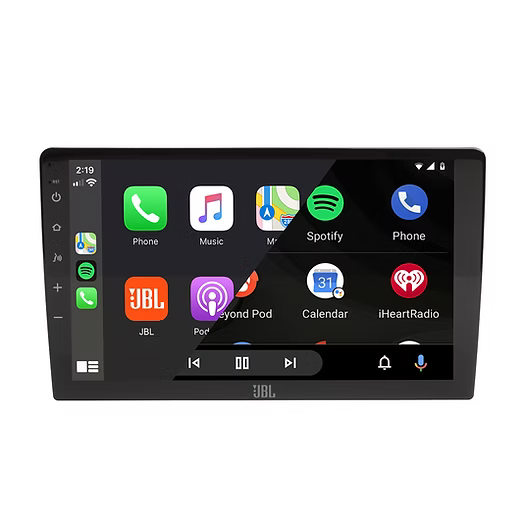

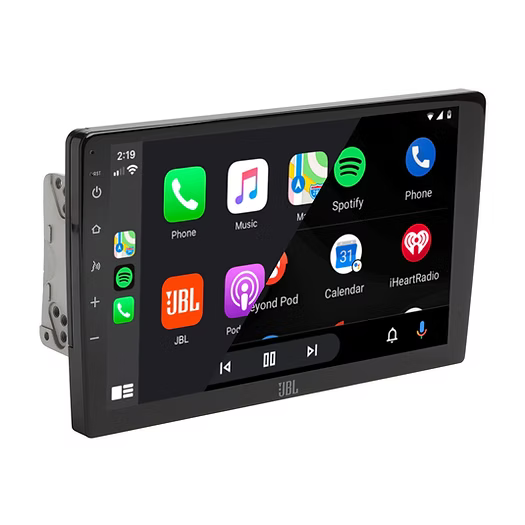

9" Capacitive Touchscreen - Floating Style Design: The 9" capacitive touchscreen delivers a clear, responsive display with a floating-style body suited to modern vehicle dashboards with limited installation depth behind the screen.

Wired Apple CarPlay and Android Auto: Access navigation, music, calls, and messaging through familiar phone apps on the touchscreen via wired USB connection, providing stable performance and simultaneous phone charging during use.

Bluetooth 5.0 - Hands-Free Calling and Audio Streaming: Bluetooth 5.0 supports hands-free calling, wireless audio streaming, and phonebook access for use when CarPlay or Android Auto is not connected.

AM/FM Radio with RDS - 30 Presets: AM and FM radio with RDS and 30 preset stations (18 FM, 12 AM) for full broadcast radio coverage.

4V 6-Channel RCA Preouts: Six-channel 4V RCA preouts (front, rear, and subwoofer) enable connection of external amplifiers for system expansion, suited for pairing with JBL amplifiers and speakers as part of a complete audio system.

16-Band Graphic EQ with Subwoofer Controls: The 16-band EQ and dedicated subwoofer controls provide onboard audio tuning for precise adjustment of the frequency response to suit the vehicle and speaker system.

4 x 50W Maximum Output: Suitable for driving factory speakers or basic aftermarket speaker upgrades directly from the head unit.

Reverse Camera Input: Compatible reverse camera input for connection of an aftermarket or factory reverse camera.

Built-In Wi-Fi and GPS: Integrated Wi-Fi and GPS for navigation and system feature support.

ISO Wiring Harness Included - Simplified Installation: The included ISO wiring harness allows the JBL Legend to replace many factory double DIN head units without complex rewiring.

No Disc Drive: Modern, mechanical-wear-free design without an optical disc drive.

Technical Specs

Specification Detail
SKU JBL LEGEND
Brand JBL
Screen Size 9" (Confirm - spec table states 7", title and description state 9")
Screen Type Capacitive
DIN Size Double DIN
Apple CarPlay Yes (Wired)
Android Auto Yes (Wired)
Bluetooth Version 5.0
Bluetooth Profiles Hands-Free Calling, Audio Streaming, Phonebook Access
AM/FM Tuner Yes
RDS Yes
FM Presets 18
AM Presets 12
Total Presets 30
Maximum Power Output 4 x 50W
RCA Preouts 6-Channel (Front/Rear/Subwoofer)
Preamp Voltage 4V
EQ 16-Band
Subwoofer Controls Yes
Reverse Camera Input Yes
USB Input Yes
Auxiliary Input Yes
Wi-Fi Built-In
GPS Built-In
ISO Harness Included
Disc Drive No

Compatible With

The JBL Legend is compatible with vehicles that can accommodate a double DIN floating-style head unit with a 9" fixed-screen display. The ISO wiring harness enables straightforward replacement of many factory double DIN head units. Wired Apple CarPlay requires a compatible iPhone. Wired Android Auto requires a compatible Android device. Confirm vehicle compatibility and fascia kit requirements before purchase. The JBL Legend is designed to pair with JBL amplifiers and speakers for system expansion via the 6-channel 4V RCA preouts.

Frequently Asked Questions

Does the JBL Legend support wireless CarPlay or Android Auto?

No. The JBL Legend supports wired Apple CarPlay and Android Auto only. A USB cable connection is required for smartphone integration.

What is the preamp output voltage of the JBL Legend?

The JBL Legend provides 6-channel RCA preouts at 4V (front, rear, and subwoofer) for connection of external amplifiers.

Does the JBL Legend have a built-in CD or DVD player?

No. The JBL Legend does not include an optical disc drive.

Can the JBL Legend power aftermarket speakers directly?

Yes. The JBL Legend is rated at 4 x 50W maximum output and can drive factory speakers or basic aftermarket speakers directly. For higher output levels, connection of external amplifiers via the 6-channel RCA preouts is recommended.

Is a reverse camera included with the JBL Legend?

No. The JBL Legend includes a reverse camera input but does not include a reverse camera. A compatible aftermarket reverse camera must be purchased separately.
