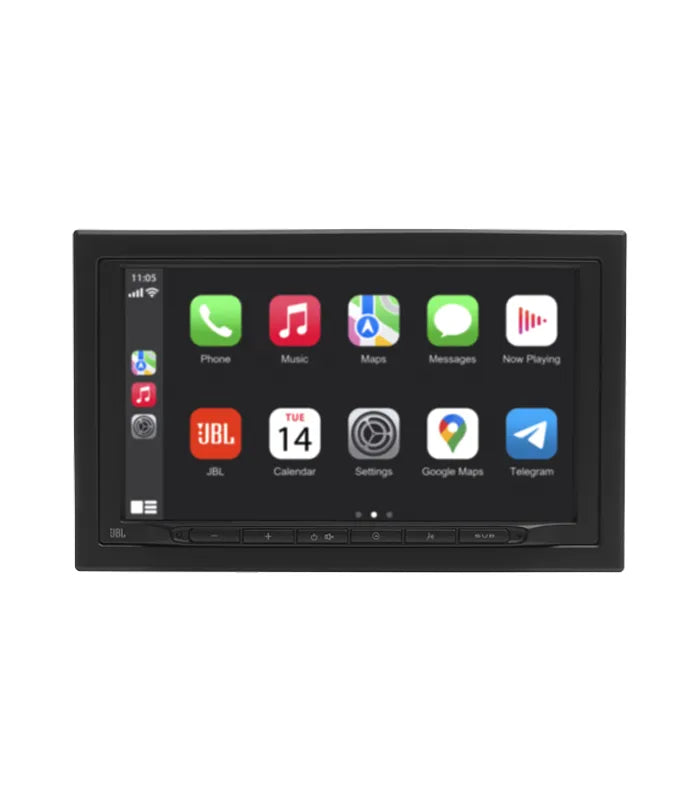

JBL Legend 700D 7" Double DIN Wireless CarPlay Android Auto DAB+

JBL Legend 700D 7" Double DIN Multimedia Head Unit with Wireless CarPlay, Android Auto, and DAB+

A 7" double DIN multimedia head unit from JBL, the Legend 700D features an 800x480 capacitive touchscreen with wireless Apple CarPlay, wireless Android Auto, DAB/DAB+ digital radio, Bluetooth 5.0, AM/FM with 30 presets, 4 x 50W maximum output (14W x 4 RMS), 4V 6-channel RCA preouts (front, rear, subwoofer), subwoofer controls, 16-band EQ with time alignment, SWC ready, rear camera input, single rear USB, GPS antenna included, and external microphone included.

Product Overview

The JBL Legend 700D is a double DIN multimedia head unit designed as a comprehensive upgrade for drivers who want modern wireless smartphone integration, DAB+ digital radio, and serious audio tuning capability in a single in-dash unit. The 7" 800x480 capacitive touchscreen delivers a clean, modern interface for smartphone apps, media controls, radio information, and system settings in the familiar double DIN in-dash format.

Wireless Apple CarPlay and wireless Android Auto eliminate the need to connect a cable on every drive. Once paired with a compatible smartphone, iPhone users access maps, calls, messages, music, podcasts, and Siri through the touchscreen, while Android users access Google Maps, voice control, music, and messaging apps. Bluetooth 5.0 with HFP, A2DP, AVRCP, and PBAP profiles provides hands-free calling, music streaming, ID3 tag display, and phonebook access for use independently of CarPlay and Android Auto.

DAB/DAB+ digital radio provides access to a wider range of stations with digital broadcast quality in supported areas alongside the AM/FM tuner with 30 presets. The 4V 6-channel RCA preouts (front, rear, subwoofer) with dedicated subwoofer control provide a strong signal foundation for building a complete external amplifier system. The 16-band graphic EQ with time alignment and 2-way crossover enable precise audio tuning for different speaker configurations and cabin acoustics.

Note: this is a universal-style aftermarket head unit. Vehicle-specific fascia kits, wiring harnesses, antenna adaptors, DAB antenna, camera retention parts, and SWC interfaces may be required depending on the vehicle and are sold separately.

Features & Benefits

7" Capacitive Touchscreen - 800x480 Resolution: The 7" capacitive touchscreen at 800x480 resolution delivers a clear, responsive interface for navigation, media, settings, and radio in the standard double DIN in-dash format.

Wireless Apple CarPlay and Wireless Android Auto: Access maps, calls, messages, music, and apps through the head unit screen without connecting a cable. iPhone users access Apple CarPlay; Android users access Android Auto. Both are supported wirelessly for seamless every-drive connectivity.

DAB/DAB+ Digital Radio: Access a wider range of stations with digital broadcast quality in supported areas, alongside the AM/FM tuner with 30 preset stations (18 FM, 12 AM).

Bluetooth 5.0 - Hands-Free Calling and Audio Streaming: Bluetooth 5.0 with HFP, A2DP, AVRCP, and PBAP supports hands-free calling, wireless audio streaming, ID3 tag display, and phonebook access. External microphone included.

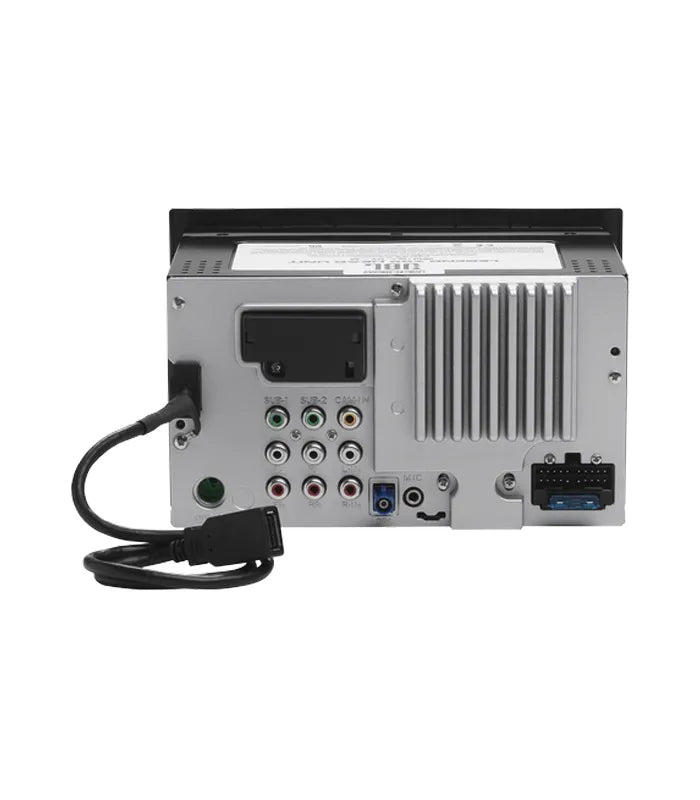

4V 6-Channel RCA Preouts - Front, Rear, and Subwoofer: Three pairs of 4V RCA preouts provide a clean, high-voltage signal for external amplifier connection, covering front, rear, and subwoofer channels for complete system expansion.

Dedicated Subwoofer Controls: Direct subwoofer level adjustment from the head unit for straightforward low-end tuning without requiring access to the amplifier.

16-Band Graphic EQ with Time Alignment: The 16-band graphic EQ provides fine control over the frequency response across bass, midrange, and treble. Time alignment compensates for varying speaker-to-listener distances, improving stereo staging and balance.

4 x 50W Maximum Output (14W x 4 RMS): Direct speaker drive capability for factory speaker upgrades, with the 6-channel preouts available for external amplifier connection for higher-output installations.

SWC Ready - Steering Wheel Control Compatible: Steering wheel control ready for connection via a compatible SWC interface adaptor (sold separately).

Rear Camera Input: Single rear camera input for connection of a compatible aftermarket reverse camera.

GPS Antenna Included: GPS antenna included for navigation functionality via compatible apps through CarPlay or Android Auto.

What's in the Box

• JBL Legend 700D 7" Multimedia Head Unit
• Main Wiring Harness
• GPS Antenna
• Trim Ring
• Mounting Bracket
• External Microphone
• 6 x Screws
• Quick Start Guide
• Safety Sheet

Note: Vehicle-specific fascia kit, wiring harness, antenna adaptor, DAB antenna, camera retention harness, and SWC interface are not included and may be required depending on the vehicle.

Technical Specs

Compatible With

The JBL Legend 700D is a universal-style aftermarket double DIN head unit compatible with vehicles that can accommodate a standard double DIN head unit opening. Vehicle-specific fascia kits, wiring harnesses, antenna adaptors, DAB antenna, camera retention parts, and steering wheel control interfaces may be required depending on the vehicle and are sold separately. Apple CarPlay requires a compatible iPhone. Android Auto requires a compatible Android device. Confirm vehicle compatibility and required installation accessories before purchase.

Frequently Asked Questions

Does the JBL Legend 700D support wireless CarPlay and Android Auto?

Yes. Both wireless Apple CarPlay and wireless Android Auto are supported. Wired connection is also available.

Does the JBL Legend 700D include DAB+ digital radio?

Yes. DAB/DAB+ digital radio is built in. A DAB antenna may be required depending on the vehicle and is sold separately.

What are the preamp output specifications on the JBL Legend 700D?

The Legend 700D provides 6-channel (front, rear, subwoofer) RCA preamp outputs at 4V for connection of external amplifiers.

Does the JBL Legend 700D support steering wheel controls?

Yes. The Legend 700D is SWC ready. A compatible steering wheel control interface adaptor is required and sold separately.

Is a fascia kit included with the JBL Legend 700D?

No. The Legend 700D is a universal-style head unit. A vehicle-specific fascia kit, wiring harness, and other installation accessories may be required depending on the vehicle and are sold separately.
