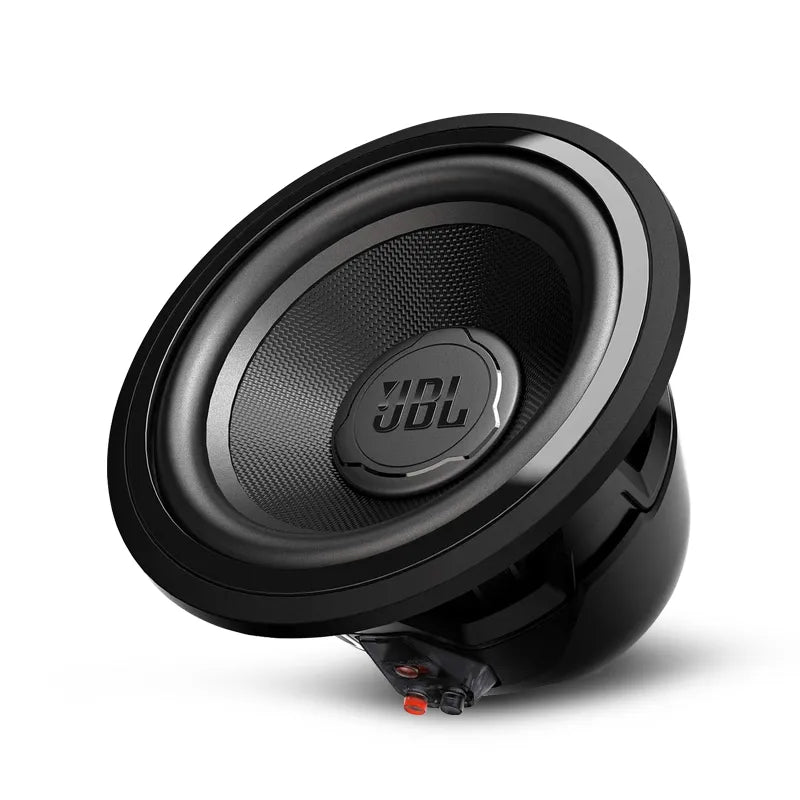

JBL Stadium 102SSI 10" Woofer 450W RMS - Sensitivity 86DB - 2 or 4 Ohm Selectable

Quick answer

The JBL Stadium 102SSI is a 10 inch car subwoofer with 450W RMS handling and a switch for 2 or 4 ohm.

JBL rates it at 91 dB at 2.83V, so it gets loud on a moderate amplifier and still has room for a bigger one.

Problems it solves

• Changing amplifiers later. Switch the load between 2 and 4 ohm without rewiring.
• Weak bass from a modest amp. 91 dB sensitivity makes the most of it.
• Overheating on long drives. A 2 inch voice coil handles 450W RMS.

Specifications

• Size: 10 inch
• Power: 450W RMS, 1350W peak
• Sensitivity: 91 dB at 2.83V
• Frequency response: 30 to 175 Hz
• Impedance: 2 or 4 ohm, SSI selectable
• Voice coil: 2 inch
• Cutout: 227 mm
• Mounting depth: 159 mm

Fitment and compatibility

Needs a 227 mm cutout and 159 mm depth in a box built for a 10 inch sub. Set the SSI switch to suit a mono or bridged amp.

What is in the box

The Stadium 102SSI subwoofer, a screw bag and the owner manual.

Install notes

Flip the SSI switch to 2 or 4 ohm before the sub is screwed into the box. Seal the baffle and use the supplied screws.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the Stadium 102SSI

Will the Stadium 102SSI suit my amplifier?

Yes in most cases. Choose 2 ohm for a mono amp or 4 ohm for a bridged two channel amp. Set the SSI switch to suit a mono or bridged amp.

What size box does the Stadium 102SSI need?

Use one built for a 10 inch sub with at least 159 mm of depth and a 227 mm cutout. The Stadium 102SSI subwoofer, a screw bag and the owner manual.

What comes with the Stadium 102SSI?

The sub, a bag of screws and the manual. Box and amplifier are separate.
