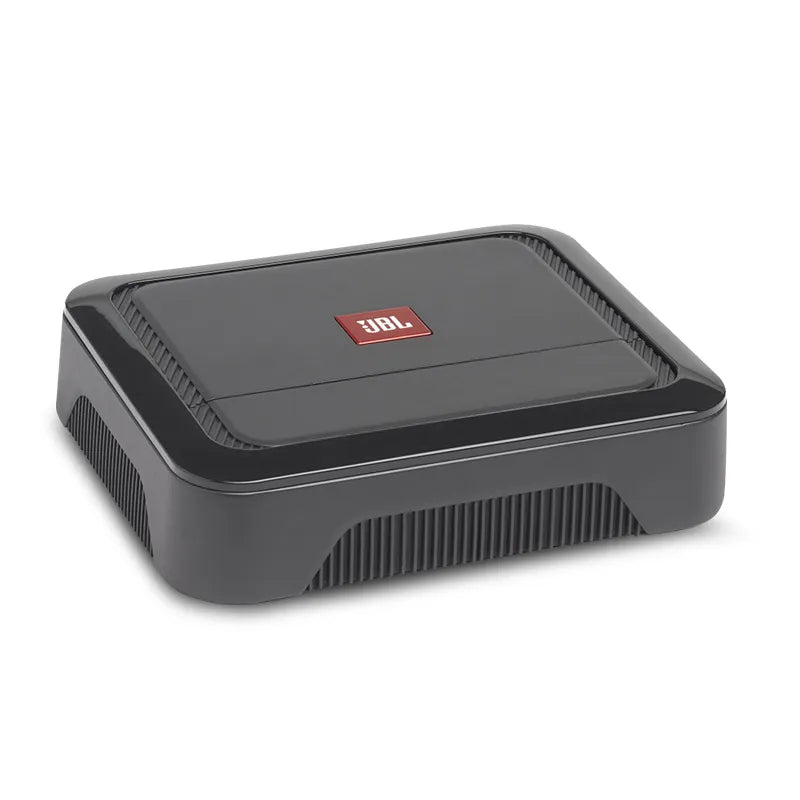

JBL Club A600 Club Series 600 Watts RMS x 1 at 2 Ohms Mono Subwoofer Amplifier

Club Series Mono Subwoofer Amplifier from JBL!

Compact size
The JBL Club A600 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and low level input
Speaker-level and low-level inputs allow the Club A600 to integrate with both aftermarket and factory car stereo systems.

Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the JBL Club A600 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Low noise and distortion
The Club A600 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Input Level Control
When the low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full on-board protection
On-board circuitry protects the Club A600 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.

RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Value engineered car amplifier with JBL power and performance
New high performance JBL Club amplifiers deliver world class JBL power from a compact chassis built to fit in more vehicles, even when space is tight. Available in 4 channel, 5 channel and mono models. Club amps feature variable crossovers and bass boost for precise control and tuning, plus high and low level inputs that let them integrate with most car stereos. An included wired remote bass level control for Mono and 5 channel that can be mounted for convenient volume adjustment from driver seat.

Specifications:

Audio Specifications

• 350 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
• variable low-pass filter (32-320 Hz, 12 dB/octave)
• variable bass boost (0-12 dB at 45Hz)
• phase switch (0, 180 degrees)

General Specifications

• Class D amp technology
• preamp and speaker-level inputs
• 8-gauge power and ground leads recommended
• WxHxD=220mm x 51.3mm x 180mm
