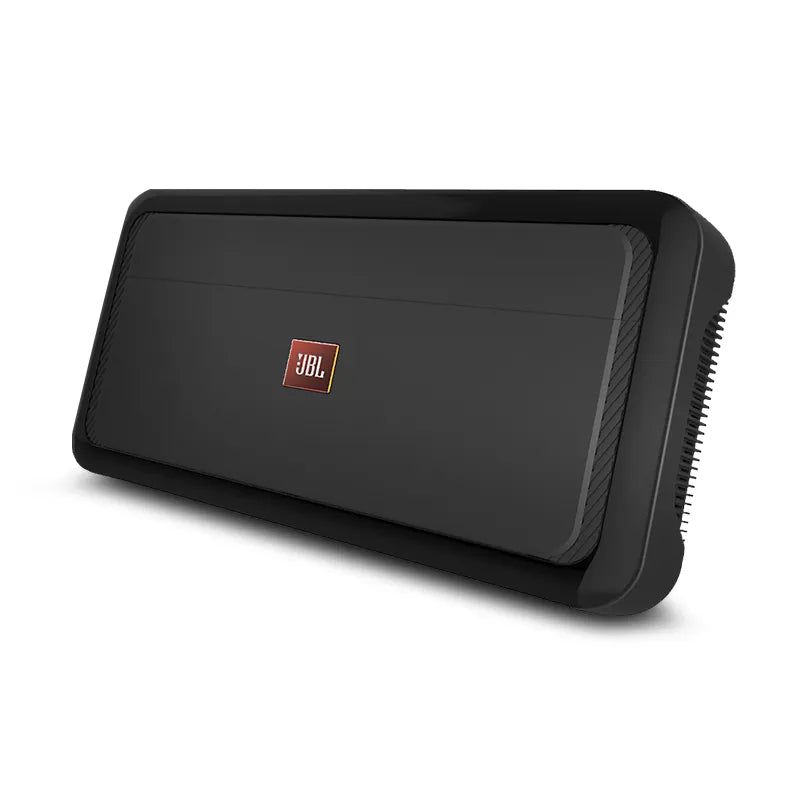

JBL Club A5055 Club Series 50 Watts RMS x 4 + 500 Watts RMS x 1 5-Channel Car Amplifier
Click to open expanded view
JBL logo

JBL Club A5055 Club Series 50 Watts RMS x 4 + 500 Watts RMS x 1 5-Channel Car Amplifier

SKU: ClubA5055
Sale price
$599
Regular price
$749.95
You save
20%
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Club Series 5-Channel Car Amplifier from JBL!

Compact size
The JBL Club A5055 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and low level input
Speaker-level and low-level inputs allow the Club A5055 to integrate with both aftermarket and factory car stereo systems.

Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the JBL Club A5055 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Low noise and distortion
The Club A5055 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Input Level Control
When the low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full on-board protection
On-board circuitry protects the Club A5055 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.

RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Value engineered car amplifier with JBL power and performance
The Club A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your car, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance.

JBL Club A5055 Specifications:

5-channel car amplifier

  • 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
  • 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
  • 140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms

Front and rear channels

  • Class AB amp technology
  • variable high- and low-pass filters (32-320 Hz, 12 dB/octave)

Subwoofer channel

  • Class D amp technology
  • variable low-pass filter (32-320 Hz, 12 dB/octave)
  • variable bass boost (0-12 dB at 45 Hz)
  • phase switch (0, 180 degrees)
  • wired remote bass control module included

What's in the box:

  • 5-Channel amplifier
  • Six 30A fuses (3 installed/3 spares)
  • 4 Speaker to RCA adapters
  • RBC Remote level control w/ attached 16.5‚Ä≤ cable (RJ-25 terminated)
  • Four 2-1/8 screws
  • Two 3/8 screws
  • Logo badge w/ adhesive backing
  • Owner's manual
