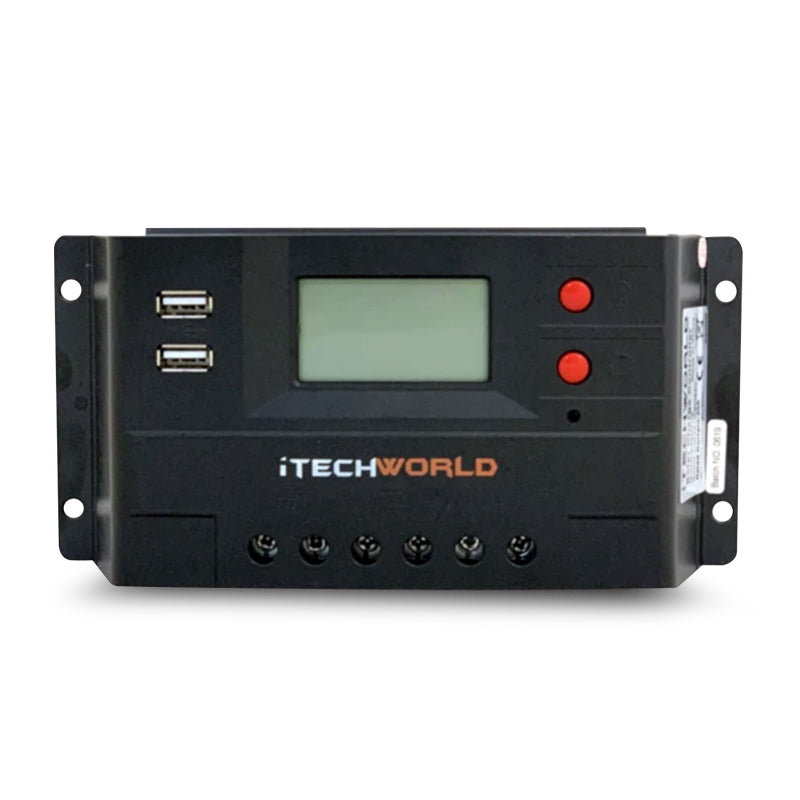

iTECHWORLD PWM30 30 AMP Intelligent Solar Panel Regulator With LCD Screen

An Intelligent Control Point for Your Solar Panel System!

Intelligent Solar Panel Regulator
The iTechWorld PWM30 allows you to select a lithium profile for charging. This means you can charge your iTECH120 more effectively by upgrading to this regulator. You can also set this regulator to work on normal AGM batteries. By investing in the latest technology at a fraction of the price you get access to one of the Intelligent Charging systems available today it fully supersedes previous iTechWorld regulators. The 30 Amp intelligent regulator with USB has the ability to automatically switch between 12V and 24V systems with no manual input needed. It automatically senses the battery voltage and puts the juice in accordingly.

iTechWorld's 30 Amp intelligent Regulator is the beaut Regulator you have been waiting for. At the right price. It has a full digital display that tells you accurately what is going on with your Solar and Battery setup. The iTechWorld 30 Amp intelligent regulator will even tell you how many amps your solar panel is producing.

Features:

• Intuitive LCD display screen you are in control of your solar panel system
• Lithium and AGM charging profiles, Dual USB ports
• This will enable you to monitor your solar panel power conversion, power storage, and use of your solar power supplies
• Using the touch keypad you can program the controller to your preferences and monitor your solar system in real time
• Installation of the control panel is made easy with step-by-step instructions
• Easy-to-read display icons and indicators will tell you the operating status of your solar panels
• Easy and simple key operation
• Intelligent PWM Charging Mode
• Adjustable charging & discharging control parameters
• Overloading & short-circuit protection
• Battery-reversed discharge protection
• Protection for battery back discharging
• Protection for battery low voltage
• Intelligent PWM Charging Mode
• Visual LCD graphic display
• Adjustable charging/discharging
• Protection for battery back discharge
• Overload & short-circuit protection
• Reversed polarity protection
• Delayed auto restart after overloading protection
• Protection for battery back discharging

Specifications:

• Rated Voltage: 12V / 24V Automatic System Voltage Identification
• Rated Current: 30A
• Low Voltage:
  Disconnection: 10.7V (Adjustable)
  Reconnected: 12.6V (Adjustable)
• Installation Cable Area: ≤ 6# AWG (16mm²)
• International Safety Standard Compliant: CE & RoHS Certification
• Dimensions: (W) 187mm x (H) 90mm x (D) 39mm
  Weight: 0.30kg

Package Contents:

• 1x 30 AMP iTECHWORLD Solar Regulator with LCD Display & Dual USB Ports
