IROAD X30-X | 1440P Quad HD Triple-Channel Cloud Dashcam

Triple Channel Clarity With Cloud Control & Sony STARVIS Precision!

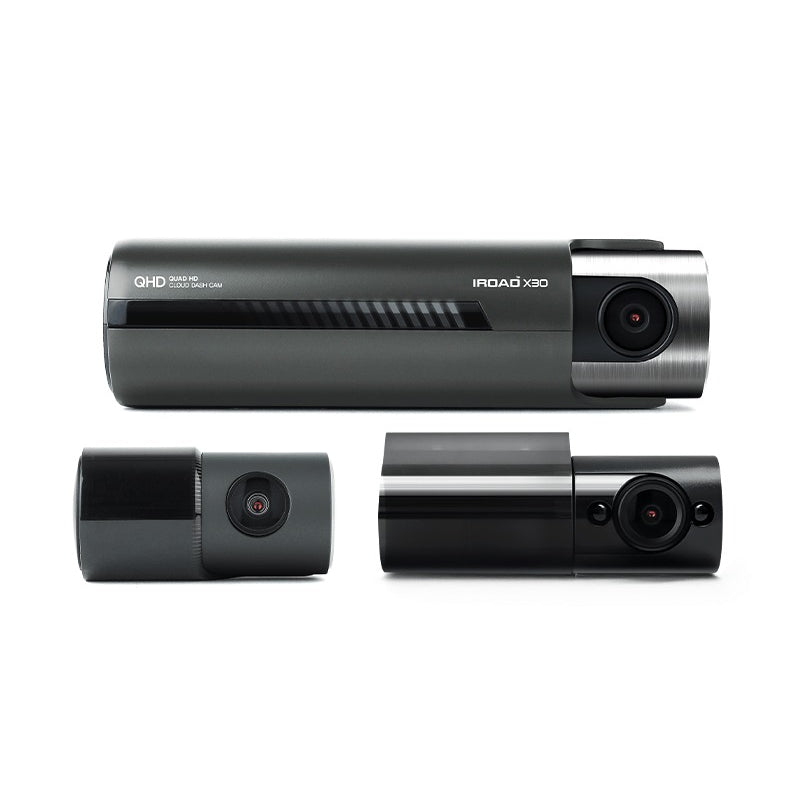

IROAD X30 Dash Camera
Experience comprehensive surveillance with the X30 3-Channel Cloud Dash Cam. Choose between 2-channel (front and rear), 3-channel (front/interior/rear), or 3-channel (front/interior/waterproof external) configurations. Optional cloud connectivity and Sony STARVIS sensors on both front and rear cameras provide advanced features.

Key Features:

• 3CH Dash Camera Solution

• 2K QHD Sony Starvis sensors for superior image quality

• Wide 155º viewing angle (front)

• GPS, Wi-Fi, and ADAS equipped

QUAD HIGH DEFINITION VIDEO QUALITY

1440P Quad HD Resolution
The IROAD X30 captures 1440p QHD front and 1080p FHD rear recording, providing four times more clarity than standard HD resolution. Its 2560x1440P resolution with 5.0M pixels and Sony IMX335 sensor delivers clearer and sharper images with significantly enhanced video quality, even in low-light conditions, and with little-to-no over-exposure across the entire image, makes it an excellent choice for day and night use.

High-Quality Footage
By applying the Sony Stavis sensor to both the front and rear cameras of the IROAD X30, the image quality is significantly enhanced, particularly during nighttime recording. The sensor delivers clearer and more vivid colors in QHD images, ensuring superior image quality in low-light conditions. It’s worth noting that the front camera records in QHD, while the rear camera records in FHD, providing you with clear and detailed footage from both angles.

Impact & Motion Detection
X30 will automatically start an Event recording when motion or impact is detected during parking mode, as well as when impact is detected while driving. Event files are saved separately and can be viewed through both PC Viewer and the IROAD Mobile App.

Taxi/Uber/Commercial Recommended Option

3-Channel (Front+Rear+Interior)
In the case of taxi or ride-share drivers especially, who often face safety concerns while working, IROAD recommends using the IR Interior Camera as the 3rd channel option. The IR Interior camera records in FHD and is equipped with infrared LEDs which allow the recording of high quality footage even in low-light conditions. Offering a wide view (140°) of the inside of the cabin, the IR camera is a necessity for recording any potential incident happening inside of the vehicle, providing essential proof in case of a dispute. Additionally, the IR Interior camera combined with the Cloud capabilities of X30 can prove very useful to fleet managers for remotely monitoring drivers, but also to parents keeping a close eye on their teen children driving.

Time Lapse
Experience continuous Parking Mode recording for a long time with IROAD Time Lapse. Time Lapse is a low-capacity recording method that minimizes the storage space by compressing and saving at 1fps while in Parking Mode. However, when an impact or motion is detected during parking, X30 automatically switches to recording at 10fps to provide clearer images of the important moments.

2X More Recording Time

NO MORE WORRIES ABOUT STORAGE

SONY STARVIS Image Sensors

A Sony Starvis
The IROAD X30 features a premium Sony STARVIS Image Sensor, ensuring exceptional video sharpness and superior nighttime footage quality. This advanced sensor delivers recordings that are significantly brighter and clearer than what you can see with the naked eye, even in low light conditions.

HIGH DYNAMIC RANGE

Real HDR
ALWAYS SUPPORT CLEAR VIDEO WITH APPLICATION OF FRONT & REAR HDR
Real HDR technology is integrated to eliminate light blurring while driving at night, producing clear and vivid recordings even in challenging lighting conditions such as backlighting and tunnels. This advanced feature allows the IROAD X30 to accurately capture the entire dynamic range of a scene, resulting in improved clarity and contrast across the entire video. This makes it an excellent choice for drivers who need reliable and high-quality footage, regardless of the lighting conditions.

• HDR OFF
• HDR ON

Storage Time By Memory Card

[Resolution]
Front : 1440p QHD / Rear: 1080p FHD

[Frame Rate]
Driving mode: 30fps
Parking mode (Event/Motion): 10fps
Parking mode (Timelapse): 1fps

Usage Scenarios:

• A = Driving mode 100% @30fps
• B = Parking mode = Event(Motion) 50% + Timelapse 50%
• C = Parking mode (Time Lapse) 100% @1fps
• D = Parking Impact 50% + Motion 50% @30fps
• A+B = Driving mode 50% + Parking mode 50%
• A+C = Driving mode 50% + Time Lapse 50%

ADVANCED DRIVER ASSISTANCE SYSTEM

ADAS
The IROAD X30 is equipped with a Road Safety Warning System that provides audio and visual alerts for Lane Departure (LDWS), Front Collision (FCWS), and Front Vehicle Departure (FVDW). It detects road markings and gives voice warnings to drivers if the vehicle starts to drift from its lane or if there is a risk of an imminent crash.

Lane Departure Warning System (LDWS)

LDWS
LDWS works by having the front camera recognise the road lane in real time. If the driver falls asleep or drives poorly, causing the car to depart from the lane, it will alert them with a preset warning sound.

Front Vehicle Departure Warning (FVDW)

FVDW
When the car is stopped at an intersection or in traffic, FVDW alerts the driver when the vehicle in front starts to move, preventing delayed departure.

Forward Collision Warning System (FCWS)

FCWS
The FCWS function calculates the average distance from the vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.

Comprehensive Driving Data Through Built-In GPS

The GPS data in the IROAD X30 can precisely pinpoint the vehicle’s location and routes on the map, while also displaying the driving speed. This helps to more accurately assess the situation and the circumstances in case of an accident.

Wide Viewing Angle

155º WIDE ANGLE LENS
The 155º wide angle lens provides an extensive field of view, significantly reducing blind spots. This ensures that every scene visible through the front windshield is fully captured.

LBP – BATTERY DISCHARGE PREVENTION
To safeguard the vehicle’s battery from discharging, the dash cam monitors the battery’s voltage and automatically shuts down when it drops below a predetermined level. This voltage cut-off point can be adjusted in the camera’s settings.

High Durability – HIGH-TEMPERATURE PROTECTION
The IROAD X30 model is built to endure both high and low temperatures in order to keep the device running smoothly. The high-temperature protection function makes the device automatically turn off in case of overheating, protecting both the device and the stored data.

Format Free 2.0 – HIGH-EFFICIENCY VIDEO CODING FORMAT
The file system’s stability has been enhanced by using the IVS system. Recordings are automatically saved in a main memory unit, making them much safer than previously used formats. The IVS format does not require regular formatting, and the automatic rebooting function ensures the safety of both the device and the data.

Cloud Connectivity Through Wi-Fi – IROAD Cloud

Compatible With IROAD X11 / X30
Only IROAD Cloud BETA Version is currently available.

You can watch the X30’s live stream and check the vehicle’s location in real time from anywhere, at any time. They can also receive push notifications for events during parking, have event videos automatically uploaded to the Cloud, and download video footage remotely, among other features.

Please Note: Connecting the dash cam to a mobile hotspot device or a Wi-Fi network with Internet access will consume data. Carrier/Service Provider charges may apply.

Cloud Features:

• CLOUD – Remote Live View
• CLOUD – Push Notifications
• CLOUD – Remote Video Playback
• CLOUD – Video Backup
• CLOUD – GPS Records
• CLOUD – Auto Event Upload

Specifications:

• Resolution / Frame Rate:

  • Front: 1440p Quad HD @ 30fps

  • Rear: 1080p Full HD @ 30fps

  • Time-Lapse (Parking Mode): @ 1fps

  • Time-Lapse (Parking Event): @ 10fps

  • Frame rate may vary during Wi-Fi streaming.

• Channel:

  • 3Channel: IROAD X30

  • Interior IR Cam: 1080p Full HD

  • External Waterproof Cam: 1080p Full HD

• Image Sensor:

  • Front: Sony STARVIS(IMX335) Sensor

  • Rear: Sony STARVIS(IMX307) Sensor

  • Interior: 2.0 megapixels Sensor

  • External: Sony STARVIS(IMX307) Sensor

• Viewing Angle:

  • Front & Rear: Diagonal 155°

  • Interior: Diagonal 140°

  • External: Diagonal 140°

• GPS: Built-in GPS

• Connectivity: External Wi-Fi (2.4 GHz) & Bluetooth

• Impact Sensor: 3-Axis Accelerometer G-Sensor (3D, ±3G)

• ADAS 2.0: LDWS (Lane Departure Warning System), FVDW (Front Vehicle Departure Warning), FCWS (Forward Collision Warning System)

• Recording Modes: Driving Recording (Continuous), Impact Recording, Parking Mode (Impact Recording + Motion Detection / Time-lapse), Manual Recording, Audio Recording

• Video / Audio: MP4 / ADPCM

• Format Free 2.0: YES (Adaptive)

• LED Indicators:

  • Front: Rec LED, GPS LED, Wi-Fi LED, Security LED

  • Rear: Security LED

• Operation Temperature: -10℃ – 60℃

• Range Temperature: -20℃ – 80℃

• High Temp Cut Off: Approx. 70℃

• Input Power: DC 12V~24V

• Certifications: FCC, CE, RoHS, IC, E-MARK, WEEE

• Product Dimensions:

  • Front: W 115 mm x H 65mm x D 33 mm (Weight 100g)

  • Rear: W 60mm x H 28 mm (Weight 30g)

• Software:

  • IROAD VIEWER (PC) - Windows 7 or higher and Mac (macOS 10.12) or higher

• Application:

  • IROAD (Mobile) - Android 7.0, iOS 13.0 or higher : Firmware update supported

Package Contents:

• Front Camera

• Rear Camera

• Cloud / Wi-Fi Dongle

• MicroSD Card

• Uninterrupted Fuse Cable

• Rear Camera Cable

• Quick Guide
