Product features

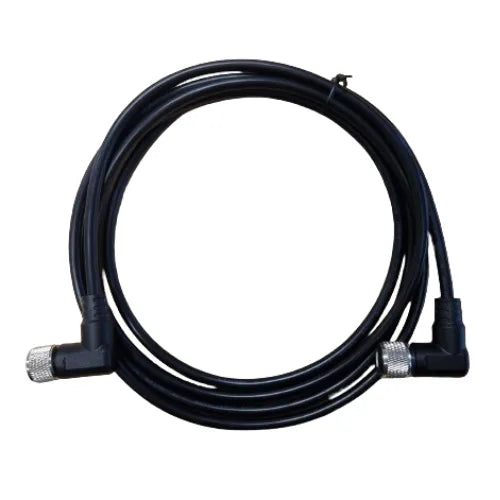

Invicta SNLXCBB2M Xero 2m Battery to Battery CANBus Communication Cable with M8 DIN Connectors

The Invicta SNLXCBB2M is a 2-metre battery to battery CANBus communication cable designed for daisy chain networking between multiple Invicta Xero lithium batteries. Fitted with two circular M8 DIN connectors, it connects one battery's Link Out port to the next battery's Link In port, enabling the BMS units to share and summarise information across the battery bank. A one-year warranty is included.

Product overview

The SNLXCBB2M uses the Controller Area Network (CAN) bus communication interface built into the Invicta Xero battery range, allowing multiple batteries to be networked together in a simple daisy chain configuration. Each battery in the chain connects to the next using this cable from the Link Out circular M8 DIN connector on one battery to the Link In connector on the next, building a unified and communicating battery bank.

The networking function allows the batteries to summarise system information collectively, which is particularly valuable when the bank is connected to intelligent external devices such as GX monitors, inverter and charger systems, and CANBus-compatible control networks. The 2-metre length suits installations where batteries are mounted in close proximity within a 4WD canopy, caravan battery enclosure, or marine battery bank.

Features and benefits

2-metre CANBus cable for battery to battery networking: Connects multiple Invicta Xero batteries in a daisy chain using the built-in CAN bus interface, enabling BMS data sharing and collective system information reporting across the battery bank.

Circular M8 DIN connectors: Two circular M8 DIN connectors provide a secure and reliable connection between the Link Out port of one battery and the Link In port of the next in the daisy chain.

Simple daisy chain installation: The Link In to Link Out daisy chain wiring method provides a straightforward and expandable networking solution for multiple Invicta Xero batteries without additional hardware.

Supports standalone and networked operation: The Invicta Xero battery can be used alone or networked with additional batteries using this cable, providing flexibility in system design and future expansion.

5mm cable profile: The compact 5mm width and height allows the cable to be routed neatly within battery enclosures and canopy systems without adding bulk.

Technical specs

Specification Detail
SKU SNLXCBB2M
Brand Invicta
Cable Type Battery to battery CANBus communication cable
Cable Length 2 metres
Cable Width 5mm
Cable Height 5mm
Connector Type Circular M8 DIN (x2)
Terminal Type CAN
Weight 0.2kg
Compatible System Invicta Xero lithium battery range
Warranty One year

Compatible with

The Invicta SNLXCBB2M is designed specifically for daisy chain networking between Invicta Xero lithium batteries using the built-in CAN bus communication interface. It connects to the circular M8 DIN Link In and Link Out ports located at the top of each Invicta Xero battery. Contact us if you are unsure whether this cable suits your specific system configuration before purchasing.

Frequently asked questions

What is the SNLXCBB2M used for?
The SNLXCBB2M connects multiple Invicta Xero batteries in a daisy chain using the built-in CAN bus interface, enabling the BMS units to share real-time system information and operate as a unified battery bank.

What is the difference between the SNLXCBB2M and the SNLXCBB3M?
Both cables are Invicta Xero battery to battery CANBus communication cables. The SNLXCBB2M is 2 metres in length and the SNLXCBB3M is 3 metres. The correct choice depends on the physical distance between batteries in your specific installation.

How does the daisy chain connection work?
Each Invicta Xero battery has a Link In and a Link Out circular M8 DIN connector at the top of the unit. The SNLXCBB2M connects the Link Out port of one battery to the Link In port of the next battery in the chain, building a networked battery bank step by step.

Can the Invicta Xero battery be used without this cable?
Yes. The Invicta Xero battery can operate as a standalone unit without the CANBus networking cable. The SNLXCBB2M is required only when connecting multiple batteries together in a networked daisy chain configuration.

What warranty is included with the SNLXCBB2M?
The SNLXCBB2M is covered by a one-year warranty. Contact us for further information on warranty terms and conditions.
