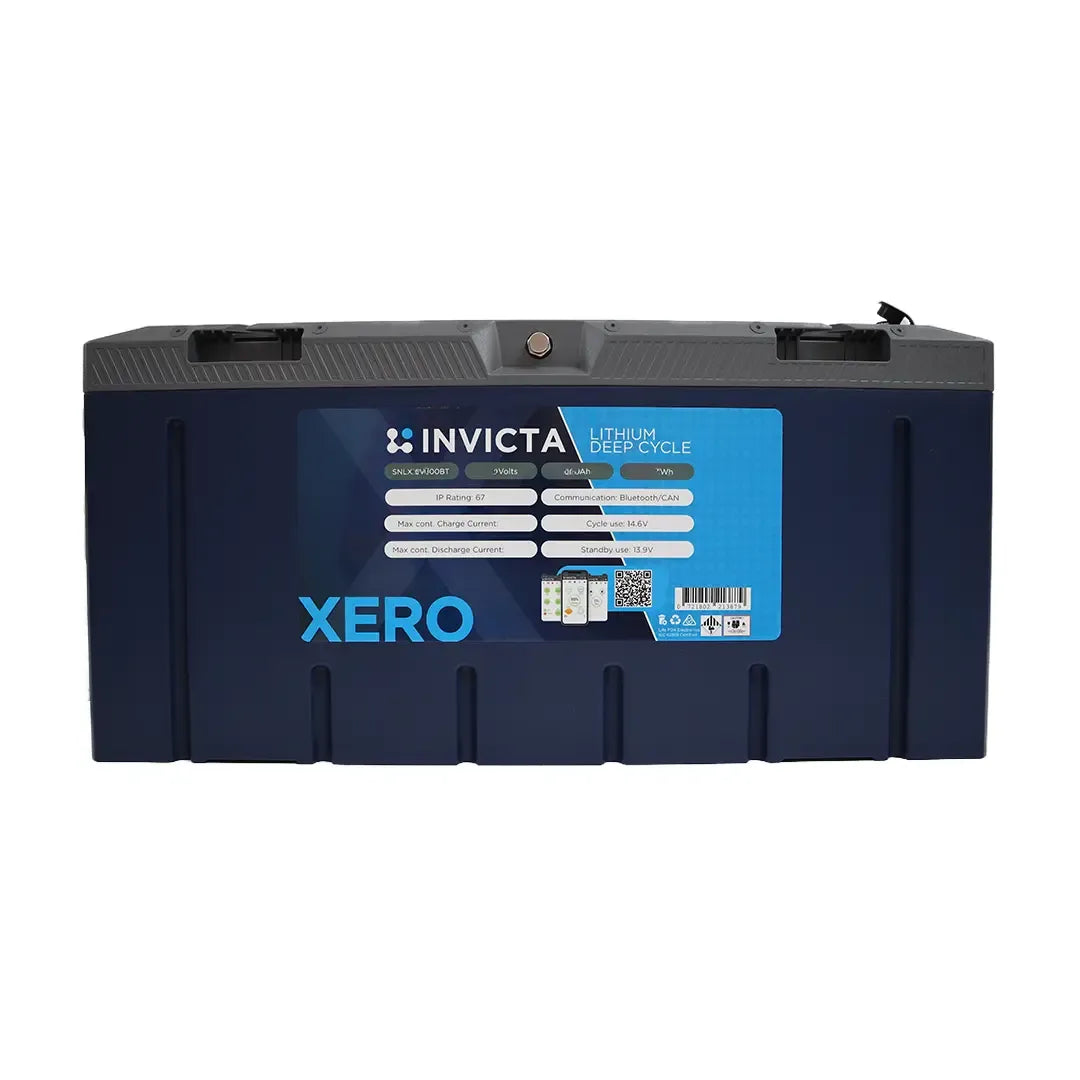

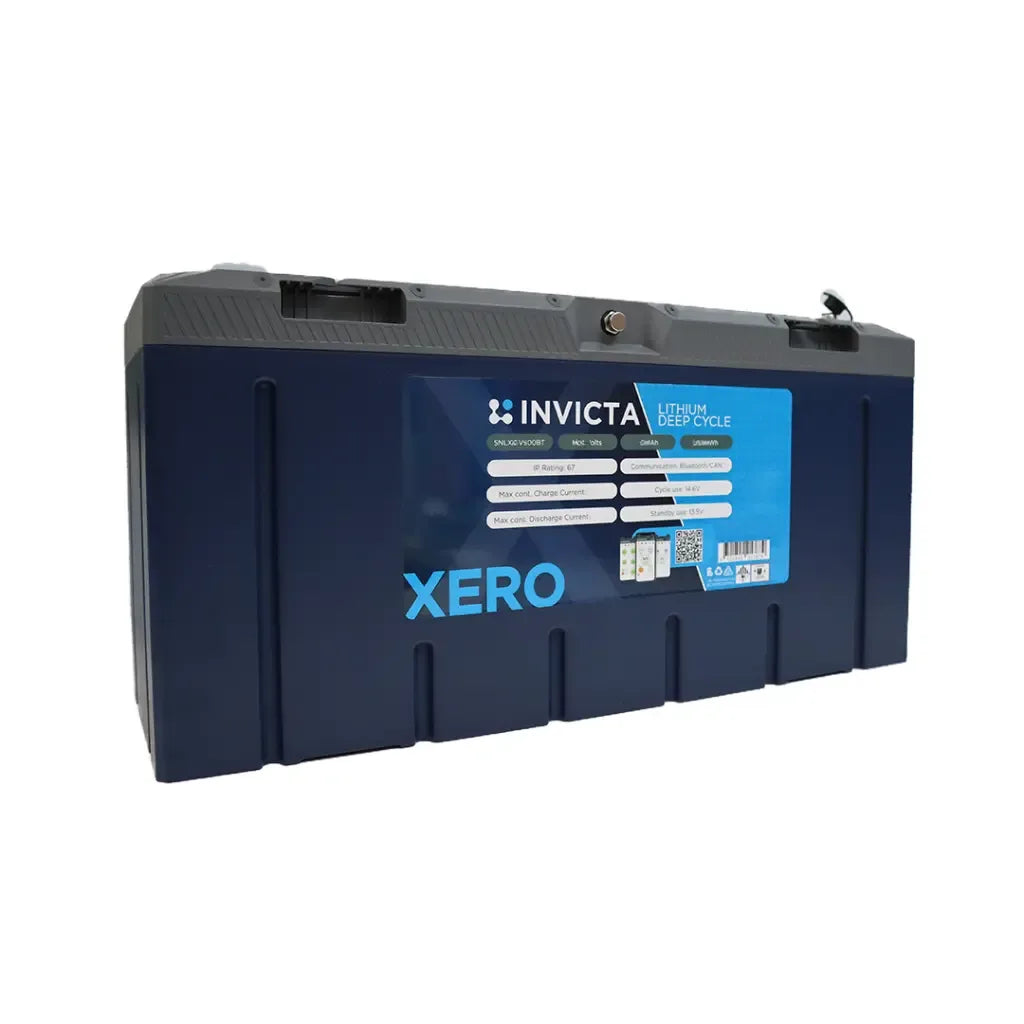

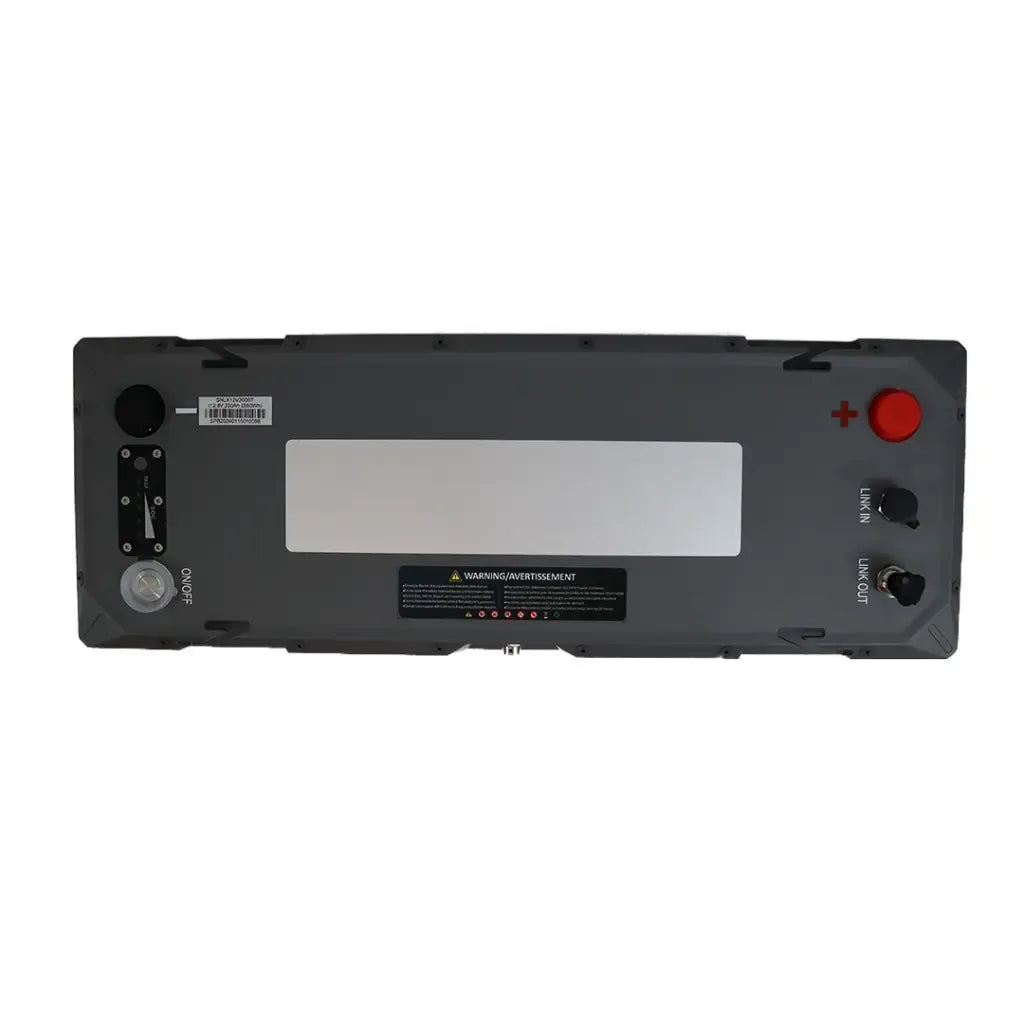

Invicta SNLX24V100BT 24V 100Ah LiFePO4 Bluetooth Battery

Invicta SNLX24V100BT 24V 100Ah LiFePO4 Bluetooth Battery

The SNLX24V100BT is a 24V 100Ah Lithium Iron Phosphate battery with integrated Bluetooth monitoring, a built-in BMS, and open CAN Bus protocol support. Rated IP67 and IEC62619 certified, it supports both series and parallel wiring configurations for flexible system design.

Product overview

The Invicta SNLX24V100BT is built for demanding 24V applications where reliable, long-cycle energy storage is critical. With over 3,000 charge cycles at 100% depth of discharge, this battery delivers a significantly longer service life than conventional lead-acid alternatives. The flat discharge curve maintains consistent voltage output throughout the discharge cycle, extending usable run time across connected equipment.

Bluetooth connectivity allows real-time battery monitoring via a compatible app, giving users visibility over state of charge, voltage, and system health without physical inspection. The open CAN Bus protocol supports integration with a wide range of inverters, chargers, and battery management systems for advanced remote monitoring and control.

The water-resistant case with self-venting port and IP67 rating makes the SNLX24V100BT suitable for exposed or harsh operating environments. Applications include commercial 24V trolling motor systems, off-grid solar storage, truck cabin refrigeration, material handling equipment, and high-voltage touring canopy setups.

Features and benefits

24V 100Ah LiFePO4 chemistry: Lithium Iron Phosphate chemistry delivers a stable, safe energy output with an extremely low self-discharge rate, retaining charge effectively during storage between uses.

3,000+ charge cycles at 100% DOD: Rated for over 3,000 full charge and discharge cycles, providing a long service life that reduces long-term replacement costs compared to lead-acid batteries.

Integrated Bluetooth monitoring: Built-in Bluetooth allows real-time monitoring of battery status, voltage, and state of charge through a compatible application without requiring additional hardware.

Open CAN Bus protocol: The open CAN Bus interface enables direct communication with compatible inverters, solar regulators, and battery management systems for seamless remote system integration.

Integrated BMS: The on-board Battery Management System actively monitors and protects the battery against overcharge, over-discharge, short circuit, and temperature extremes.

IP67 rated water-resistant case: The enclosure carries an IP67 ingress protection rating, with a self-venting port to handle pressure changes during charge and discharge cycles in sealed environments.

Series and parallel wiring support: Can be configured in series or parallel to build higher voltage or higher capacity battery banks, providing flexibility across a range of system requirements.

Flat discharge curve: Maintains a consistent output voltage throughout the usable capacity of the battery, delivering longer effective run time compared to batteries with a steeply dropping discharge curve.

Fast recharge capability: Accepts a fast recharge rate, reducing downtime between discharge cycles in high-use commercial and off-grid applications.

IEC62619 certified: Carries IEC62619 certification, confirming compliance with international safety standards for secondary lithium cells and batteries used in industrial applications.

Technical specs

Frequently asked questions

Can the SNLX24V100BT be wired in series to create a 48V system?
Yes, the SNLX24V100BT supports both series and parallel wiring configurations. Wiring two units in series will produce a 48V battery bank. Always ensure your BMS and charging system are rated for the resulting voltage before configuring in series.

What Bluetooth app is used to monitor the SNLX24V100BT?
Specific app details are not confirmed in the available source data. Contact us for information on compatible monitoring applications for the SNLX24V100BT.

What does the open CAN Bus protocol allow the battery to connect to?
The open CAN Bus interface allows the SNLX24V100BT to communicate with compatible inverters, solar charge controllers, and battery management systems. This enables remote monitoring and system integration across a range of platforms that support the CAN Bus standard.

Is the SNLX24V100BT suitable for marine trolling motor applications?
Yes, the battery is rated for commercial 24V trolling motor equipment. The IP67 rating and water-resistant case make it suitable for exposed marine environments. Contact us to confirm compatibility with your specific trolling motor setup.

What charging equipment is compatible with the SNLX24V100BT?
The battery requires a LiFePO4-compatible 24V charger. Using a charger not rated for LiFePO4 chemistry may damage the battery or void the warranty. Contact us for charger recommendations suited to this battery.
