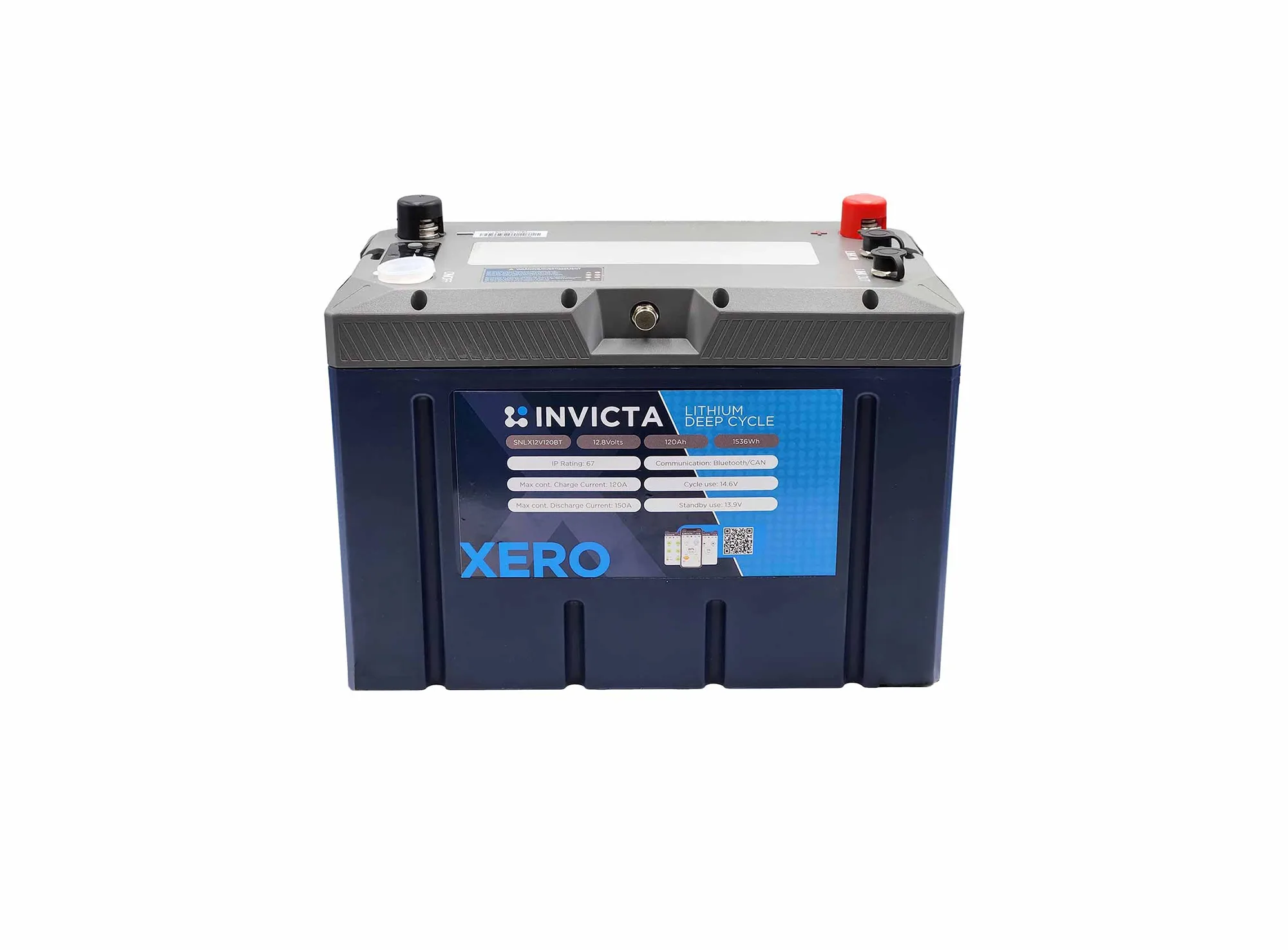

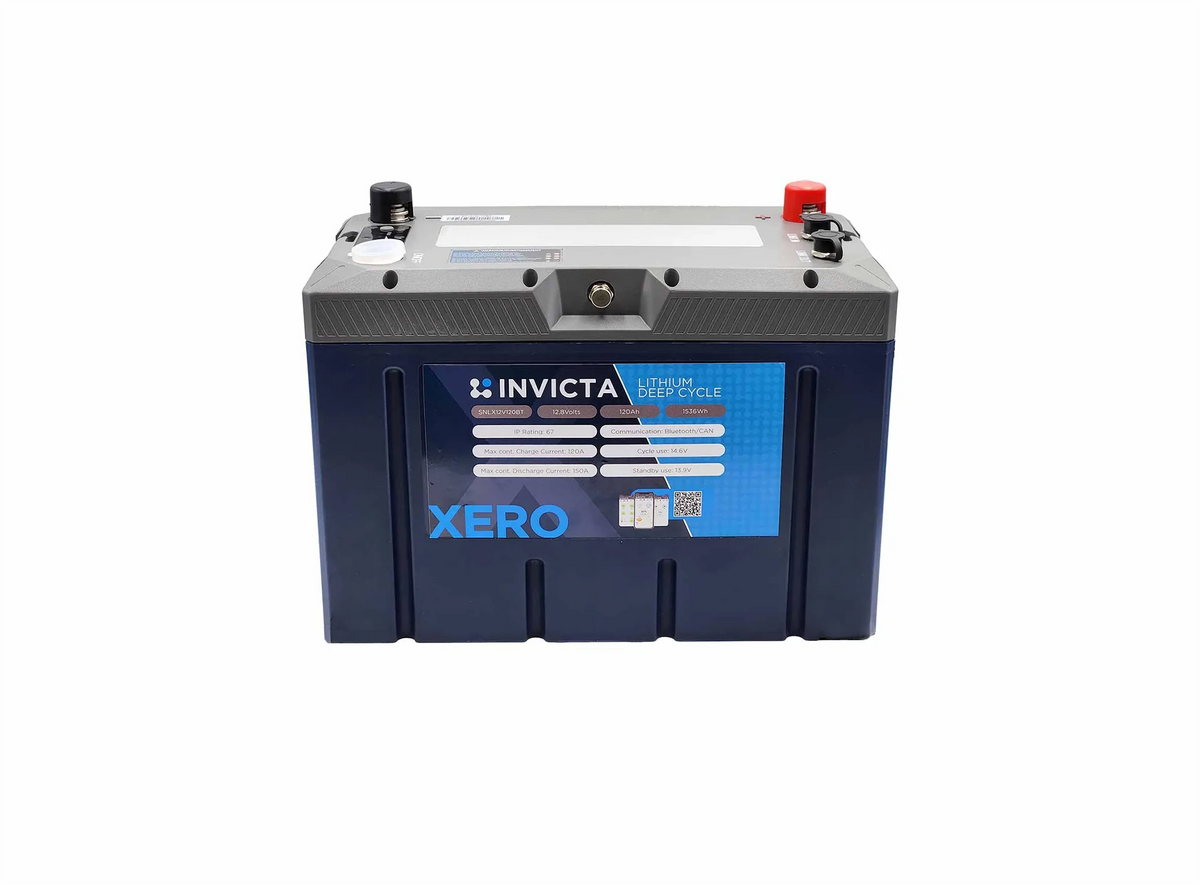

Invicta SNLX12V120BT 12V 120Ah LiFePO4 Bluetooth Battery

Invicta SNLX12V120BT 12V 120Ah LiFePO4 Bluetooth Battery

The SNLX12V120BT is a 12V 120Ah Lithium Iron Phosphate battery with integrated Bluetooth and CAN/RS485 communication, a built-in BMS, and IP67 ingress protection. Weighing 14kg, it is IEC62619 certified and backed by a 7-year warranty, with detachable mounting feet for flexible installation.

Product overview

The Invicta SNLX12V120BT is part of the Xero range, designed for applications that require a lightweight, high-cycle energy storage solution in environments exposed to the elements. At 14kg, it weighs less than half of an equivalent sealed lead-acid battery, making it well suited to weight-sensitive platforms such as caravans, mobility devices, and portable power setups.

The IP67 rating seals the battery against dust and water ingress, making it suitable for use in harsh Australian conditions. Detachable mounting feet allow the battery to be secured directly to the application using a screwdriver, providing a stable and adjustable mounting solution across a range of installation configurations.

Bluetooth connectivity enables real-time monitoring of battery health and state of charge from a mobile device, while the CAN/RS485 interface supports integration with compatible inverters, chargers, and battery management systems. Suitable applications include caravans and camping, solar energy storage, UPS and critical power, mobility devices, medical equipment, and personal power packs.

Features and benefits

12V 120Ah LiFePO4 chemistry: Lithium Iron Phosphate chemistry delivers stable, safe energy output with an extremely low self-discharge rate, retaining charge effectively during extended storage periods between uses.

3,000+ charge cycles at 100% DOD: Rated for over 3,000 full charge and discharge cycles, providing a significantly longer service life than sealed lead-acid alternatives and reducing total cost of ownership over the battery's life.

Detachable mounting feet: Mounting feet can be attached or removed with a screwdriver, allowing the battery to be secured directly to the application without additional mounting hardware or brackets.

Bluetooth and CAN/RS485 communication: Built-in Bluetooth allows real-time battery monitoring from a mobile device, while the CAN/RS485 interface enables integration with compatible inverters, chargers, and battery management systems for advanced system monitoring and control.

Integrated BMS: The on-board Battery Management System actively protects the battery against overcharge, over-discharge, short circuit, and temperature extremes, ensuring safe operation across all supported applications.

IP67 rated: Fully sealed against dust and water ingress to IP67, making the SNLX12V120BT suitable for exposed installations in harsh outdoor and mobile environments.

High energy density, low weight: At 14kg, the SNLX12V120BT weighs less than half of an equivalent SLA battery, significantly reducing total system weight in caravans, mobility devices, and portable power applications.

Flat discharge curve: Maintains consistent output voltage throughout the usable capacity, delivering longer effective run time and more efficient use of available capacity compared to lead-acid batteries.

Fast recharge capability: Accepts a fast recharge rate, reducing downtime between discharge cycles and returning the battery to full charge sooner than equivalent lead-acid alternatives.

60% greater capacity utilisation than SLA: Provides 60% more usable capacity than an equivalent SLA battery, translating directly to longer runtime from the same nominal capacity rating.

IEC62619 certified: Certified to IEC62619 across both the BMS and individual cell level, confirming compliance with international safety standards for secondary lithium cells and batteries.

7-year warranty: Backed by a 7-year warranty, providing long-term confidence in the product's reliability and performance across its rated service life.

Technical specs

Frequently asked questions

What is the difference between the SNLX12V120BT and the SNLX12V200BT?
The SNLX12V120BT has a 120Ah capacity and weighs 14kg, while the SNLX12V200BT has a 200Ah capacity and weighs 24.2kg. The SNLX12V120BT also features detachable mounting feet and CAN/RS485 communication in addition to Bluetooth, which are not confirmed on the SNLX12V200BT.

What app is used to monitor the SNLX12V120BT via Bluetooth?
Specific app details are not confirmed in the available source data. Contact us for information on compatible monitoring applications for the SNLX12V120BT.

What does the CAN/RS485 interface allow the battery to connect to?
The CAN/RS485 interface enables communication with compatible inverters, solar charge controllers, and battery management systems. This allows deeper system integration and more precise battery data monitoring than Bluetooth alone.

Is the SNLX12V120BT suitable for caravan and camping use?
Yes. The battery's lightweight design, IP67 rating, flat discharge curve, and detachable mounting feet make it well suited to caravan and camping applications. Contact us to confirm compatibility with your specific setup.

What type of charger is required for the SNLX12V120BT?
The SNLX12V120BT requires a LiFePO4-compatible 12V charger. Using a charger not rated for LiFePO4 chemistry may damage the battery or void the warranty. Contact us for charger recommendations suited to this battery.
