Invicta SNLSS12V230BT Super Slim 12V 230Ah LiFePO4 Battery
Invicta SNLSS12V230BT Super Slim 12V 230Ah LiFePO4 Battery
Click to open expanded view

Click and Collect

Invicta SNLSS12V230BT Super Slim 12V 230Ah LiFePO4 Battery

📍 Available for Pick-Up Only
SKU: SNLSS12V230BT
Price
$3,100
Buy now, pay later
  • image
  • image
  • image
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Invicta SNLSS12V230BT Super Slim 12V 230Ah LiFePO4 Battery

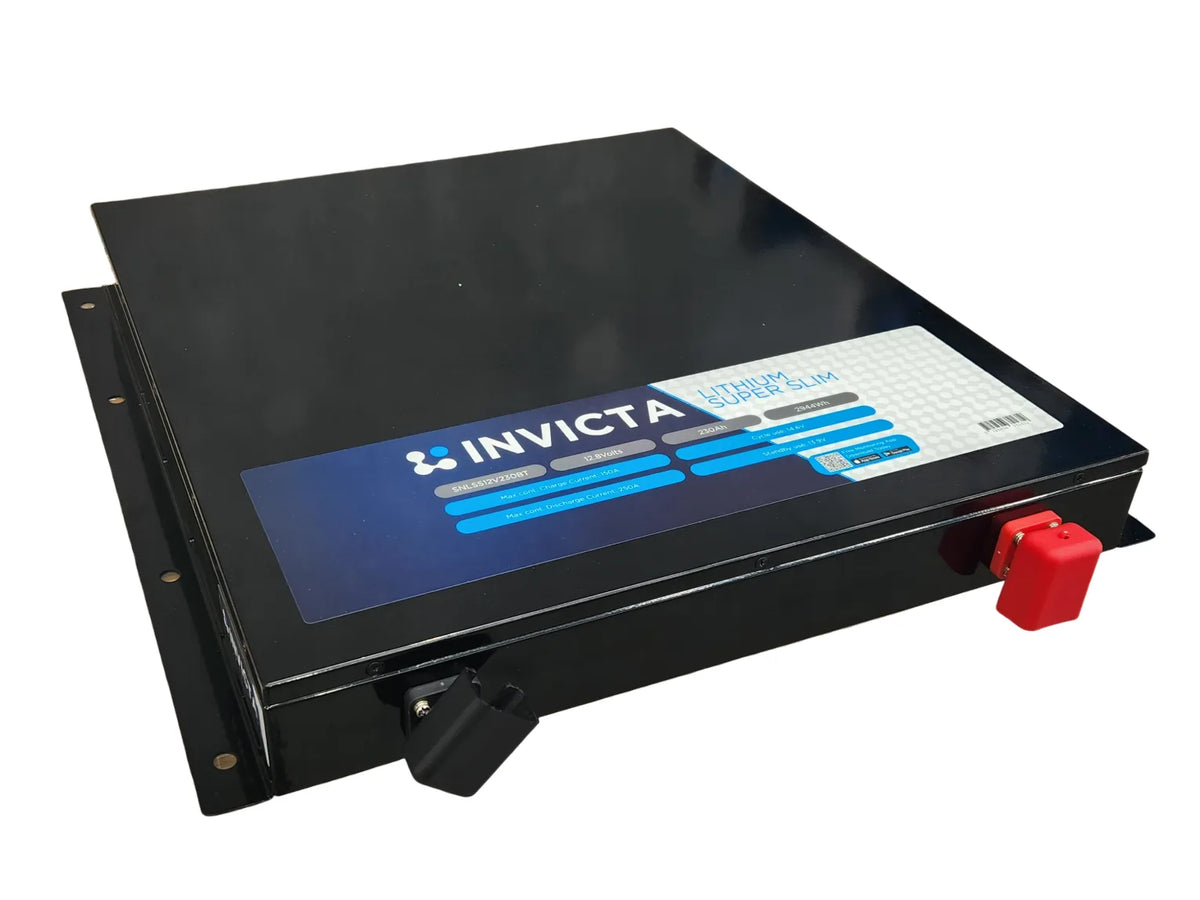

The SNLSS12V230BT is a 12V 230Ah Lithium Iron Phosphate battery from the Invicta SuperSlim range, with integrated Bluetooth monitoring, a built-in BMS, and IP56 ingress protection. At 550 x 564 x 70mm and 27.0kg, it is designed for tight spaces such as behind a rear seat or inside drawers, rated for over 3,000 cycles at 100% depth of discharge and supporting parallel configurations up to 4P.

Product overview

The Invicta SNLSS12V230BT is part of the SuperSlim range, specifically designed for installations where a standard battery form factor will not fit. The slim modular footprint of 550 x 564 x 70mm allows the battery to be placed behind rear seats, inside drawers, under floors, and in other tight spaces that are inaccessible to conventional deep cycle batteries. Despite the low profile, it delivers 230Ah of capacity with full LiFePO4 benefits including high cycle life, low weight relative to lead-acid alternatives, and a flat discharge curve for longer effective run time.

The integrated BMS actively protects the battery against overcharge, over-discharge, short circuit, and temperature extremes. Bluetooth connectivity allows real-time monitoring of battery status and state of charge from a compatible mobile device. The SNLSS12V230BT supports parallel configurations of up to 4 units, allowing larger capacity banks to be built using multiple batteries in the same slim form factor. Series configuration is not supported on this model.

Features and benefits

12V 230Ah LiFePO4 in a slim modular footprint: Delivers 230Ah of deep cycle capacity in a 550 x 564 x 70mm slim profile, purpose-built for tight installation spaces including behind rear seats and inside vehicle drawers.

3,000+ charge cycles at 100% DOD: Rated for over 3,000 full charge and discharge cycles, providing up to 8 times the cycle life of an equivalent SLA battery and significantly reducing total cost of ownership over the battery's service life.

250A continuous discharge, 400A pulse: Supports a maximum continuous discharge current of 250A and a 400A pulse discharge for up to 3 seconds, handling high-draw loads across a range of deep cycle applications.

Integrated Bluetooth monitoring: Built-in Bluetooth allows real-time monitoring of battery status and state of charge from a compatible mobile device without requiring additional hardware.

Integrated BMS: The on-board Battery Management System actively protects the battery against overcharge, over-discharge, short circuit, and temperature extremes, ensuring safe operation across all supported applications.

IP56 rated enclosure: The battery carries an IP56 ingress protection rating, providing protection against dust ingress and water spray in exposed installation environments.

Parallel scalability up to 4P: Supports parallel configurations of up to 4 units, allowing larger capacity banks to be built using multiple SNLSS12V230BT batteries in the same slim form factor. Series configuration is not supported on this model.

60% greater capacity utilisation than SLA: Provides 60% more usable capacity than an equivalent SLA battery, translating directly to longer runtime from the same nominal capacity rating.

Flat discharge curve: Maintains consistent output voltage throughout the usable capacity, delivering longer effective run time and more efficient use of available capacity compared to lead-acid batteries.

High energy density, low weight: At 27.0kg, the SNLSS12V230BT weighs less than half of an equivalent SLA battery, significantly reducing total system weight in weight-sensitive vehicle installations.

Fast recharge capability: Accepts a maximum charge current of 150A with a recommended charge current of under 50A, reducing downtime between discharge cycles compared to equivalent lead-acid alternatives.

Technical specs

Specification Detail
SKU SNLSS12V230BT
Nominal Voltage 12.8V
Nominal Capacity 230Ah
Chemistry Lithium Iron Phosphate (LiFePO4)
Terminal M8
Max Charge Voltage 14.4 ± 0.1V
Standby Voltage 13.8 ± 0.1V
Cut-Off Voltage 10V
Max Discharge Current 250A
Max Pulse Discharge Current 400A (3 seconds)
Max Charge Current 150A
Recommended Charge Current <50A
Charge Cycles >3,000 @ 100% DOD
Operating Temp (Charge) 0°C to 45°C
Operating Temp (Discharge) -20°C to 60°C
Short Circuit Release Load release
Max Parallel Config 4P (series not supported)
Bluetooth Yes, integrated
BMS Integrated
IP Rating IP56
Length 550 ± 2mm
Width 564 ± 2mm
Height 70 ± 2mm
Weight 27.0kg

Frequently asked questions

Can the SNLSS12V230BT be wired in series to create a higher voltage system?
No. The SNLSS12V230BT supports parallel configurations only, up to 4 units. Series configuration is not supported on this model. Contact us if you require a higher voltage battery solution.

What spaces is the SNLSS12V230BT designed to fit in?
The SNLSS12V230BT is specifically designed for tight installation spaces such as behind rear seats, inside vehicle drawers, and under floors where a standard battery form factor would not fit. At 550 x 564 x 70mm, it provides a slim modular footprint with 230Ah of capacity.

What app is used to monitor the SNLSS12V230BT via Bluetooth?
Specific app details are not confirmed in the available source data. Contact us for information on compatible monitoring applications for the SNLSS12V230BT.

What type of charger is required for the SNLSS12V230BT?
The SNLSS12V230BT requires a LiFePO4-compatible 12V charger with a maximum charge current not exceeding 150A and a recommended charge current of under 50A. Using a charger not rated for LiFePO4 chemistry may damage the battery or void the warranty. Contact us for charger recommendations suited to this battery.

How does the SNLSS12V230BT compare to a standard SLA battery of the same capacity?
The SNLSS12V230BT provides 60% more usable capacity than an equivalent SLA battery, up to 8 times the cycle life, and weighs less than half of an equivalent SLA battery. The slim modular footprint also allows installation in spaces where a standard SLA battery would not fit.
