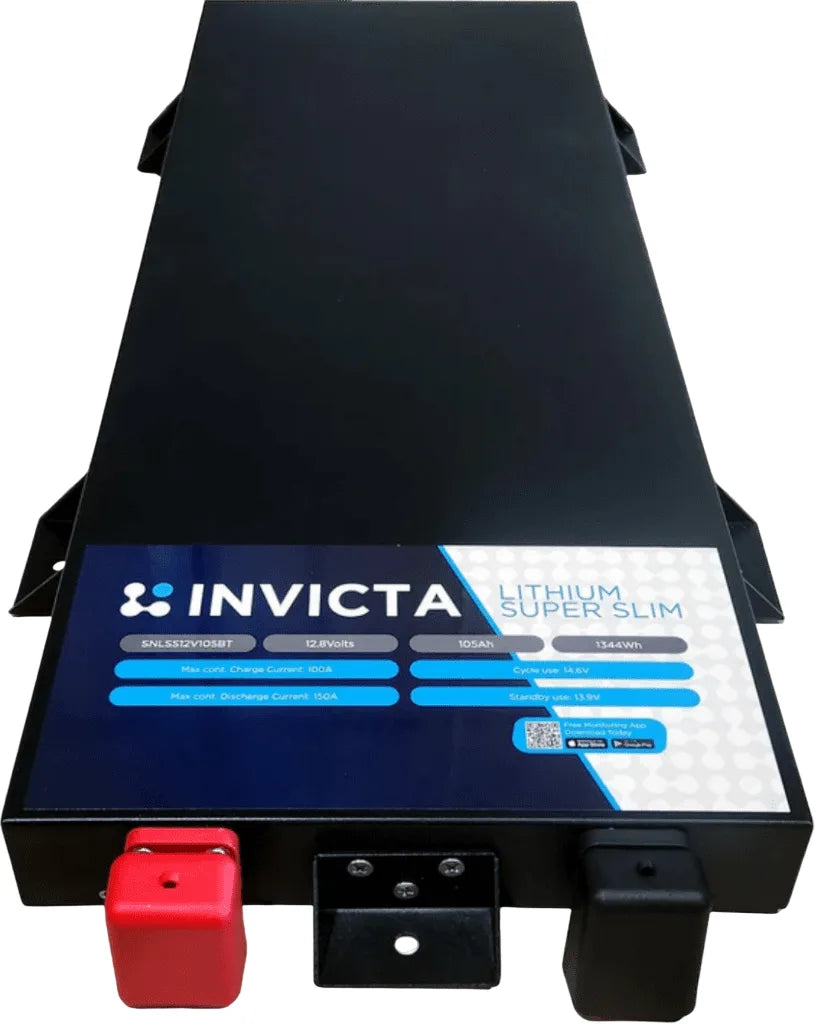

Invicta SNLSS12V105BT Super Slim 12V 105Ah LiFePO4 Battery

Invicta SNLSS12V105BT Super Slim 12V 105Ah LiFePO4 Battery

The SNLSS12V105BT is a 12V 105Ah Lithium Iron Phosphate battery from the Invicta SuperSlim range, with integrated Bluetooth monitoring and a built-in BMS. At 694 x 260 x 47mm and 15.0kg, it is purpose-built for installations where usable space is extremely limited, rated for over 2,000 cycles at 100% depth of discharge and supporting parallel configurations up to 4P.

Product overview

The Invicta SNLSS12V105BT is part of the SuperSlim range, specifically designed for fitment into applications where usable space is extremely limited. LiFePO4 cells are tightly packed into a modular design measuring 694 x 260 x 47mm, delivering 105Ah of deep cycle capacity in an ultra-slim profile that fits spaces inaccessible to standard battery form factors. At 15.0kg, it weighs less than half of an equivalent SLA battery of the same capacity.

The integrated BMS actively protects the battery against overcharge, over-discharge, short circuit, and temperature extremes. Bluetooth connectivity allows real-time monitoring of battery status and state of charge from a compatible mobile device. The modular construction supports parallel configurations of up to 4 units, allowing larger capacity banks to be built in the same slim form factor. Series configuration is not supported on this model.

The flat discharge curve maintains consistent voltage output throughout the discharge cycle, extending effective run time compared to lead-acid alternatives. The extremely low self-discharge rate allows the battery to sit unused for extended periods without significant capacity loss, making it well suited to seasonal or intermittent use applications.

Features and benefits

12V 105Ah LiFePO4 in an ultra-slim 47mm profile: Delivers 105Ah of deep cycle capacity in a 694 x 260 x 47mm slim profile, purpose-built for applications where usable space is extremely limited and a standard battery form factor will not fit.

2,000+ charge cycles at 100% DOD: Rated for over 2,000 full charge and discharge cycles, providing up to 8 times the cycle life of an equivalent SLA battery and significantly reducing total cost of ownership over the battery's service life.

150A continuous discharge, 300A pulse: Supports a maximum continuous discharge current of 150A and a 300A pulse discharge for up to 3 seconds, handling high-draw loads across a range of deep cycle applications.

Integrated Bluetooth monitoring: Built-in Bluetooth allows real-time monitoring of battery status and state of charge from a compatible mobile device without requiring additional hardware.

Integrated BMS: The on-board Battery Management System actively protects the battery against overcharge, over-discharge, short circuit, and temperature extremes, ensuring safe operation across all supported applications.

Modular construction for tight cell configuration: LiFePO4 cells are tightly packed into a modular design, allowing the battery to fit into spaces that are inaccessible to conventional battery form factors while maintaining full deep cycle performance.

Parallel scalability up to 4P: Supports parallel configurations of up to 4 units, allowing larger capacity banks to be built using multiple SNLSS12V105BT batteries in the same slim form factor. Series configuration is not supported on this model.

High energy density, low weight: At 15.0kg, the SNLSS12V105BT weighs less than half of an equivalent SLA battery, significantly reducing total system weight in weight-sensitive vehicle and mobile installations.

Flat discharge curve: Maintains consistent output voltage throughout the usable capacity, delivering longer effective run time and more efficient use of available capacity compared to lead-acid batteries.

Fast recharge capability: Accepts a maximum charge current of 100A with a recommended charge current of under 50A, reducing downtime between discharge cycles compared to equivalent lead-acid alternatives.

Extremely low self-discharge rate: Retains charge effectively during extended storage periods, allowing the battery to sit unused for longer periods without significant capacity loss.

Technical specs

Frequently asked questions

Can the SNLSS12V105BT be wired in series to create a higher voltage system?
No. The SNLSS12V105BT supports parallel configurations only, up to 4 units. Series configuration is not supported on this model. Contact us if you require a higher voltage battery solution.

What is the difference between the SNLSS12V105BT and the SNLSS12V230BT?
The SNLSS12V105BT has a 105Ah capacity at 694 x 260 x 47mm and weighs 15.0kg, while the SNLSS12V230BT has a 230Ah capacity at 550 x 564 x 70mm and weighs 27.0kg. Both are from the Invicta SuperSlim range with Bluetooth monitoring and integrated BMS. Contact us if you need help selecting the right model for your application.

What app is used to monitor the SNLSS12V105BT via Bluetooth?
Specific app details are not confirmed in the available source data. Contact us for information on compatible monitoring applications for the SNLSS12V105BT.

What type of charger is required for the SNLSS12V105BT?
The SNLSS12V105BT requires a LiFePO4-compatible 12V charger with a maximum charge current not exceeding 100A and a recommended charge current of under 50A. Using a charger not rated for LiFePO4 chemistry may damage the battery or void the warranty. Contact us for charger recommendations suited to this battery.

How does the SNLSS12V105BT compare to a standard SLA battery of the same capacity?
The SNLSS12V105BT provides up to 8 times the cycle life of an equivalent SLA battery and weighs less than half. The ultra-slim 47mm profile also allows installation in spaces where a standard SLA battery would not fit, making it particularly useful in tight vehicle and mobile power installations.
