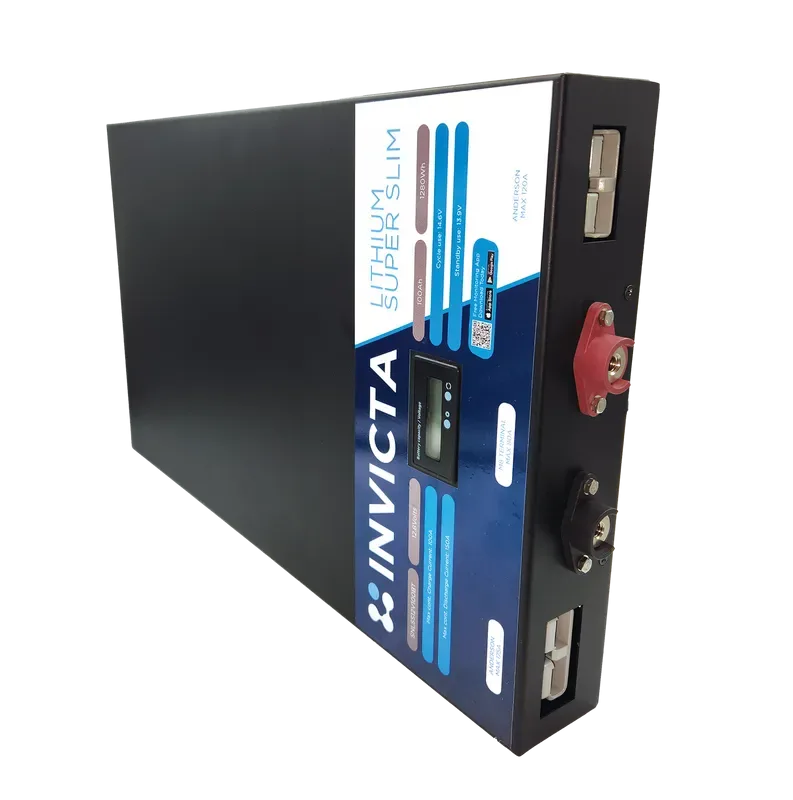

Invicta SNLSS12V100BT Super Slim 12V 100Ah LiFePO4 Battery

Invicta SNLSS12V100BT Super Slim 12V 100Ah LiFePO4 Battery

The SNLSS12V100BT is a 12V 100Ah Lithium Iron Phosphate battery from the Invicta Super Slim range, featuring a 65mm wide metal case with prismatic cell construction, integrated Bluetooth monitoring, a built-in BMS, and high current Anderson plugs. Weighing 15kg at 520 x 65 x 315mm, it is backed by a 5-year full replacement warranty and is compatible with inverters up to 1800W.

Product overview

The Invicta SNLSS12V100BT is designed to address the growing challenge of fitting a full-capacity lithium battery into increasingly limited vehicle spaces. The 65mm wide frame allows it to slip behind a rear seat, into tight under-floor spaces, and other confined areas where a standard battery form factor will not fit. The robust metal case protects the prismatic cells against knocks and bumps in tight installations without compromising performance.

Despite its slim profile, the SNLSS12V100BT delivers full deep cycle performance including a high discharge rate through over-rated Anderson plugs, Bluetooth monitoring via the Invicta app, and compatibility with inverters up to 1800W. The integrated BMS provides active protection against overcharge, over-discharge, short circuit, and temperature extremes. Bluetooth monitoring allows real-time tracking of current, voltage, status, cycles, and capacity from a compatible Android or Apple device.

The modular construction supports the Super Slim range's design for tight spaces, and the prismatic cell layout maintains high cycle performance and energy density within the slim form factor. A 5-year full replacement warranty provides long-term confidence in the product's reliability and performance.

Features and benefits

65mm wide super slim metal case: The 65mm wide frame and robust metal case allow the SNLSS12V100BT to fit behind rear seats and into tight spaces that are inaccessible to standard battery form factors, while protecting the cells against physical impact in confined installations.

Prismatic cell construction: Prismatic cells are tightly packed into the slim metal case, maintaining high energy density and cycle performance within the 520 x 65 x 315mm footprint without sacrificing deep cycle capability.

100Ah deep cycle capacity: Delivers 100Ah of usable deep cycle capacity for powering 12V accessories including fridges, inverters, and marine equipment across a range of vehicle and mobile power applications.

Integrated Bluetooth monitoring: Built-in Bluetooth connects to the Invicta app on Android and Apple devices for real-time monitoring of current, voltage, status, cycles, and capacity in one platform.

High current Anderson plugs: Over-rated Anderson plugs support high discharge rates, providing reliable, low-resistance connections for high-draw accessories and inverter loads.

1800W inverter compatible: The SNLSS12V100BT is confirmed compatible with inverters up to 1800W, supporting a range of AC-powered appliances from a 12V battery source in off-grid and vehicle-based installations.

Integrated BMS: The on-board Battery Management System actively protects the battery against overcharge, over-discharge, short circuit, and temperature extremes, ensuring safe operation across all supported applications.

Modular construction: The modular design allows multiple units to be combined to expand capacity, and supports the tight cell configuration required for the slim form factor.

Lightweight at 15kg: At 15kg, the SNLSS12V100BT is significantly lighter than an equivalent lead-acid battery, reducing total system weight in weight-sensitive vehicle and mobile power installations.

Fast recharge capability: Accepts a fast recharge rate, reducing downtime between discharge cycles and returning the battery to full charge sooner than equivalent lead-acid alternatives.

5-year full replacement warranty: Backed by a 5-year full replacement warranty, providing long-term confidence in the product's reliability and performance across its rated service life.

Technical specs

Frequently asked questions

What spaces is the SNLSS12V100BT designed to fit in?
The SNLSS12V100BT is designed for tight installation spaces including behind rear seats, under floors, and in other confined areas where a standard battery form factor will not fit. The 65mm wide frame and 520 x 65 x 315mm dimensions make it one of the slimmest full-capacity lithium batteries in the Invicta range.

What inverters is the SNLSS12V100BT compatible with?
The SNLSS12V100BT is confirmed compatible with inverters up to 1800W. Contact us for guidance on selecting a compatible inverter for your specific power requirements.

What is the difference between the SNLSS12V100BT and the SNLSS12V105BT?
The SNLSS12V100BT uses prismatic cells in a 520 x 65 x 315mm metal case with high current Anderson plugs and a 5-year warranty, while the SNLSS12V105BT uses a 694 x 260 x 47mm flat profile. The SNLSS12V100BT is taller and narrower, designed for behind-seat fitment, while the SNLSS12V105BT is flatter and wider, suited to under-floor or drawer installations. Contact us for guidance on which model suits your specific application.

What app is used to monitor the SNLSS12V100BT via Bluetooth?
The SNLSS12V100BT connects to the Invicta app, available for free on Android and Apple devices. The app provides real-time monitoring of current, voltage, status, cycles, and capacity. Contact us for information on downloading and setting up the app for your device.

What type of charger is required for the SNLSS12V100BT?
The SNLSS12V100BT requires a LiFePO4-compatible 12V charger. Using a charger not rated for LiFePO4 chemistry may damage the battery or void the warranty. Contact us for charger recommendations suited to this battery.
