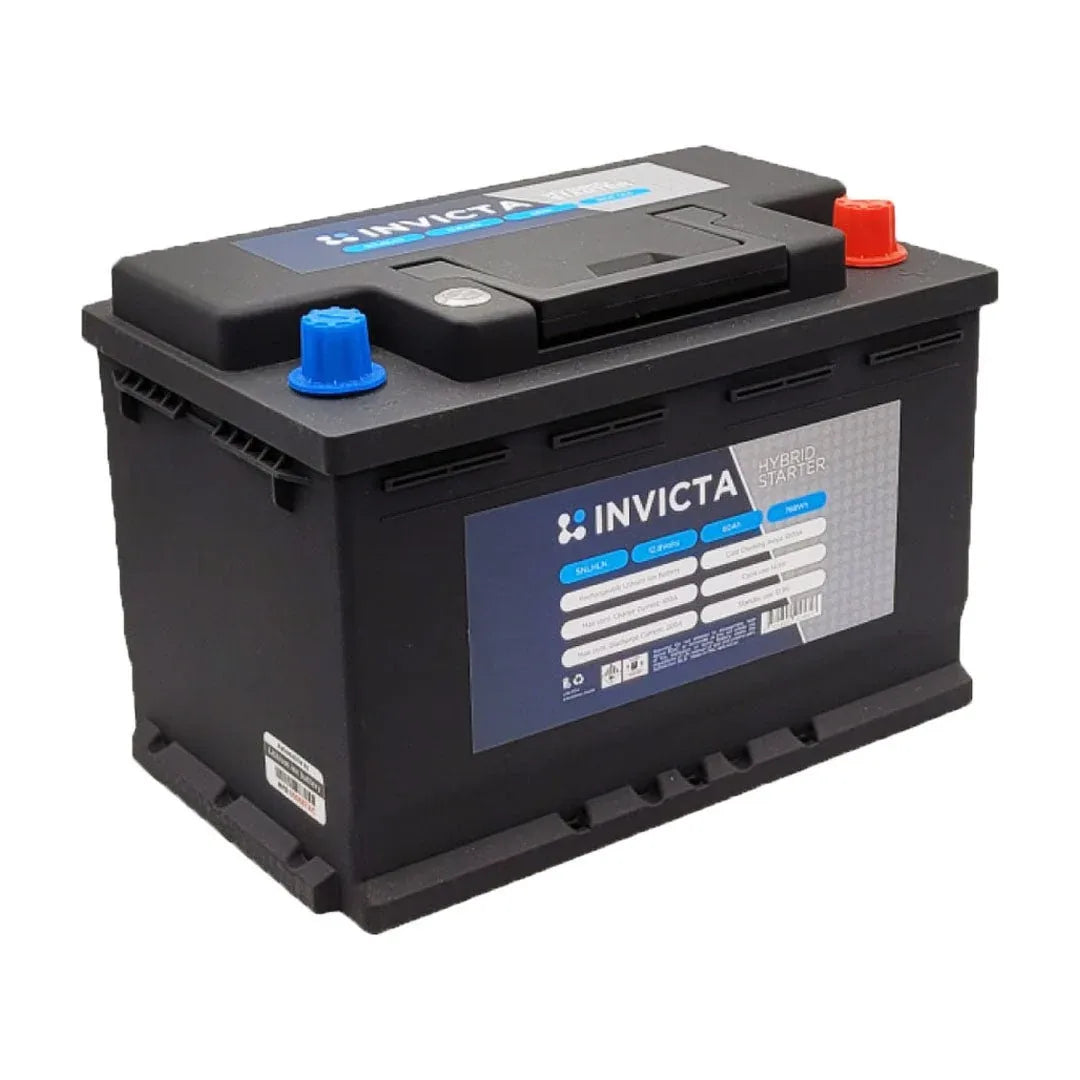

Invicta LN4 MAX hybrid lithium starter battery product photo
Invicta LN4 MAX hybrid lithium starter battery product photo
Click to open expanded view

Invicta SNLHLN4MAX Hybrid LN4 MAX LiFePO4 12V 60Ah 1000CCA Battery

SKU: SNLHLN4MAX
Price
$1,979
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Invicta LN4 MAX hybrid lithium starter battery product photo

Invicta SNLHLN4MAX Hybrid LN4 MAX LiFePO4 12V 60Ah 1000CCA Battery

$1,979

Product features

Running a fridge overnight and then wondering if the engine will turn over in the morning is a feeling most 4WD owners know. The LN4 MAX is built to take that worry away. It sits under the bonnet in place of your standard LN4 size starter, cranks with 1000 cold cranking amps, and still gives you 60Ah of lithium capacity for your 12V accessories.

If you do flatten it, a small reserve is held back by the battery management system. Press the button on top, or tap it in the Invicta Hybrid app, and you get 30 seconds to start the vehicle without hunting for a jump starter.

Why it suits under bonnet use

  • Dual BMS: lets the battery charge and discharge at a high rate, so it can handle winching as well as starting.
  • Charges straight from the alternator: the pouch cells and BMS accept the varying charge an alternator delivers.
  • Heat resistant build: a thermal protection layer protects the internals, and the BMS only disconnects at 80°C.
  • A123 pouch cells: chosen by Invicta for high rate discharge and charge and resistance to heat.
  • Bluetooth monitoring: check voltage, current, state of charge, state of health and temperature on your phone.
  • Standard LN4 case size: 315 x 174 x 190mm with SAE posts and an M8 insert.

Specifications

Model SNLHLN4MAX
Chemistry Lithium Iron Phosphate (LiFePO4) pouch cell
Nominal voltage 12.8V
Nominal capacity 60Ah
Cold cranking amps 1000A
Max discharge current 800A
Max pulse discharge (3 sec) 2100A
Max charge current 600A
Recommended charge current Under 30A
Max charge voltage 14.6V ± 0.1V
Charge cut off voltage 15.6V ± 0.1V
Discharge cut off voltage 8V
Cycle life 2000+ cycles at 100% depth of discharge
Operating temperature, charge -20°C to 45°C
Operating temperature, discharge -20°C to 60°C
BMS high temperature disconnect 80°C
Max parallel 6P
Terminal SAE with M8 insert
Dimensions (L x W x H) 315 x 174 x 190mm (± 2mm)
Weight 8.3kg
IP rating IP56
Certifications IEC62133, UN38.3
Warranty Three year full replacement, backed by SPB

Questions we get asked

What is the CCA rating of the LN4 MAX?
Invicta's specification sheet lists 1000 cold cranking amps, with 800A max continuous discharge and a 2100A pulse for 3 seconds.

Do I need a DC to DC charger to run it under the bonnet?
Invicta says the Hybrid range can be charged directly from the vehicle alternator. The recommended charge current is under 30A. If your vehicle has a smart alternator, give us a call and we can talk through your setup.

Why does the app show half the current I expect?
The LN4 MAX uses a dual BMS. Invicta notes that on SNLHMAX, SNLHMAXL and SNLHLN4MAX the current reading in the Hybrid app needs to be multiplied by 2 for an accurate figure.

How does the jump start feature work?
The BMS automatically reserves a small amount of capacity if the main capacity is over discharged. Press the button on top of the battery, or use the app, and you have 30 seconds to start the vehicle.

What warranty does it have?
The Invicta Hybrid Starter range carries a three year full replacement warranty backed by SPB.
