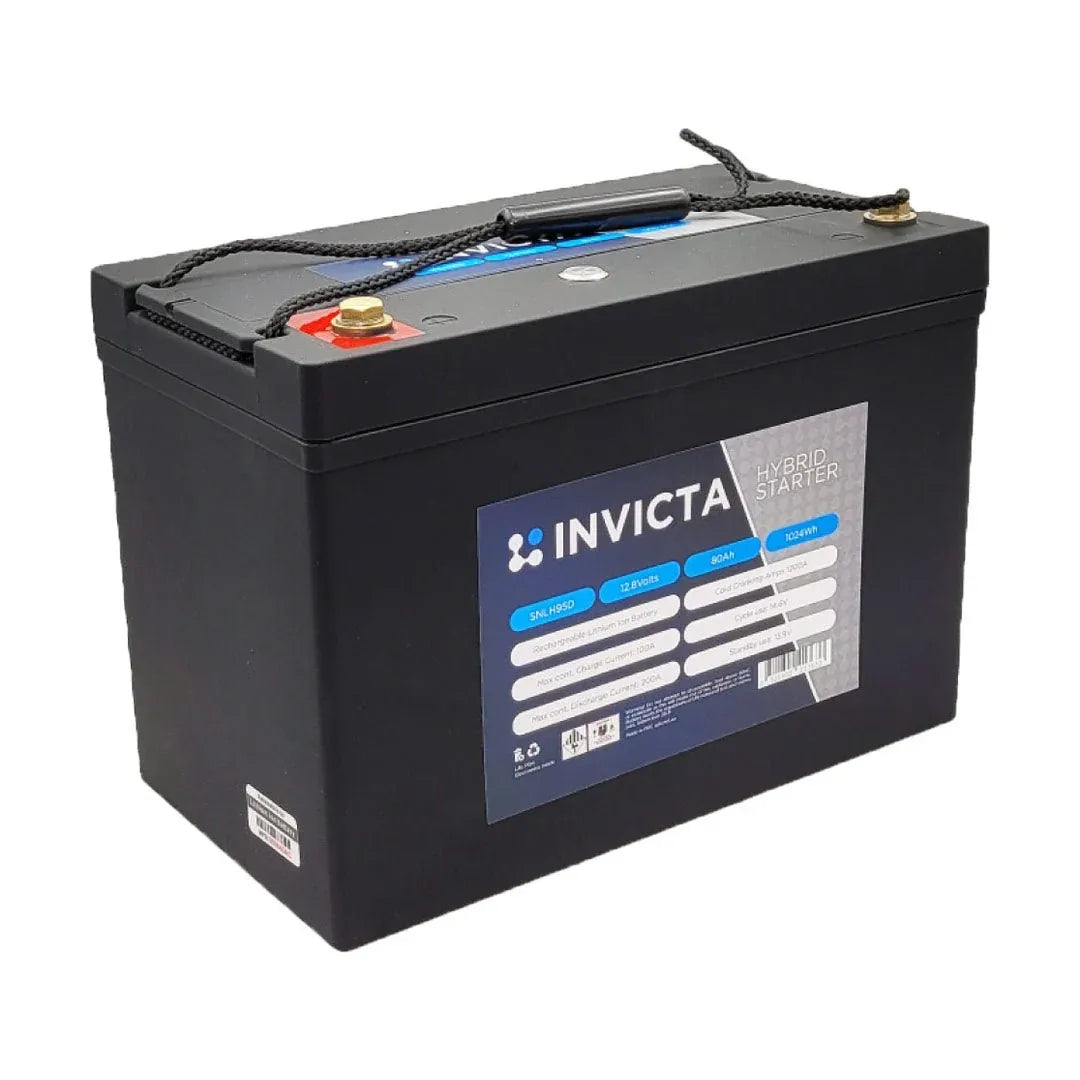

Invicta SNLH95DL Hybrid LiFePO4 12V 80Ah 1200CCA Starter Battery

Invicta SNLH95DL Hybrid LiFePO4 12V 80Ah 1200CCA Starter Battery

The SNLH95DL is a 12V 80Ah hybrid Lithium Iron Phosphate starter battery rated at 1200CCA, built on premium A123 pouch cells with an integrated BMS, Bluetooth monitoring, and jump start function. A direct drop-in replacement for standard 95D series automotive batteries, it is IP56 rated and backed by a 3-year full replacement warranty, with parallel scalability up to 6P.

Product overview

The Invicta SNLH95DL is engineered as a direct drop-in replacement for traditional 95D series automotive batteries, combining 1200CCA engine starting performance with 80Ah of auxiliary capacity for running 12V accessories including camp fridges and marine electronics. Built around premium A123 Lithium Iron Phosphate pouch cells, the same cell technology used by Mercedes and BMW, the SNLH95DL delivers high-rate discharge and charge performance within standard 95D case dimensions at 305 x 172 x 224mm.

An internal thermal protection layer reduces the impact of engine bay heat on the battery internals, keeping internal cell temperatures lower than the surrounding environment for reliable performance in high-temperature under-bonnet installations. The integrated BMS handles continuous high-rate charge and discharge cycles, accepting charge directly from a standard vehicle alternator without requiring an additional DC-DC charger in most installations.

Bluetooth connectivity links to the free Invicta app on Google Play and the App Store for real-time monitoring of key battery parameters. The integrated jump start function reserves a portion of capacity automatically, which can be activated remotely via the app without opening the bonnet, ensuring the vehicle can always be started when the main capacity has been depleted.

Features and benefits

1200CCA output with 80Ah auxiliary capacity: Delivers 1200CCA for reliable starting of large-displacement petrol and diesel engines while providing 80Ah of deep cycle capacity for running 12V accessories, combining starter and auxiliary battery functions in a single 95D-sized unit.

Premium A123 LiFePO4 pouch cells: Built using A123 Lithium Iron Phosphate pouch cells, the same cell technology used by Mercedes and BMW, providing high-rate discharge capability, charging flexibility, and significantly lower weight than equivalent lead-acid or AGM alternatives.

Direct drop-in replacement for 95D series batteries: Built to standard 95D case dimensions of 305 x 172 x 224mm with M8 terminals, fitting standard 95D battery trays and factory starter locations without modification. Always verify tray clearance for the 224mm total height before installing.

Integrated BMS for high-rate charge and discharge: The high-efficiency integrated BMS handles continuous high-rate charge and discharge cycles, protecting the battery against overcharge, over-discharge, short circuit, and temperature extremes across all supported applications.

Bluetooth monitoring via Invicta app: Integrated Bluetooth connects to the free Invicta app on Google Play and the App Store for real-time monitoring of key battery parameters, plus remote activation of the jump start function.

Jump start function with remote activation: A portion of battery capacity is automatically reserved for jump starting. The jump start function can be activated remotely via the Invicta app without opening the bonnet, or directly on the battery when needed.

Internal thermal protection layer: A built-in thermal protection layer reduces the impact of severe engine compartment heat on the battery internals, keeping internal cell temperatures lower than the surrounding environment for long-term durability in under-bonnet installations.

Parallel scalability up to 6P: Supports parallel configurations of up to 6 units, allowing larger auxiliary storage banks to be built for high-demand 4WD, touring, and marine applications.

IP56 rated enclosure: The battery housing carries an IP56 ingress protection rating, providing resistance to dust and water spray in exposed under-bonnet and outdoor installation environments.

Direct alternator charging: The A123 pouch cell design and integrated BMS accept the varying charge profiles delivered by standard vehicle alternators, removing the need for an additional DC-DC charger in most standard vehicle installations.

3-year full replacement warranty: Backed by a 3-year full replacement warranty, providing long-term confidence in the product's reliability and performance across its rated service life.

Technical specs

Frequently asked questions

Is the SNLH95DL a confirmed drop-in replacement for a standard 95D series battery?
Yes. The SNLH95DL is built to standard 95D case dimensions of 305 x 172 x 224mm with M8 terminals, fitting standard 95D battery trays without modification. Always verify that your specific tray accommodates the 224mm total height before installing.

Can the SNLH95DL be charged directly from a vehicle alternator?
Yes. The integrated BMS and A123 pouch cell design accept the varying charge profiles delivered by standard vehicle alternators. No additional DC-DC charger is required in most standard vehicle installations. Contact us if you have a specific alternator setup that requires clarification.

How does the remote jump start activation work on the SNLH95DL?
The integrated BMS automatically reserves a portion of capacity for jump starting. When the main capacity is depleted, the jump start function can be activated remotely via the Invicta app without opening the bonnet, or directly on the battery when needed.

Is the SNLH95DL suitable for 4WD dual-battery setups?
Yes. The standard 95D case dimensions, IP56 rating, and thermal protection layer make the SNLH95DL suitable for standard 4WD dual-battery trays and factory starter locations. Contact us to confirm fitment for your specific vehicle and tray configuration.

What app is used to monitor the SNLH95DL via Bluetooth?
The SNLH95DL connects to the free Invicta app, available on Google Play and the App Store. The app provides real-time monitoring of key battery parameters and remote activation of the jump start function.
