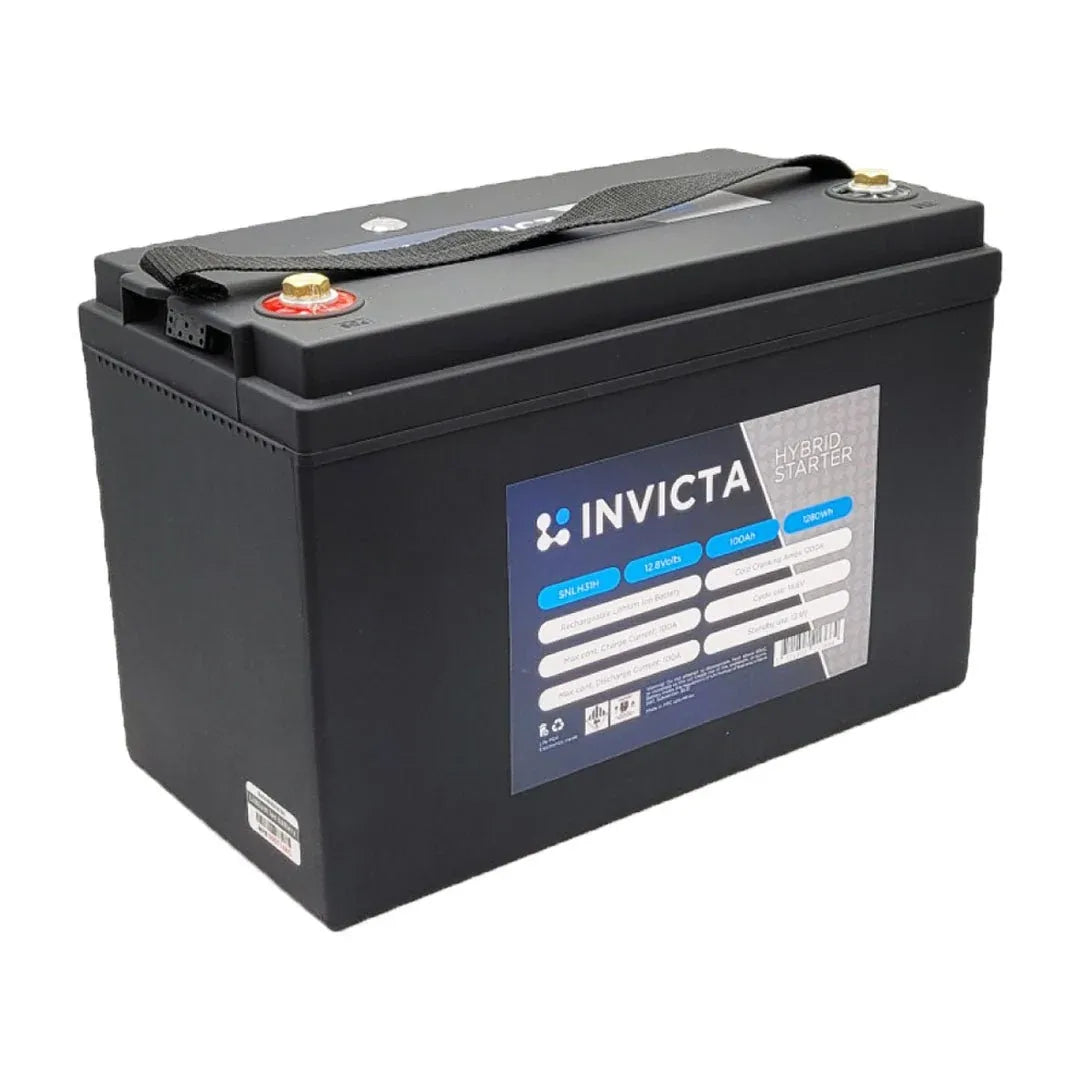

Invicta SNLH31H P31H Hybrid LiFePO4 12V 100Ah 1200CCA Starter Battery

SKU: SNLH31H
Price
$1,979
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Invicta Hybrid P31H lithium starter battery product photo

Invicta SNLH31H P31H Hybrid LiFePO4 12V 100Ah 1200CCA Starter Battery

$1,979

Product features

Trucks, boats and big 4WDs that run a P31H size battery often need both strong starting and a lot of capacity. The Invicta Hybrid P31H gives you 1200 cold cranking amps and 100Ah of lithium capacity in one under bonnet battery, with M8 terminals.

If you do run it too low, the battery management system holds a small reserve back. Press the button on top of the battery, or use the Invicta Hybrid app, and you get 30 seconds to start the vehicle.

Why it suits under bonnet use

  • Charges straight from the alternator: Invicta says the Hybrid range can be charged directly from most vehicle alternators.
  • Heat resistant build: a thermal protection layer protects the internals, and the BMS only disconnects at 80°C.
  • A123 pouch cells: chosen by Invicta for high rate discharge and charge and resistance to heat.
  • Jump start reserve: a backup for the day you flatten the main capacity.
  • Bluetooth monitoring: check voltage, current, state of charge, state of health and temperature in the free Invicta Hybrid app.
  • Sealed case: IP56 rated, with IEC62133 and UN38.3 certification.

Specifications

Model SNLH31H
Chemistry Lithium Iron Phosphate (LiFePO4) pouch cell
Nominal voltage 12.8V
Nominal capacity 100Ah
Terminal M8
Dimensions (L x W x H) 330 x 168 x 220/222mm (± 2mm)
Weight 10.2kg
Max charge voltage 14.6 ± 0.1V
Charge cut off voltage 15.6 ± 0.1V
Discharge cut off voltage 8V
Max continuous discharge 200A
Max pulse discharge (3 sec) 1200A
Cold cranking amps 1200A
Max charge current 100A
Recommended charge current Under 20A
Cycle life 2000+ cycles at 100% depth of discharge
Operating temperature, charge -20°C to 45°C
Operating temperature, discharge -20°C to 60°C
BMS high temperature disconnect 80°C
Max parallel 6P
Jump start feature Yes
IP rating IP56
Certifications IEC62133, UN38.3
Warranty Three year full replacement (Invicta Hybrid range)

Questions we get asked

What is the CCA rating?
Invicta lists 1200 cold cranking amps for this model, with 200A max continuous discharge.

Do I need a DC to DC charger?
Invicta says the Hybrid range can be charged directly from the vehicle alternator. The recommended charge current is under 20a. If your vehicle has a smart alternator, give us a call and we can talk through your setup.

How does the jump start feature work?
The BMS automatically reserves a small amount of capacity if the main capacity is over discharged. Press the button on top of the battery, or use the app, and you have 30 seconds to start the vehicle.

Can I mount it on its side?
Invicta says its batteries can be mounted on their side, but never upside down. Under the bonnet, mount it away from direct heat sources such as the exhaust.

What warranty does it have?
The Invicta Hybrid Starter range carries a three year full replacement warranty.
