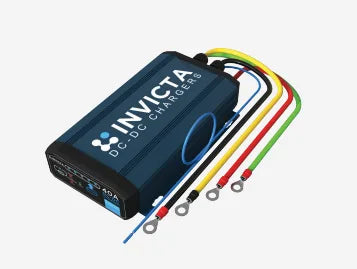

Invicta SNLC12V40DC 40A DC to DC Battery Charger with MPPT Solar Input

The SNLC12V40DC is a 40A DC to DC battery charger from Invicta, designed to match the Invicta charge profile for LiFePO4 and other battery types. Features MPPT solar input, multi-battery type selectable charging, a battery wake-up feature, LED indicator, smart alternator compatibility, IP68 rating, and solar/alternator priority selection. Vehicle input voltage: 11.5-32V. Solar input voltage: 9-32V. Recommended battery capacity: 120-400Ah. Australian certified. 2-year warranty.

Product overview

The Invicta SNLC12V40DC is the 40A variant in the Invicta DC to DC charger range, purpose-built to match the Invicta charge profile for LiFePO4 lithium batteries as well as SLA, AGM, Calcium, and Na-ion battery chemistries. The selectable battery type allows the correct charge voltage to be set for the connected battery. A battery wake-up feature allows the charger to initialise and charge deeply discharged batteries. Smart alternator compatibility ensures correct charging operation in vehicles fitted with variable-output smart alternators.

The MPPT solar input accepts 9-32V solar panel input for combined alternator and solar charging in a single unit, with solar and alternator input priority selectable. The IP68 rating and confirmed underbonnet installation capability make the SNLC12V40DC suited to demanding installation environments. An ignition cable is included for ignition-controlled charging operation. The unit measures 116mm (L) x 164mm (W) x 42mm (H). Australian certified, backed by a 2-year warranty.

Features and benefits

40A maximum charging current: Provides up to 40A of charging current for battery capacities of 120-400Ah, suited to larger auxiliary battery installations in 4WD, caravan, and marine applications.

Multi-battery type selectable: Battery type is selectable to match the charge voltage profile of the connected battery, covering SLA, AGM, Calcium, LiFePO4, and Na-ion chemistries in a single unit.

MPPT solar input 9-32V: Integrated MPPT solar input accepts 9-32V from a solar panel for combined alternator and solar charging, with solar and alternator input priority selection.

Battery wake-up feature: The automatic battery wake-up feature allows the charger to initialise deeply discharged batteries that may not respond to a standard charge cycle.

Smart alternator compatible: Compatible with smart alternators fitted to modern vehicles, ensuring correct charging operation regardless of alternator output profile.

LED indicator: The LED indicator provides clear visual feedback on charging status and operating conditions.

IP68 rated: IP68 dust and water resistance suits demanding installation environments including underbonnet locations.

Australian certified: Certified to Australian standards for compliance and reliability in Australian market applications.

Ignition cable included: An ignition cable is included for ignition-controlled charging operation.

2-year warranty: Backed by a 2-year warranty.

Technical specs

Specification Detail
SKU SNLC12V40DC
Brand Invicta
Max Charging Current 40A
Recommended Battery Capacity 120-400Ah
Vehicle Input Voltage 11.5-32V
Solar Input Voltage 9-32V
MPPT Yes
Battery Type Selectable
SLA Charge Voltage (Max/Float) 14.4V / 13.8V
AGM Charge Voltage (Max/Float) 14.7V / 13.8V
Calcium Charge Voltage (Max/Float) 15.3V / 13.8V
LiFePO4 Charge Voltage (Max/Float) 14.4V / NA
Na-ion Charge Voltage (Max/Float) 15.4V / NA
Charge Stages 3
IP Rating IP68
Dimensions 116mm (L) x 164mm (W) x 42mm (H)
Ignition Cable Included
Smart Alternator Compatible Yes
Solar/Alternator Priority Selectable
Underbonnet Install Yes, confirm conditions with supplier before installing
Certification Australian certified
Warranty 2 years

Frequently asked questions

What is the difference between the SNLC12V40DC and the SNLC12V25DC?
The SNLC12V40DC provides 40A of maximum charging current and is recommended for battery capacities of 120-400Ah, while the SNLC12V25DC provides 25A and is recommended for 80-250Ah. Both share the same input voltage range, MPPT solar input, selectable battery type, IP68 rating, and battery wake-up feature. The SNLC12V40DC is wider at 164mm compared to 139mm for the SNLC12V25DC.

Is the SNLC12V40DC compatible with smart alternators?
Yes. The SNLC12V40DC is specifically compatible with smart alternators fitted to modern vehicles, ensuring correct charging operation regardless of alternator output profile.

Does the SNLC12V40DC accept solar panel input?
Yes. The SNLC12V40DC includes an MPPT solar input accepting 9-32V from a solar panel, allowing combined alternator and solar charging in a single unit with selectable input priority.

Can the SNLC12V40DC be installed underbonnet?
The source data confirms underbonnet installation with an asterisk indicating a condition that has not been specified. Contact us to confirm the underbonnet installation conditions before purchasing.

What battery capacities is the SNLC12V40DC suited to?
The SNLC12V40DC is recommended for battery capacities of 120-400Ah. Contact us for guidance on suitability for battery capacities outside this range before purchasing.
