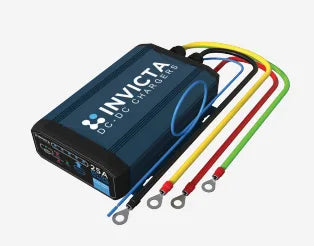

Invicta SNLC12V25DC 25A DC to DC Battery Charger with MPPT Solar
Invicta SNLC12V25DC 25A DC to DC Battery Charger with MPPT Solar
Click to open expanded view

Click and Collect

Invicta SNLC12V25DC 25A DC to DC Battery Charger with MPPT Solar

📍 Available for Pick-Up Only
SKU: SNLC12V25DC
Price
$349
Buy now, pay later
  • image
  • image
  • image
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Invicta SNLC12V25DC 25A DC to DC Battery Charger with MPPT Solar Input

The SNLC12V25DC is a 25A DC to DC battery charger from Invicta, designed to match the Invicta charge profile for LiFePO4 and other battery types. Features MPPT solar input, multi-battery type selectable charging, a battery wake-up feature, easy-to-read display, IP68 rating, and solar/alternator priority selection. Vehicle input voltage: 11.5-32V. Solar input voltage: 9-32V. Recommended battery capacity: 80-250Ah.

Product overview

The Invicta SNLC12V25DC is purpose-built to match the Invicta charge profile, making it a compatible charger for Invicta LiFePO4 lithium batteries as well as other battery chemistries including SLA, AGM, Calcium, and Na-ion. The selectable battery type allows the correct charge voltage to be set for the connected battery. A battery wake-up feature allows the charger to initialise and charge deeply discharged batteries that may not respond to a standard charge cycle.

The MPPT solar input accepts 9-32V solar panel input for combined alternator and solar charging in a single unit. Solar and alternator input priority can be selected depending on the installation and charging requirements. The IP68 rating and confirmed underbonnet installation capability make the SNLC12V25DC suited to demanding installation environments. An ignition cable is included for ignition-controlled charging operation. The unit measures 116mm (L) x 139mm (W) x 42mm (H).

Features and benefits

25A maximum charging current: Provides up to 25A of charging current for battery capacities of 80-250Ah, suited to a wide range of auxiliary battery installations in 4WD, caravan, and marine applications.

Multi-battery type selectable: Battery type is selectable to match the charge voltage profile of the connected battery, covering SLA, AGM, Calcium, LiFePO4, and Na-ion chemistries in a single unit.

MPPT solar input 9-32V: Integrated MPPT solar input accepts 9-32V from a solar panel for combined alternator and solar charging, with solar and alternator input priority selection.

Battery wake-up feature: The battery wake-up feature allows the charger to initialise deeply discharged batteries that may not respond to a standard charge cycle, particularly useful for LiFePO4 batteries that have entered a deep discharge protection state.

Easy-to-read display: The integrated display provides clear monitoring of charging status and operating conditions.

IP68 rated: IP68 dust and water resistance rating suits demanding installation environments including underbonnet locations.

Ignition cable included: An ignition cable is included for ignition-controlled charging operation, allowing the charger to activate and deactivate with the vehicle ignition.

Technical specs

Specification Detail
SKU SNLC12V25DC
Brand Invicta
Max Charging Current 25A
Recommended Battery Capacity 80-250Ah
Vehicle Input Voltage 11.5-32V
Solar Input Voltage 9-32V
MPPT Yes
Battery Type Selectable
SLA Charge Voltage (Max/Float) 14.4V / 13.8V
AGM Charge Voltage (Max/Float) 14.7V / 13.8V
Calcium Charge Voltage (Max/Float) 15.3V / 13.8V
LiFePO4 Charge Voltage (Max/Float) 14.4V / NA
Na-ion Charge Voltage (Max/Float) 15.4V / NA
Charge Stages 3
IP Rating IP68
Dimensions 116mm (L) x 139mm (W) x 42mm (H)
Ignition Cable Included
Solar/Alternator Priority Selectable
Underbonnet Install Yes, confirm conditions with supplier before installing

Frequently asked questions

Is the SNLC12V25DC compatible with Invicta LiFePO4 batteries?
Yes. The SNLC12V25DC is purpose-built to match the Invicta charge profile for LiFePO4 batteries. It is also compatible with SLA, AGM, Calcium, and Na-ion battery types via selectable battery type settings.

Does the SNLC12V25DC accept solar panel input?
Yes. The SNLC12V25DC includes an MPPT solar input accepting 9-32V from a solar panel, allowing combined alternator and solar charging in a single unit with selectable input priority.

What is the battery wake-up feature?
The battery wake-up feature allows the SNLC12V25DC to initialise and begin charging deeply discharged batteries that may not respond to a standard charge cycle, particularly useful for LiFePO4 batteries that have entered a deep discharge protection state.

Can the SNLC12V25DC be installed underbonnet?
The source data confirms underbonnet installation with an asterisk indicating a condition that has not been specified. Contact us to confirm the underbonnet installation conditions before purchasing.

What battery capacities is the SNLC12V25DC suited to?
The SNLC12V25DC is recommended for battery capacities of 80-250Ah. Contact us for guidance on suitability for battery capacities outside this range before purchasing.
