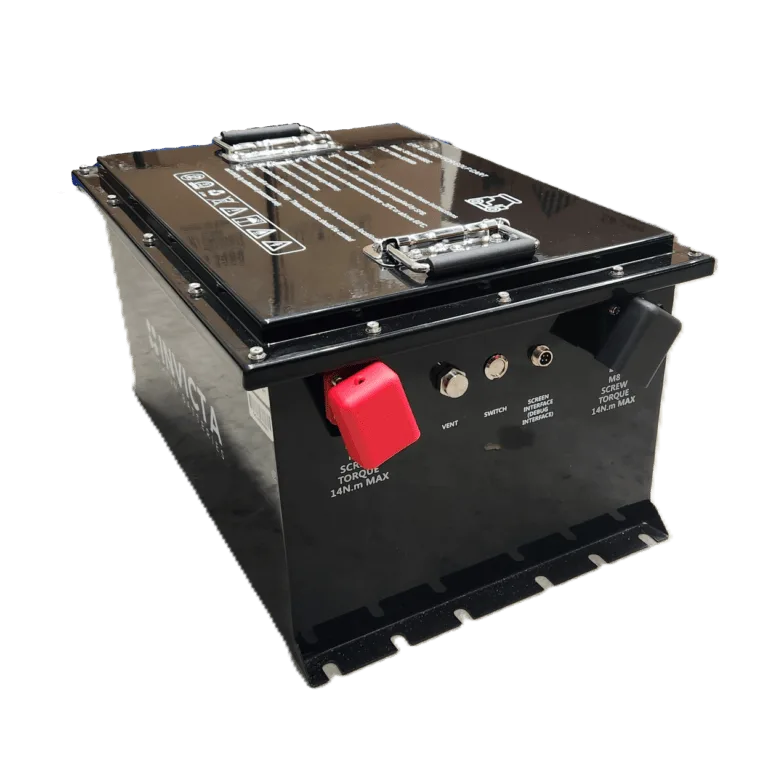

Invicta 48V 55Ah lithium Golf Cart Battery Bluetooth product photo
Invicta 48V 55Ah lithium Golf Cart Battery Bluetooth product photo
Click to open expanded view

Invicta SNL48V55GC 48V 55Ah LiFePO4 Golf Cart Battery Bluetooth

SKU: SNL48V55GC
Price
$2,199
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Invicta 48V 55Ah lithium Golf Cart Battery Bluetooth product photo

Invicta SNL48V55GC 48V 55Ah LiFePO4 Golf Cart Battery Bluetooth

$2,199

Product features

Lead acid golf cart batteries need water, take hours to charge and get weaker every season. This 48V 55Ah lithium golf cart battery replaces the whole bank in one case and comes with Bluetooth and an LCD gauge included, so you always know how much charge is left.

Inside is LiFePO4 chemistry, the same type Invicta uses across its range, rated at 51.2V and 55Ah. It weighs 28.5kg, and Invicta rates it for 2000+ cycles at 100% depth of discharge, which is a big step up from lead acid in daily use.

What you get

  • Replaces a lead acid golf cart bank, no water top ups needed
  • BMS with over charge, over discharge, over temperature and short circuit protection
  • Isolation switch
  • Conversion plugs available for Club Car, Yamaha and other carts (sold separately)
  • Matching Invicta 48V lithium charger available

Specifications

Model SNL48V55GC
Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal voltage 51.2V
Nominal capacity 55Ah
Terminal M8
Dimensions (L x W x H) 410 x 328 x 173mm (± 2mm)
Weight 28.5kg
Max charge voltage 58.4 ± 0.1V
Float (standby) voltage 55.2 ± 0.1V
Discharge cut off voltage 40.0V
Max continuous discharge 155A
Max pulse discharge (<30s) 315A
Max charge current 55A
Recommended charge current Under 22A
Cycle life 2000+ cycles at 100% depth of discharge
Operating temperature, charge 0°C to 45°C
Operating temperature, discharge -20°C to 60°C
Short circuit release Load release
Max series / parallel 0P/0S
Isolation switch Yes
Bluetooth Yes (Included)
LCD gauge Yes (Included)
IP rating IP65
Warranty Five year full replacement (Invicta golf cart range)

Figures are from the Invicta specification sheet for this model. Dimensions and weight can vary slightly, so measure your space before ordering.

Questions we get asked

Can it be mounted on its side?
Yes. Invicta says its batteries can be mounted on their side, just not upside down.

Which charger should I use?
Use a 48V lithium charger. Invicta sells a matching 48V lithium charger and conversion plugs for Club Car, Yamaha and other carts. Invicta notes that Club Car models older than 2014 need the on board computer bypassed.

Can I connect more than one together?
No. The specification sheet lists 0P/0S, so this battery is designed to be used on its own.

What warranty does it come with?
Invicta lists five years for this range. Keep your receipt, and contact us if you ever need to make a claim.
