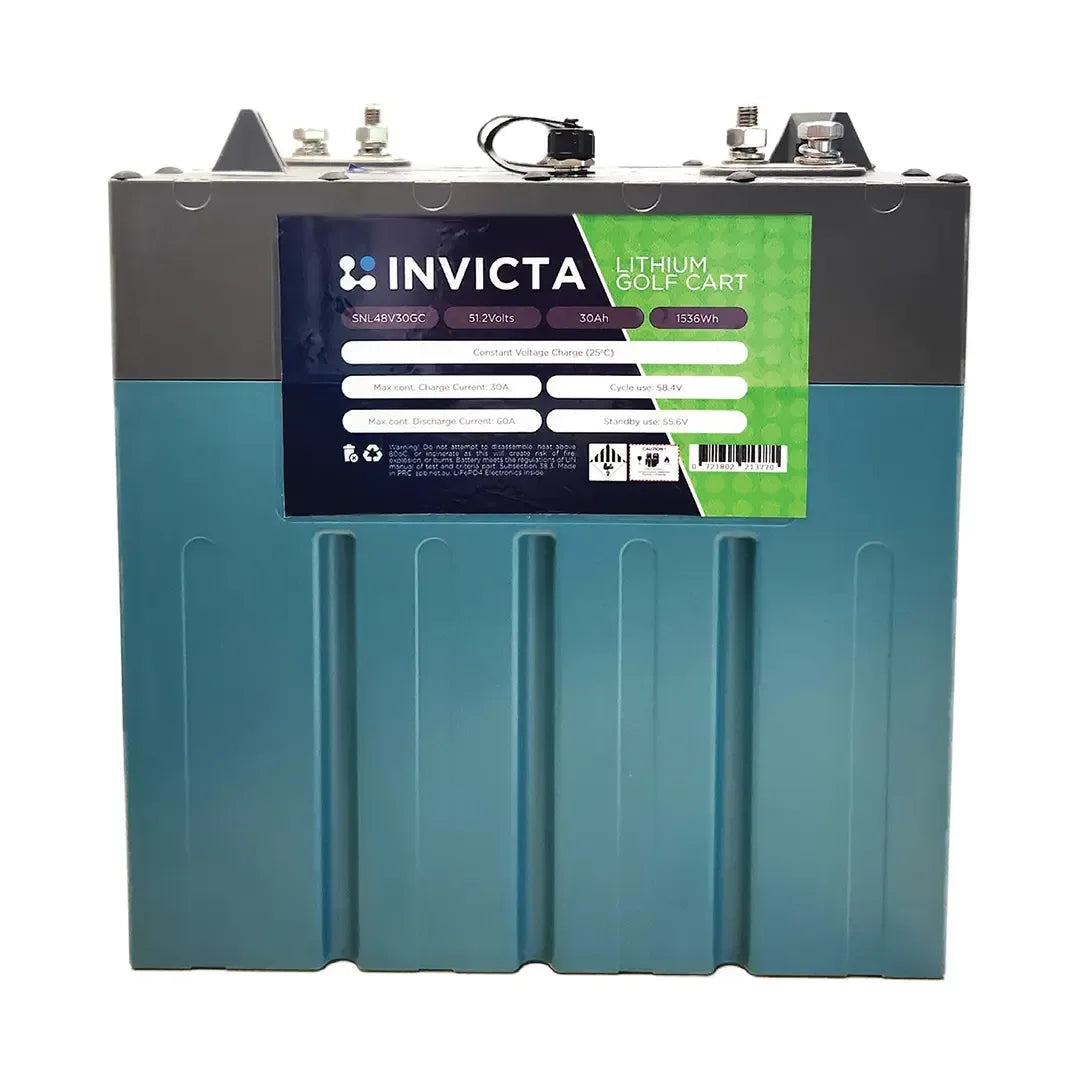

Invicta SNL48V30GC 48V 30Ah LiFePO4 Golf Cart Battery IP67

Invicta SNL48V30GC 48V 30Ah LiFePO4 Golf Cart Battery IP67

The SNL48V30GC is a 48V 30Ah Lithium Iron Phosphate golf cart battery with an integrated BMS, CAN Bus support, IP67 ingress protection, and an isolation switch for long-term storage. Two units wired in parallel produce a 60Ah GC2 system. Rated for over 2,000 cycles at 100% depth of discharge and backed by a 5-year full replacement warranty, it is compatible with Club Car, Yamaha, E-Z-GO, and ECAR golf carts via available conversion kits.

Product overview

The Invicta SNL48V30GC is purpose-built for 48V golf cart applications, offering a direct upgrade from lead-acid battery systems. LiFePO4 chemistry delivers faster acceleration, faster recharge, and improved cart efficiency compared to lead-acid alternatives, while the maintenance-free design requires no ongoing servicing. Two SNL48V30GC units wired in parallel produce the GC2 60Ah configuration referenced in the product title.

Conversion kits are available separately for popular golf cart models including Club Car, Yamaha, E-Z-GO, and ECAR, allowing straightforward removal of old lead batteries and installation of the Invicta Lithium system using the supplied instructions. For Club Car models older than 2014, a bypass of the on-board computer is required before installation. Matching Invicta Lithium chargers and monitoring devices, both wired and wireless, are also available separately.

The integrated BMS provides automatic protection against overcharge, over-discharge, over-temperature, and short circuit. CAN Bus linking supports safe battery management in parallel configurations, while the isolation switch minimises self-discharge during extended storage periods. IP67 ingress protection makes the SNL48V30GC suitable for use in wet and dusty golf course environments.

Features and benefits

48V 30Ah LiFePO4 chemistry: Lithium Iron Phosphate chemistry delivers stable, safe energy output for 48V golf cart applications, with up to 36 holes from a single charge and significantly longer cycle life than equivalent lead-acid batteries.

2,000+ charge cycles at 100% DOD: Rated for over 2,000 full charge and discharge cycles, providing up to 8 times the cycle life of an equivalent SLA battery and a lower total cost of ownership over the battery's service life.

Integrated BMS: The on-board Battery Management System provides automatic protection against overcharge, over-discharge, over-temperature, and short circuit, ensuring safe operation across the full range of golf cart charging and discharging conditions.

CAN Bus support: CAN Bus linking enables safe battery management when two units are configured in parallel, providing accurate state of charge monitoring and diagnostics across the combined battery system.

IP67 rated enclosure: The battery housing carries an IP67 ingress protection rating, providing full protection against dust ingress and water immersion in exposed golf course environments.

Isolation switch: An integrated isolation switch minimises self-discharge during extended storage periods, protecting the battery from excessive over-discharge when the golf cart is stored between uses.

Bluetooth and wired monitoring options: Compatible with the free Invicta Bluetooth app for wireless state of charge monitoring, or a wired loom and gauge connecting via the CAN Bus port for accurate hardwired diagnostics. Monitoring devices are sold separately.

Conversion kits for popular golf cart models: Conversion kits are available separately for Club Car, Yamaha, E-Z-GO, and ECAR golf carts, simplifying installation and ensuring correct fitment for each supported model.

Faster acceleration and recharge: LiFePO4 chemistry delivers improved cart efficiency, faster acceleration, and faster recharge times compared to lead-acid battery systems of equivalent capacity.

Maintenance free: Requires no ongoing maintenance. Simply charge and use.

60% greater capacity utilisation than SLA: Provides 60% more usable capacity than an equivalent SLA battery, translating directly to longer runtime per charge on the course.

5-year full replacement warranty: Backed by a 5-year full replacement warranty, providing long-term confidence in the product's reliability and performance across its rated service life.

Technical specs

Frequently asked questions

Is the SNL48V30GC sold as a single unit or as a pair?
The SNL48V30GC is a single 30Ah unit. Two units wired in parallel produce the GC2 60Ah system referenced in the product title. Contact us for guidance on configuring a 2-unit parallel system for your golf cart.

Is the SNL48V30GC compatible with Club Car golf carts?
Yes, with a conversion kit available separately. For Club Car models older than 2014, a bypass of the on-board computer is required before installation. Contact us for guidance on the correct conversion kit and installation process for your specific Club Car model.

What monitoring options are available for the SNL48V30GC?
The SNL48V30GC is compatible with the free Invicta Bluetooth app for wireless monitoring, or a wired loom and gauge connecting via the CAN Bus port for hardwired diagnostics. Both monitoring options are sold separately. Contact us for details on compatible monitoring accessories.

What charger is required for the SNL48V30GC?
The SNL48V30GC requires a matching Invicta Lithium 48V golf cart charger, available separately. Using a charger not matched to the battery voltage and chemistry may damage the battery or void the warranty. Contact us for charger recommendations suited to this battery and your specific golf cart setup.

How many holes can the SNL48V30GC deliver on a single charge?
A fully charged 2-unit GC2 60Ah system is estimated to deliver up to 36 holes from a single charge. Actual range will vary depending on the vehicle, environment, terrain, and usage conditions. This figure is an estimate only and is not guaranteed.
