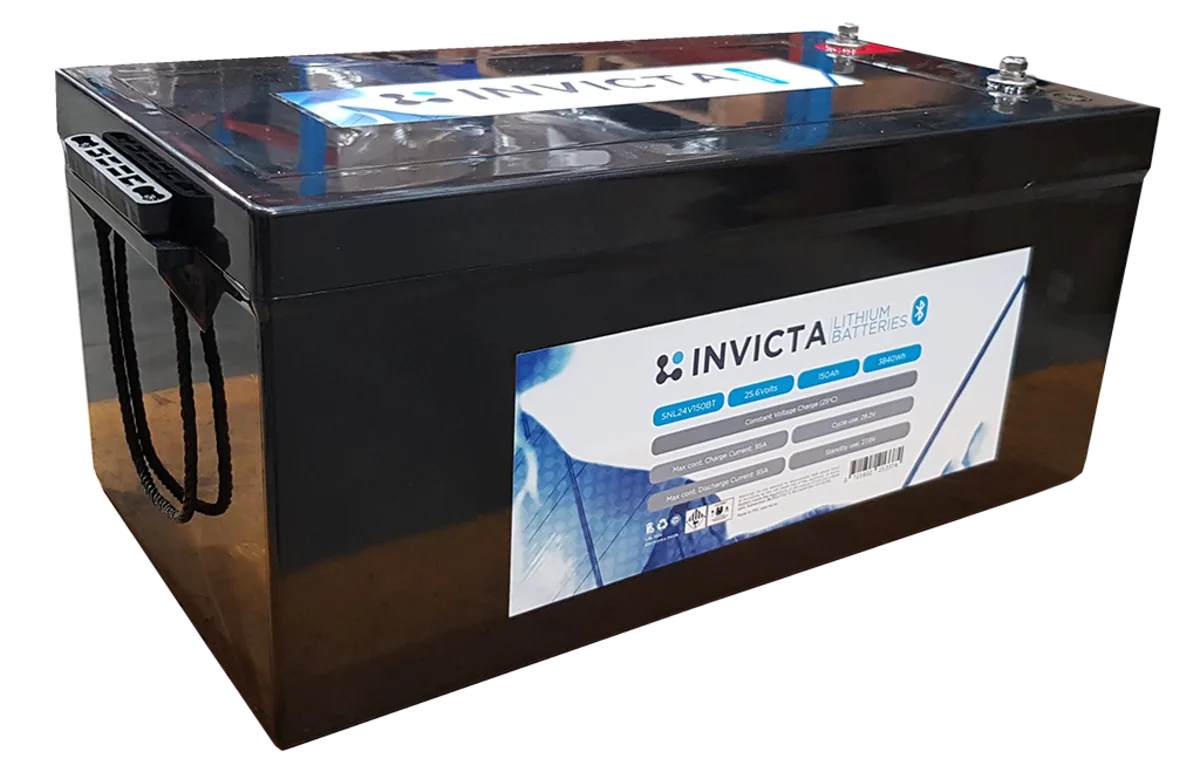

Invicta SNL24V150BT 24V 150Ah LiFePO4 Bluetooth Battery M8

Invicta SNL24V150BT 24V 150Ah LiFePO4 Bluetooth Battery M8

The SNL24V150BT is a 24V 150Ah Lithium Iron Phosphate battery with integrated Bluetooth monitoring and a built-in BMS. Weighing 35kg at 518 x 271 x 222mm with M8 terminals, it is UL1642 certified at the cell level, rated for over 2,000 cycles at 100% depth of discharge, and designed as a direct replacement for similarly sized lead-acid batteries in deep cycle applications.

Product overview

The Invicta SNL24V150BT is part of the 24V Lithium range, designed as a direct replacement for similarly sized lead-acid batteries across deep cycle and longer run time applications. Built on Lithium Iron Phosphate technology, it delivers significantly higher cycle life, lower weight, and greater usable capacity than equivalent lead-acid batteries, making it well suited to solar storage, marine accessories, industrial equipment, and portable power setups requiring 24V supply.

The integrated BMS provides active protection against overcharge, over-discharge, short circuit, and temperature extremes, with UL1642 certification at the cell level confirming compliance with international safety standards. Bluetooth connectivity allows real-time monitoring of battery status and state of charge from a compatible mobile device. The flat discharge curve maintains consistent voltage output throughout the discharge cycle, extending effective run time compared to lead-acid alternatives of the same nominal capacity.

At 518 x 271 x 222mm and 35kg, the SNL24V150BT fits standard battery trays sized for equivalent lead-acid batteries. The extremely low self-discharge rate allows the battery to sit unused for extended periods without significant capacity loss, making it well suited to seasonal and intermittent use applications.

Features and benefits

24V 150Ah LiFePO4 chemistry: Lithium Iron Phosphate chemistry delivers stable, safe energy output designed as a direct replacement for similarly sized lead-acid batteries in deep cycle and longer run time applications requiring 24V supply.

2,000+ charge cycles at 100% DOD: Rated for over 2,000 full charge and discharge cycles, providing up to 8 times the cycle life of an equivalent SLA battery and significantly reducing total cost of ownership over the battery's service life.

Integrated Bluetooth monitoring: Built-in Bluetooth allows real-time monitoring of battery status and state of charge from a compatible mobile device, providing clear visibility over key battery metrics without requiring physical inspection.

Integrated BMS: The on-board Battery Management System actively protects the battery against overcharge, over-discharge, short circuit, and temperature extremes, ensuring safe operation across all supported applications.

UL1642 certified at cell level: Carries UL1642 certification at the individual cell level, confirming compliance with international safety standards for secondary lithium cells used in deep cycle and mobile power applications.

60% greater capacity utilisation than SLA: Provides 60% more usable capacity than an equivalent SLA battery, translating directly to longer runtime from the same nominal capacity rating.

High energy density, low weight: At 35kg, the SNL24V150BT weighs less than half of an equivalent SLA battery, significantly reducing total system weight in solar storage, marine, and industrial applications.

Flat discharge curve: Maintains consistent output voltage throughout the usable capacity, delivering longer effective run time and more efficient use of available capacity compared to lead-acid batteries.

Fast recharge capability: Accepts a fast recharge rate, reducing downtime between discharge cycles and returning the battery to full charge sooner than equivalent lead-acid alternatives.

Extremely low self-discharge rate: Retains charge effectively during extended storage periods, allowing the battery to sit unused for longer periods without significant capacity loss.

Technical specs

Frequently asked questions

Is the SNL24V150BT a direct replacement for a 24V lead-acid battery?
Yes. The SNL24V150BT is designed as a direct replacement for similarly sized 24V lead-acid batteries in deep cycle applications. The M8 terminals and block case dimensions support straightforward swap-out in most applications. Contact us to confirm fitment for your specific setup.

What app is used to monitor the SNL24V150BT via Bluetooth?
Specific app details are not confirmed in the available source data. Contact us for information on compatible monitoring applications for the SNL24V150BT.

What type of charger is required for the SNL24V150BT?
The SNL24V150BT requires a LiFePO4-compatible 24V charger. Using a charger not rated for LiFePO4 chemistry may damage the battery or void the warranty. Contact us for charger recommendations suited to this battery.

Is the SNL24V150BT suitable for solar energy storage?
Yes. The battery's high capacity, flat discharge curve, fast recharge capability, and low self-discharge rate make it well suited to 24V solar energy storage applications. Contact us to confirm compatibility with your specific solar regulator or inverter setup.

Can the SNL24V150BT be wired in parallel to increase capacity?
Parallel configuration details are not confirmed in the available source data. Contact us for guidance on series and parallel configuration options for the SNL24V150BT.
