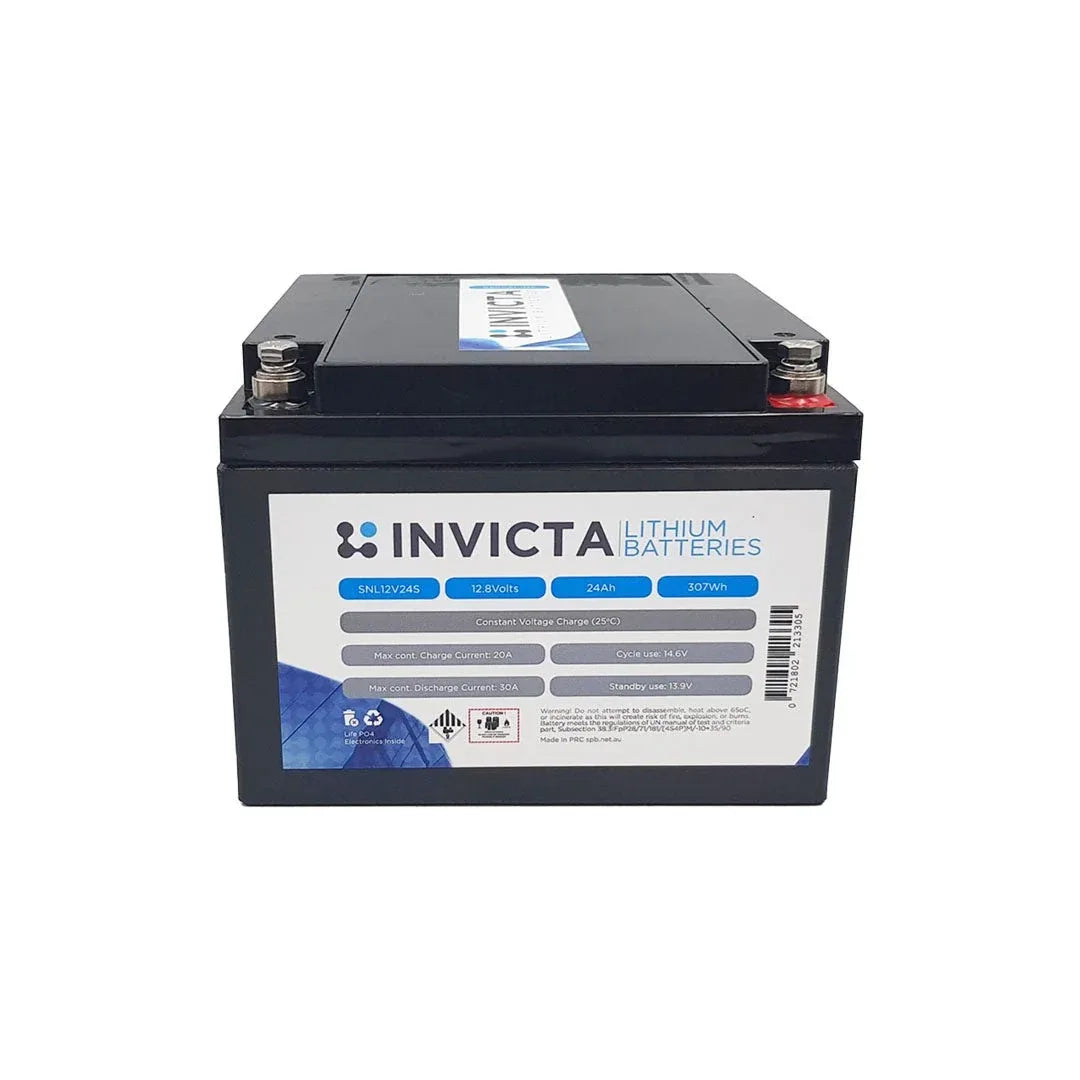

Invicta SNL12V24S 12V 24Ah LiFePO4 Deep Cycle Battery

SKU: SNL12V24S
Price
$419
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Invicta 12V 24Ah lithium Deep Cycle Battery product photo

Invicta SNL12V24S 12V 24Ah LiFePO4 Deep Cycle Battery

$419

Product features

Running a sounder, small pump or portable setup off a 24Ah lead acid battery usually means carrying a lot of weight for not much run time. This 12V 24Ah lithium battery fits the same job at far less weight and recharges faster, so it is ready for the next trip sooner.

Inside is LiFePO4 chemistry, the same type Invicta uses across its range, rated at 12.8V and 24Ah. It weighs 3.40kg, and Invicta rates it for 2000+ cycles at 100% depth of discharge, which is a big step up from lead acid in daily use.

What you get

  • Up to 8 times the cycle life of a sealed lead acid battery, according to Invicta
  • Integrated BMS protects against over charge, over discharge, temperature and short circuit
  • Less than half the weight of a similar sealed lead acid battery
  • Flat discharge curve, so voltage stays steady as the battery is used
  • Very low self discharge, so it can sit unused for longer

Specifications

Model SNL12V24S
Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal voltage 12.8V
Nominal capacity 24Ah
Terminal M6
Dimensions (L x W x H) 166 x 176 x 125mm (± 2mm)
Weight 3.40kg
Max charge voltage 14.6 ± 0.1V
Float (standby) voltage 13.8 ± 0.1V
Discharge cut off voltage 10V
Max continuous discharge 30A
Max pulse discharge (3 sec) 70A
Max charge current 20A
Recommended charge current Under 12A
Cycle life 2000+ cycles at 100% depth of discharge
Operating temperature, charge 0°C to 50°C
Operating temperature, discharge -20°C to 55°C
Short circuit release Load release
Max series / parallel 4P OR 4S
Warranty Seven years (Invicta warranty statement, standard range)

Figures are from the Invicta specification sheet for this model. Dimensions and weight can vary slightly, so measure your space before ordering.

Questions we get asked

What size inverter can this battery run?
Invicta works this out by multiplying nominal voltage by max continuous discharge. For this battery that is 12.8V x 30A = 384W. Allow some headroom and check the inverter's own surge figures before you buy.

Can it be mounted on its side?
Yes. Invicta says its batteries can be mounted on their side, just not upside down.

Can I charge it from solar?
Yes, as long as your solar regulator is set to a lithium charging profile. The max charge voltage on the Invicta specification sheet is 14.6 ± 0.1V.

Can I connect more than one together?
Yes, within the limits on the Invicta specification sheet: 4P OR 4S (S is series, P is parallel). Use matching batteries and ask us if you are planning a larger bank.

What warranty does it come with?
Invicta lists seven years for this range. Keep your receipt, and contact us if you ever need to make a claim.
