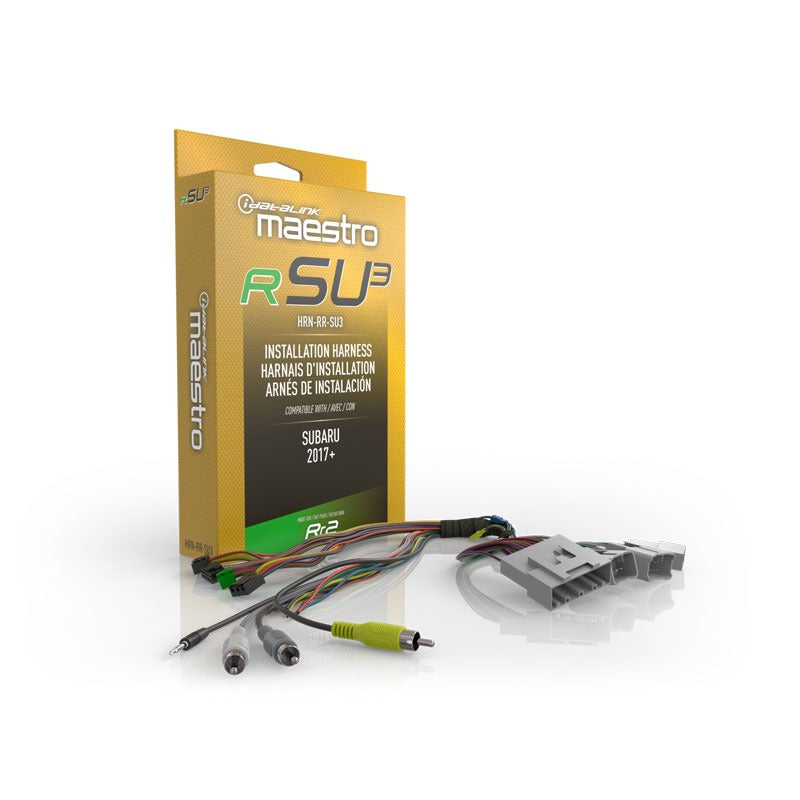

iDatalink Maestro HRN-RR-SU3 | Plug-N'-Play T-Harness For SU3 Vehicles

Installation Harness Designed For Use With Maestro RR2 Module Compatible With Select Subaru Vehicles 2017+

Radio Replacement T-Harness
Working in conjunction with the Maestro ADS-MRR2 module, iDatalink's rSU3 interface harness allows you to connect a new iDatalink-ready car stereo in select 2017-up Subaru vehicles. Once connected, you'll retain the use of your steering wheel audio controls, your Subaru's amplifier (including the fader), and the factory back-up camera in these vehicles. You'll also retain the use of your Subaru's Starlink, park assist, and auxiliary input features. This installation harness will not work with car stereos that do not feature an iDatalink serial port.

The package includes connectors that plug in between the Maestro module and your Subaru radio's wiring plugs. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

With your iDatalink-ready car stereo, you'll be able to set up gauges on your receiver's screen to monitor engine performance, tire pressure, and other functions. You'll also be able to read and reset the vehicle's Check Engine codes. Plus, you'll have access to three programmable outputs for controlling outboard gear on your Subaru.

Product Highlights:

• Allows installation of a new iDatalink-ready receiver in select Subaru models (Also requires the Maestro ADS-MRR2 module)

• Only works with select Alpine, JVC, Kenwood, Pioneer, and Sony receivers with an iDatalink port.

• Retains Steering Wheel Audio Controls

• Retains your Subaru's Starlink, Harman Kardon amplifier (Including Fader), backup camera and park assist, aux input.

• Displays engine gauges and Check Engine codes on touchscreen.

• Supplies VSS (vehicle speed sense), parking brake, and reverse outputs.
• Offers 3 programmable outputs for controlling outboard gear on your car.
