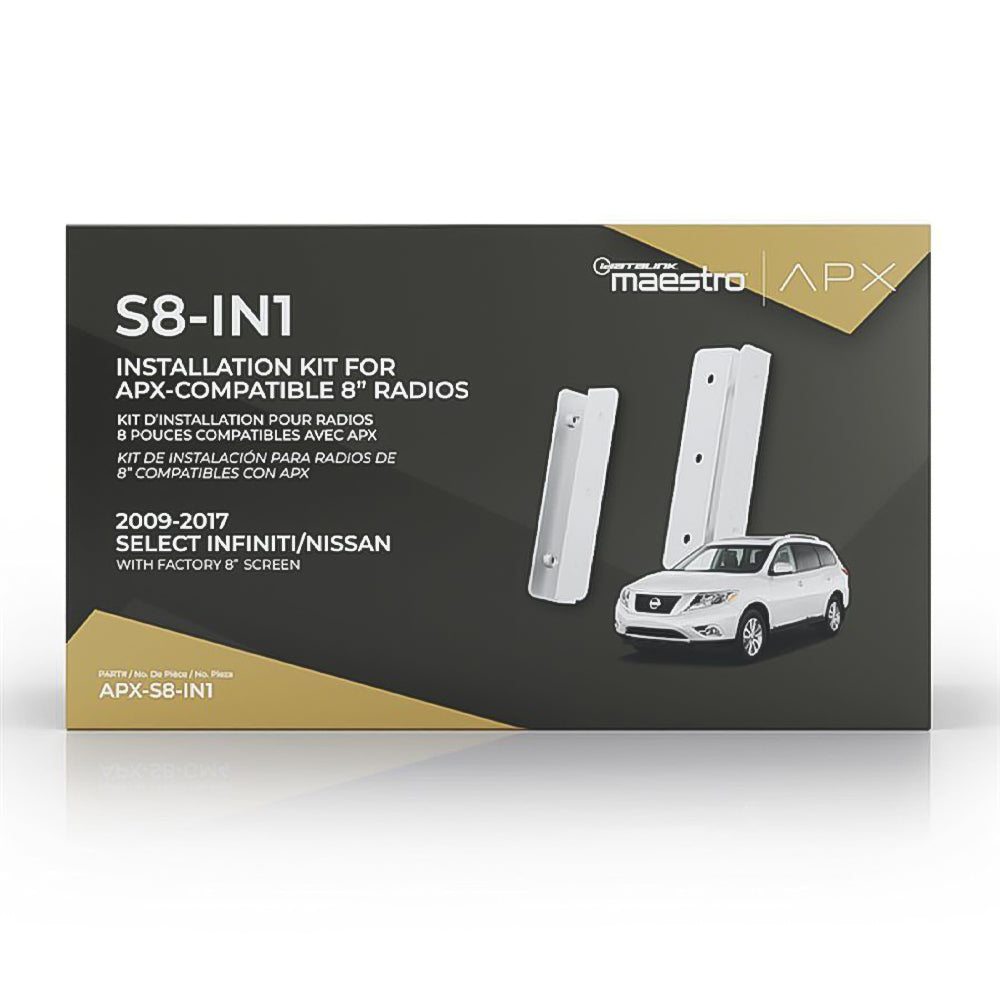

iDatalink Maestro APX-S8-IN1 8" Install Kit Nissan Quest QX56 QX80

iDatalink Maestro APX-S8-IN1 8" APX Installation Kit Nissan Quest QX56 and QX80

An installation dash kit for Kenwood and JVC APX 8" floating touchscreen stereos in select 2011-2016 Nissan Quest, QX56, and QX80 vehicles, the APX-S8-IN1 retains the factory amplifier, steering wheel controls, backup and multi-camera inputs, factory USB ports, climate display, and vehicle settings, with factory-grade fit and finish in black ABS plastic. iDatalink ADS-MRR or ADS-MRR2 module required (sold separately).

Product Overview

The iDatalink Maestro APX-S8-IN1 is an installation dash kit designed for Kenwood and JVC APX 8" floating touchscreen stereos in select 2011-2016 Nissan Quest, QX56, and QX80 vehicles. It accommodates an ISO custom-fit mount and is constructed from high-grade ABS plastic painted to match the factory dash colour with a factory-matched texture style and gapless fit for a factory-grade finish.

Compatible head units include the Kenwood DAX8000S, Kenwood DAX800XR, and JVC KW-Z800AW (all sold separately). The iDatalink ADS-MRR or ADS-MRR2 interface module is required and sold separately. Refer to the iDatalink vehicle fit guide for vehicle-specific feature coverage.

The APX-S8-IN1 retains the factory amplifier with balance and fade control; steering wheel controls with two additional function buttons for expanded radio functions; backup camera with dynamic parking guidelines and park assist chimes; multiple camera inputs with factory auto camera switching; factory USB ports; factory climate display and controls; vehicle settings; and accessory power and warning chimes. The kit also provides selectable performance gauges including Track Pack gauges, illumination outputs, and parking brake, reverse, and VSS outputs.

Features & Benefits

Factory-Grade Fit and Finish for Select Nissan Vehicles: The APX-S8-IN1 features a gapless fit between the dash and the kit, with high-grade ABS plastic construction painted to match the factory dash colour and a factory-matched texture style, providing a professional OEM-quality appearance after installation.

Compatible with Kenwood and JVC APX 8" Floating Touchscreen Stereos: The APX-S8-IN1 is designed for the Kenwood DAX8000S, Kenwood DAX800XR, and JVC KW-Z800AW APX 8" floating touchscreen stereos, all sold separately.

iDatalink ADS-MRR or ADS-MRR2 Module Required: Full vehicle feature retention requires the iDatalink ADS-MRR or ADS-MRR2 interface module, which must be purchased separately.

Factory Amplifier Retention with Balance and Fade: The APX-S8-IN1 retains the factory amplified system including balance and fade control, preserving the factory audio system architecture after the stereo upgrade.

Steering Wheel Control Retention with Expanded Functions: Factory steering wheel controls are retained with two additional function buttons that provide expanded radio function control on the aftermarket stereo.

Backup Camera Retention with Dynamic Parking Guidelines and Park Assist Chimes: The factory backup camera is retained with dynamic parking guidelines and park assist chimes maintained for audible parking assistance.

Multiple Camera Input Retention with Auto Camera Switching: Multiple camera inputs are retained with factory auto camera switching preserved for the correct camera view based on vehicle direction and proximity.

Factory USB Port Retention: Factory USB ports are retained via the included USB media module and USB-C harness, preserving factory USB connectivity after installation.

Factory Climate Display and Controls Retention: The factory climate control display and adjustment functions are retained on the aftermarket stereo screen, maintaining HVAC control and visualisation after the stereo upgrade.

Vehicle Settings and Accessory Power Retention: Factory vehicle settings and accessory power and warning chimes are retained after installation.

Selectable Performance Gauges Including Track Pack Gauges: The APX-S8-IN1 provides access to selectable performance gauges on the aftermarket stereo screen, including Track Pack gauge configurations.

Illumination, Parking Brake, Reverse, and VSS Outputs: Illumination outputs and parking brake, reverse trigger, and vehicle speed sensor (VSS) signal outputs are provided for full aftermarket stereo integration.

Technical Specs

What's in the Box

• S8-IN1-01 Bracket
• S8-IN1-02 Bracket
• USB Media Module
• USB-C Harness
• Vehicle/Interface Harness
• Preout Harness
• Backup Camera Harness
• D-HRN-S8 Harness
• Loop Harness
• Antenna Adaptor
• 3M Tape
• Pry Tool
• 10 x M5x6mm Screws
• 4 x M5x8mm Screws
• 4 Nuts
• 4 Split Washers
• GND Screw
• Quick Start Guide

Compatible With

The APX-S8-IN1 is designed for select 2011-2016 Nissan Quest, QX56, and QX80 vehicles. Compatible aftermarket stereos are the Kenwood DAX8000S, Kenwood DAX800XR, and JVC KW-Z800AW (all sold separately). The iDatalink ADS-MRR or ADS-MRR2 interface module is required and sold separately. Refer to the iDatalink vehicle fit guide to confirm compatibility with your specific vehicle before purchase.

Frequently Asked Questions

Is the iDatalink ADS-MRR or ADS-MRR2 module included with the APX-S8-IN1?

No. The iDatalink ADS-MRR or ADS-MRR2 interface module is required for full vehicle feature retention but is not included. It must be purchased separately. Refer to the iDatalink vehicle fit guide to confirm which module is correct for your specific vehicle.

Does the APX-S8-IN1 retain the factory backup camera?

Yes. The factory backup camera is retained with dynamic parking guidelines displayed on the aftermarket stereo screen and park assist chimes maintained for audible parking assistance.

Does the APX-S8-IN1 retain the factory USB ports?

Yes. The included USB media module and USB-C harness retain the factory USB port connectivity after installation.

Does the APX-S8-IN1 retain the factory amplifier?

Yes. The factory amplified system is retained including balance and fade control, preserving the factory audio system architecture after the stereo upgrade.

Which aftermarket stereos are compatible with the APX-S8-IN1?

The APX-S8-IN1 is designed for the Kenwood DAX8000S, Kenwood DAX800XR, and JVC KW-Z800AW APX 8" floating touchscreen stereos, all sold separately.
