iDatalink Maestro APX-S8-FO1 8" APX Installation Kit Ford and Lincoln

A factory-fit installation dash kit for Kenwood and JVC APX 8" floating touchscreen stereos in select Ford and Lincoln vehicles (2011-2022) with factory 8" MyFord Touch stereos, the APX-S8-FO1 retains the factory amplifier, steering wheel controls, backup and 360 cameras, climate display, factory USB ports, secondary vehicle display, and vehicle settings, and provides performance gauges, 12V accessory power, and vehicle data outputs. iDatalink ADS-MRR or ADS-MRR2 module required (sold separately).

Product Overview

The iDatalink Maestro APX-S8-FO1 is an installation dash kit designed for Kenwood and JVC APX 8" floating touchscreen stereos in select Ford and Lincoln vehicles from 2011-2022 fitted with factory 8" MyFord Touch stereos. It accommodates ISO mount and is constructed from high-grade ABS plastic painted to match the factory dash colour with a factory-matched texture style and gapless fit between the dash and the kit for a factory-grade finish.

Compatible head units include the Kenwood DAX8000S, Kenwood DAX800XR, and JVC KW-Z800AW (all sold separately). The iDatalink ADS-MRR or ADS-MRR2 interface module is required and sold separately. Refer to the iDatalink vehicle fit guide for vehicle-specific feature coverage.

The APX-S8-FO1 retains the factory amplifier with turn-on, fader, gain, DSP control, and speed-compensated volume; retains steering wheel controls with two additional function buttons for expanded radio functions; retains the backup camera with dynamic parking guidelines and park assist chimes; retains the factory 360 camera with auto-camera switching; retains the secondary vehicle display; retains factory climate display and controls and vehicle settings; and retains factory USB ports. The kit also provides selectable performance gauges including Track Pack gauges, 12V accessory power and illumination outputs, parking brake, reverse, and vehicle speed sensor (VSS) outputs.

Features & Benefits

Factory-Grade Fit and Finish for Select Ford and Lincoln Vehicles: The APX-S8-FO1 features a gapless fit between the dash and the kit, with ABS plastic construction painted to match the factory dash colour and a factory-matched texture style, providing a professional OEM-quality appearance after installation.

Compatible with Kenwood and JVC APX 8" Floating Touchscreen Stereos: The APX-S8-FO1 is designed for Kenwood DAX8000S, Kenwood DAX800XR, and JVC KW-Z800AW APX 8" floating touchscreen stereos, all sold separately.

iDatalink ADS-MRR or ADS-MRR2 Module Required: Full vehicle feature retention requires the iDatalink ADS-MRR or ADS-MRR2 interface module, which must be purchased separately. Refer to the iDatalink vehicle fit guide for vehicle-specific feature coverage.

Factory Amplifier Retention with Full Audio Control: The APX-S8-FO1 retains the factory amplified system including amplifier turn-on, fader control, gain adjustment, DSP control, and speed-compensated volume, preserving the factory audio system architecture after the stereo upgrade.

Steering Wheel Control Retention with Expanded Functions: Factory steering wheel controls are retained with two additional function buttons that provide expanded radio function control on the aftermarket stereo, maintaining hands-on-the-wheel operation.

Backup Camera Retention with Dynamic Parking Guidelines and Park Assist Chimes: The factory backup camera is retained with dynamic parking guidelines displayed on the aftermarket stereo screen and park assist chimes maintained for audible parking assistance.

Factory 360 Camera Retention with Auto-Camera Switching: The factory 360-degree camera system is retained, with automatic camera switching preserved so the correct camera view is displayed based on vehicle direction and proximity.

Secondary Vehicle Display Retention: The secondary vehicle display is retained after installation, maintaining access to vehicle information on the factory secondary screen.

Factory Climate Display and Controls Retention: The factory climate control display and adjustment functions are retained on the aftermarket stereo screen, maintaining HVAC control and visualisation after the stereo upgrade.

Factory USB Port Retention: Factory USB ports are retained via the included USB harness and housing components, preserving the factory USB connectivity for passengers after installation.

Selectable Performance Gauges Including Track Pack Gauges: The APX-S8-FO1 provides access to selectable performance gauges displayed on the aftermarket stereo screen, including Track Pack gauge configurations for performance-oriented Ford and Lincoln models.

12V Accessory Power, Illumination, Parking Brake, Reverse, and VSS Outputs: The kit provides 12V accessory power and illumination outputs, as well as parking brake, reverse trigger, and vehicle speed sensor (VSS) signal outputs for full aftermarket stereo integration.

High-Grade ABS Plastic Construction: The mounting plate, brackets, and trim components are manufactured from high-grade ABS plastic for long-term durability and a factory-consistent appearance.

Technical Specs

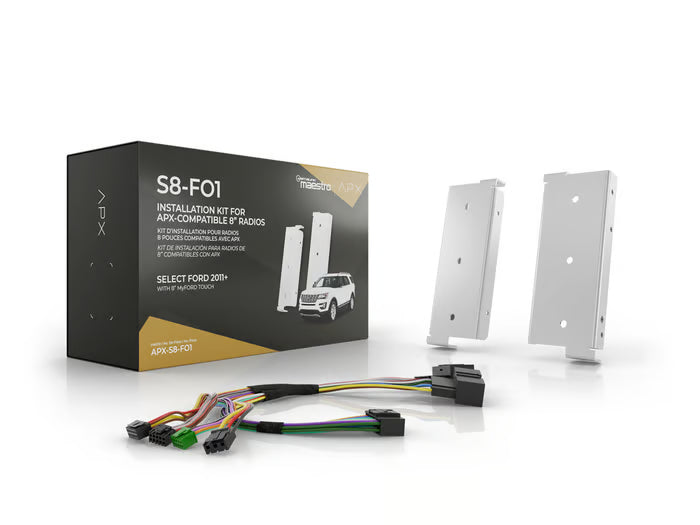

What's in the Box

• APX-S8-F01-01 Mounting Plate
• APX-S8-FO1-01 Bracket
• APX-SB-FO1-02 Bracket
• APX-S8-FO1-13 Mounting Bracket
• APX-SB-FO1-14 Mounting Bracket
• APX-S8-FO1-13 Bracket
• APX-S8-FO1-14 Bracket
• Vehicle/Interface Harness
• Sub Harness
• A-HRN-KIT Speaker Harness
• USB-C Cable
• USB-C to USB-A Cable
• Large and Small USB Housing
• USB Trim Panels
• 2 USB Trim-Rings
• 3 USB Trim-Plates
• Antenna Adaptor
• 3M Tape
• Pry Tool
• 10 x M5x6mm Screws
• 4 x M5x16mm Screws
• 4 x M5x8mm Screws
• 4 Nuts
• 4 Split Washers
• GND Screw
• Quick Start Guide

Compatible With

The APX-S8-FO1 is designed for select Ford and Lincoln vehicles from 2011-2022 fitted with factory 8" MyFord Touch stereos. Compatible aftermarket stereos are the Kenwood DAX8000S, Kenwood DAX800XR, and JVC KW-Z800AW (all sold separately). The iDatalink ADS-MRR or ADS-MRR2 interface module is required and sold separately. Refer to the iDatalink vehicle fit guide for vehicle-specific feature coverage before purchase.

Frequently Asked Questions

Is the iDatalink ADS-MRR or ADS-MRR2 module included with the APX-S8-FO1?

No. The iDatalink ADS-MRR or ADS-MRR2 interface module is required for full vehicle feature retention but is not included in the APX-S8-FO1 kit. It must be purchased separately. Refer to the iDatalink vehicle fit guide to confirm which module is correct for your specific vehicle.

Which aftermarket stereos are compatible with the APX-S8-FO1?

The APX-S8-FO1 is designed for Kenwood DAX8000S, Kenwood DAX800XR, and JVC KW-Z800AW APX 8" floating touchscreen stereos, all of which are sold separately.

Does the APX-S8-FO1 retain the factory backup camera?

Yes. The factory backup camera is retained with dynamic parking guidelines displayed on the aftermarket stereo screen and park assist chimes maintained for audible parking assistance.

Does the APX-S8-FO1 retain factory USB ports?

Yes. The included USB harness, USB housing, trim panels, trim-rings, and trim-plates in the kit are designed to retain the factory USB port connectivity after installation.

Does the APX-S8-FO1 retain the factory 360-degree camera?

Yes. The factory 360-degree camera system is retained with automatic camera switching preserved, displaying the correct camera view based on vehicle direction and proximity to obstacles.
