iDatalink Maestro APX-S8-F01 | APX 8″ Installation Kit | For Select Ford Vehicles

Upgrade Your Radio, Keep Your Dash!

APX 8″ Radio Installation Kit For Select Ford Vehicles

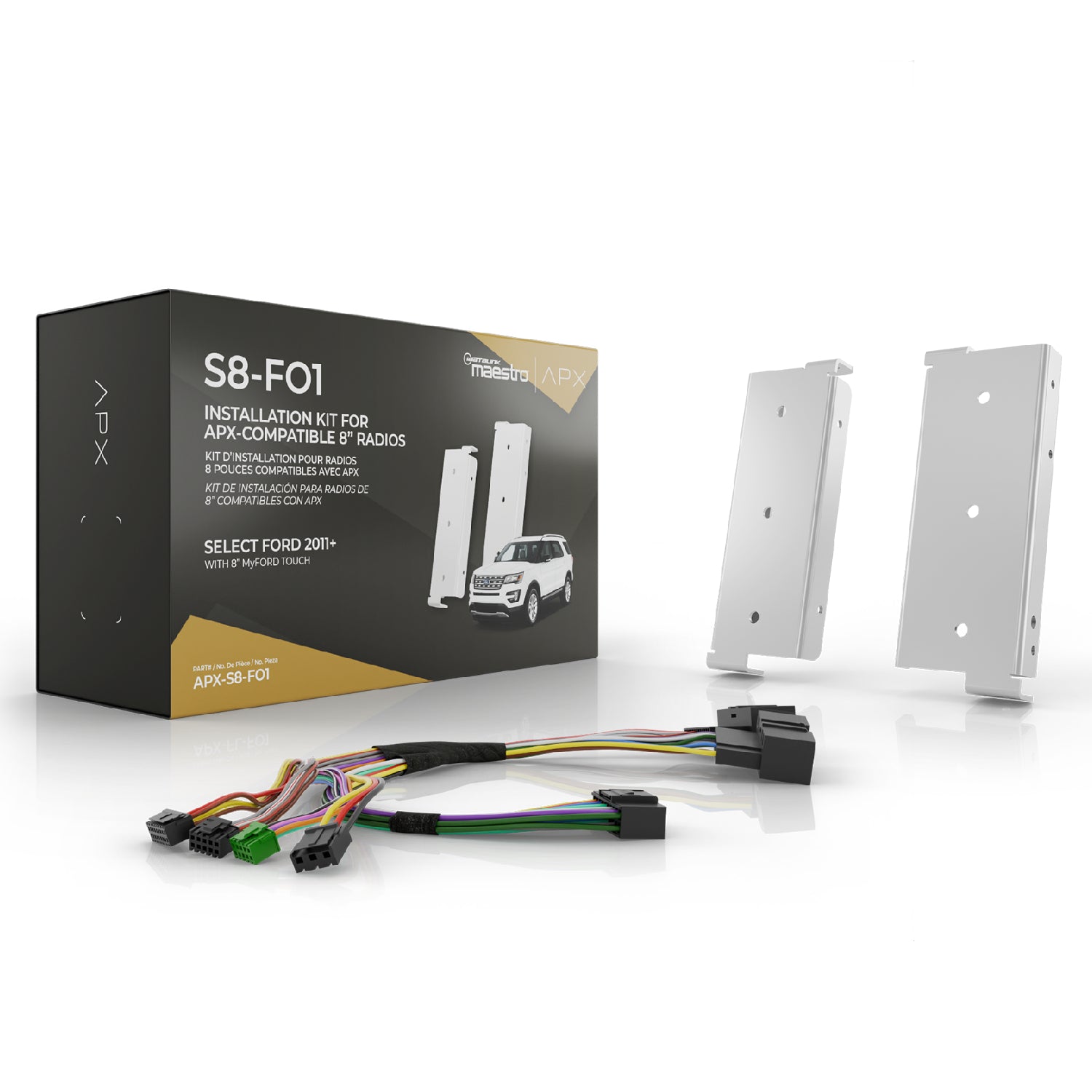

Adding an aftermarket car stereo to many newer cars used to be impossible or required expensive aftermarket dash kits. But now, ADS has teamed up with Kenwood and JVC to revolutionize aftermarket stereo installs with iDatalink Maestro APX installation kits, designed to work with their new Direct Replacement car stereos. With this kit and a Direct Replacement stereo, you'll retain your vehicle's factory radio bezel and controls for a factory appearance with aftermarket performance. The iDatalink Maestro APX-S8-FO1 installation kit includes mounting brackets and hardware for a Direct Replacement stereo with an 8" screen, a USB/hub adapter, an antenna adapter, plus vehicle-specific wiring harnesses.

Keep Factory Features, Gain New Functions
The APX-S8-FO1 kit lets you install Direct Replacement Kenwood or JVC aftermarket radios with an 8" screen in select 2011 and up Ford vehicles with factory 8" MyFord Touch radio when used in combination with the iDatalink Maestro RR or RR2 interface module (sold separately). This combination retains the following factory features (if present):

• Factory Amplifier with Turn-On & Fader

• Factory climate display and control can be accessed from the touchscreen of your Direct Replacement receiver.

• Access and modify factory vehicle settings through the compatible aftermarket head unit's touchscreen.

• Secondary vehicle display (if factory equipped) with audio information, hands-free information, and internal navigation

• Steering wheel audio controls with two function buttons and expandable radio functions

• Backup camera with dynamic parking guidelines and factory 360° camera. If adding an aftermarket front and/or side camera (sold separately) to your compatible head unit with multiple camera inputs, the vehicle's factory auto camera switching feature is also retained.

• USB Ports

• Warning Chimes

You'll also gain the ability to display vehicle information (tire pressure, battery voltage display, door open status with warning) and selectable performance gauges including "Track Pack" gauges and read/reset check engine codes. The kit's harness also provides 12V/15A accessory power and illumination outputs as well as the outputs (parking brake, reverse, vehicle speed sensor [VSS]) needed to install a navigation or multimedia receiver.

Installation Notes:

• The APX-S8-FO1 installation kit requires the purchase of the iDatalink Maestro RR or RR2 interface module (sold separately) and download of vehicle-specific firmware from iDatalink Weblink Desktop (for Windows and Mac).

• The APX-S8-FO1 requires IDatalink's ACC-HU-KEN1 head unit harness (sold separately) for direct connection to a compatible APX-compatible Kenwood or JVC aftermarket head unit.

• In some installations, the Kenwood KCA-A150EX or JVC KS-UA50 extension cable will also be required and sold separately.
  This kit is designed to work with Direct Replacement Kenwood and JVC aftermarket radios with 8" screens, including the DAX8000S, DAX800XR, and KW-Z800AW.

Please Note: AUS-MRR or AUS-MRR2 is also required. SYNC is not retained in any vehicle.
