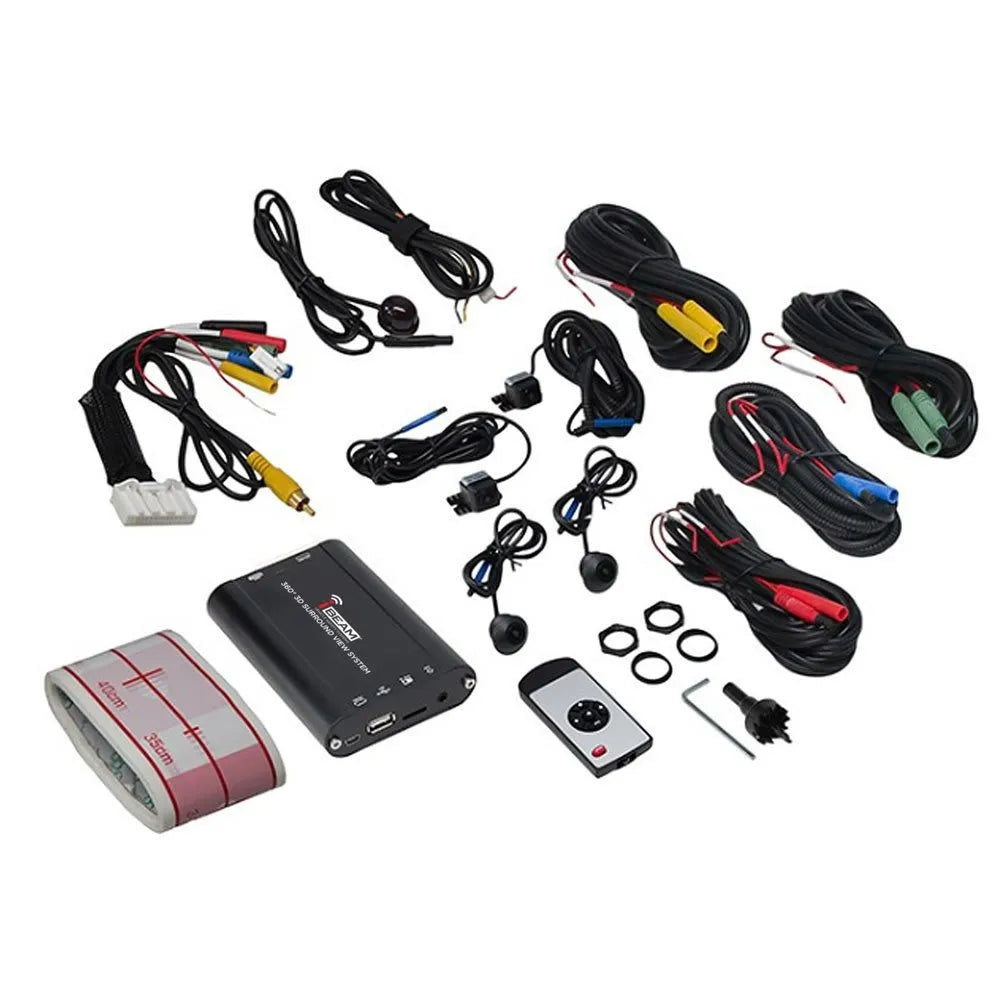

iBeam TE-360-3D 360-Degree 3D SVM Camera System With DVR

Make Driving Your Vehicle Easier With the iBeam TE-360 3D Camera System!

iBeam TE-360 3D Camera System
Make driving your vehicle easier with the iBeam TE-360 3D Camera System. This 360-degree 3D view camera system seamlessly blends images from four cameras plus shows an additional view from an overhead perspective to give drivers complete coverage.

360 3D Surround View Camera System
See a bird’s eye view of your vehicle from different angles. The 360-degree 3D view camera system seamlessly blends images from the included four cameras plus shows an additional view from an overhead perspective to give drivers complete coverage of their vehicle on the road.

Surround Cameras
Using AHD 2.0 camera technology, the included 4 cameras designed to be installed on the front, rear, and side mirrors offer superior picture quality with 720P resolution. With an ultra-low 0.01LUX rating, visibility is fantastic during night or day. Multiple views of the side cameras can be selected when the indicators are activated using the included IR remote control.

Driver Protection
If you’re sick of blind spots on your vehicle, the TE-360-3D from iBeam is the solution showing complete 360 views of the vehicle while changing lanes.

Capture Every Moment
With its built-in DVR functionality, the 360 3D camera system can also be used as a multi-channel digital video recorder. Capturing video from each camera is a great solution where video is needed for video evidence of an accident in high definition 1080P quality upto 28 hours of footage when used with a 32GB USB or SD card (SD Card or USB drive not included)

Module:

• Trigger inputs – Indicators, Reverse, Highbeam
• Built-in G Sensor
• SD Card Slot for recording (Supports up to 32GB)
• USB Port for recording (Supports up to 64GB)
• Power Consumption (490mA when vehicle running, <3mA in sleep mode)
• HDMI Output for standalone monitor
• CBVS Output with reverse trigger

Features:

• High-resolution 180-degree fish-eye cameras
• Cameras have a 0.01 LUX rating that allows for nighttime viewing
• Exclusive fish-eye distortion correction
• Seamless 3D & 360-degree video merging
• Dynamic & intelligent view angle switching
• Independent camera calibration
• 3D video de-interlacing and noise reduction technology for CVBS signal decoding
• Digital 1080p recorder supporting up to 32GB USB flash drive or SD card
• Smart power management to preserve battery power
• Automatic recording for up to 28 hours
• Maximum vehicle size 24 ft
• No Guidelines for reverse view

Specifications:

• Voltage: 9.5 ~ 36V DC
• Resolution: 1280×720 @ 30Fps
• Design: AHD2.0 (Next Chip)
• Output Channels: 1x RCA Video Output, 1x HDMI Output
• Weight: 1.81kg
