Hertz SP 4.900 SPL Show 1000W Advanced D-Class 4-Channel Amplifier
Click to open expanded view
HERTZ logo

In-Store Only

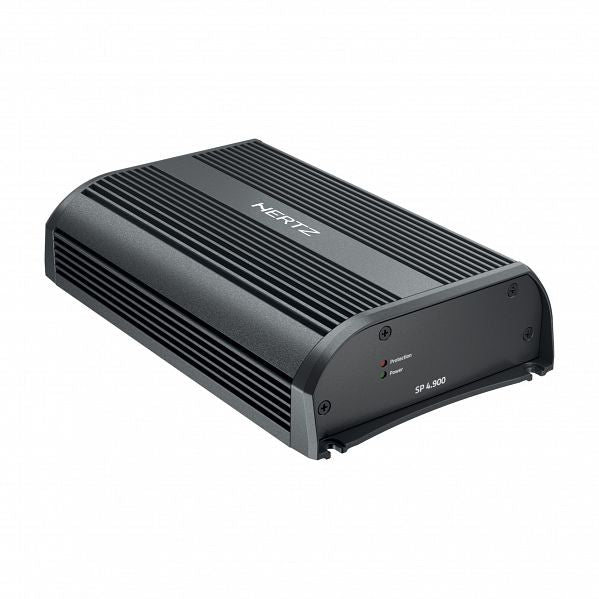

Hertz SP 4.900 SPL Show 1000W Advanced D-Class 4-Channel Amplifier

SKU: SP4900
Price
$1,309.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Ultra-Compact Size Amplifier With Impressive Power!

SPL Show 1000W 4 Channel Amplifier (SP 4.900)
The Hertz SP 4.900 is the first Hertz amplifier featuring the renewed Hertz ADC (Advanced D-Class) output stage, reaching up to 85 percent efficiency and delivering an impressive power rating of 160W x 4 (4 Ohm) RMS or 500W x 2 (4 Ohm) RMS when bridged, with an ultra-compact size of 211.6 x 130 x 49mm. Being ultra-compact with impressive power, SP 4.900 is the ideal choice for Motorcycle applications and for under-seat in sports cars and behind-seat installations in trucks.

Features:

  • Up to 85 percent efficiency thanks to ADC (Advanced D-Class) output stage
  • USS (Universal Speakers Simulators) allows SP 4.900 to work with head units featuring the speaker load detection circuit
  • 160W x 4 RMS x with ultra-compact size (211.6 x 130 x 49mm)
  • IP55 Aluminium chassis for maximum protection against humidity and external agents
  • No cooling fan to prevent internal accumulation of dirt
  • Sealed power cord, line inputs, and speaker outputs to prevent oxidation
  • Crossover filters and controls on a single side to facilitate calibration when the product is installed

Specifications:

  • Channels: 4 - 3 - 2
  • Nominal Power Supply Voltage: 11 ÷ 15V DC
  • Pulse Operating Voltage: 6 ÷ 16V DC
  • Idling Current: 1.1A
  • Idling Current When Off: 0.03mA
  • Consumption @ 14.4V DC, Min. Load Impedance (Max Musical Power): 50 A
  • Remote IN: 6 ÷ 15V DC (9mA)
  • DC-REM - Remote Turn On By SPK DC From Output BTL Speakers: 3.5 ÷ 7V DC
  • Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.02%
  • Damping Factor @ 1 kHz, 4Ω, 2V RMS: 200
  • Bandwidth @ -3dB: 10 Hz ÷ 35 kHz
  • S/N ratio (A Weighted @ 1V Input): 105 dBA
  • Pre-In sensitivity: 0.6 ÷ 6V RMS
  • Speaker-In Sensitivity: 2.2 ÷ 22V RMS
  • Minimum Load Impedance:
    @ 4Ch 2Ω
    @ 3Ch 2Ω + 2Ω + 4Ω
    @ 2Ch 4Ω
  • IP Rating: IP55
  • Operating Temperature Range: 0°C (32°F) ~ 55°C (131°F)
  • Adjustable Crossovers: Yes
  • Output Nominal Power (RMS) @ 14.4V DC, THD 1%:
    4 Ch: 160W x 4 (4Ω)
    4 Ch: 250W x 4 (2Ω)
    3 Ch: 160W x 2 (4Ω) + 500W x 1 (4Ω)
    3 Ch: 250W x 2 (2Ω) + 500W x 1 (4Ω)
    2 Ch: 500W x 2 (4Ω)
  • Total Power: 1000W (RMS)
  • Max Size: 211.6mm x 130mm x 49mm (8.33" x 5.118" x 1.929")
  • Weight: 2.15kg (4.74 Lbs.)
