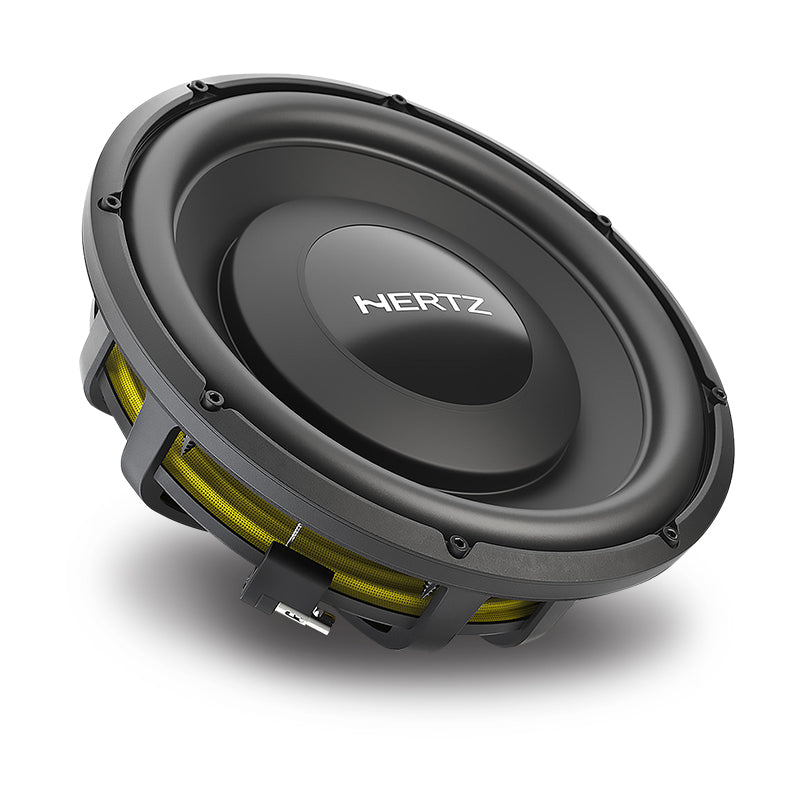

Hertz MPS 300 S4 Mille Pro Series 12" 1000W Shallow-Mount Subwoofer

Get All the Bass You're Looking For In a Package that Fits Into Smaller Spaces!

Mille Pro Series 12" Shallow-Mount Subwoofer
MPS 300 S4 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box. MPS 300 is optimized to work in ultra-compact sealed boxes starting from only 22,7 Lt (0.8 Cf).

A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited. Mille PRO subwoofer has a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.

This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for the spider and coil. This solution has allowed the movement of the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.

Features:

• Ultra-shallow overall depth
• 500W continuous power handling
• Optimized for extremely-compact sealed enclosure 20-24L (0.7-0.8CF)
• Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations
• Unrivalled mechanical excursion, 20 per cent higher than a traditional designs
• Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity
• Non-vented rear design allows reduced enclosure depth
• Robust screw-less mesh grille included with black screws provided
• Die-cast aluminium frame
• Solid horizontal 8AWG spring-loaded terminals
• EID Scan, Discover, Identify

Specifications:

• Size: 300mm (12")
• Power Handling:
  • Continuous: 500W
  • Peak: 1000W
• Impedance: 4-Ohm
• Depth: 88mm (3.46")
• Voice Coil Type" Single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38mm (1.5")
• Frequency Response: 25Hz - 400Hz
• Magnet: High Density Flux Ferrite
• Cone: Polypropylene
• Xmech: 20mm (0.79")
• Magnet Size: (D) 156mm x (D) 60mm x (H) 36mm (6.14" x 2.36" x 1.42")
• Weight: 6.64kg
