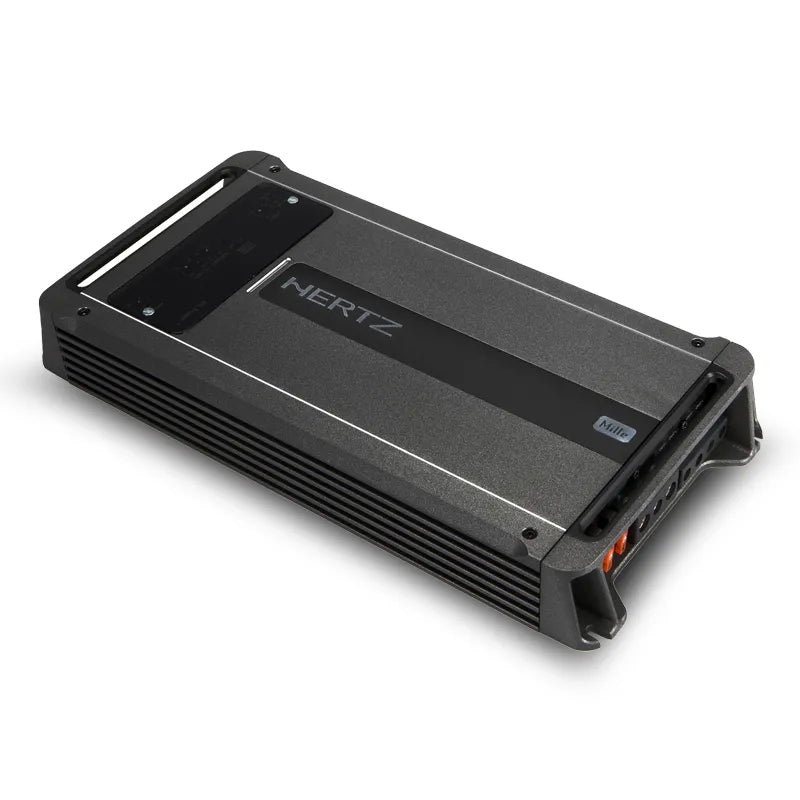

Hertz MLPOWER1 Mille Power 1-Channel D-Class Mono Amplifier (ML POWER 1)

The Kind of Power that Makes A High-Performance Subwoofer Sound It's Best!

Hertz Mille ML POWER 1 Mono Subwoofer Amplifier
Introducing the Hertz Mille ML Power 1 (Order Code MLPOWER1) 1000W 1 Channel amplifier. Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion, and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.

The powerful mono Hertzaudio car amplifier ML Power 1 (1000 W stable at 1 OHM) is perfect to drive the Mille subwoofers. The filter combination adopted for the Mille Power line is extremely flexible and ensures they can be used in any configuration. The active crossovers of MLPower 1 feature a 24 dB/Oct. adjustable slope Lo-Pass filter to adapt to every need. The control section, protected by a removable panel, can be accessed from the top for effortless tuning.

Please Note: Optional Bass Controller model HRCBM.

Features:

• ADC (ADVANCED D-CLASS TECHNOLOGY) ensures hi-end acoustic response with unmatched power efficiency.
• Thermally optimized double extruded heat sink featuring die-cast aluminium ergonomic terminals.
• Stable at 1 Ohm to drive safely Mille subwoofers.
• 24 dB/Oct. continuously adjustable (50 to 500Hz) Lo-Pass filters and 24dB/Oct. subsonic filter (18 to 40Hz)
• Variable phase control with 0–180 degrees continuity to optimize low frequencies.
• ML Power IN with balanced Speaker In inputs for increased noise rejection and RCA In.
• Operating status real-time monitoring through 4 LEDs.
• Pre-out full-range outputs are also available with Speaker In inputs.
• ART (Automatic Remote Turn On-Off)
• Optional gain controller for subwoofer volume control model HRCBM.

Specifications:

• Channels: 1
• Power Supply Voltage: 11 - 15V DC
• Idling Current (Power ON/OFF): 2A / 0.04mA
• Consumption @ 1-Ohm, 14.4V DC (Max Musical Power): 83.5A
• Remote-IN: 4 - 15V DC - 1mA
• Distortion - THD (100Hz @ 4-Ohm): 0.08%
• Bandwidth: 18 - 500Hz
• S/N Ratio (A-Weighted @ 1V): 105dB
• Damping Factor (100Hz @ 4-Ohm): 100
• Pre-LN Sensitivity: 0.2 - 5V RMS
• Load Impedance (MIN): 1-Ohm
• Adjustable Crossovers: Yes
• Output Power (RMS) @ 14.4V DC, THD 1%:
  1Ch: 600W x 1 (4-Ohm)
  1Ch: 1000W x 1 (2-Ohm)
  1Ch: 1200W x 1 (1-Ohm)
• Total Power RMS: 1200W
• Inputs & Filters:
  Inputs: Pre-IN & Speaker-IN
  Pre-OUT Full Range: Yes
  Filters Full: Yes
• Packaging Type: Giftbox
• Dimensions: 349mm x 170mm x 47mm
• Weight: 3.09kg
