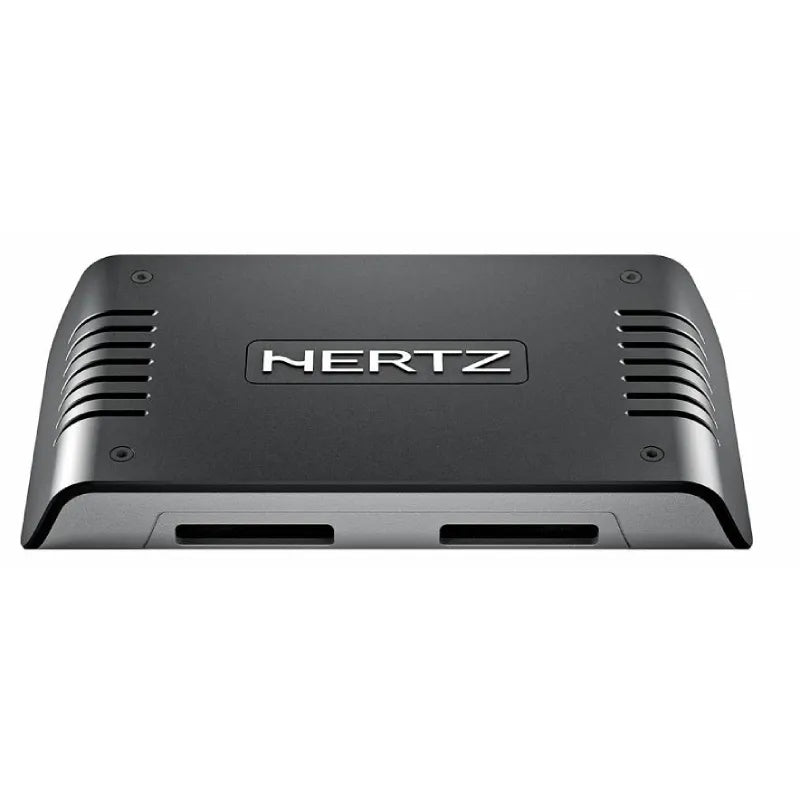

Hertz MLCX-2-TW Mille Series 2-Way Passive Crossover Network

Generating A Consistent Sound that is Harmonious in Every Detail!

2-Way Passive Crossover Network
MLCX 2 TW is the Mille passive crossover dedicated to the ML 1600 and ML 280, creating a perfect 2-way system. It features a three-position level control for the tweeter as well as top-quality components; it can effectively shape the acoustic response of the components installed in the vehicle, generating a consistent sound that is harmonious in every detail.

Specifications:

• Specific Components: Crossover 18/18 dB Oct
• Power Handling:
  Peak: 300W
  Continuous: 150W
• Crossover: Lo/Hi-Pass; 2.5 kHz @ 18/18 dB Oct.
• Component Adjustment: Tw +2; 0; -2dB
• Dimensions: 150mm x 282mm x 43.5mm
• Weight: 2.26kg

FAQ

Which speakers is the MLCX 2 TW for?

It is the Mille passive crossover for the ML 1600 and ML 280.

Can the tweeter level be adjusted?

Yes. There is a three position tweeter level control: +2, 0 and -2dB.

What is the crossover point?

2.5kHz with 18 dB/Oct slopes, rated at 150W continuous.

Can Frankies help me plan this into my system?

Yes. Talk to the Frankies team in store with your vehicle or boat details and we will help match the amplifier, speakers, wiring and fitting.
