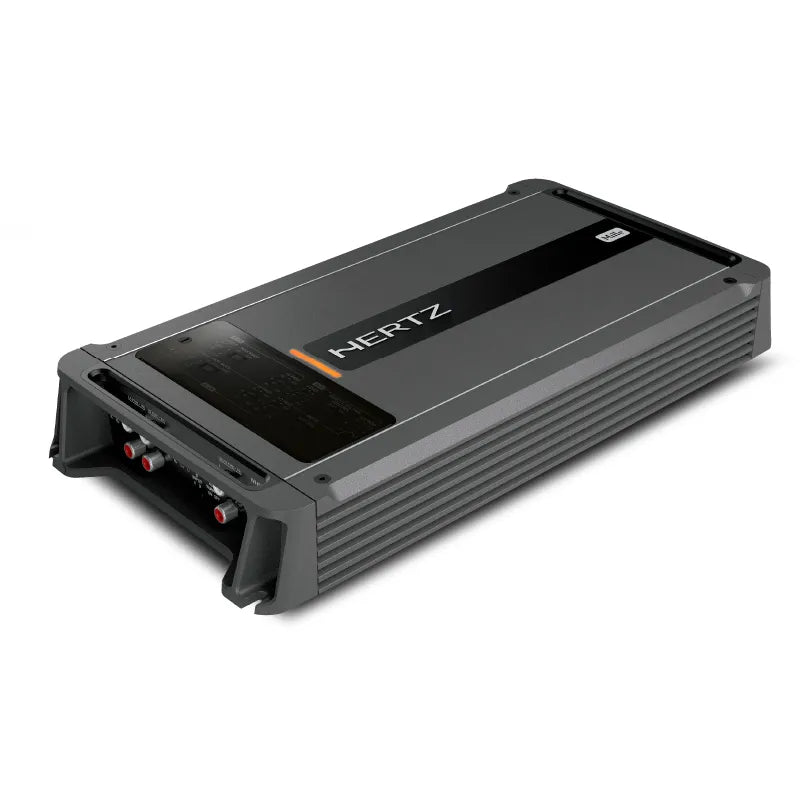

Hertz ML POWER5 950W Mille Power 5-Channel Class D Amplifier

Born to Fully Enhance the Outstanding Performance of the Mille Speakers

The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

Accessories:

HRC BM (Hertz Bass Management) - The remote control HRC BM - Bass Management, optional for MLPower 1, provides the ability to adapt the subwoofer level (-20 / + 6 dB) to any personal preference and favorite music genre.

Specifications:

• Channel mode: 5 - 3
• Output Power (RMS) @ 14.4 VDC
  • 5 Ch 70 W x 4 + 380 W x 1 (4Ω)
  • 5 Ch 100 W x 4 + 550 W x 1 (2Ω)
  • 3 Ch 200 W x 2 (4Ω) + 380 W x 1 (4Ω)
  • 3 Ch 200 W x 2 (4Ω) + 550 W x 1 (2Ω)
• Filters:
  • Hi-Pass: A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - B Ch: 80 ÷ 3.3k Hz @ 12 dB/Oct.
  • Lo-Pass: C Ch: 40 ÷ 500 Hz @ 24 dB/Oct.
  • Band-Pass: A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
• Distortion - THD (100Hz @ 4Ω): 0.08 %
• S/N Ratio (A weighted @ 1V): 100 dB A & B Ch - 106 dB C Ch
• Damping factor (100Hz @ 4Ω): 50 A & B Ch - 90 C Ch
• Size W x D x H mm (in.): 170 x 349 x 46.70 - (6.69' x 13.74' x 1.84')

Technologies:

• ADVANCED D-CLASS TECHNOLOGY - Ensures pure listening pleasure while keeping a compact size with unmatched power efficiency.
• LEDS STATUS DISPLAY - It monitors the amplifiers operating status in real time pointing out possible faults such as overheating, excessive loads on the outputs or short-circuits on cables or loudspeakers. This information allows the user to identify possible issues with the installation and to intervene before the amplifier goes into protection to prevent any damages.
• HDP IN & ART(TM) - The ML Power IN module features a Speaker In input (with balanced circuitry minimizing noise) for OEM head units and an RCA IN input for aftermarket sources. When the Speaker In is used, the ART™ function (Automatic Remote Turn On-Off) is enabled, managing the amplifier remote turn on to avoid unpleasant “bumps”.
• ADVANCED HEATSINK - The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.
