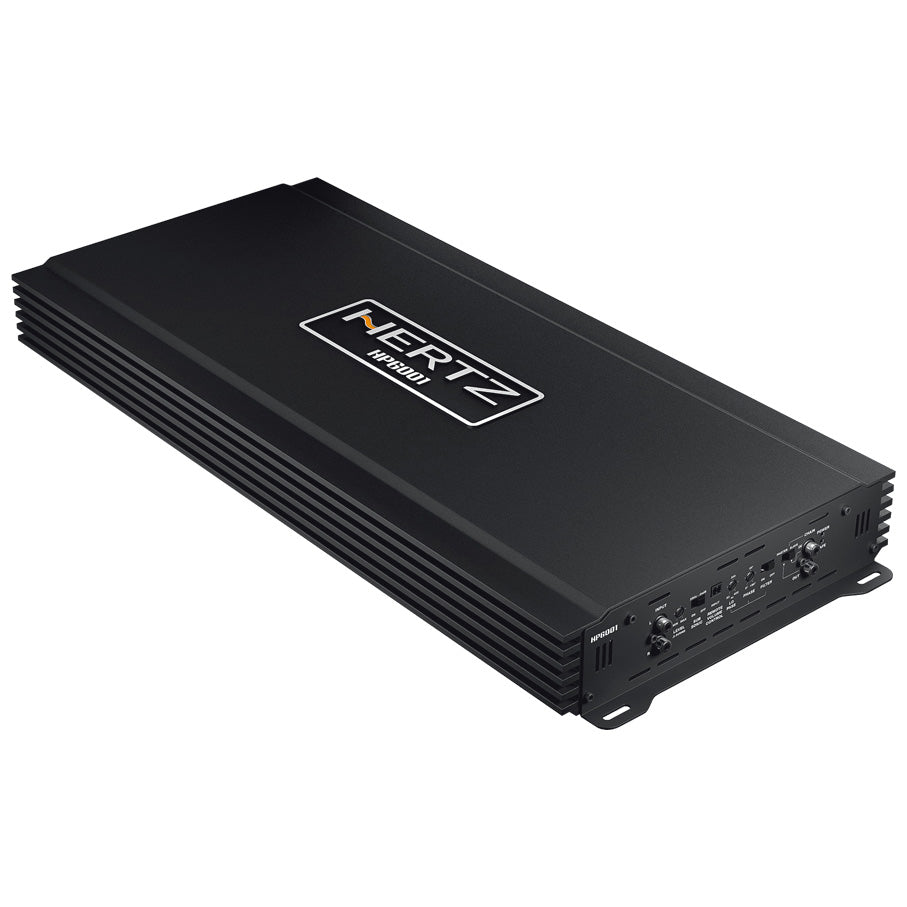

Hertz HP 6001 SPL Class D Mono-Block Amplifier With Crossover 6000W

HP 6001 is the Most Powerful SPL Car Audio Amplifier within the SPL Show Line

The overbuilt power supply stage and the D Class output stage featuring 12 Mosfets provide the ability to deliver up to 6000W power. The wide array of possible setups, with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control and remote volume control, make HP 6001 an extremely powerful amplifier, perfect for SPL applications. Thanks to the Chain Mode function, to cascade a second amplifier into a single load, a devastating amount of power up to 12000W can be achieved with record SPL levels.

Specifications:

• Channel Mode - 1
• Output (RMS) - 1ch / 1670W x 1 @ 4ohm, 1ch / 2970W x 1 @2ohm, 1ch / 5000W x 1 @1ohm
• Filters - 50/400Hz @ 24 dB/Oct.
• Distortion / THD (100Hz @ 4ohm) - 0.1%
• S/N Ratio - 86dB
• Damping Factor (100Hz @ 4ohm) - 500
• Dimentions W x D x H mm - 644 x 280 x 65.5

Key Features:

Overbuilt Power Supply Stage
In order to deliver such extraordinarily high power and to transfer it uninterruptedly, the power supply stage features multiple toroidal transformers, 105° Low ESR primary capacitors, TO247 Mosfets and large tank-type secondary capacitors.
