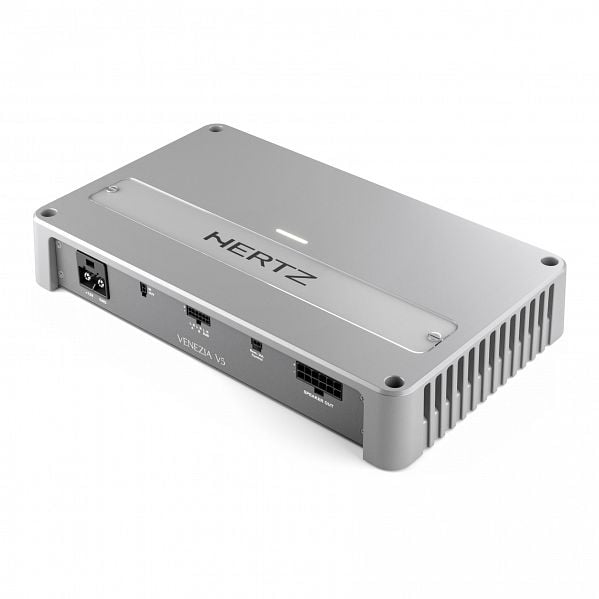

Hertz HMV5 Venezia V5 5-Channel Marine Amplifier

Most-Powerful Five-Channel Hertz Marine Amplifier Ever!

5-Channel Marine Amplifier (Venezia V5)
The Hertz HMV5 Venezia V5 is the most-powerful five-channel Hertz marine amplifier ever, featuring 130 W x 4 (4 ohm) plus 490 W (4 Ohm) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment.

Venezia V5 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature and thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output and Power connections streamline installation and enhance durability in the field. The fan-less convection cooling system is integrated into the cast heat-sink chassis.

The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V5 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Features:

• Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature and thermal shock) featuring IPX2 certification.
• ADC (Advanced D-Class) Technology 2 Ohm stable output stage providing high performance with superior efficiency.
• Die-cast aluminium compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
• Balanced fully-differential input circuitry to reject electromagnetic disturbances.
• Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
• Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
• Short-circuit, overload and thermal protections with auto-resetting.
• Plug and Play Input and Output connections with safe-lock.
• Proprietary Plug and Play Power Supply Connector with safe-lock.

Specifications:

• Channels: 5 - 3
• Power Supply Voltage: 9 - 16V DC
• Idling Current (Power On/Off): 1.8A / 0.04mA
• Consumption @ 1-Ohm, 14.4V DC (Max Musical Power): 70A
• Remote In: 7-15V DC - 1mA
• Distortion - THD (100Hz @ 4-Ohm): Less Than 0.05%
• Bandwidth: 10 - 42kHz
• S/N Ratio (A Weighted @ 1V): 102dB
• Damping Factor (100Hz @ 4- Ohm): 130
• Pre-ln Sensitivity: 0.2-5V RMS
• Pre-ln Impedance: 10k-Ohm
• Load Impedance (MIN):
  • At 5Ch: 2-Ohm
  • At 3Ch: 4-Ohm + 4-Ohm + 2-Ohm
• Adjustable Crossovers: Yes
• Output Power (RMS) @ 14.4V DC, THD 1%:
  • 5Ch: 130W x 4 (4-Ohm) + 490 x 1 (4-Ohm)
  • 5Ch: 220W x 4 (2-Ohm) + 820W x 1 (2-Ohm)
  • 3Ch: 440W x 2 (4-Ohm) + 490W x 1 (4-Ohm)
  • 3Ch: 440W x 2 (4-Ohm) + 820W x 1 (2-Ohm)
• Total Power RMS: 1700W
• Weight: 2.50kg
