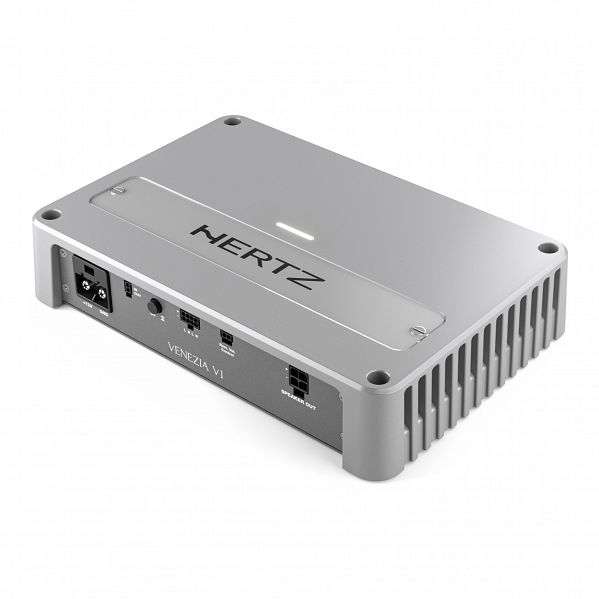

Hertz HMV1 Venezia V1 Monoblock Marine Amplifier

Most-Powerful Monoblock Hertz Marine Amplifier Ever!

Venezia V1 Mono Marine Amplifier
The Hertz HMV1 Venezia V1 is the most-powerful mono Hertz marine amplifier ever, featuring 1260 W at 1 Ohm stable! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation. Venezia V1 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature and thermal shock) and has obtained the IPX2 certification.

The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fan-less convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V1 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Features:

• Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature and thermal shock) featuring IPX2 certification.
• ADC (Advanced D-Class) Technology 1 Ohm stable output stage providing high performance with superior efficiency.
• Die-cast aluminium compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
• Balanced fully-differential input circuitry to reject electromagnetic disturbances.
• Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
• Short-circuit, overload, and thermal protections with auto-resetting.
• Plug and Play Input and Output connections with safe-lock.
• Proprietary Plug and Play Power Supply Connector with safe-lock.

Specifications:

• Channels: 1
• Power Supply Voltage: 9 - 16V DC
• Idling current (Power On/Off): 1A / 0.04mA
• Consumption @ 1-Ohm, 14.4V DC (Max Musical Power): 52A
• Remote-In: 7-15V DC - 1mA
• Distortion - THD (100Hz @ 4-Ohm): Less Than 0.02%
• Bandwidth: 10 - 500Hz
• S/N Ratio (A Weighted @ 1V): 102dB
• Damping Factor (100Hz @ 4-Ohm): 500
• Pre-ln Sensitivity: 0.2-5V RMS
• Pre-ln Impedance: 10k-Ohm
• Load Impedance (MIN): 1-Ohm
• Adjustable Crossovers: Yes
• Output Power (RMS) @ 14.4V DC, THD 1%:
  • 1Ch: 700W x 4 (4-Ohm)
  • 1Ch: 1260W x 4 (2-Ohm)
  • 1Ch: 1260W x 2 (1-Ohm)
• Total Power RMS: 1260W
• Weight: 1.98kg
