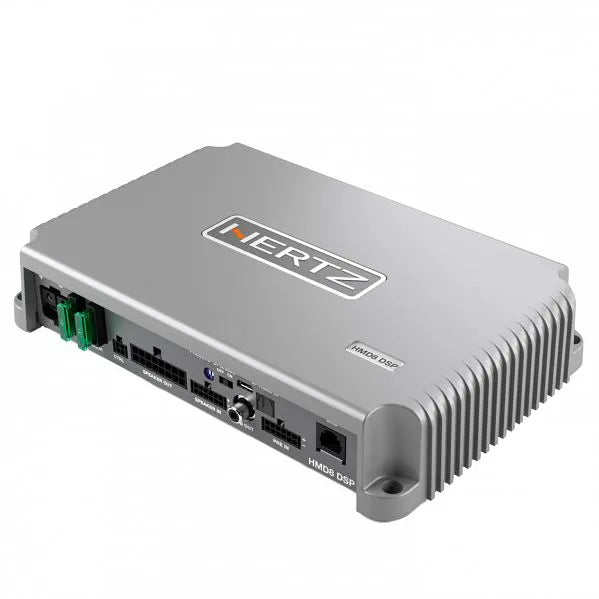

Hertz HMD8DSP 8-Channel D-Class Marine Amplifier With DSP
Click to open expanded view
HERTZ logo

In-Store Only

Hertz HMD8DSP 8-Channel D-Class Marine Amplifier With DSP

SKU: HMD8DSP
Price
$2,624.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

New Highs of Listening Pleasure During Navigation

8 CH Marine Amplifier With DSP
The HMD8 DSP, powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system.

The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ω) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. "Power for the Waves” design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.

Features:

  • Built in DSP, Hertz marine DSP technology allows you to move freely in the boat preserving a perfect surround effect, even with outdoor listening
  • Multi Zone Setup, Hertz Marine DSP optimizes acoustic performance for each of the 3 configurable listening zones, regardless of where the speakers are installed and the point of the passenger within the zone, maximizing listening pleasure while cruising
  • Crossover Filter; Filter Type: Full / High pass / Low pass / Band pass. Filter model and slope: Butterworth, Linkwitz-Riley, Bessel, Chebyshev, QLP quasi-linear phase
  • Speakers Emission Time Alignment, 0 - 510 cm (0 - 200.8 inches)
  • Graphic Parametric EQ, n. 10 parametric poles (Peaking, High Shelf, Low Shelf, Notch, All pass) ±12 dB gain, variable Q (0.5 – 16.0) n. 10 graphic poles
  • PC-Software, Hertz Navigator software allow to create pre-optimized software setup files for a specific boat model and the related audio system installed, ensuring a correct acoustic result in a very short time
  • Advance D-CLASS, Thanks to the Hertz advanced D-CLASS output stage, HMD8 DSP joins maximum sound quality with unmatched efficiency to be very compact and easily installed in any position of the boat

Specifications:

  • Filter Type: Full / High Pass / Low Pass / Band Pass
  • Filter Model & Slope:
    • Butterworth (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)
    • Linkwitz-Riley (12, 24, 36, 48, 60 dB/oct)
    • Bessel (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)
    • Chebyshev (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)
    • QLP Quasi-Linear Phase (6, 12 dB/oct)
  • Crossover Frequency: 20 Hz – 20000 Hz Integer Values
  • Phase Control: 0 ° – 180°, All Pass Equalizer Poles
  • Bass Boost: N/A
  • Analog Input Equalizer: N/A
  • Output Equalizer:
    • Graphic & PARAMETRIC MODES
    • 10 Parametric Poles (Peaking, High Shelf, Low Shelf, Notch, All pass) ±12 dB Gain, Variable Q (0.5 – 16.0)
    • 10 Graphic Poles
  • Time Alignment Distance: 0 – 510 cm (0 – 200.8 inches)
  • Time Alignment Delay: 0 – 15 ms
  • Time Alignment Step: 1 cm
  • Time Alignment Fine Set Step: 1 Sample
  • Memories:
    • 2 memories
    • 3 Parametric Poles for Each Memory (Peaking, High Shelf, Low Shelf) ±12 dB Gain, Variable Q (0.5 – 16.0)
  • Preset: Rotary Switch for 7 Installation Presets
  • Distortion – THD @ 1 kHz, 4Ω, 70% Rated Power: 0.06%
  • Damping Factor @ 1 kHz, 4Ω, 2 VRMS: > 110
  • Bandwidth @ -1.5dB: 10Hz - 22kHz
  • S/N RATIO (A Weighted @ 1V Input) Master Input: 100 dBA
  • S/N RATIO (A Weighted @ 1V Input) Optical Input: 105 dBA
  • Input Sensitivity Pre-In: 0.6 - 6 VRMS
  • Input Sensitivity Speaker-In: 2.2 ÷ 22 VRMS
  • Minimum Load Impedance:
    • 8Ch: 2Ω
    • 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω *Output Power (RMS) @14.4 VDC, 1% THD:
    • 8Ch @ 4Ω: 85 W x 8
    • 8Ch @ 2Ω: 130 W x 8
    • 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 260 W x 4
