Hertz HMD1 1000 Watts Marine Mono D-Class Amplifier

Make Every Cruise Memorable with Hertz Marine

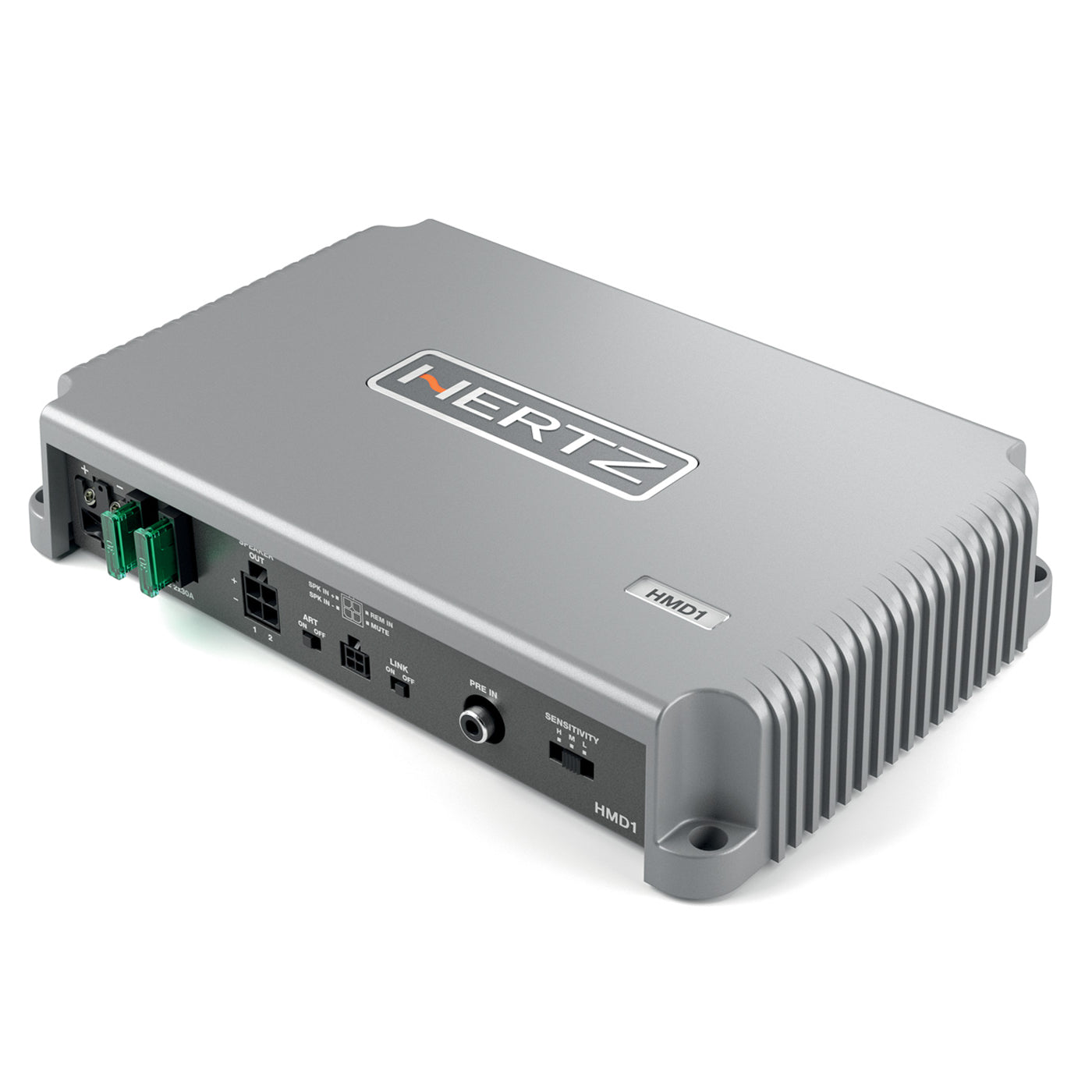

HMD1 High Power Mono Amplifier
HMD1 mono amplifier is the perfect solution to add one or more marine subwoofer to your vassel, being the ideal power extension of HMD8 DSP. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.

Features:

• Advance D-Class
  Thanks to the Hertz advanced D-CLASS output stage, HMD1 joins maximum sound quality with unmatched efficiency to be very compact and easily installed in any position of the boat.

• Corrosion Protection
  Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated Marine grade (epoxy coated) PCB boards.

• Salt Fog Proof
  To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

• Water Jet Tested
  The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

Specifications:

• Channel Mode: 1
• Output Power (RMS) @ 14.4VDC:
  • 1Ch@4Ω: 500W
  • 1Ch@2Ω: 800W
  • 1Ch@1Ω: 1000W
• Filters:

  • Bypass: No
  • Hi-Pass: No
  • Lo-Pass: No
  • Band-Pass: No
  • Subsonic: No
• Distortion - THD (100Hz @4Ω): 0.1%
• S/N Ratio (A Weighted @ 1V): 110 dBA
• Damping Factor (100Hz @4Ω): 140
• Size W x D x H: mm (in.): 243 x 48 x 159 / 9.56 x 1.8 x 6.25
