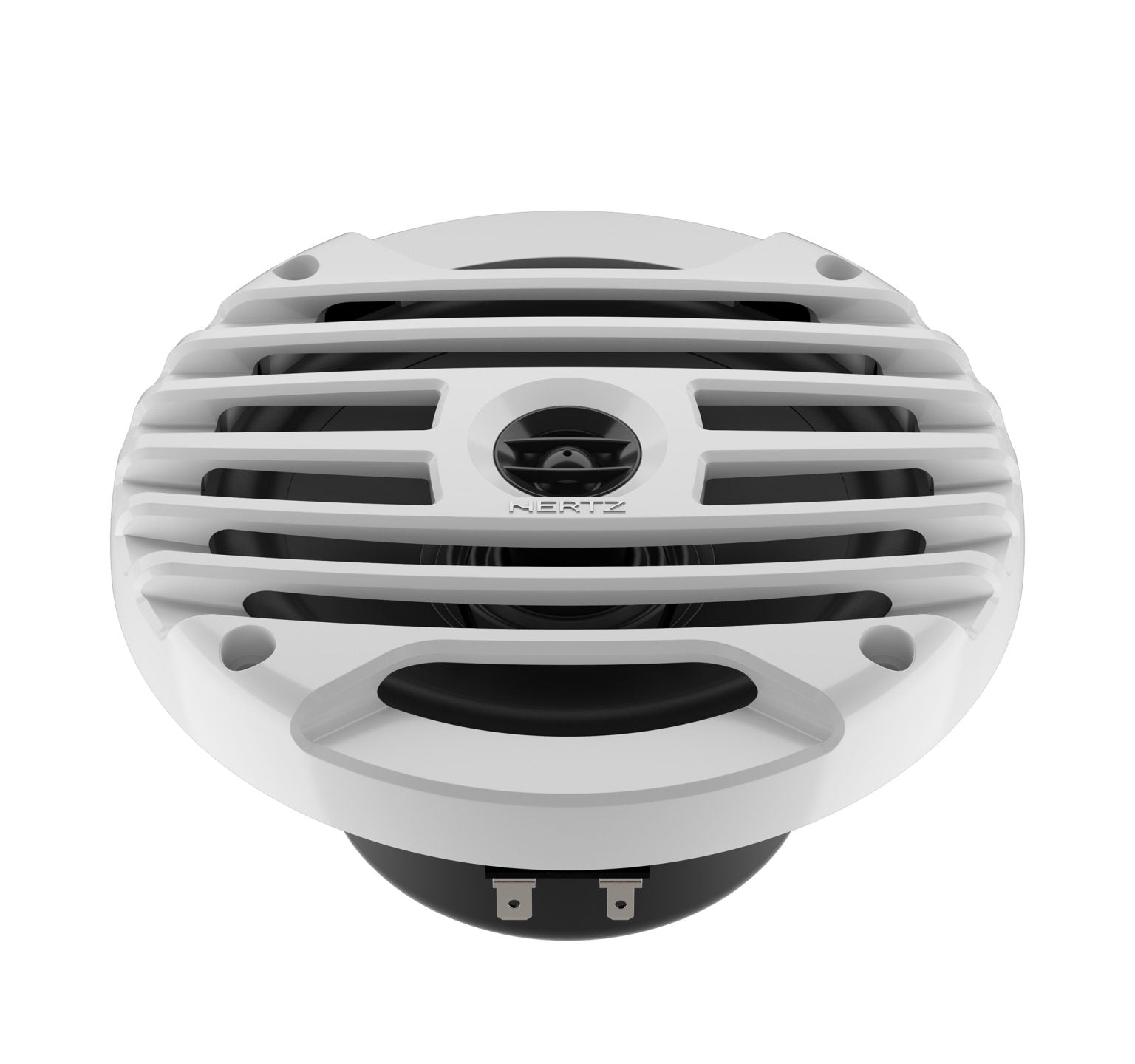

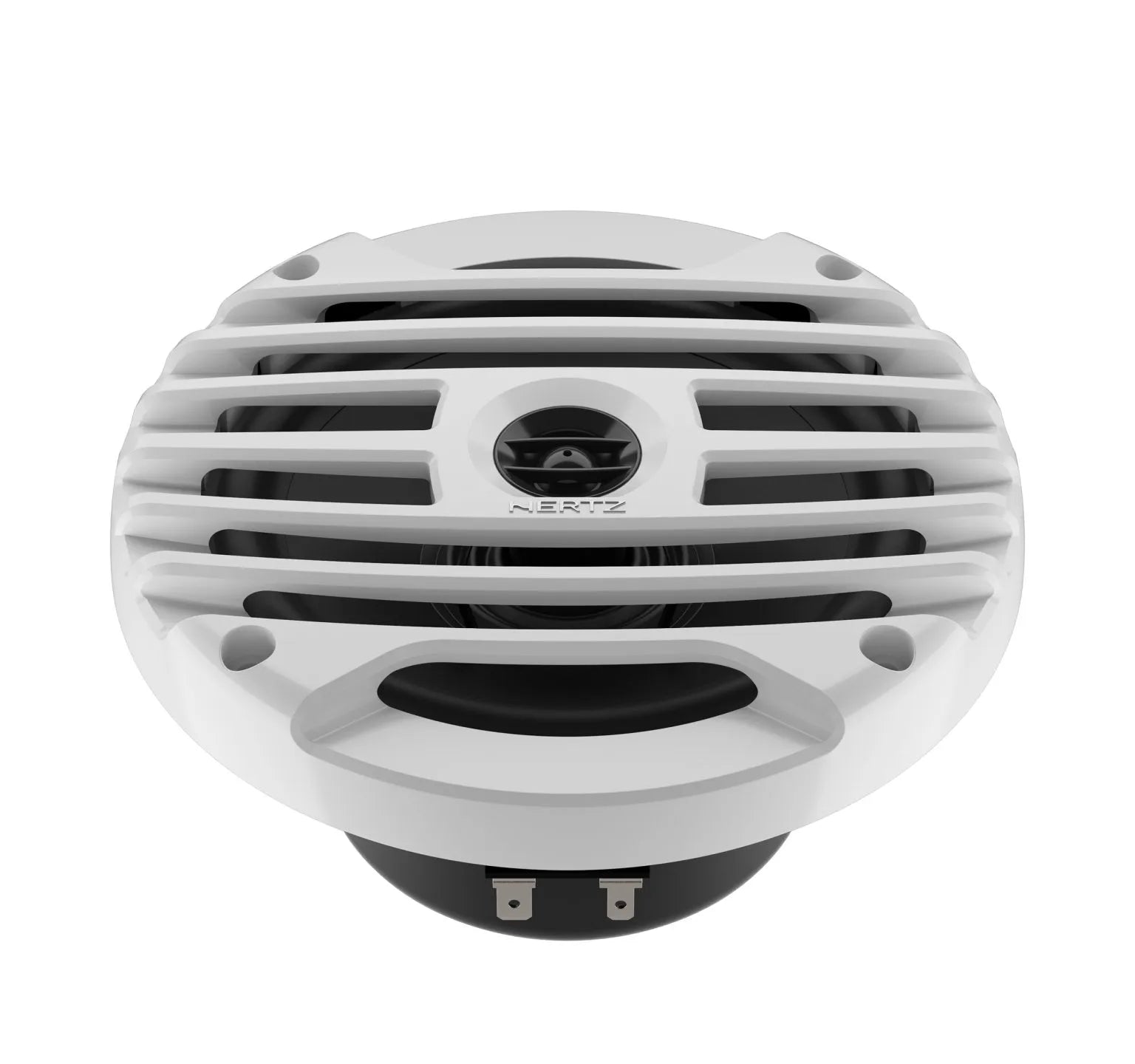

Hertz HEX65MWO 6.5" Marine Coaxial 50W RMS IP65 White Grille Certified

Hertz 6.5" Marine Coaxial Speaker 50W RMS / 100W Peak, IP65, ASTM UV & Salt Fog Certified, White Grille, Twist-Lock, Neodymium Tweeter, Resettable Protection.

Product Overview

The Hertz HEX 6.5 M-W-O is a 6.5" marine coaxial speaker bearing the Hertz Pure Marine certification tested and verified to IP65 (total protection against water jets), ASTM-D4329 UV resistance, and ASTM-B117 salt fog standards. Designed for boats and marine environments where standard automotive speakers fail, the HEX 6.5 M-W-O combines marine-grade materials and construction with refined acoustic engineering.

The high-efficiency tweeter is FEM-simulation optimised for maximum off-axis dispersion critical for in-boat listening where listeners are rarely positioned directly on-axis. The woofer features a 25mm voice coil fine-tuned for infinite baffle applications with silicone-insulated lead wires for durability. A sealed built-in crossover with resettable solid-state tweeter protection, nickel-plated corrosion-resistant terminals, and a sound-transparent mesh grille with twist-and-lock system complete the package. The Marine Total White grille finish integrates cleanly into any boat interior or deck aesthetic.

Mounting depth is 85mm (3.25") with a 172mm outer diameter suitable for installations where depth is limited.

Key Specifications

• Component type: Coaxial
• Size: 165mm (6.5")
• Power handling continuous: 50W
• Power handling peak: 100W
• Impedance: 4Ω
• SPL: 88dB
• Frequency response: 50Hz – 23kHz
• Mounting depth: 85mm (3.25")
• Outer diameter (A): 172mm (6.77")
• Cutout diameter (B): 128mm (5.04")
• Woofer voice coil: 25mm (1")
• Tweeter voice coil: 13mm (0.5")
• Woofer magnet: High-density flux ferrite
• Tweeter magnet: Neodymium
• Cone material: Polypropylene with UV inhibitors
• Dome material: PEI
• IP rating: IP65
• UV standard: ASTM-D4329
• Salt fog standard: ASTM-B117
• Weight (single speaker): 1kg (2.2lb)

Features & Benefits

• Hertz Pure Marine certified: IP65 water jet, ASTM-D4329 UV, and ASTM-B117 salt fog tested and certified built for real marine environments
• IP65 water jet protection: Fully protected against water jets of varying intensity suited to exposed deck and cockpit installations
• UV resistant materials: All materials tested to ASTM-D4329 for long-term UV exposure on open water
• Salt fog tested: ASTM-B117 certified salt fog resistance corrosion protection in harsh coastal and marine atmospheres
• FEM-optimised tweeter: High-efficiency neodymium tweeter engineered for maximum off-axis emission ideal for in-boat listening where listeners are positioned away from direct axis
• Marine Total White grille: Clean, elegant white finish with sound-transparent mesh integrates with boat interior and deck aesthetics
• Twist-and-lock grille system: Rock-solid grille retention with tool-free twist-lock installation and removal
• 25mm woofer voice coil infinite baffle tuned: Polypropylene cone with UV inhibitors and silicone-insulated lead wire for marine durability
• Sealed built-in crossover with resettable tweeter protection: Solid-state resettable tweeter protection eliminates fuse replacement after overload events
• Nickel-plated corrosion-resistant terminals: Long-term connection reliability in marine environments

Technical Specs

Thiele-Small / Electro-Acoustic Parameters

Physical Dimensions

Frequently Asked Questions

What marine certifications does this speaker carry?

The HEX 6.5 M-W-O carries the Hertz Pure Marine certification covering IP65 (total protection against water jets), ASTM-D4329 (UV resistance), and ASTM-B117 (salt fog resistance).

What is the mounting cutout diameter?

128mm (5.04") confirm this matches your mounting location before purchasing.

Does the tweeter have protection against overload?

Yes a sealed built-in crossover with a resettable solid-state tweeter protection circuit is built in. It resets without fuse replacement after an overload event.

Is this speaker sold individually or as a pair?

The supplier data provides single-speaker specifications. Confirm pack quantity with the retailer before purchasing.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
